40W Fixed Focus Laser Module 450nm For CNC 3018pro Engraving Cutting Machine
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | LUNYEE |
| MPN | Does Not Apply |
| Output Power | 40w |
| Wavelength | 450nm |
| Country/Region Of Manufacture | China |
| Voltage | 12V |

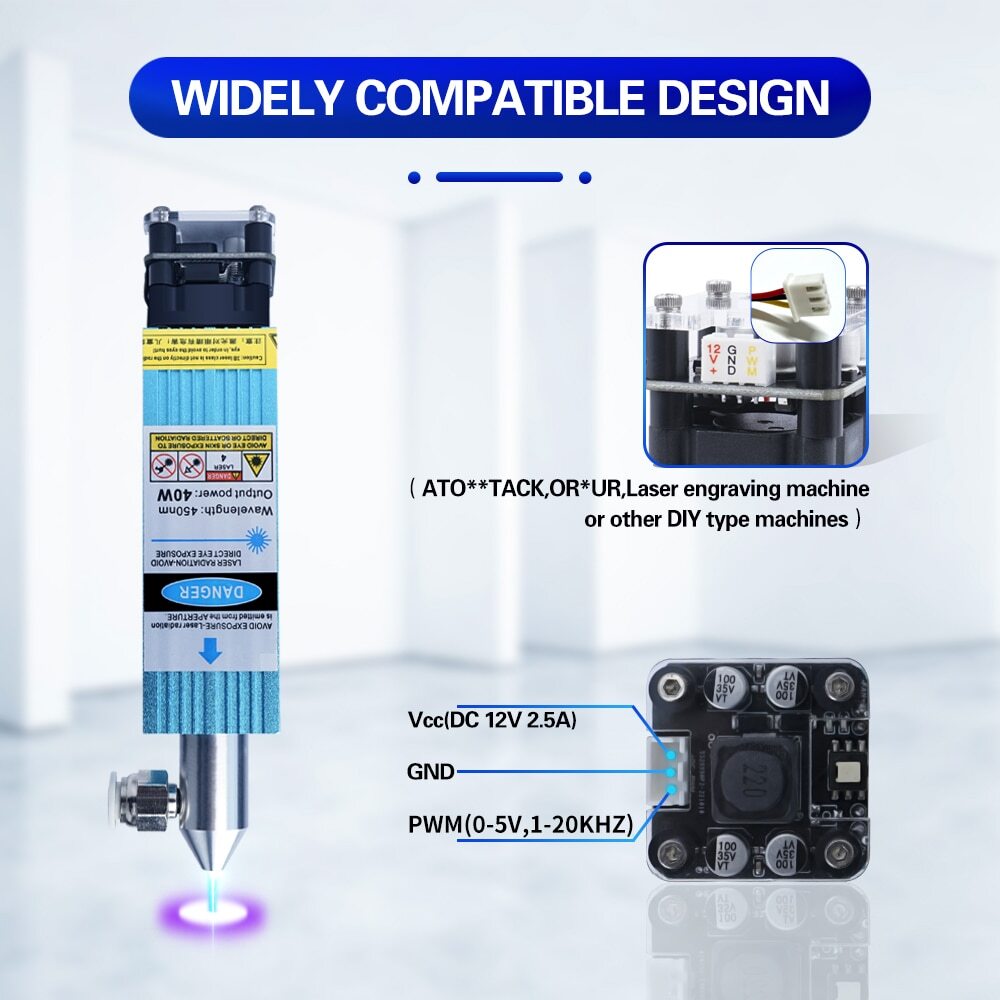

| Control Method | PWM/TTL |
| Spot Pattern | Dotted |
| Material | Aluminum + Copper |
| Dimensions | 33*33*55 |

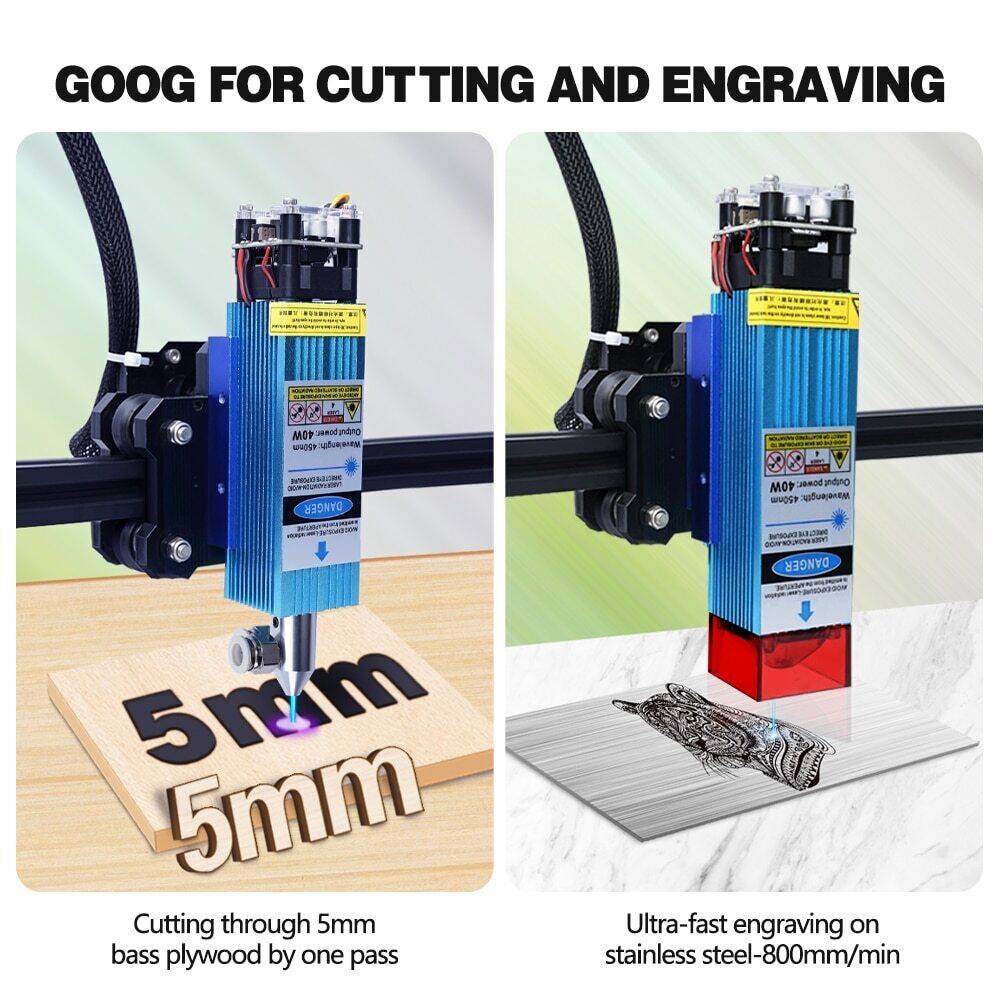

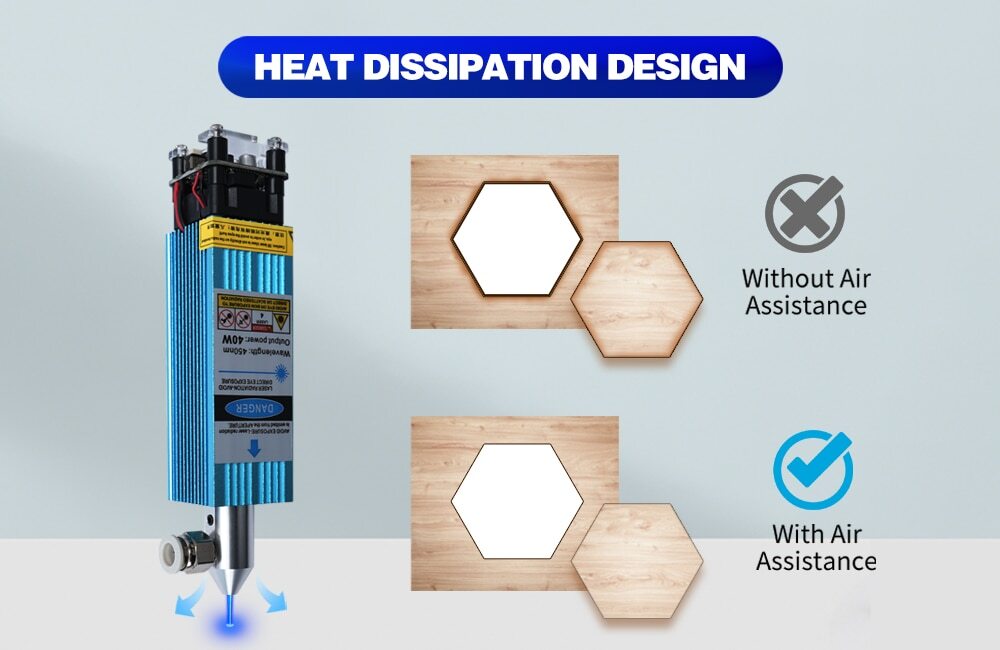

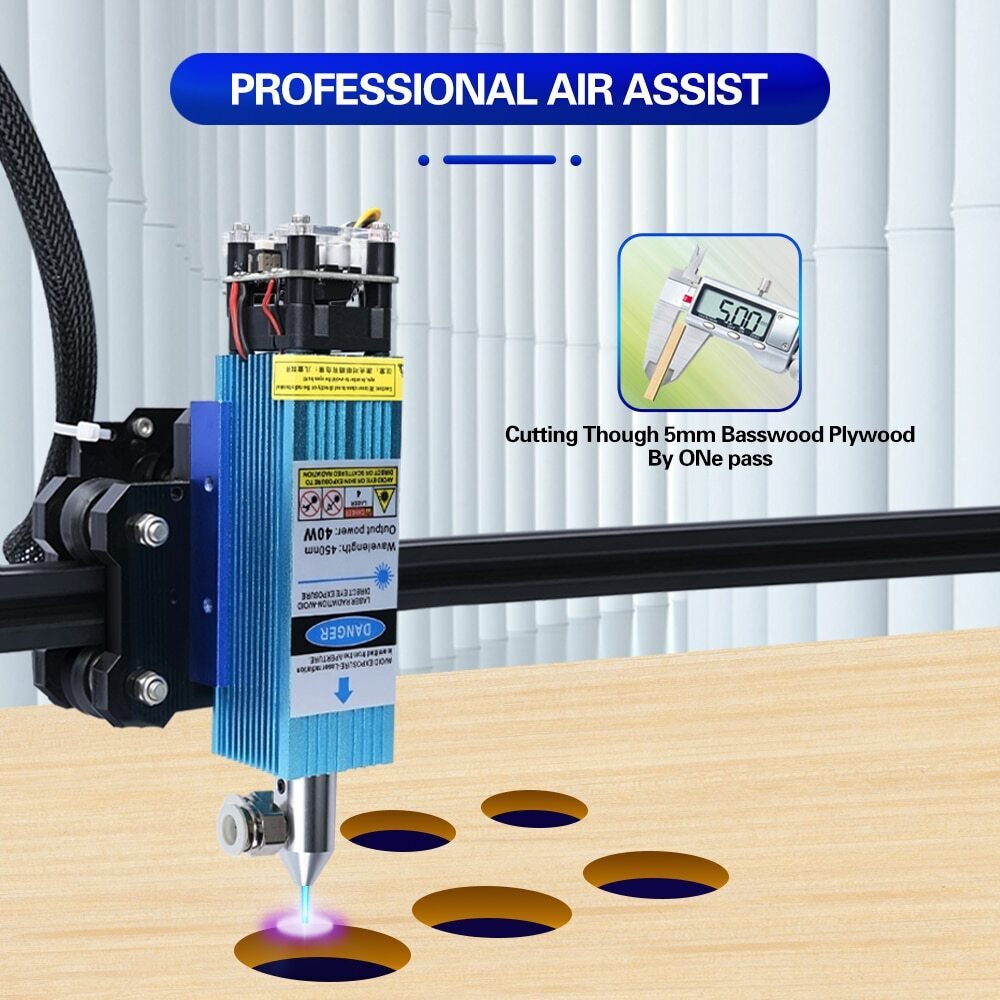

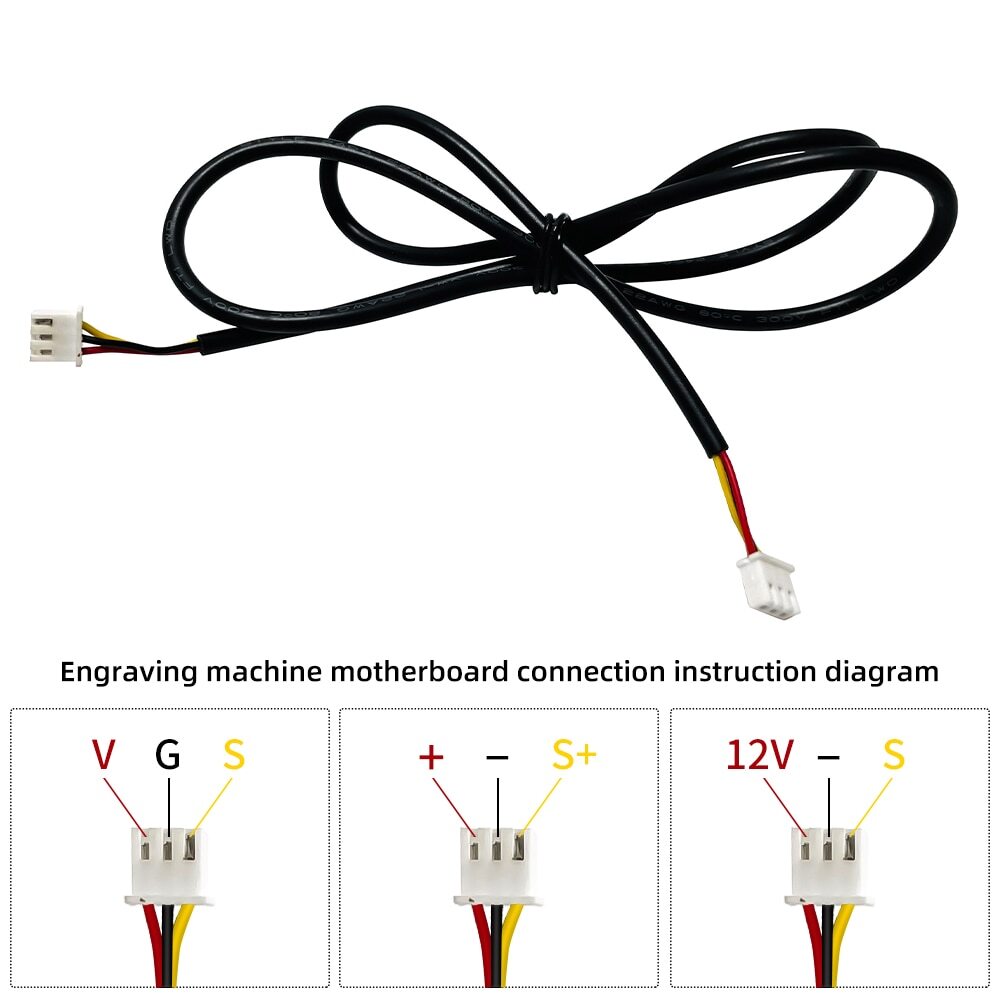

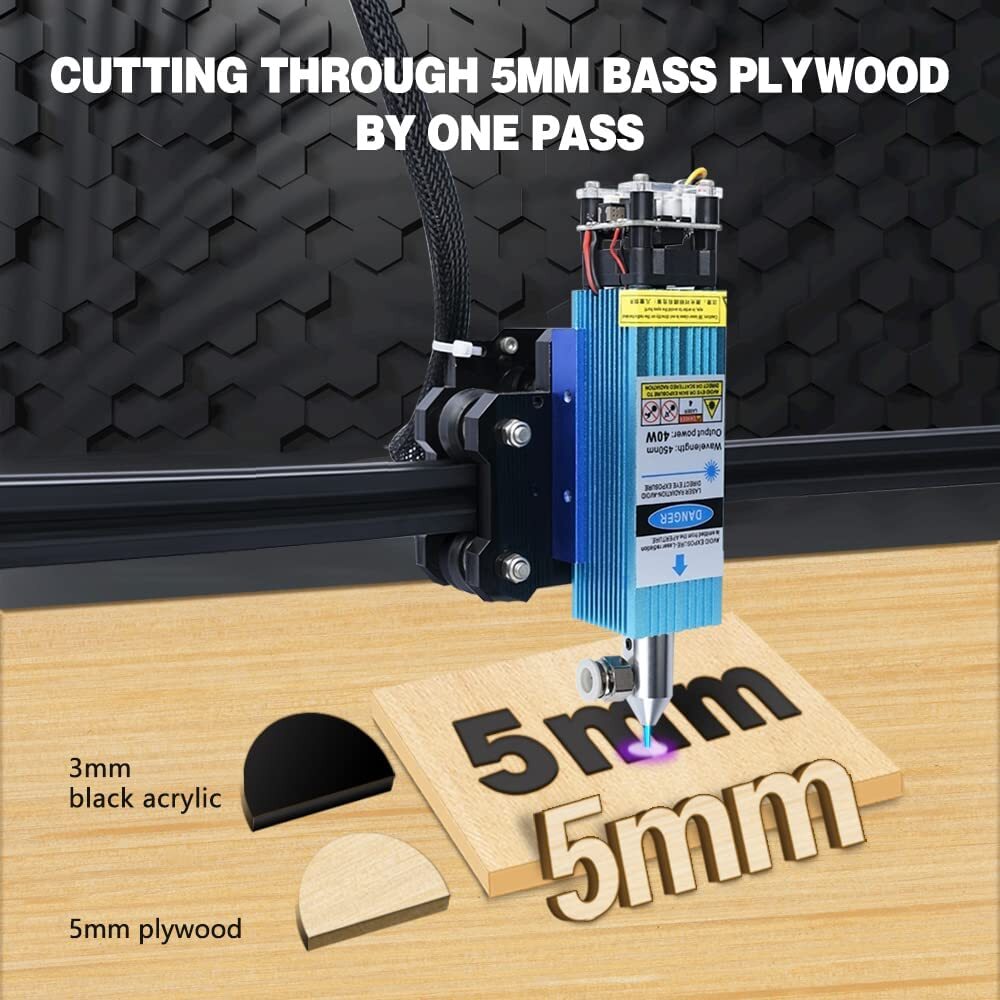

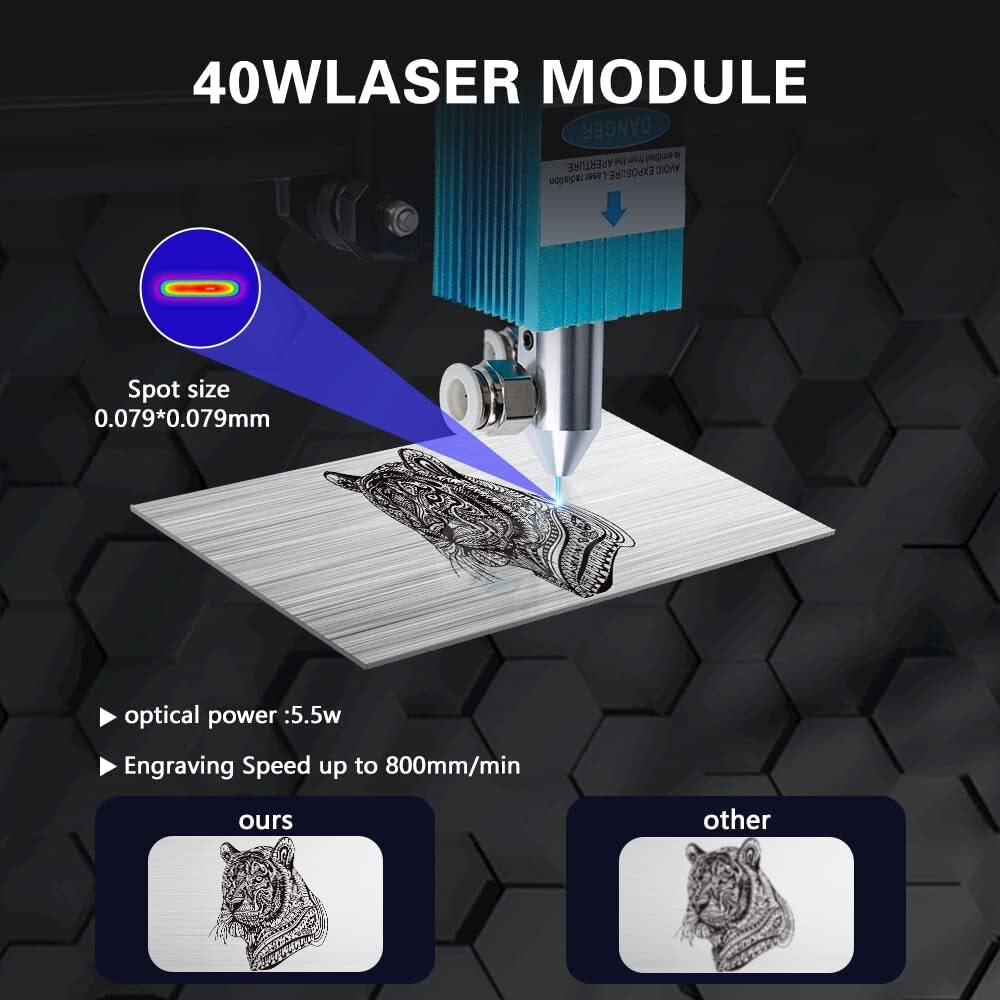

Specification ▶Built-in dual laser tubes, FAC design, high efficiency and stability. ▶0.08mm engraving accuracy, thinner than line. ▶Built-in heat dissipation and intelligent temperature adjustment system to ensure continuous long-term work with low noise. ▶The laser module can be used in 95% of cutting machines, CNC engraving machines and DIY laser engraving machines on the market. ▶It supports various materials such as wood/MDF/leather/bamboo/plastic/paper to realize your DIY freedom and bring you endless fun. ️ ▶Designed with a magnetic protective case, it perfectly protects your eyes. Enjoy the engraving process without additional goggles, more comfortable and convenient. Fixed focus design makes it easier to use. Contract me after place an order,get free Drawing! Packing List： ModuleInput：40W Opticalpoweroutput：5.5W Wavelength：450nm BeamShape：Dot(fixedfocues) WorkingVoltage：DC12V/24V TTL&PWMModulation：YES,CompatiblewithBothTTL&PWMModulation InputVoltage：DC12V3-4A PWM/TTLInput：DC5V InputInterface：3Pin(+,-,PWM/TTL),2Pin+2Pin(+,-)+(PWM/TTL,-) Safetemperaturerange：<60℃ Moduleweight：202g(Thelightertheweight,thesmallerthemoveinertia,thebettertheperformance) LifeTime：10000-20,000hours HeatsinkMaterial：AircraftAluminum+BlueShell LuminousColor：Blue CoolingMode：Temperaturesensorintelligentcontrol+10000rpm40mmcoolingfan Important hint! ! ! The red line is the 12V positive pole, the black line is the negative pole, and the yellow line pwm is the positive pole (0-5/12V, 0-20KHZ). If the Pwm of your control board exceeds 5V/12V, it will not be able to control the Pwm adjustment of the laser. Or you can choose to use our control panel. Use a laser with a nozzle to cut wood, etc. It is recommended to use it with an air pump to blow away the smoke. After many times of cutting work, the smoke will pollute the lens and affect the engraving effect. Please use alcohol wipes to clean the lens. In the maximum cutting thickness data we show, the wood is pine board/basswood board. The maximum cutting thickness of the laser is affected by the wood density and material. 40w80w is the collective name of laser manufacturers, it does not mean that the input and output power is 40w80w. The specific parameters are displayed on the details page.
