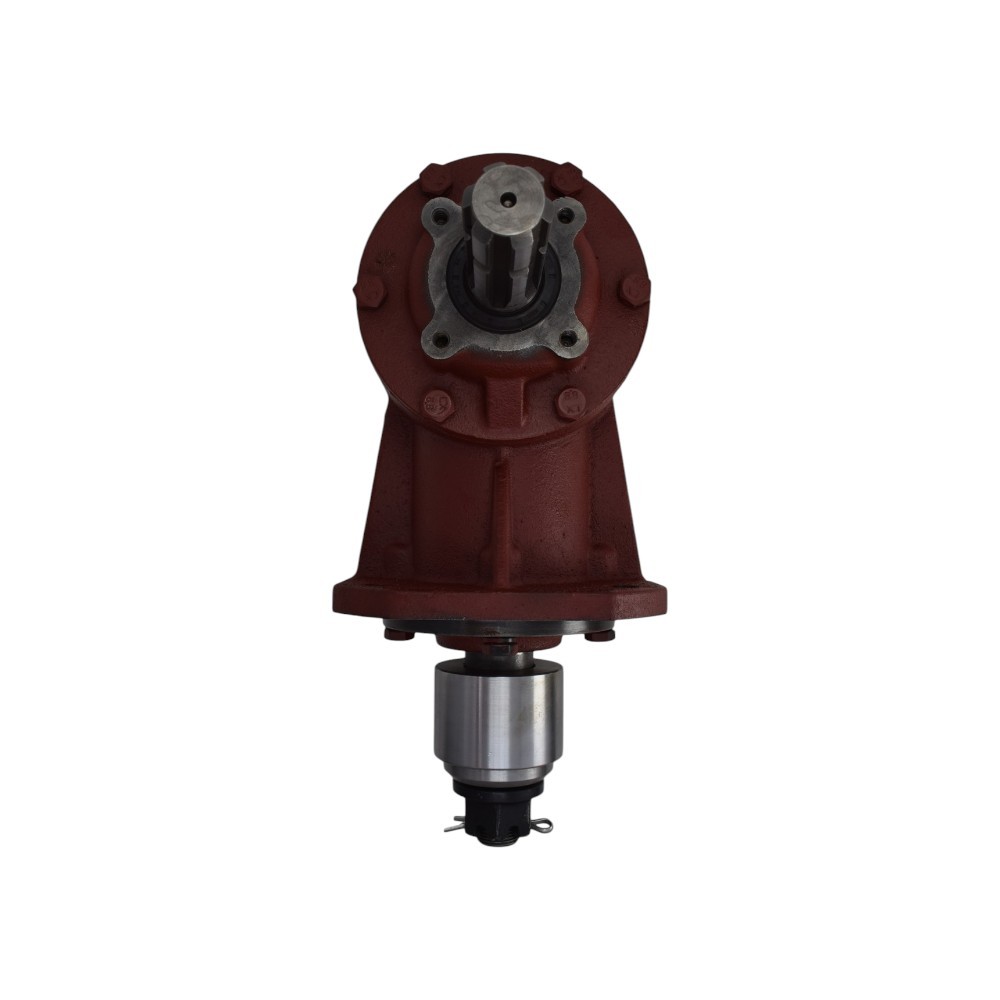

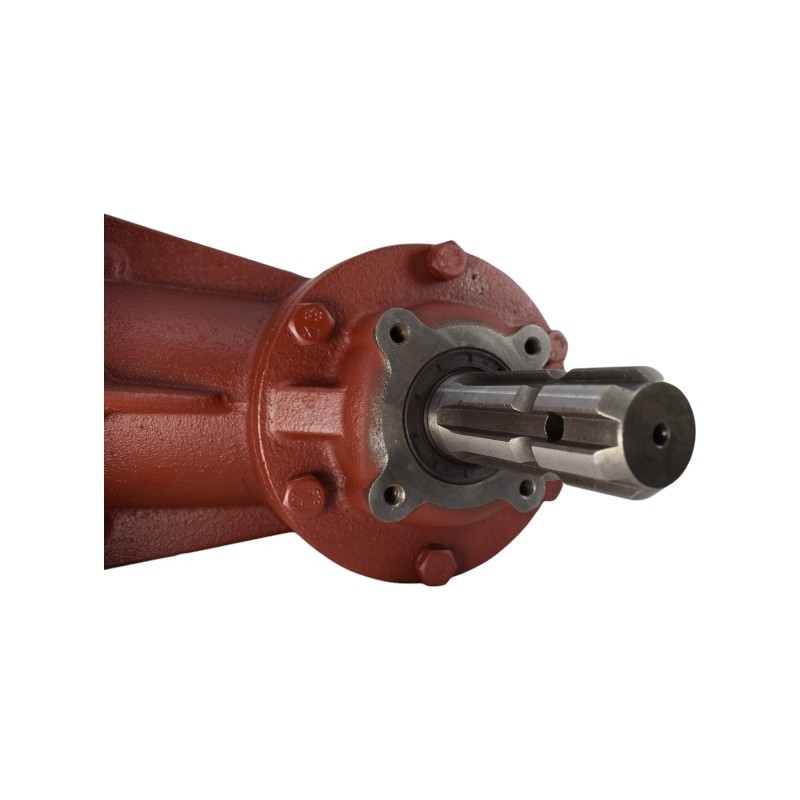

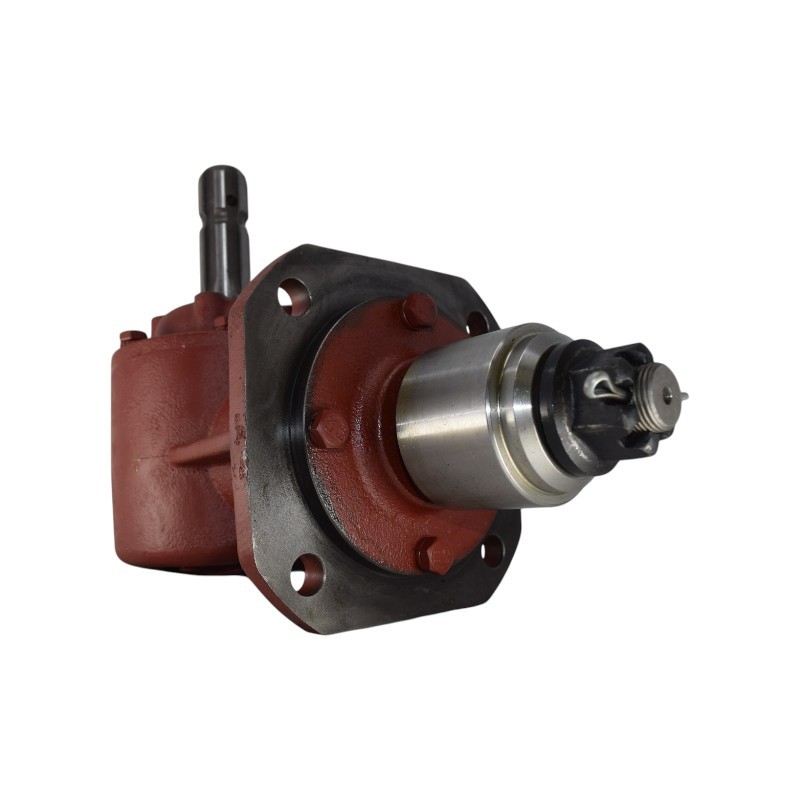

40 HP Gearbox 1-3/8″ 6-Spline Input 1:1.47 Ratio 540/1000 RPM for Rotary Cutter
40 HP Gearbox 1-3/8″ 6-Spline Input 1:1.47 Ratio 540/1000 RPM for Rotary Cutter 40 HP Gearbox 1-3/8″ 6-Spline Input 1:1.47 Ratio 540/1000 RPM for Rotary Cutter 40 HP Gearbox 1-3/8″ 6-Spline Input 1:1.47 Ratio 540/1000 RPM for Rotary Cutter

40 HP Gearbox 1-3/8″ 6-Spline Input 1:1.47 Ratio 540/1000 RPM for Rotary Cutter

USD 252.99 USD
SKU: sXzN2uIL
Brand: SpinCo Bearing
MPN: 250179SC
GTIN: Does Not Apply
Condition: New
Tags: 0.625 in / 15.875 mm 1 Year 1:1.47 1.375 in (34.92 mm) 1.56 in (39.62 mm) 250179SC 4 bolt flange 40 hp 5.25 in (133.35 mm) 540 / 1000 RPM 540 RPM 6 SPLINE Cast Iron CCW Input to CW Output Direct Replacement Gearbox Right angle gearbox Sealed SpinCo Bearing Tapered 12-Spline
Categories: Cleaning & Janitorial Supplies

Specifications

MPN250179SC
BrandSpinCo Bearing
Part TypeGearbox
TypeRight Angle Gearbox
Warranty1 Year
Horsepower Rating40 HP
Gear Ratio1:1.47
Input Shaft Size1.375 in (34.92 mm)
Input Shaft Type6-Spline
Output Shaft Size1.56 in (39.62 mm)
Output Shaft TypeTapered 12-Spline
Input Speed540 / 1000 RPM
Shaft RotationCCW Input to CW Output
Mounting Bolt Hole Size0.625 in (15.875 mm)
Pilot Hole Diameter5.25 in (133.35 mm)
Housing MaterialCast Iron
Housing TypeSealed
Mounting Style4-Bolt Flange
Fitment TypeDirect Replacement
FinishCast Iron

Part Type: Rotary Cutter Gearbox. Fits 5-1/4" pilot hole in mower or cutter deck. Other compatible rotary cutters with matching specifications. Input Speed: 540/1000 RPM. Maximum Input Power: 40 HP. Input Shaft: 1-3/8" 6-Spline.
