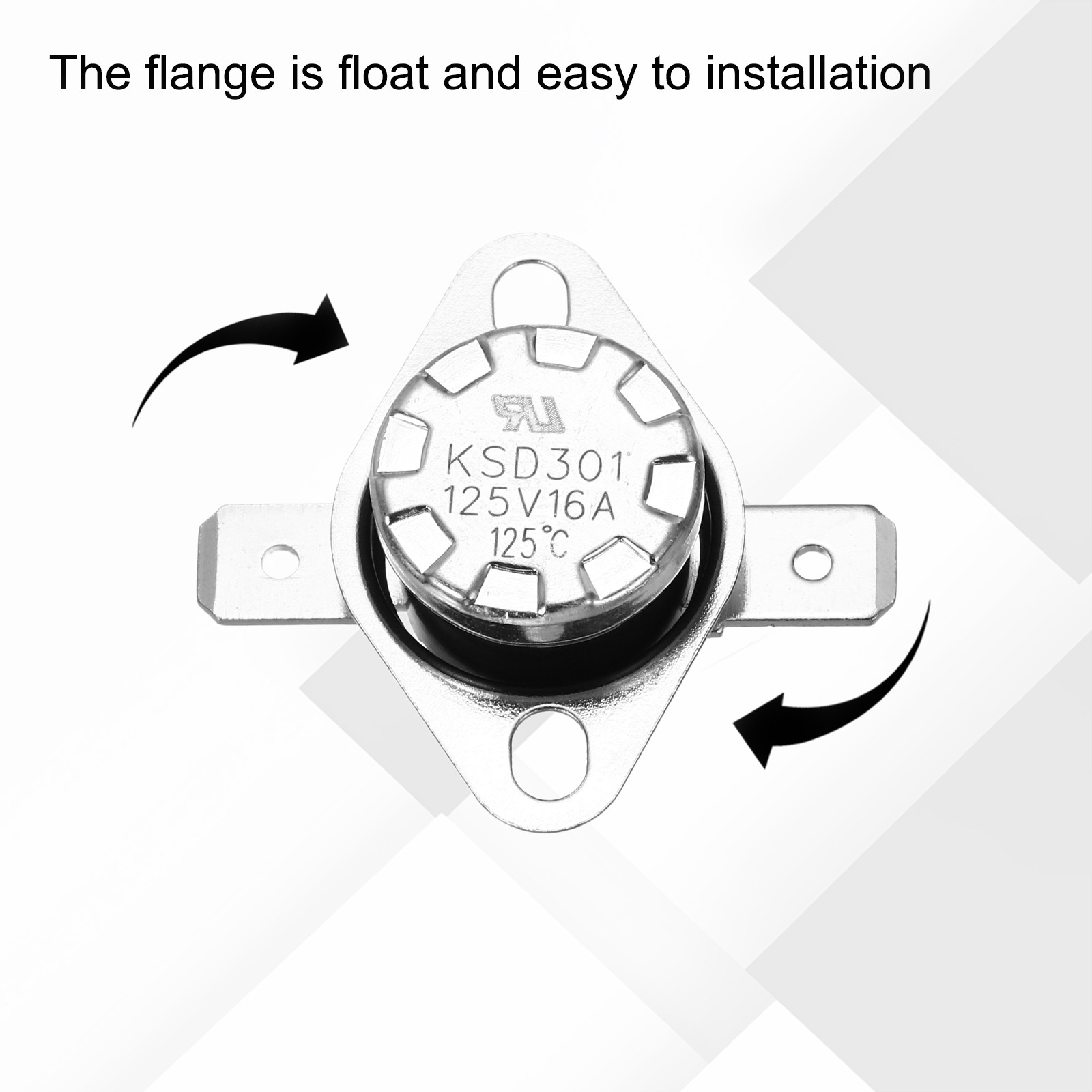

4 Pcs KSD301 Thermostat 125°C/257°F N.C Snap Disc Temperature Switch Bakelite

Specifications

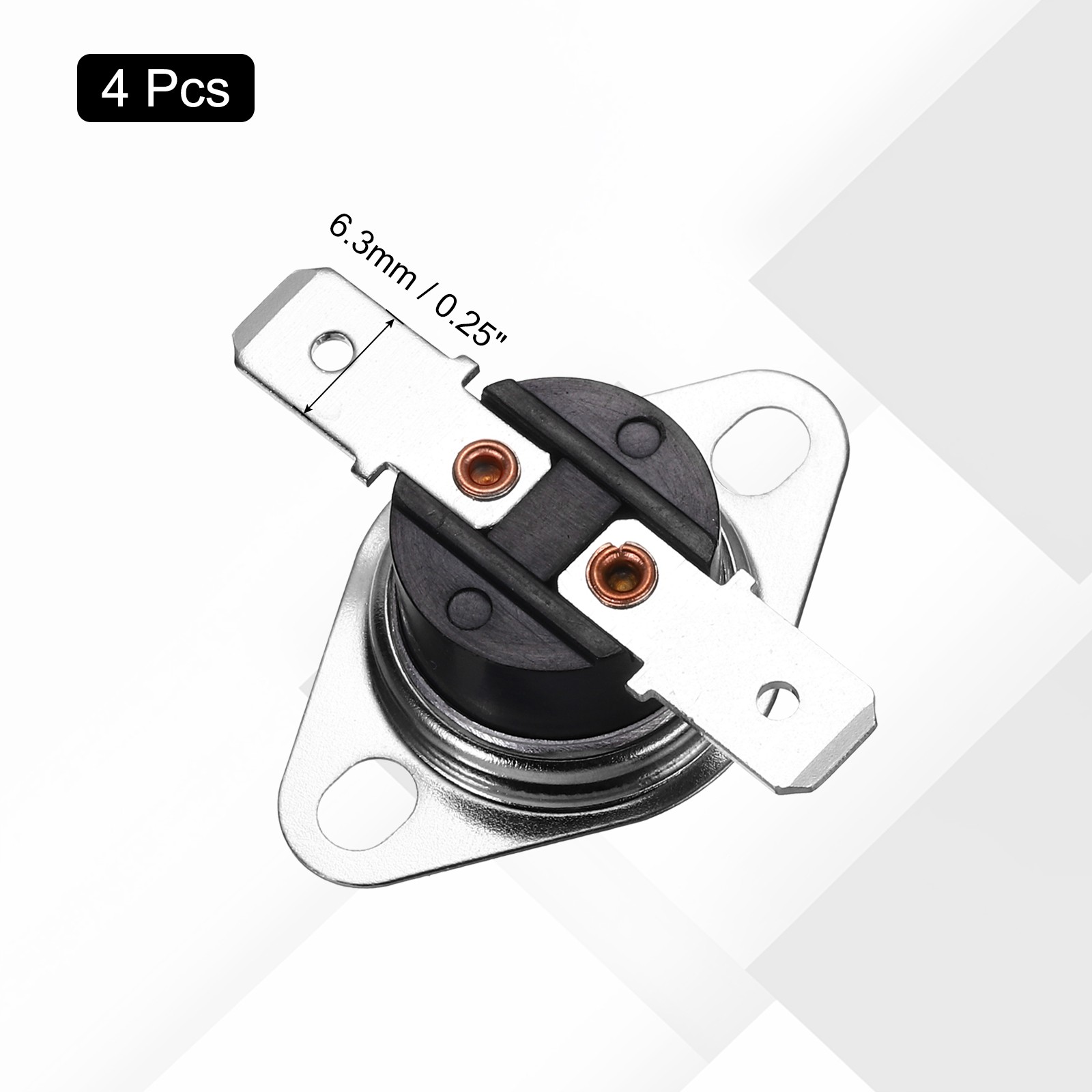

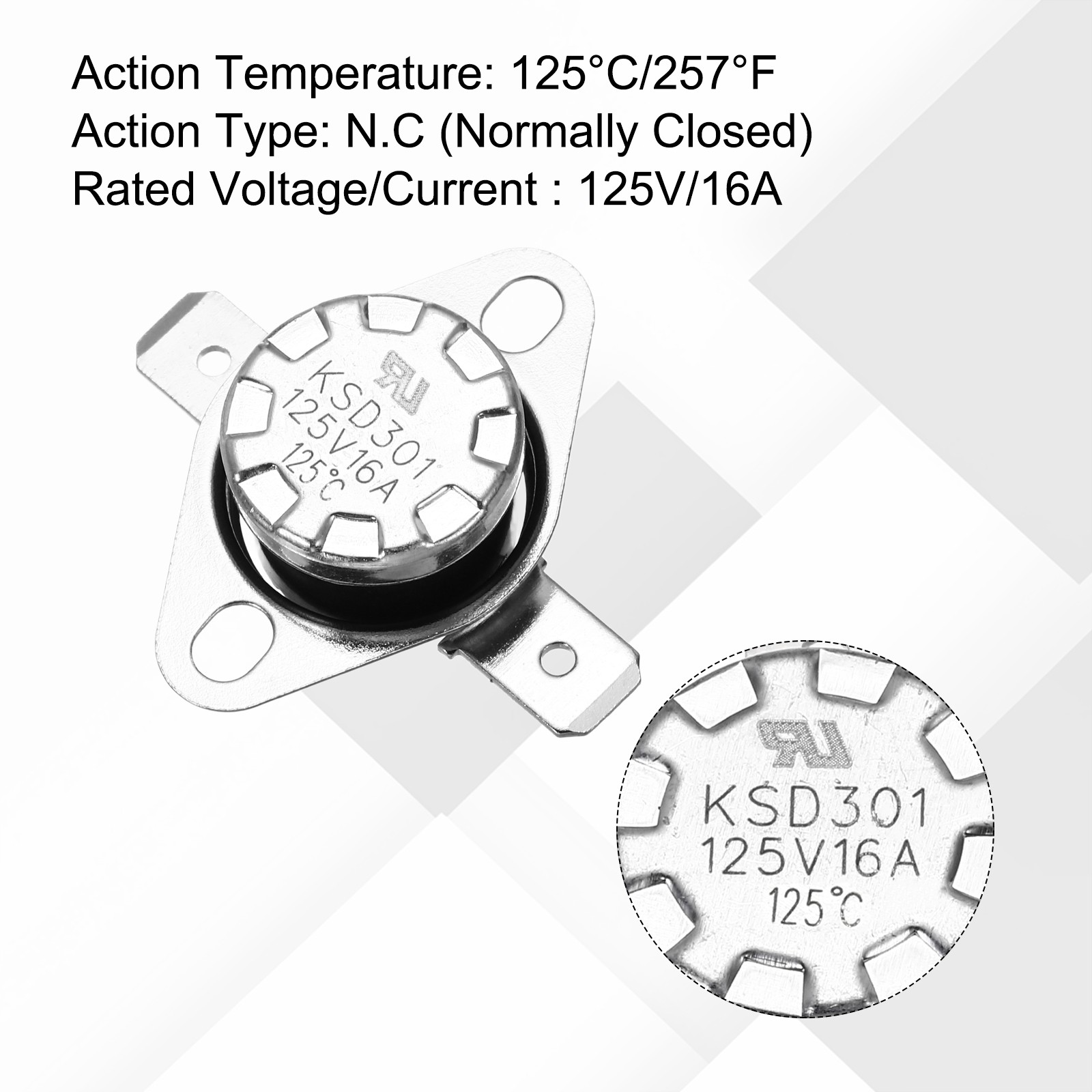

Specification:Product Name : Temperature Control SwitchModel: KSD301Action Temperature: 125°C/257°F Action Type: N.C (Normally Closed)Rated Voltage/Current : 125V/16APin Width : 6.3mm/0.25inchContact Life: More than 50,000 times (action times)Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon Package Content :4 Pcs x Temperature Control Switch Description :1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.4.
