30A 250V KCD4 Rocker Switch DPST 4 Pin Green Lighted 120V Rocker Toggle Switc…
USD 16.11 USD
Specifications
| Switch Type | Rocker |
| Actuator Type | Rocker |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Connector Type | Crimp |
| Brand | SANFAY |
| Control Type | Binary |
| Control Method | Touch |
| Lower Temperature Rating | -25.0 |
| Current Rating | 30.0 |
| Connectivity Protocol | X-10 |
| Circuit Type | 2-Way |
| Part Number | Kcd2 Kcd4 |
| Terminal Type | Through Hole |
| Color | Green |
| Wattage | 7500.0 |
| Controller Type | Push Button |
| Model Number | Kcd4 |
| Operation Mode | On-Off |
| International Protection Rating | Ip54 |
| Mounting Type | Embedded |
| Material | Brass |
| Operating Voltage | 250.0 |
| Upper Temperature Rating | 125.0 |
| Unit Count | 2.0 |
| Package Dimensions LxWxH | 5.24x2.83x0.98 Inches |
| Weight | 0.07 Pounds |

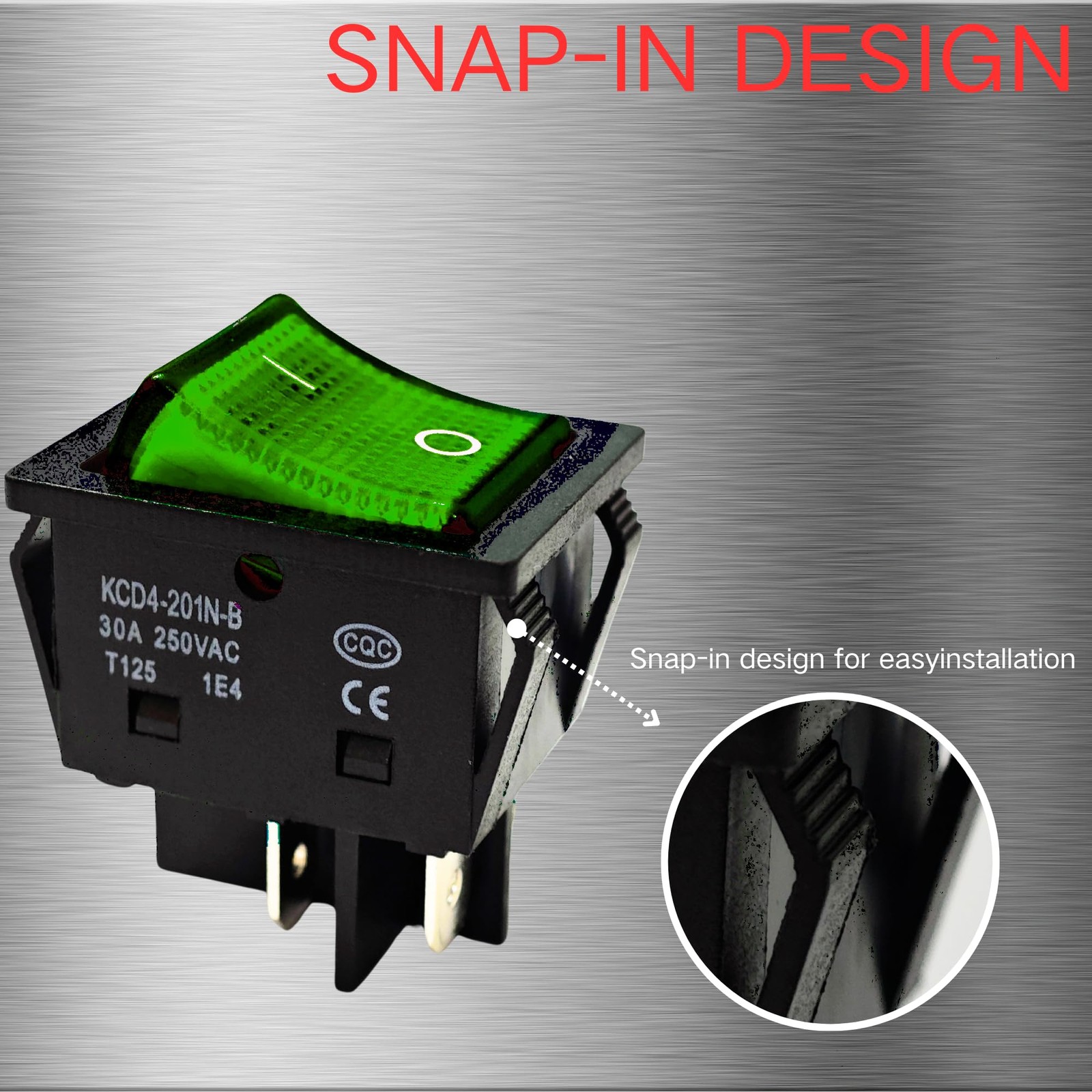

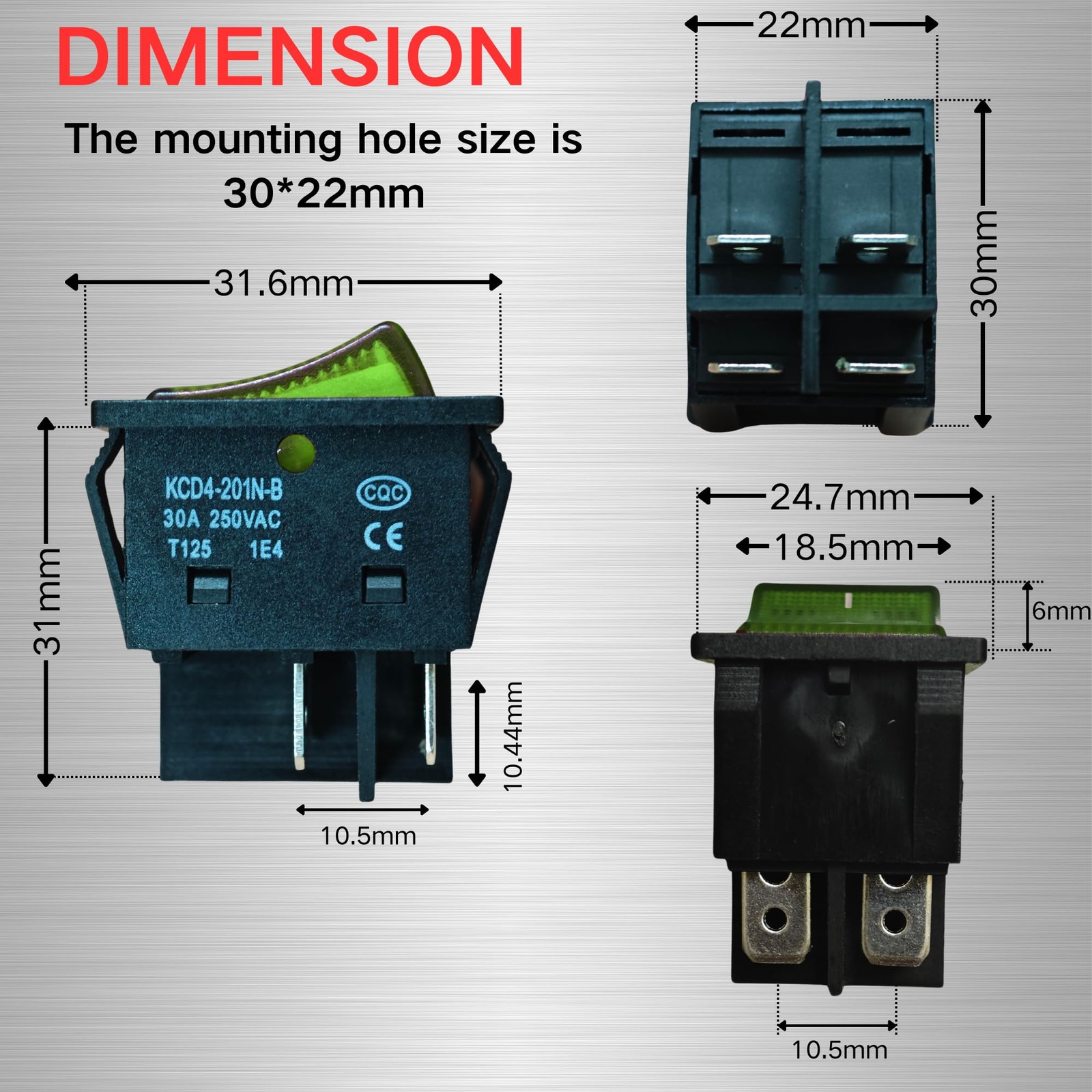

【Installation】 The KCD2 KCD4 Rocker Switch fits for 30X22mm panel Cut-out size, very easy to install(Snap In flush mount version). So the switch can be used well on 3A, 6A, 10A, 15A, 16A, 20A, 25A, 30A at 120 Volt or 240 Volt.
