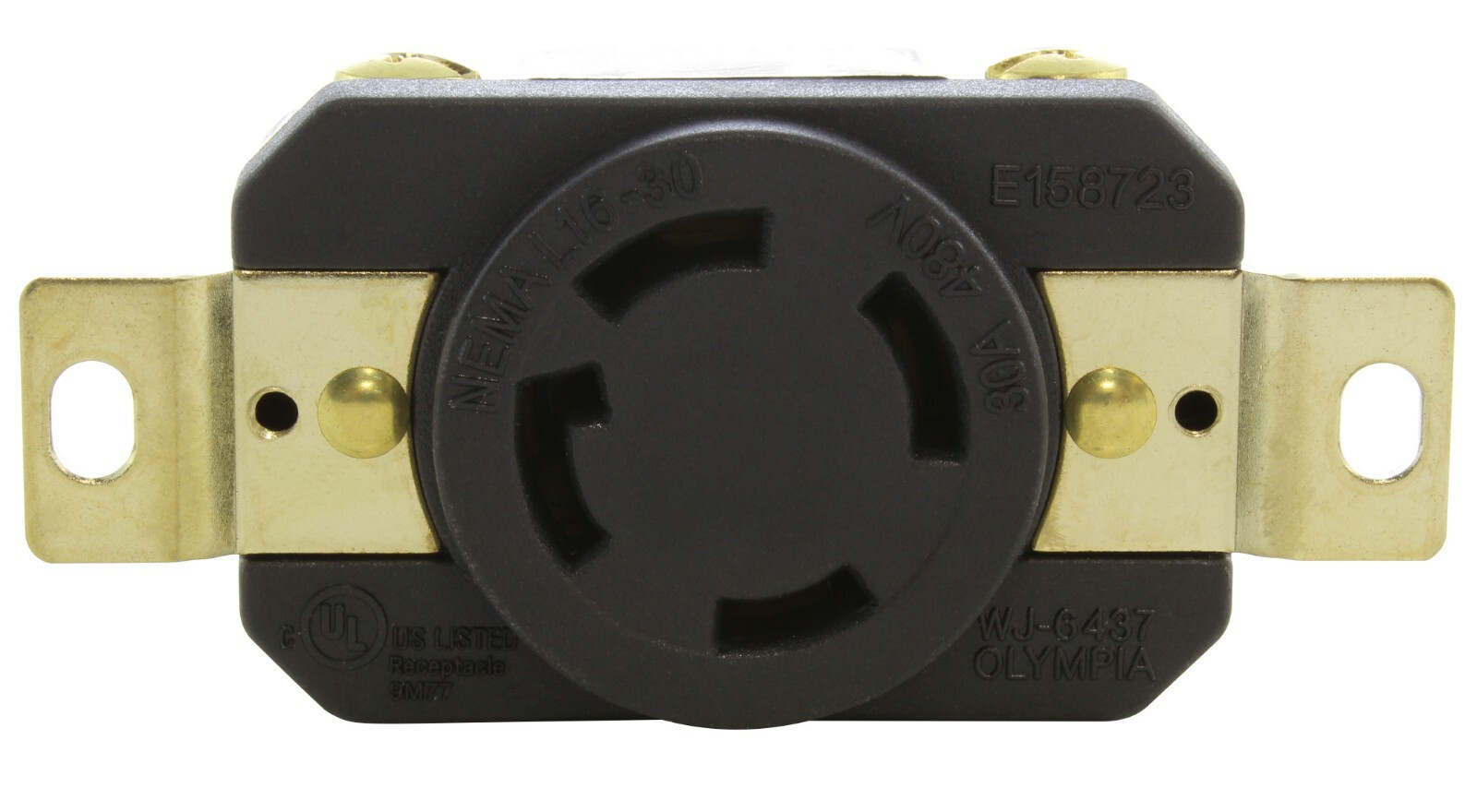

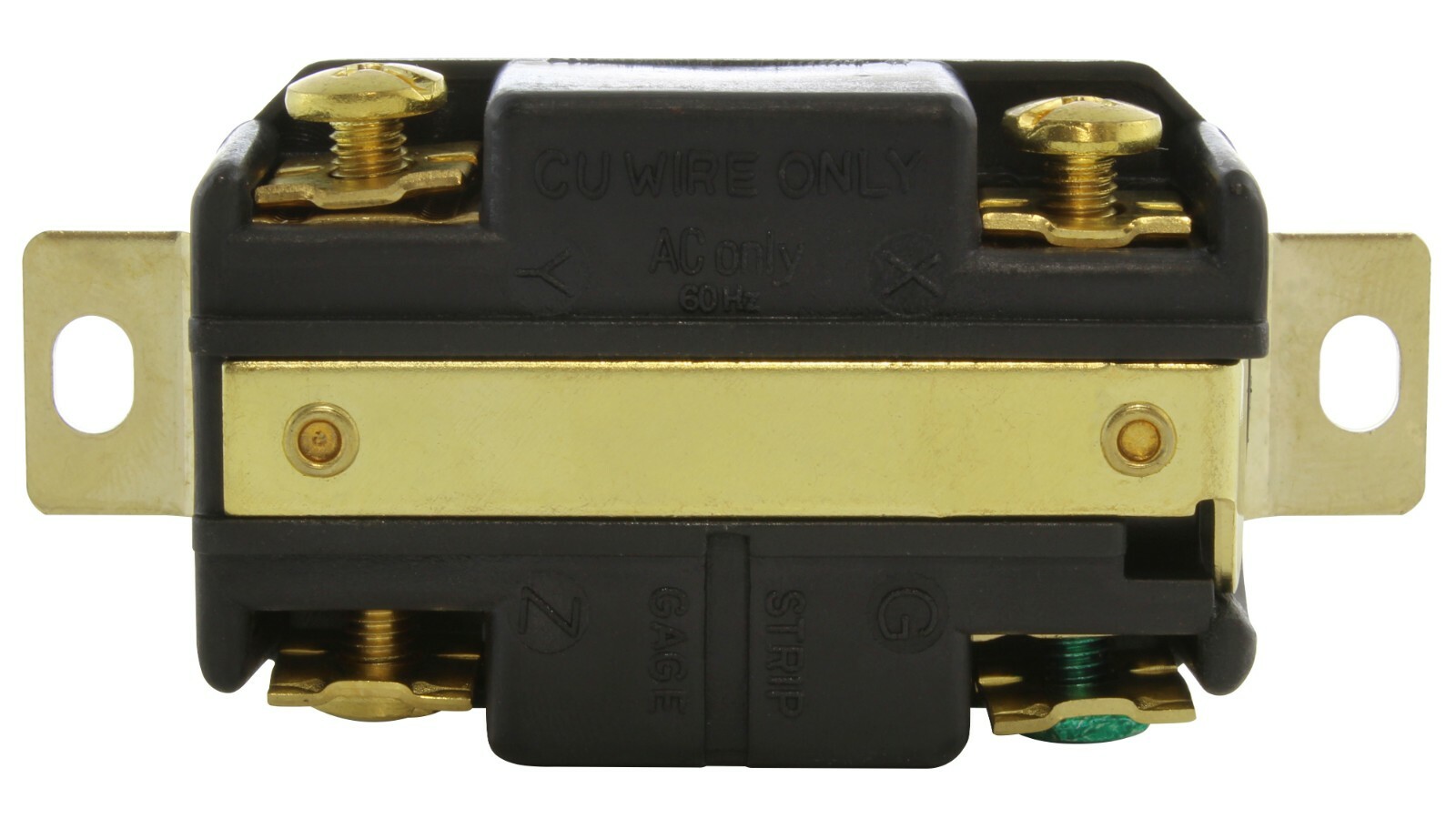

30 Amp 3-Phase 480 Volt NEMA L16-30R DIY Replacement Outlet by AC WORKS®
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Voltage Rating | 480 V |
| Wattage | 24912W |
| MPN | FML1630R |
| Gender | Female |
| Suitable For | Exterior |
| Port Type | Power |
| Outlet Style | Non-Duplex |
| Voltage | 480V |
| Features | UL Certified |
| NEMA Configuration | NEMA L16-30R |
| Mounting Style | Flush |
| Color | Black |
| Current Rating | 30 A |
| Number Of Phases | 3 Phase |
| Material | Nylon |
| Installation Area | Indoor/Outdoor |
| Brand | AC WORKS® |
| Type | Outlet |
| Number Of Poles | 3-Pole |
| Outlet Configuration | Round |
| Country/Region Of Manufacture | Taiwan |
| Resistance Properties | Chemical Resistant |
| Application | Outlet |

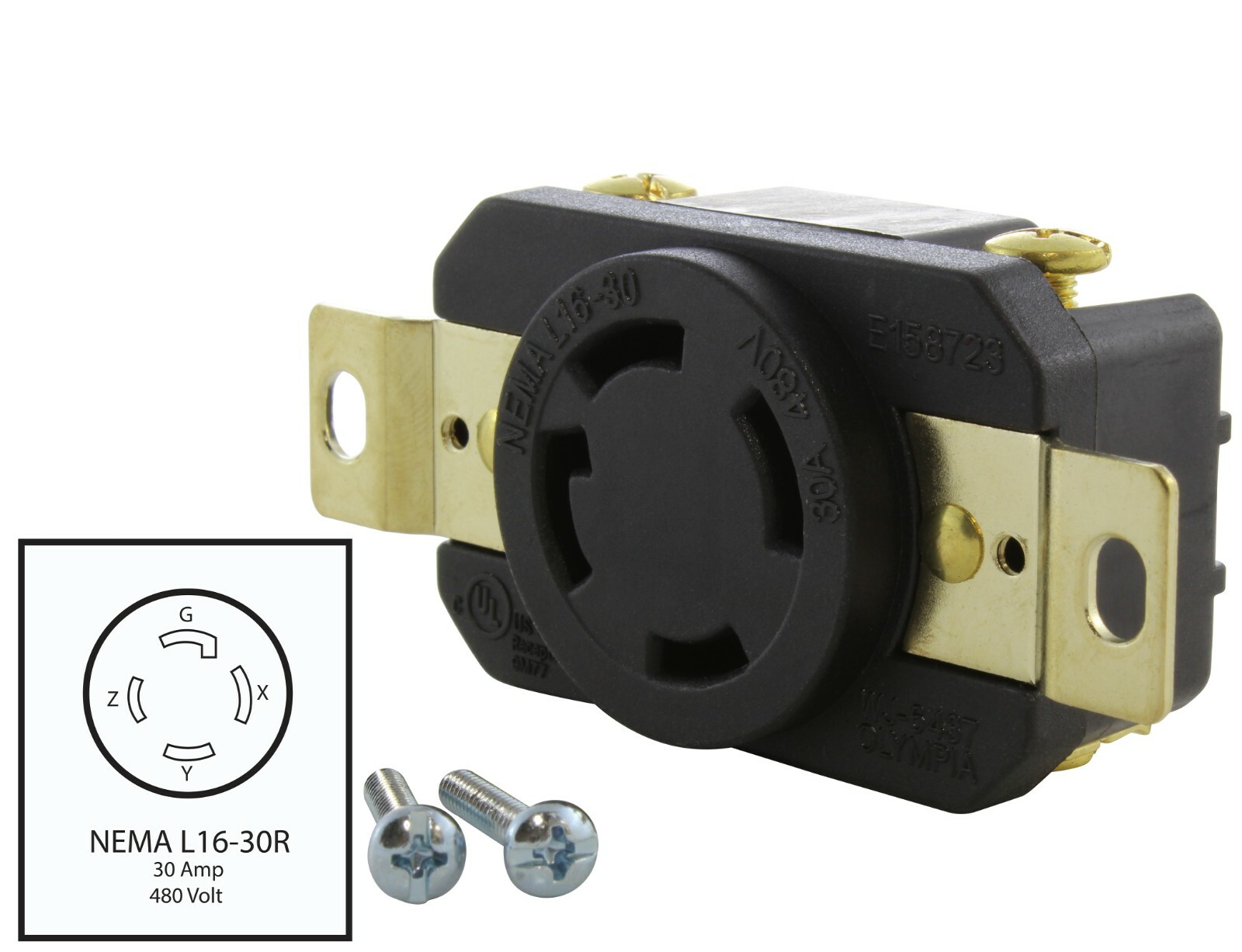

Introducing the AC WORKS® female outlet receptacle, designed with a 3-pole, 4-wire system for optimal performance. This NEMA L16-30R outlet is built to last, featuring a flush mount locking mechanism, with a 30 Amp, 3-phase 480 Volt capacity. The outlet's durable, chemical and impact-resistant housing ensures longevity, and its quick installation process means you can enjoy its benefits in no time. With cULus E237606 certification, you can rest assured that this outlet has been tested to the highest safety standards. Purchase with confidence knowing that your product is backed by a 1-year limited warranty. Upgrade your electrical setup with the reliable and efficient FML1630R outlet today. NEMA Configuration Sketch Common Name Amperage Rating Voltage Rating Female Connector NEMA L16-30R 4-Prong 480V Locking Connector 30 Amps 480 Volts
