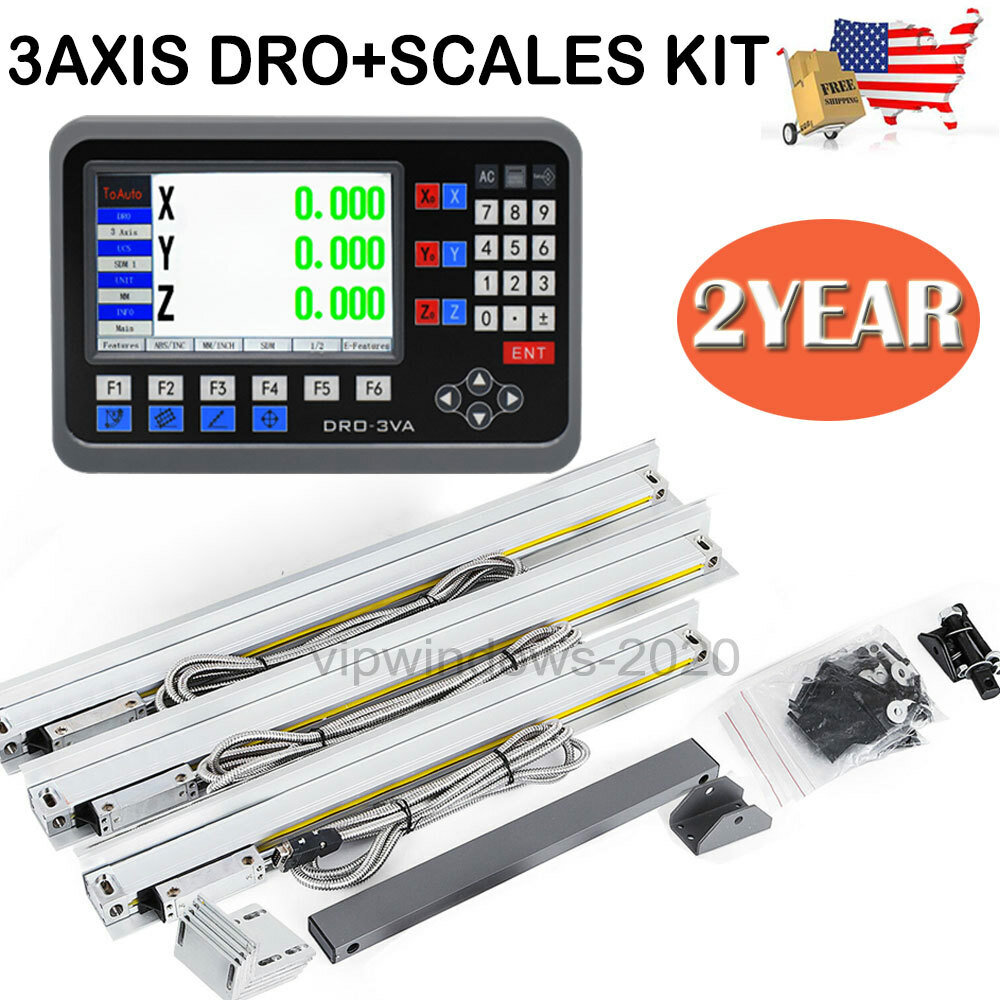

3 Axis LCD Digital Readout 6″ 12″ 24″ Linear Scales DRO Display Kit, US STOCK
Specifications
| Country Of Origin | China |
| Machine Type | Milling Machine |
| X-Axis Travel Bed | 150mm (6") |
| Y-Axis Travel Bed | 300mm (12") |
| Z-Axis Travel Bed | 600mm (24") |
| Function | Milling |
| Readout Allowable Input Signal: | TTL square wave |
| Max Resolution Of Digital Display Length | 5µm/0.005mm/0.0002" |

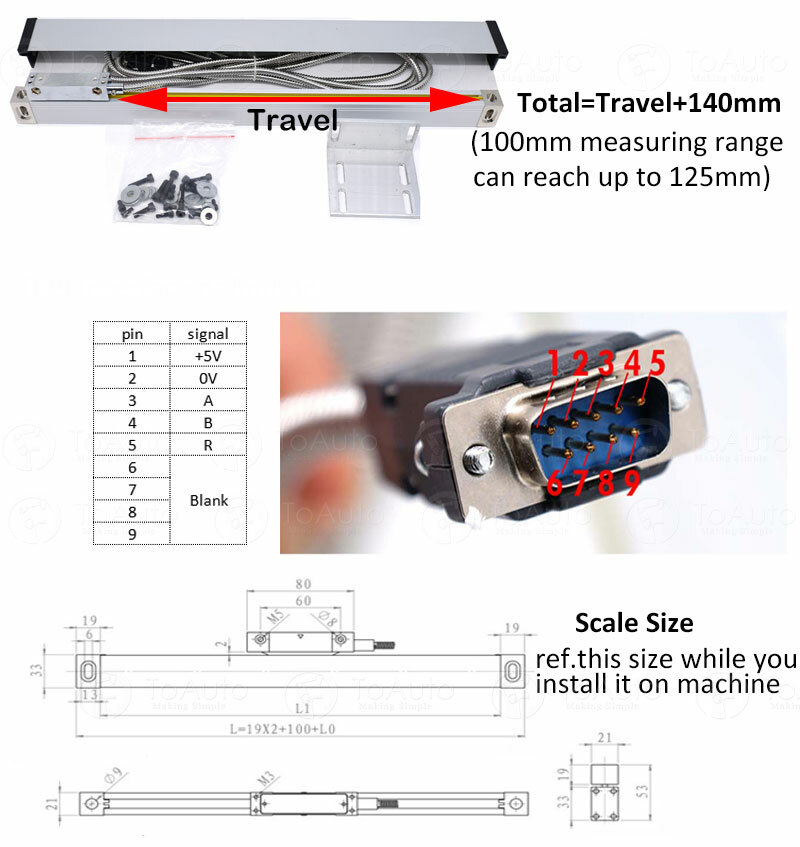

| Linear Scale Interface: | DB9(RS232) interface |
| Brand | ToAuto |
3Axis 6" 12" 27" Linear Glass Scale Bridgeport Kit LCD DRO Digital Readout CNC Application : applicable for the machine such as millers, lathes, boring machines, grinding machines and EDM, etc.. Read all the instructions in the manual carefully before used and strictly follow them. Please keep the user manual for future references. Basic Information : Supply Voltage range : AC 80V~260V; 50~60Hz， US Plug Power consumption: 15VA Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequebcy: Less than 5M Hz Max resolution of digital display length: 5µm/0.005mm/0.0002" Min resolution of digital display angle :0.0001/pulse.
