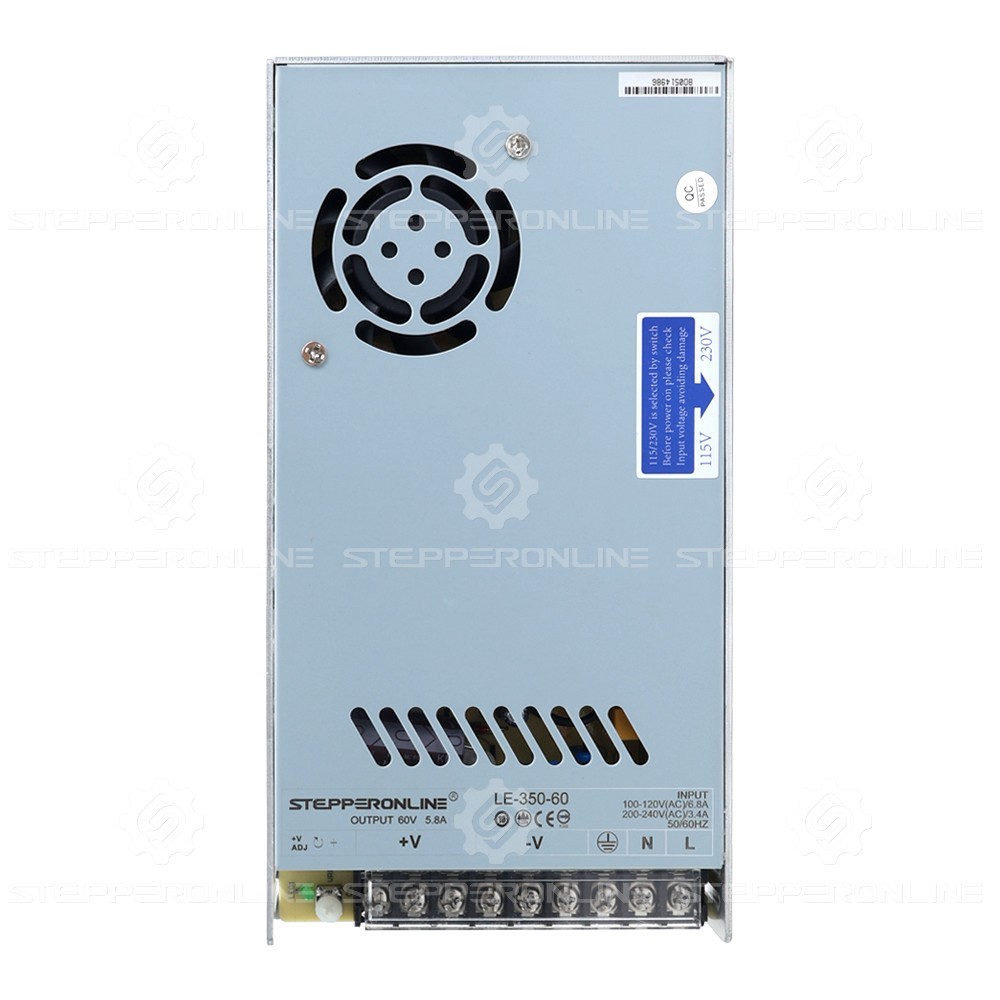

3 Axis 12Nm 1700oz.in Nema 34 Closed Loop Stepper Motor Kit V2.0 w/ Power Supply
USD 448.24 USD
Specifications
| Country Of Origin | China |
| Brand | StepperOnline |
| Shaft Diameter | Φ14mm |
| MPN | 3-CLYS120-V20 |
| Holding Torque | 12.00Nm(1699.34oz.in) |
| Phase Resistance | 0.53ohms± 10% |
| Inductance | 4.8mH ± 20%(1KHz) |
| Encoder Type | Optical Incremental |
| Output Circuit Type | Differential type |
| Encoder Resolution | 1000PPR(4000CPR) |
| Output Signal Channels | 2 channels |
| Keyway Shaft Length | 25mm |
| Cable Length | 300mm |
| Isolation Resistance | 500MΩ |
| Pulse Width | 2.5μS |

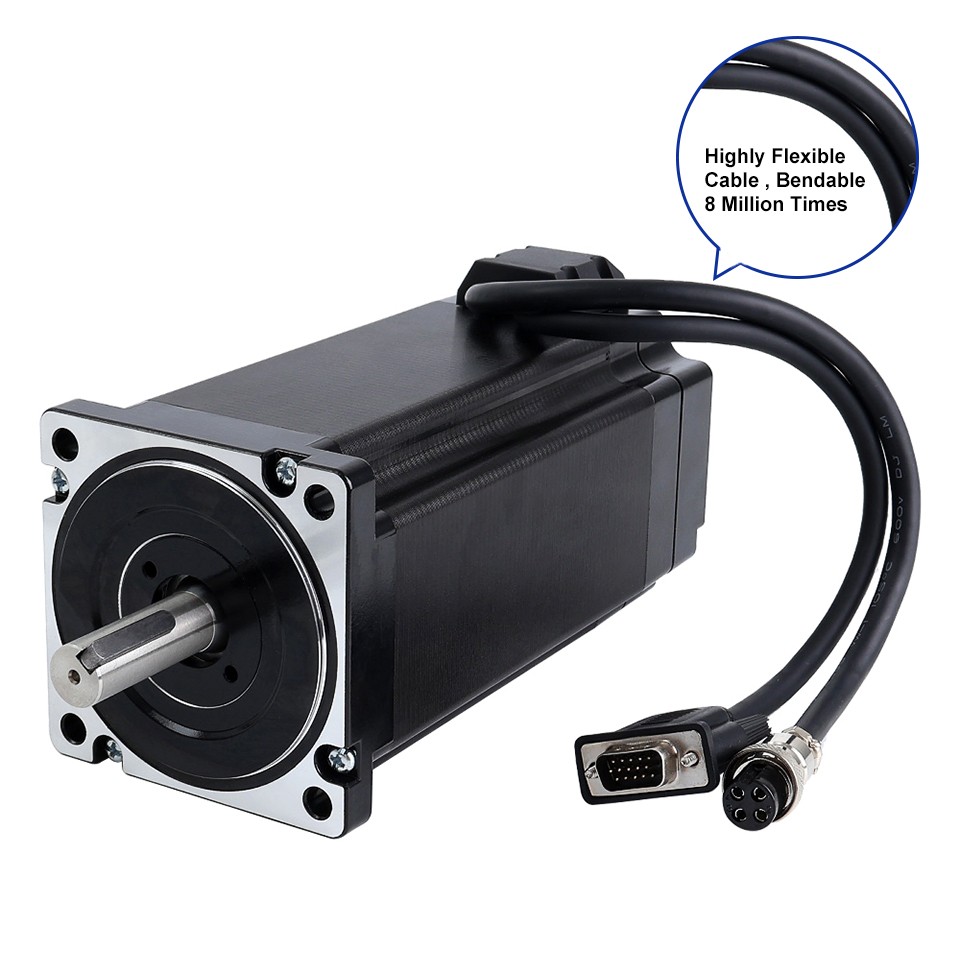

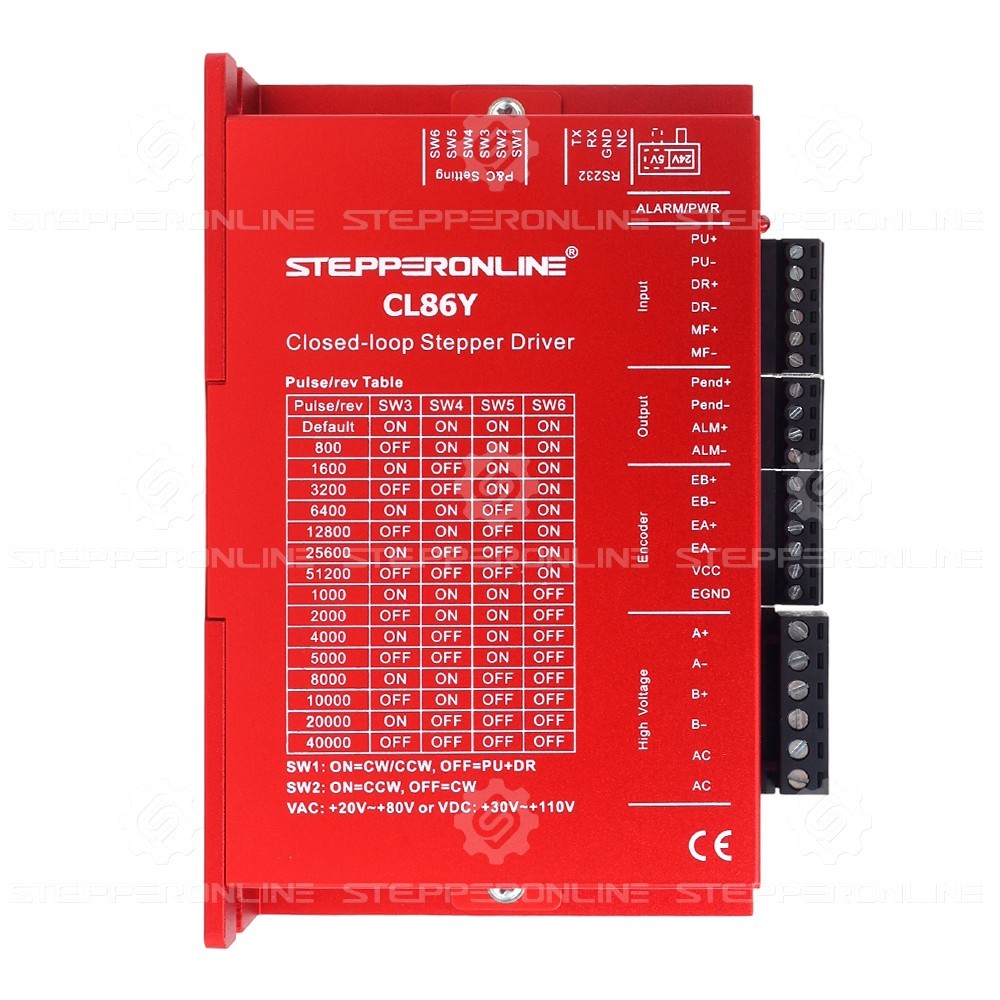

3 x Y Series Closed Loop Stepper Driver V2.0 0-8.5A 20-80VAC/30-110VDC for Nema 34 Stepper Motor. 3 x Nema 34 Closed Loop Stepper Motor 12.00Nm(1699.34oz.in) with Encoder 1000PPR(4000CPR). Step Angle: 1.8deg.
