3/8″ NPT Stainless Steel 304 Female Threaded Stepped Weld Bung Mounting Fitting
USD 12.85 USD
Specifications
| Item Model Number | AMT-WB-NPT3/8-SS304 |
| Style | Weld Bung |
| Measurement System | inch |
| Material | Stainless Steel |
| Thread Type | NPT |
| Included Components | fitting |
| Item Dimensions L X W X H | 1.1 x 1.1 x 0.5 inches |
| Connector Type | Weld |
| Item Weight | 11 Grams |
| Exterior Finish | Clear |
| Part Number | AMT-WB-N6-SS304 |
| Color | Clear |
| Shape | flange |
| Product Dimensions | 1.1 x 1.1 x 0.5 inches |
| Size | NPT 3/8" |
| UPC | 7445007286287 |

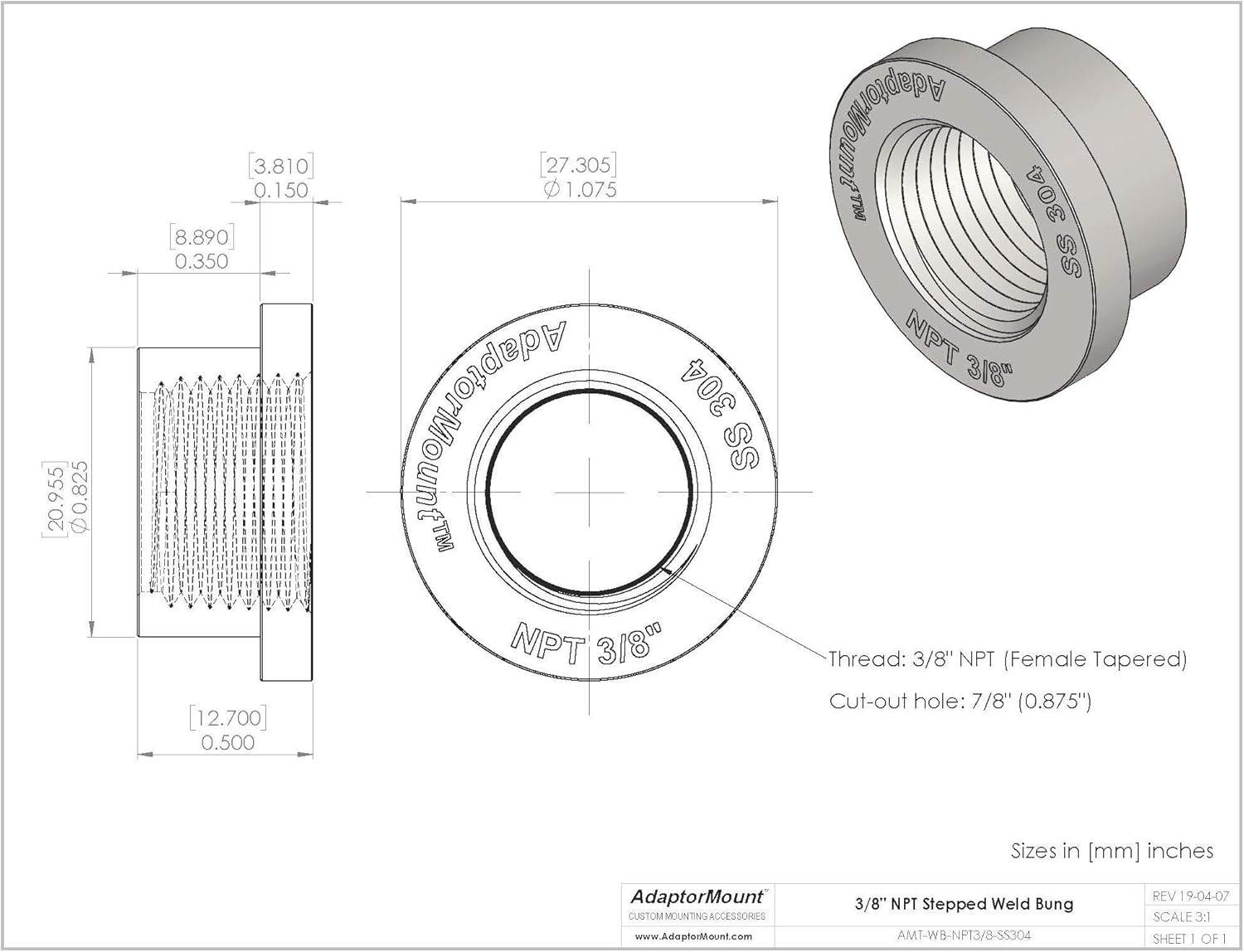

3/8" NPT Stainless Steel 304 Female Threaded Stepped Weld Bung Mounting Fitting (OD 7/8") with Top Head (OD 1.1"). Style Weld Bung. IMPORTANT NOTE: thread is tapered (one way thread) and starts from the flanged end and not the tail end (see drawing and pictures)!
