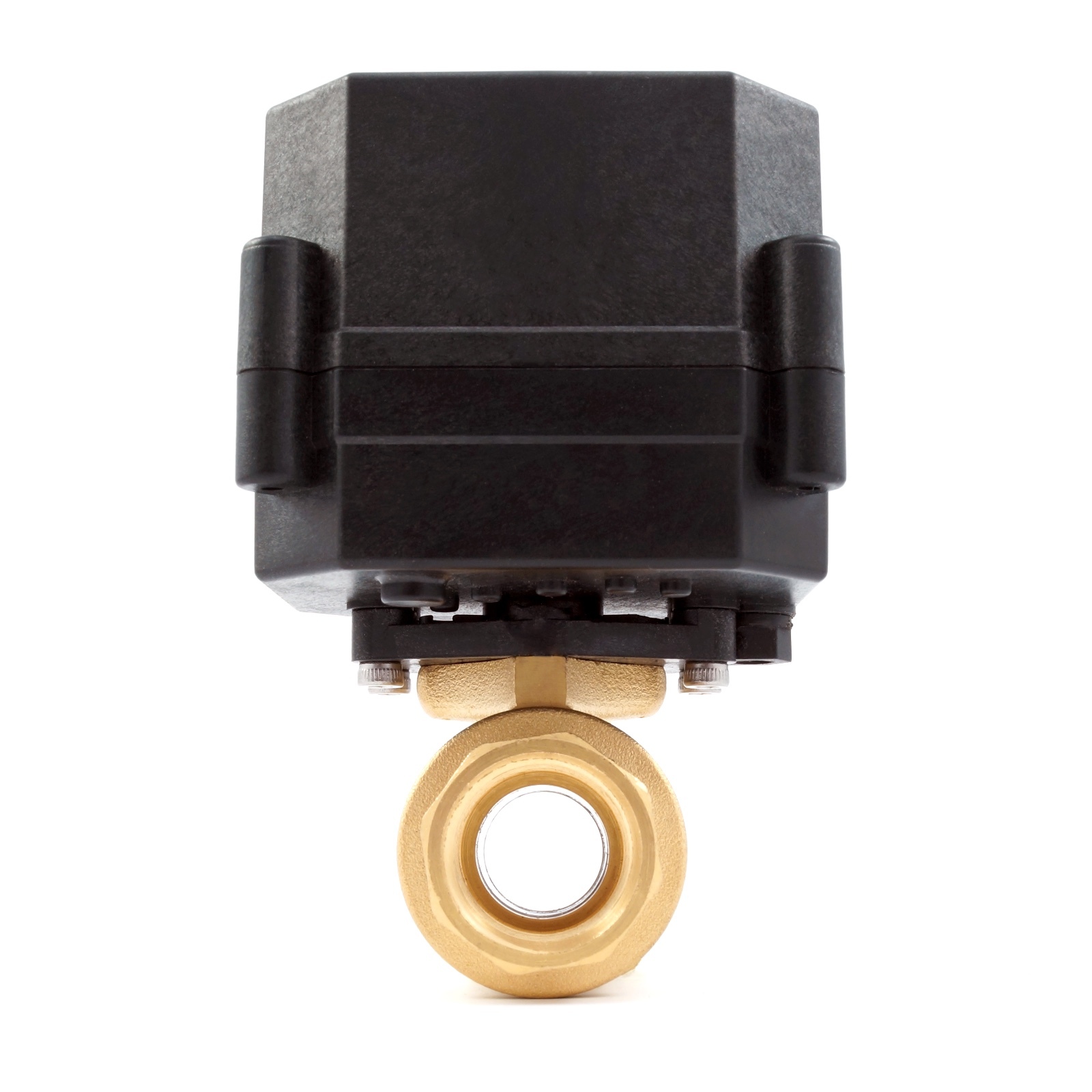

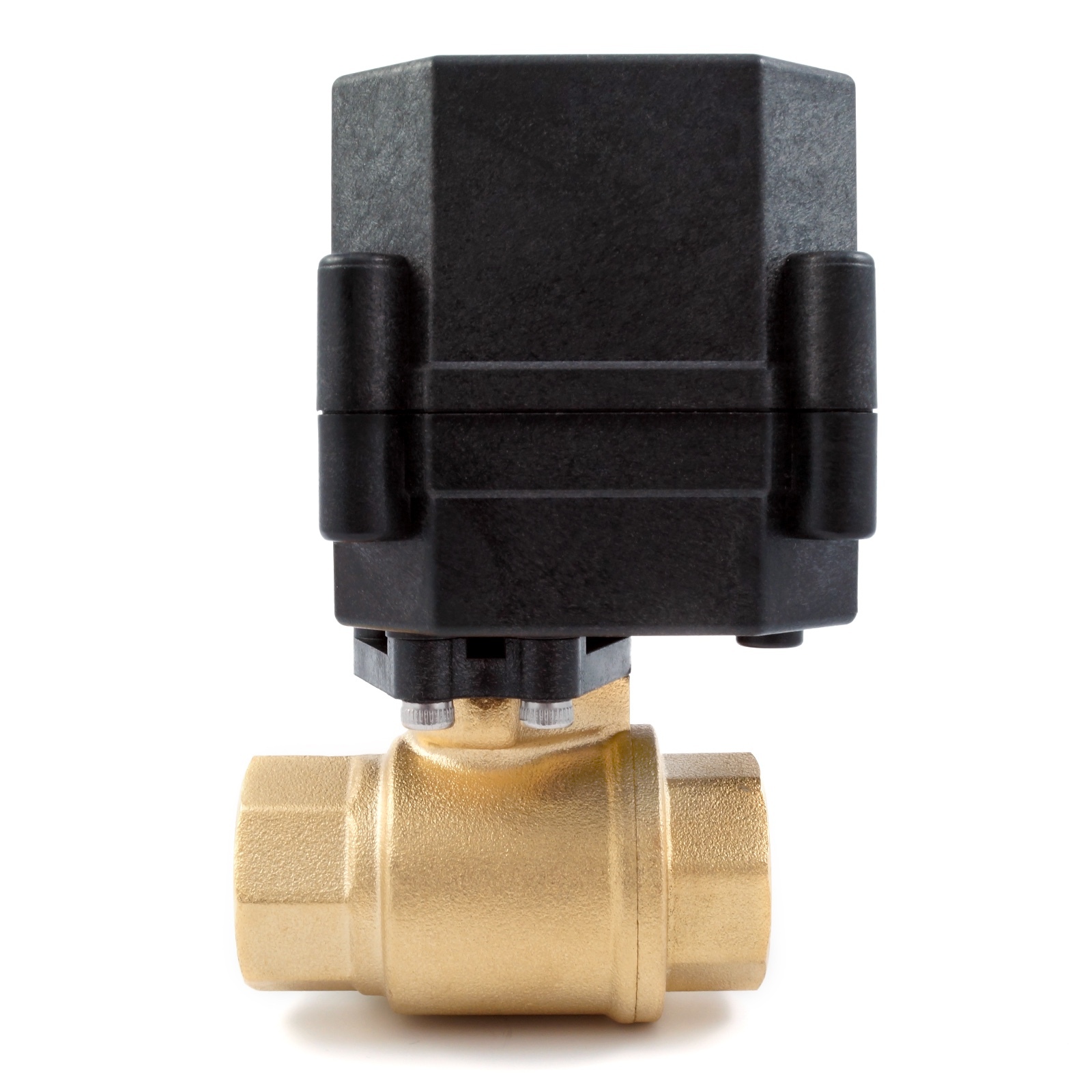

3/8″ Motorized Ball Valve N/C 9 V, 12 to 24 VDC/VAC 2-wire Normally Closed Brass
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | EHCOTECH |
| MPN | M21BV-3/8-C1AW |
| Port Size | 3/8" NPT |
| Valve Body Material | Brass |
| Pressure Range | 0 to 215 psi |
| Type | Normally Closed, 2-wire |
| Other | Gravity Feed Capable |
M21SE-3/4-C1AW Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. EHCOTECH M21BV-3/8-C1AW MOTORIZED BALL VALVE 3/8" NPT | Brass Body | Normally Closed | 0 - 215 psi | 9 to 24 VDC/VAC General FREE 2 to 4 DAY SHIPPING, ships within one business day from San Diego, California 2-way, bidirectional Normally Closed 2-wire actuator - Allows for simple control and wiring Energize actuator to open valve De-enrgize to close valve (closes with power supplied by internal capacitor) Visual valve position indicator Excellent choice for gravity feed applications Excellent choice for applications requiring long activation periods Port Size 3/8" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.675 inches / 18 TPI Full port design (3/8" or 10 mm internal port diameter) Straight through design (no directional changes inside valve) Pressure and Temperature 0 to 215 psi (0 to 15 BAR) Max media temp: 212º F (100º C) Superior to solenoid valves in gravity feed and low pressure applications Suitable Media Water Air Diesel Gasoline Media must be compatible with FKM (Viton) rubber Electrical / Wiring 9 to 24-volt AC or DC (auto detects voltage) 300 mA max while ball is turning (30mA max when held in open position) 20" power cable with 2 lead wires (no polarity requirement) Works with irrigation timers Energize actuator to open valve, De-Energize to close 4 second cycle time from closed to open and vice versa Internal micro-switches stop current flow to motor when open/closed positions are reached Valve Materials Valve body: Brass Ball: Stainless Steel (SS304) PTFE (Teflon) Primary Seals, FKM (Viton) Secondary Seals Metal gears Dimensions Height: 4" Width: 2-1/2" Length: 2-1/8" Weight: 13 oz Store Policies Customer service is our #1 priority. If you are not completely satisfied, please contact us and we will make it right! All orders are shipped within 1 business day 30-day, hassle free returns 6 month warranty on all motorized ball valves Please use store categories on the left to explore our other valves Copyright © Ehcotech International Inc. 2015
