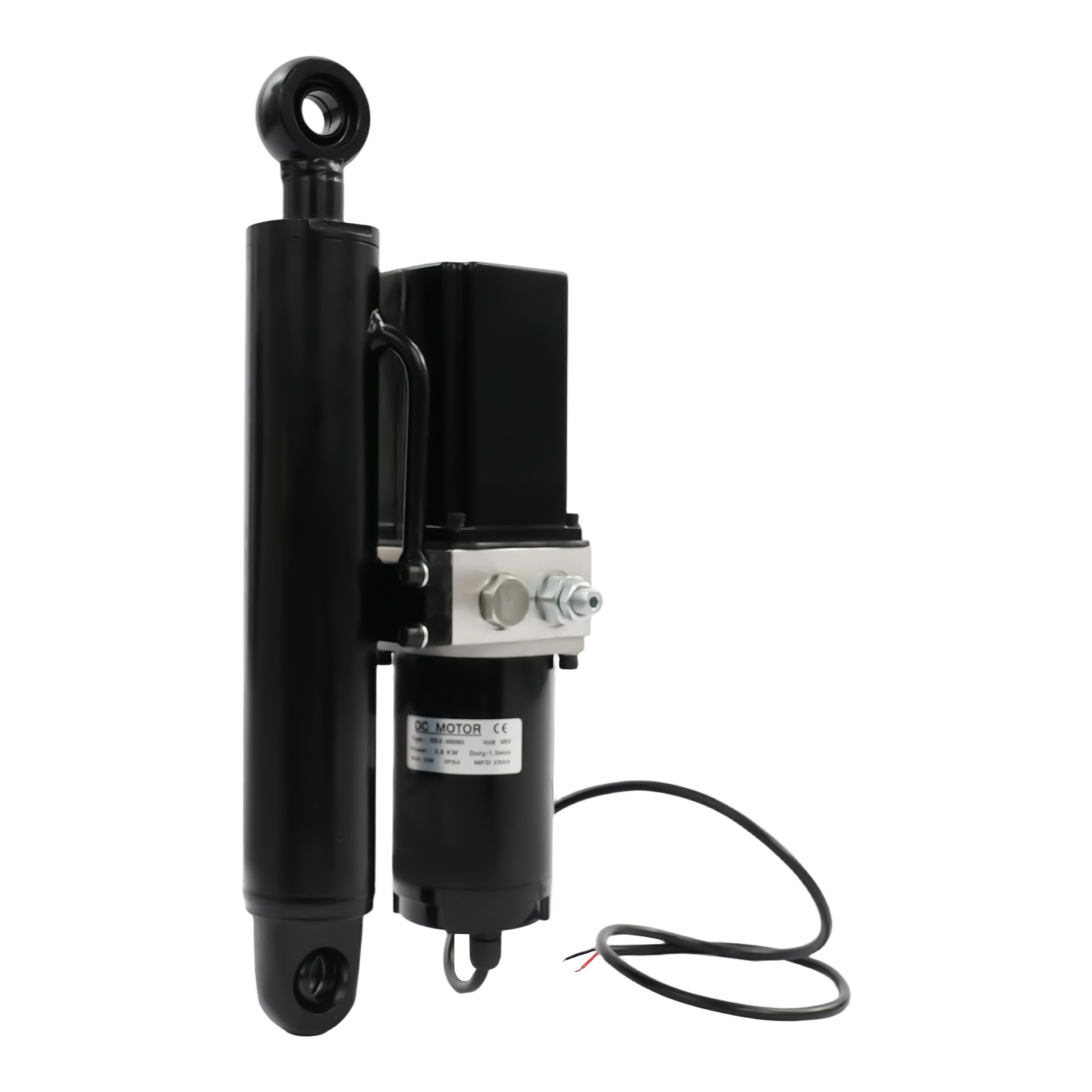

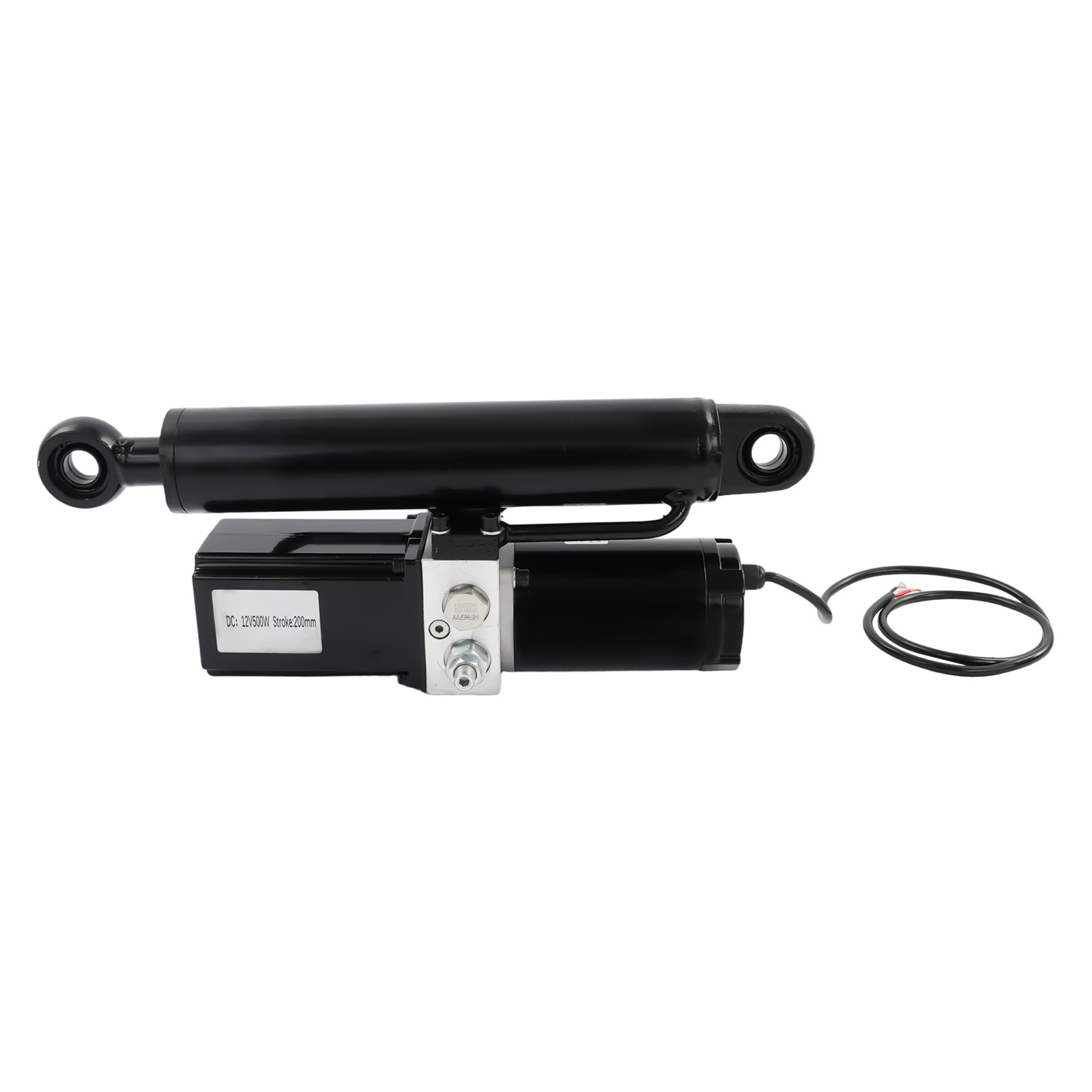

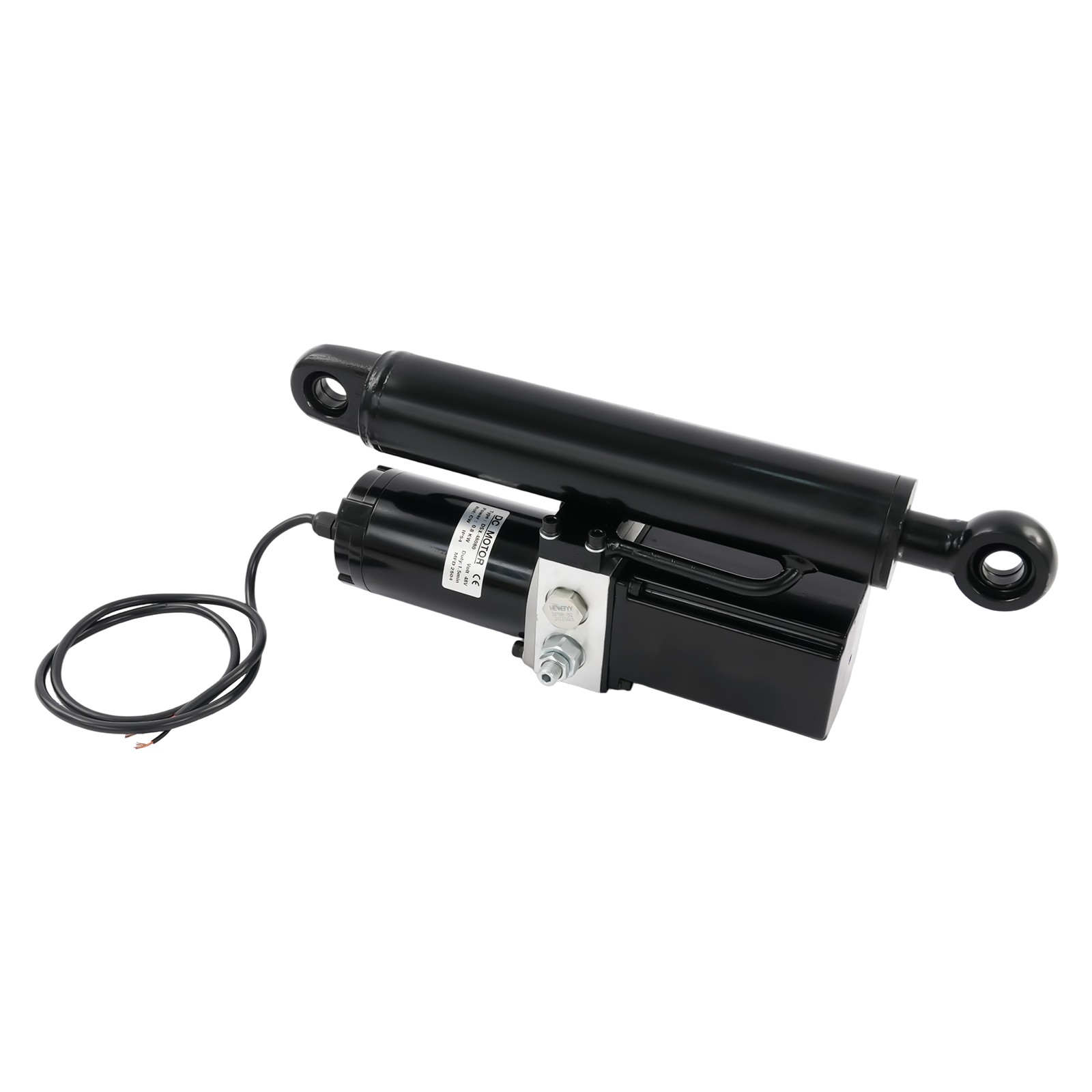

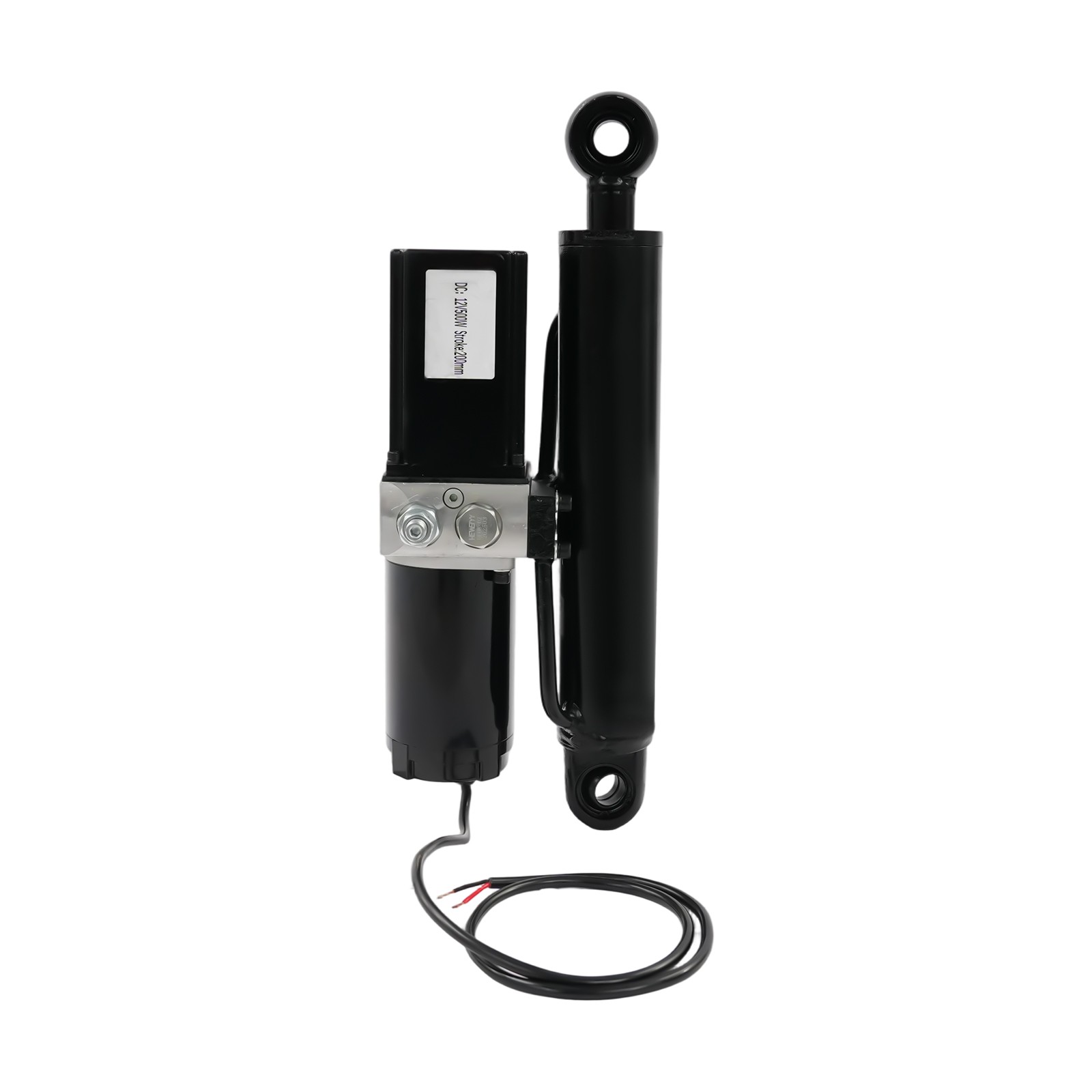

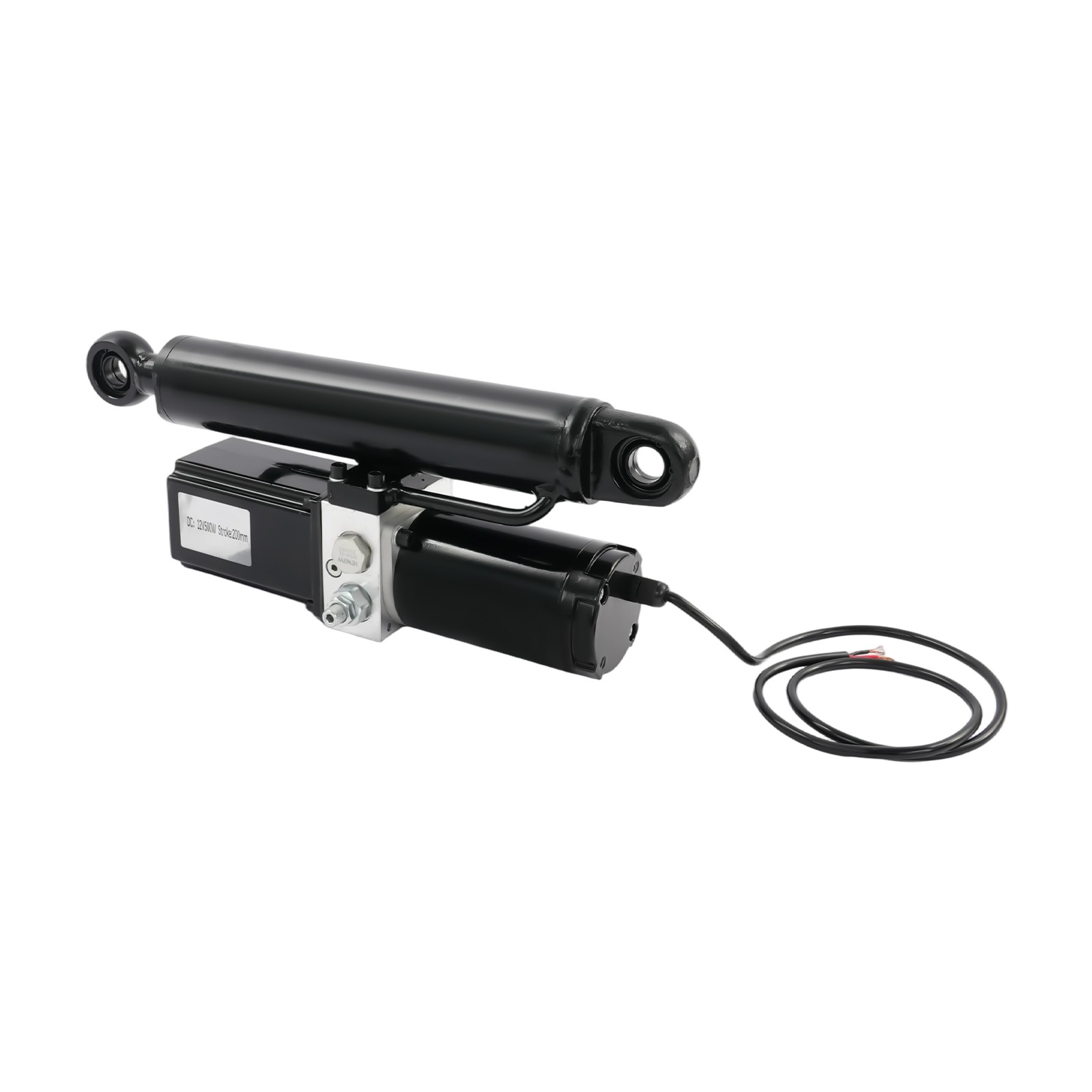

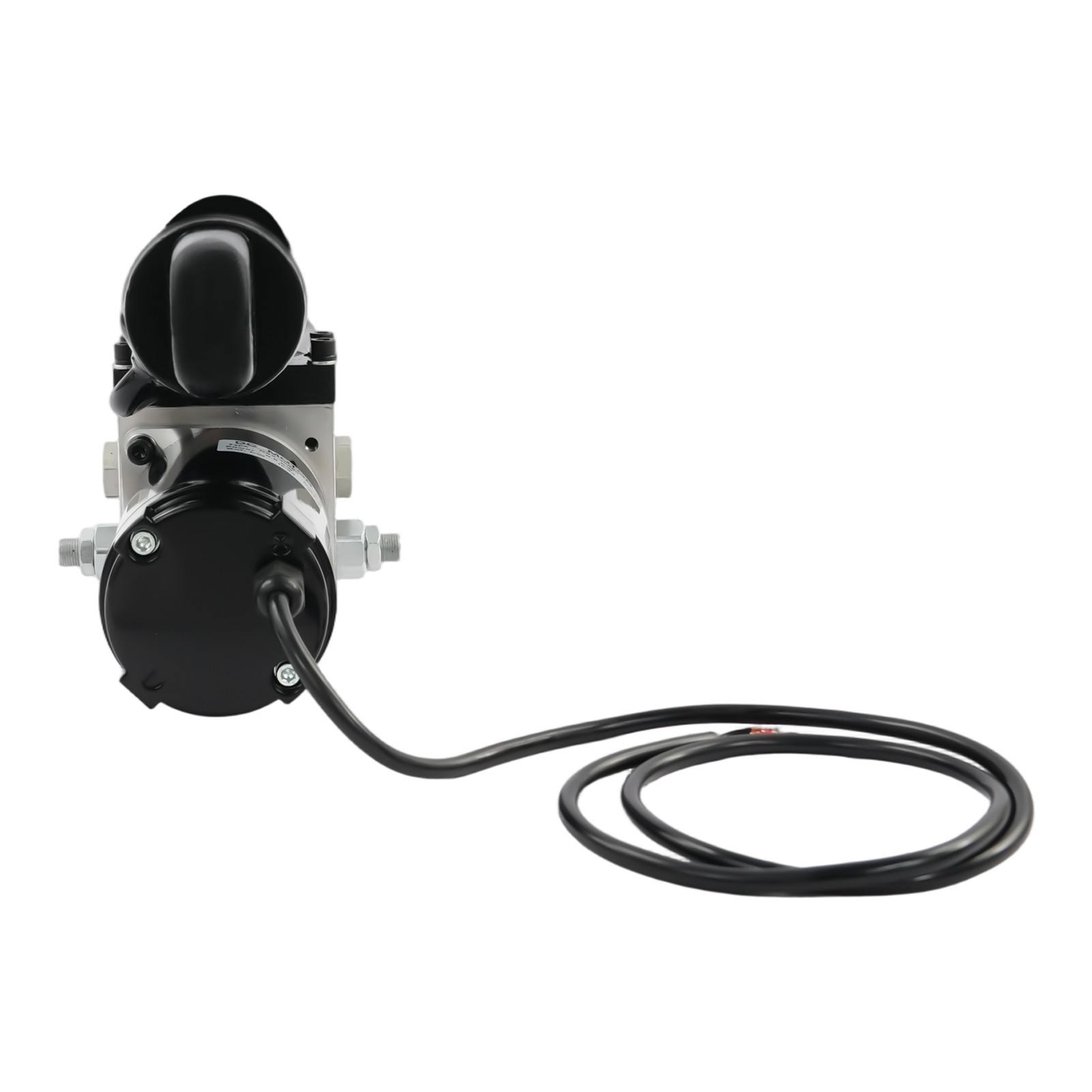

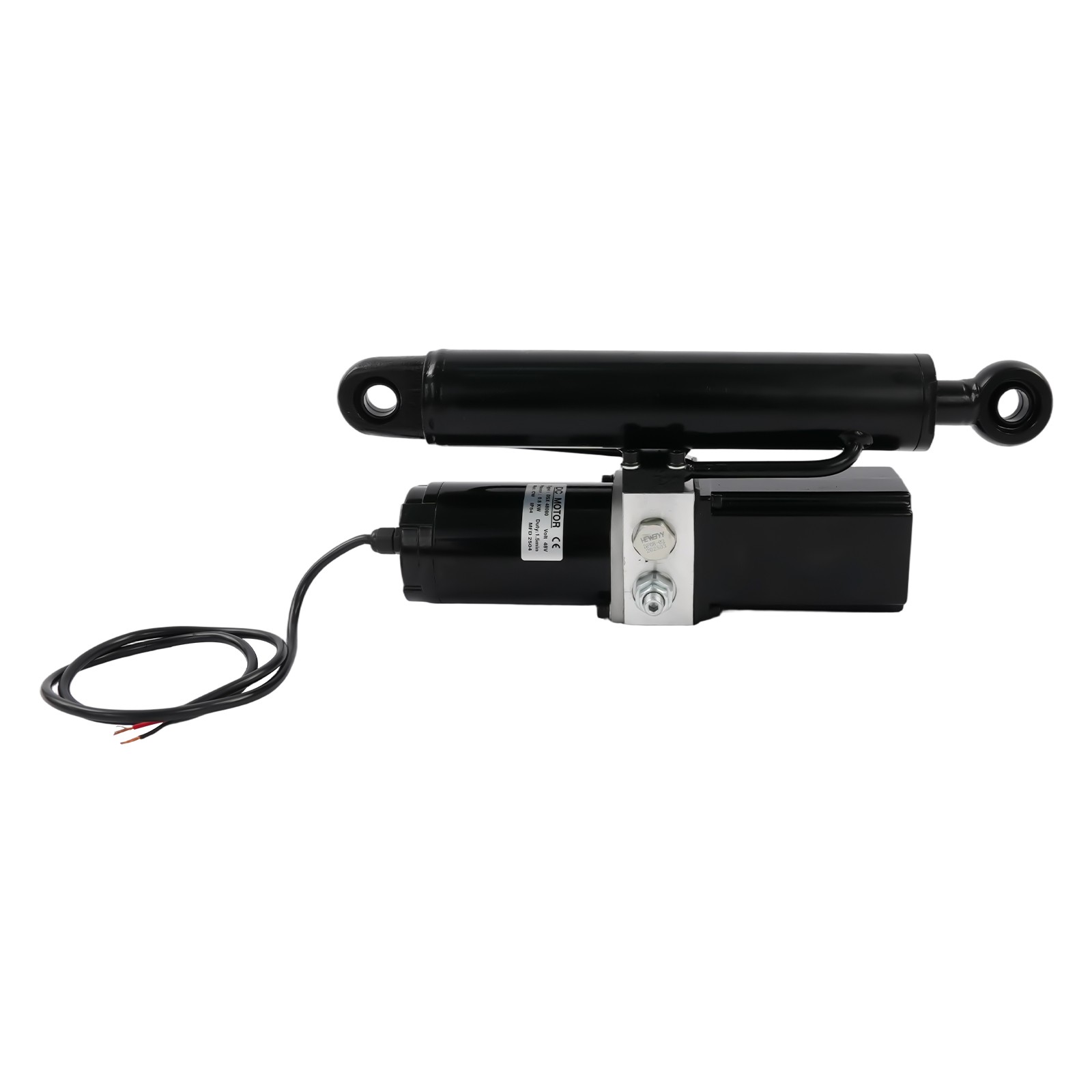

2Ton/4409lb Hydraulic Cylinder Electric Actuator Electric Linear Actuator 200mm
USD 185.18 USD
Specifications

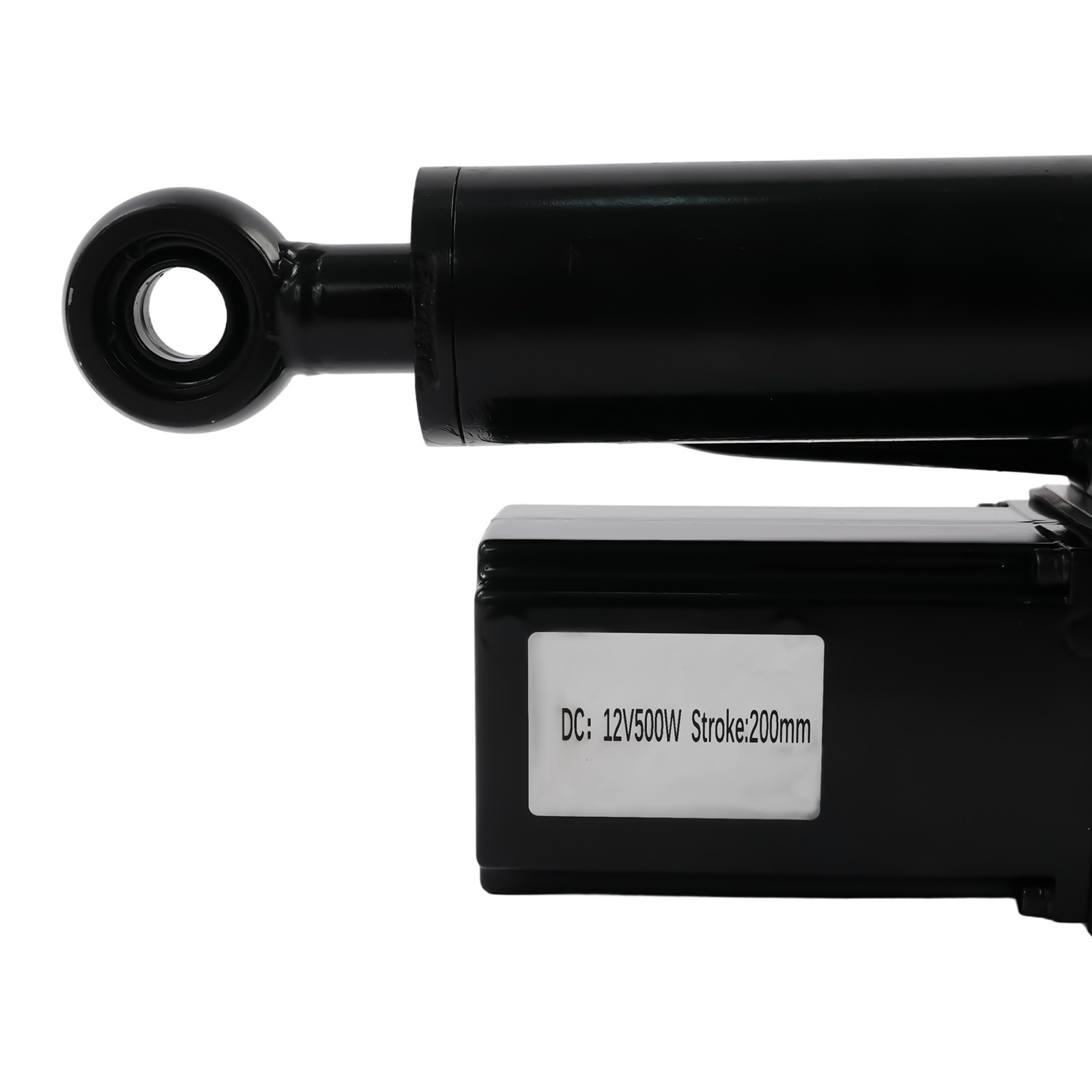

| Stroke Length | 200mm/7.87in |
| Color | Black |
| Material | Steel, Copper |
| Voltage | DC12V |
| Power | 800W |
| Speed | 2850rpm |
| Displacement | 0.65cc |
| Loading Speed | 25mm/0.98in/s |
| Max. Thrust In Straight Direction | 2T/4409 lbs |
| Support Force | 2T/4409 lbs |
| Max. Load Capacity | 2T/4409 lbs |
| Cylinder Diameter | 50mm/1.97in |

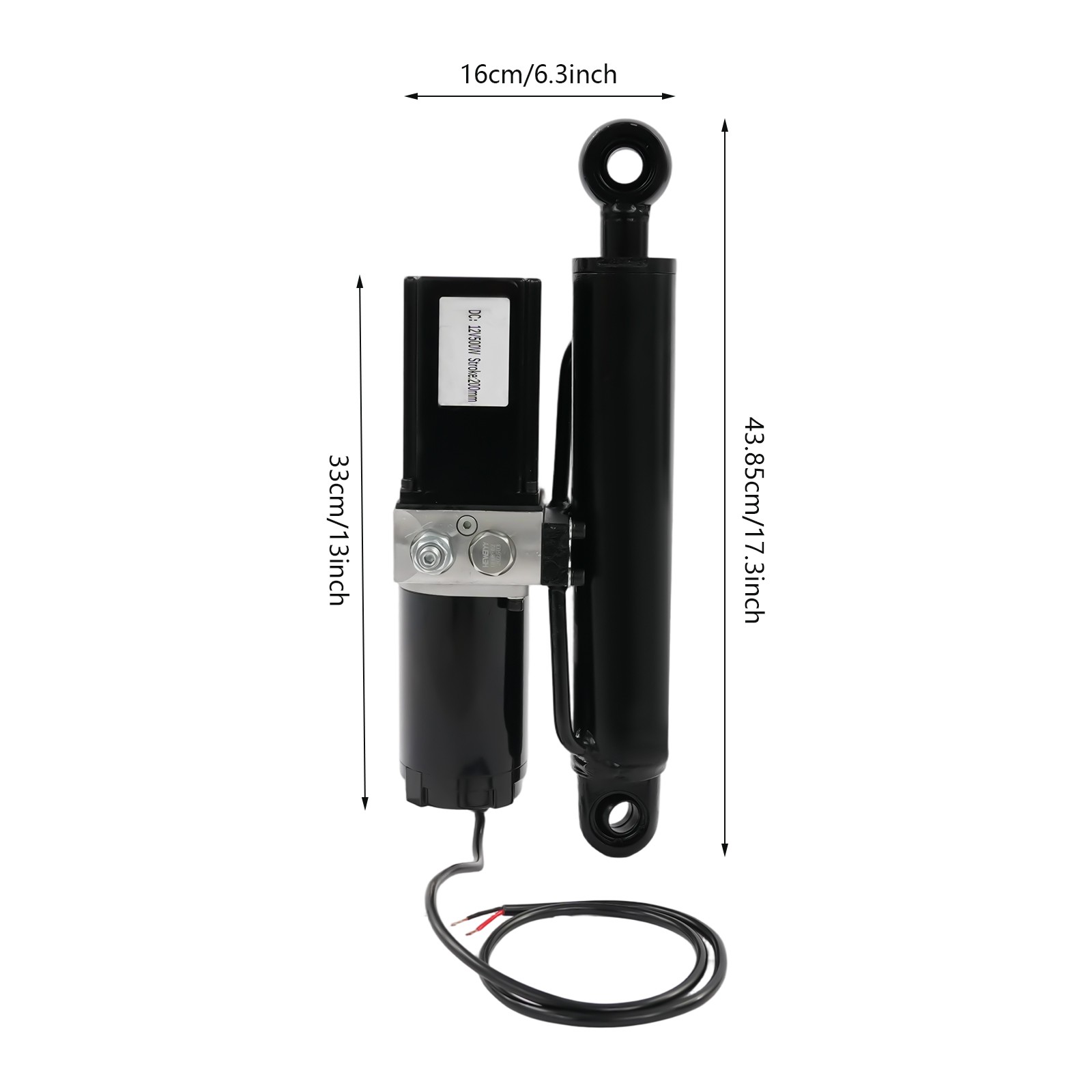

| Center Distance Between Two Holes | 38.5cm/15.16in |
| Rod Diameter | 28mm/1.1in |
| Bore Diameter | 16mm/0.63in |
The electro-hydraulic actuator stands as an effective tool of engineering, harmoniously fusing electrical promptness with hydraulic accuracy. Smooth Running: This product adopts full hydraulic transmission, which has sensitive action and smooth running, and can effectively buffer the external impact force.
