20A Rotary Changeover Switch 660V 4 Position 3 Phase 12 Terminals,3Way 2NO 2N…
USD 16.51 USD
Specifications
| Switch Type | Rotary |
| Actuator Type | Rotary |
| Contact Material | Silver |
| Contact Type | 2No 2Nc |
| Connector Type | Screws |
| Control Type | Mechanical |
| Control Method | Touch |
| Current Rating | 20.0 |
| Connectivity Protocol | X-10 |
| Circuit Type | 3-Way |
| Part Number | Szw26-20/0-3.3 |
| Terminal Type | Screw |
| Wattage | 13200.0 |
| Model Number | Szw26-20/0-3.3 |
| Operation Mode | Off-On-On-On |
| International Protection Rating | Ip20 |
| Mounting Type | Panel Mount |
| Material | Plastic |
| Operating Voltage | 660.0 |
| Unit Count | 1.0 |
| EAN | 0763470886948 |
| ISBN | 0763470886948 |
| Package Dimensions LxWxH | 3.7x2.44x2.24 Inches |
| Weight | 0.29 Pounds |
| UPC | 763470886948 |

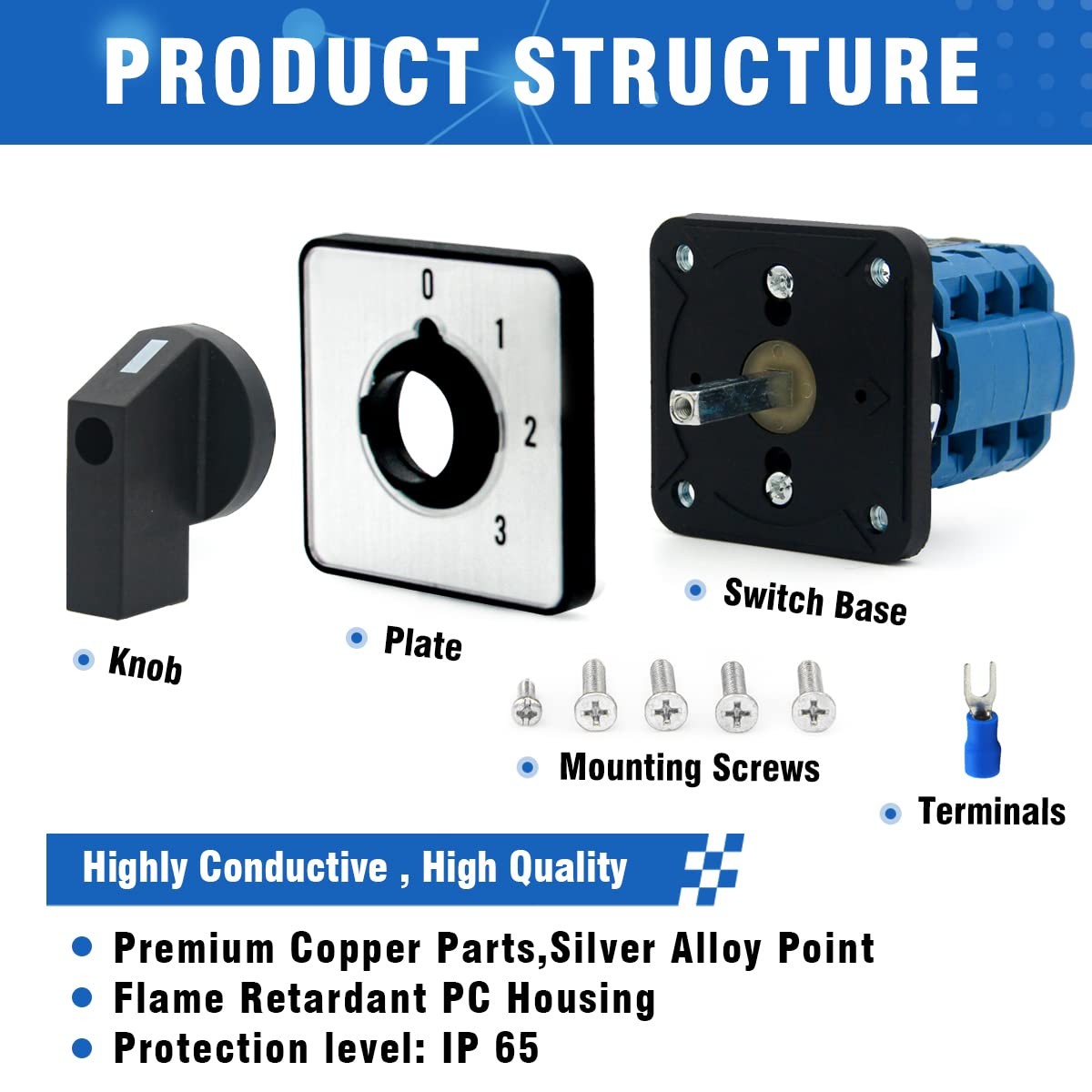

Model: SZW26-20/0-3.3, Ui: 660V, Ith: 20A, Action Type: Latching. The connecting parts are made of thickened galvanized copper,abrasion resistance and oxidation resistance. The premium Silver Alloy Point, low resistivity, good conductivity, long service life.
