2 X Mini Diaphragm Single Head Air and Gas Hargraves Pump – 6 l/min – 12 V DC
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Featured Refinements | Diaphragm Pump |
| MPN | Does Not Apply |
| Brand | Hargraves |
| Application | Lab |
| Power Source | Electric |
| Country Of Manufacture | United States |
| Type | Vacuum |

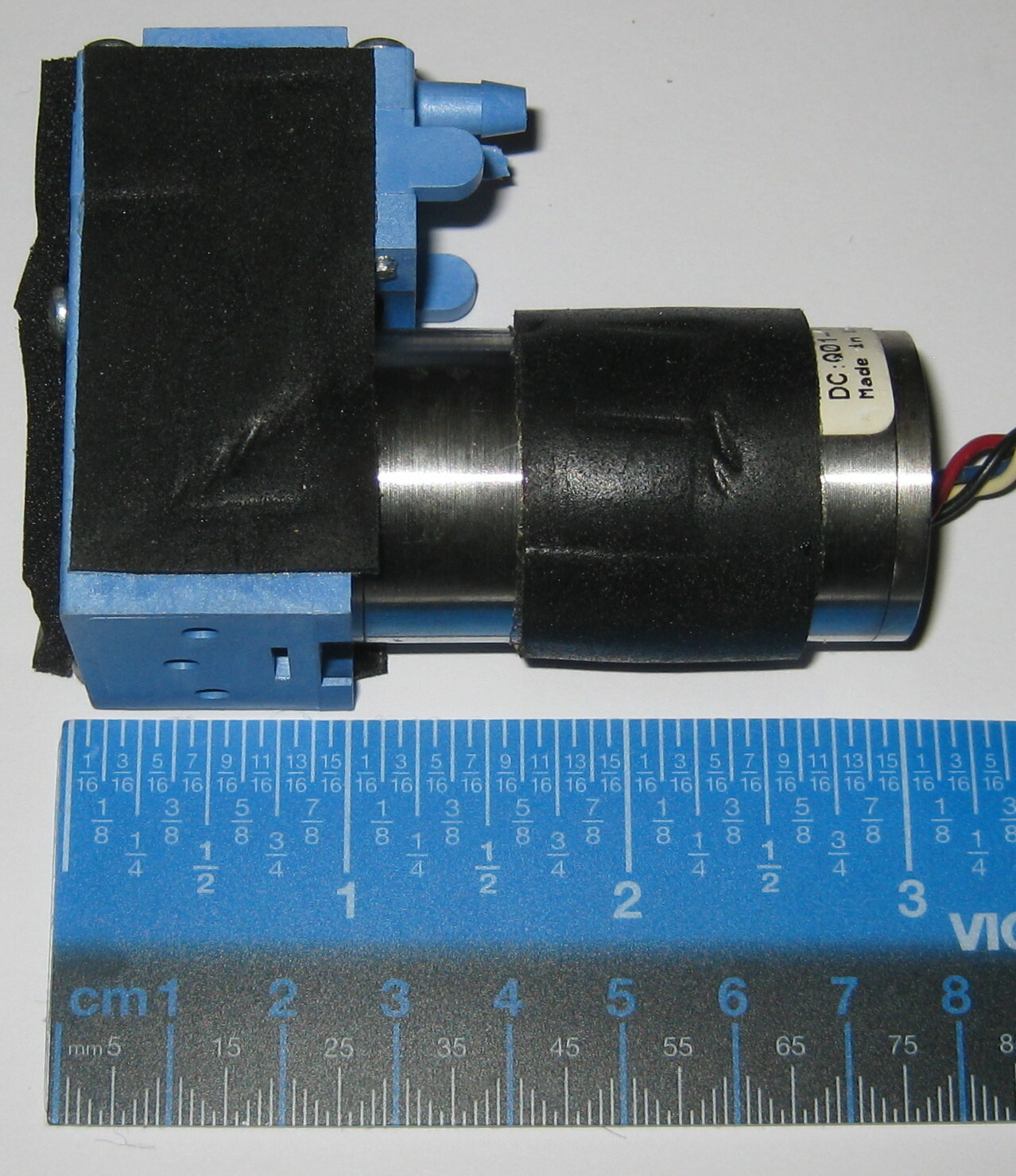

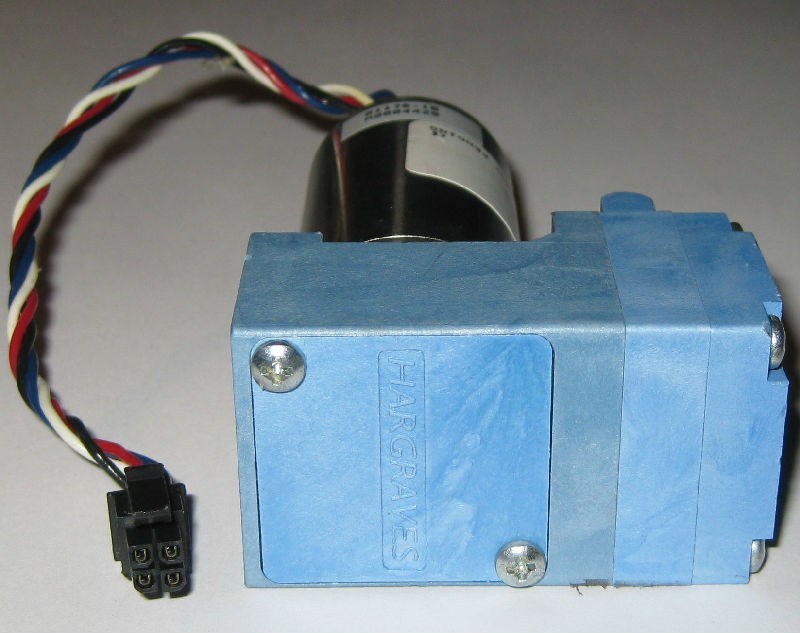

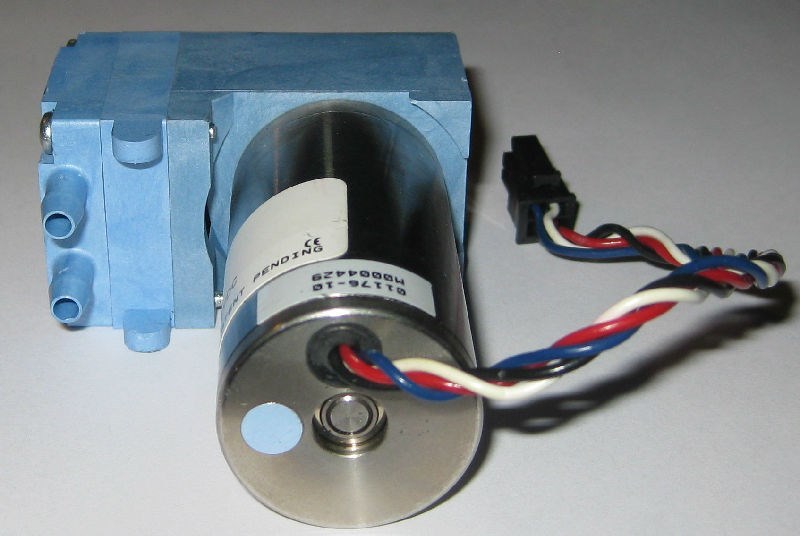

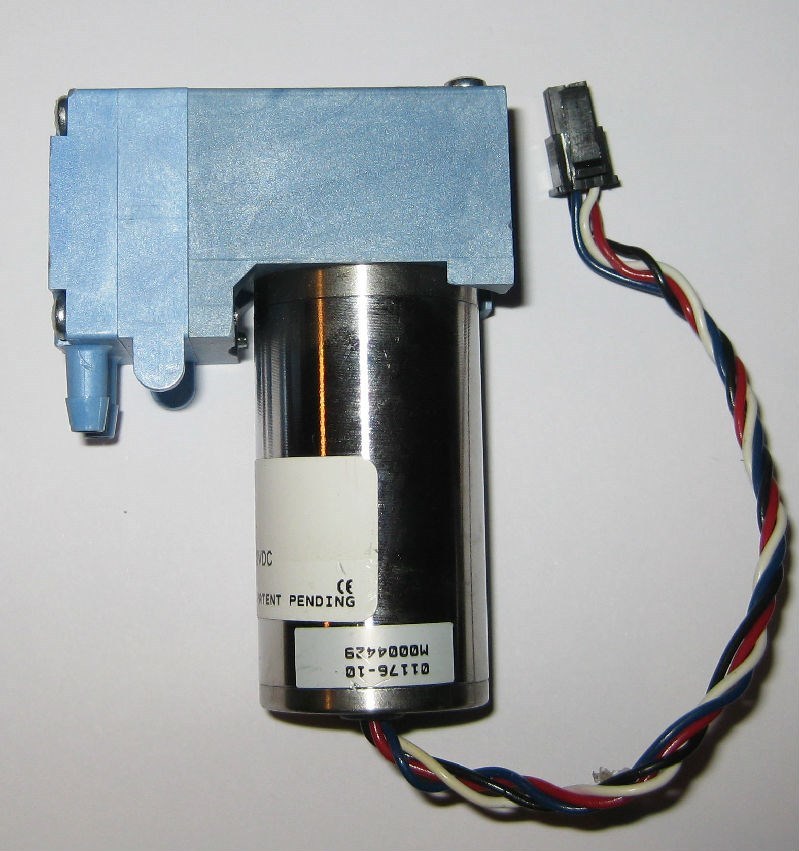

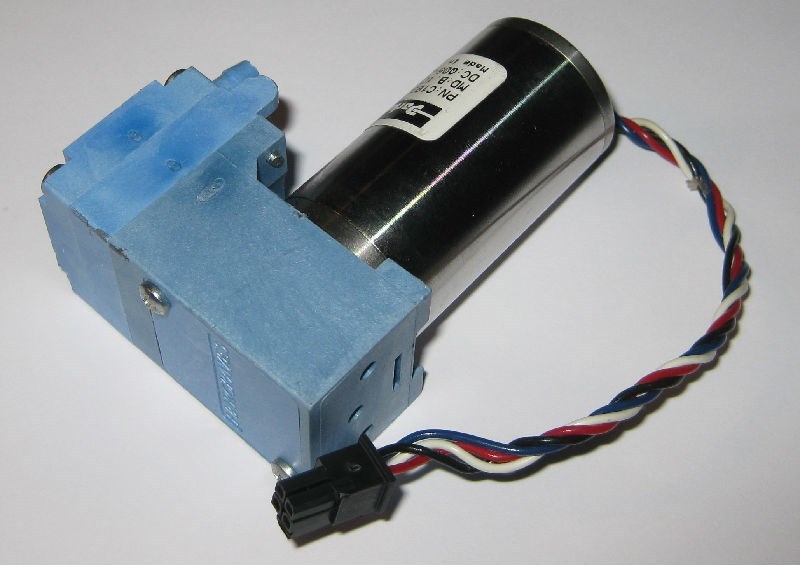

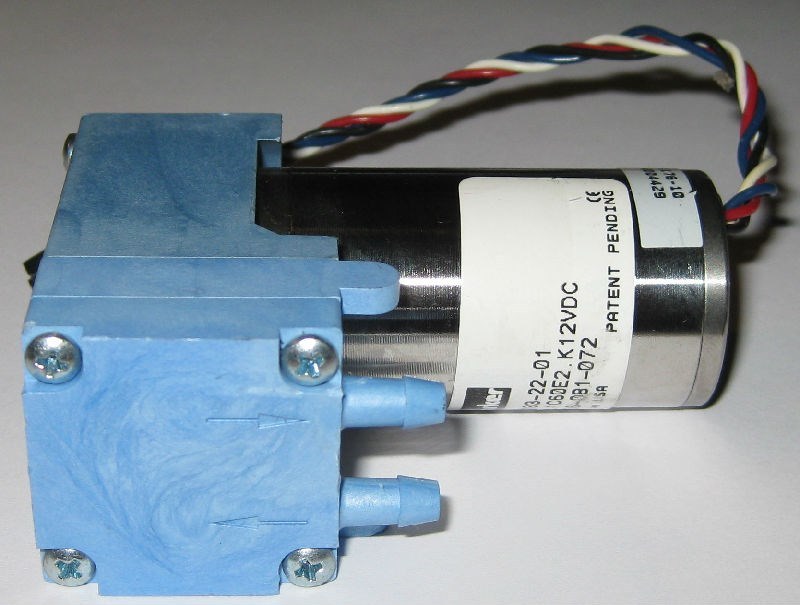

2 X Mini Diaphragm Single Head Pumps - Hargraves Air and Gas Pumps - 6 L/min - 12 V DC - 24 PSI Used air and gas pumps removed from working equipment Motor type: Brushless DC You will receive 2 pumps Manufacturer: Parker / Hargraves Pump operates on 12 VDC nominal Current: 200 - 1400 mA Maximum pressure: 24 PSI Unrestricted flow: 6 L/min Maximum vacuum: 20 in. Hg Operating temperature: 5 to 50 deg C 3 mm port connections (inlet and outlet port) Oil less diaphragm construction Overall dimensions: 54 mm L x 30 mm W x 76 mm H Flexible power leads terminated with a 4 pin female connector Red wire: +12VBlack wire: ReturnBlue: Tachometer output - 1 PPRWhite: PWM input (if not used then motor runs at full speed based on voltage supplied to red wire) Commonly used in laboratory and medical equipment Made in USA Weight: 7.5 oz (212 g) each
