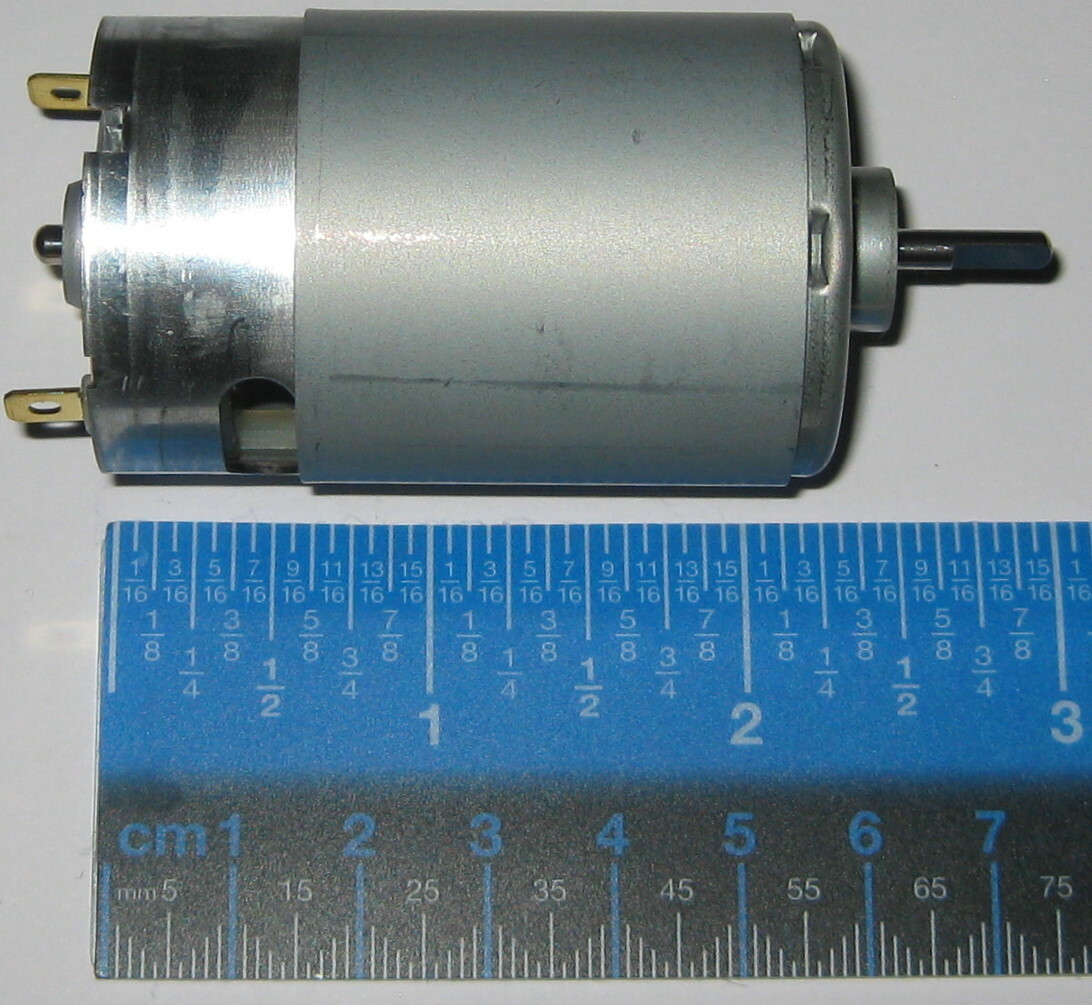

2 X Mabuchi 555 12 VDC Deer Feeder Motor – Large 4500 RPM Hobby DC Motors
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 2.4 A |
| MPN | RS-555PH 3255 |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | "D" Profile |
| Nominal Rated Input Voltage | 12 V |
| Model | RS-555PH 3255 |
| Starting/Locked Rotor Torque | 1360 g-cm |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 380 g-cm |
| Shaft Diameter | 1/8 in |
| Base RPM | 5500 RPM |
| Brand | Mabuchi |
2 X Mabuchi 555 12V DC Deer Feeder Motor - Large 4500 RPM Hobby Motors Hobby electric motors manufactured by MabuchiYou will receive 2 motors Model: RS-555PH-3255 Frequently used in deer feeders (please ensure compatibility) Rated current: 2 A Operates on 12 VDC nominal Motor starts to spin at approximately 1 VDC No load speed of 5,500 RPM 180 mA no-load current draw @ 12 V Full load torque: 380 g-cm (5.3 oz-in) Full load speed: 4,500 RPM Full load current: 2.4 A Stall torque: 1,360 g-cm (18.9 oz-in) Stall current: 11.8 A 5 Pole armature Two threaded (M3-0.5) mounting holes on 25 mm center located on pulley end Can be operated in either direction, simply reverse power supply polarity D-Type shaft dimensions: 13 mm long x 3.17 mm (1/8") diameter Dimensions (not including shaft): 58 mm long x 37 mm diameter Weight: 7.7 oz. (218 g) each Features solder eyelets for easy power connection (can also use 3/16” quick connect terminals)
