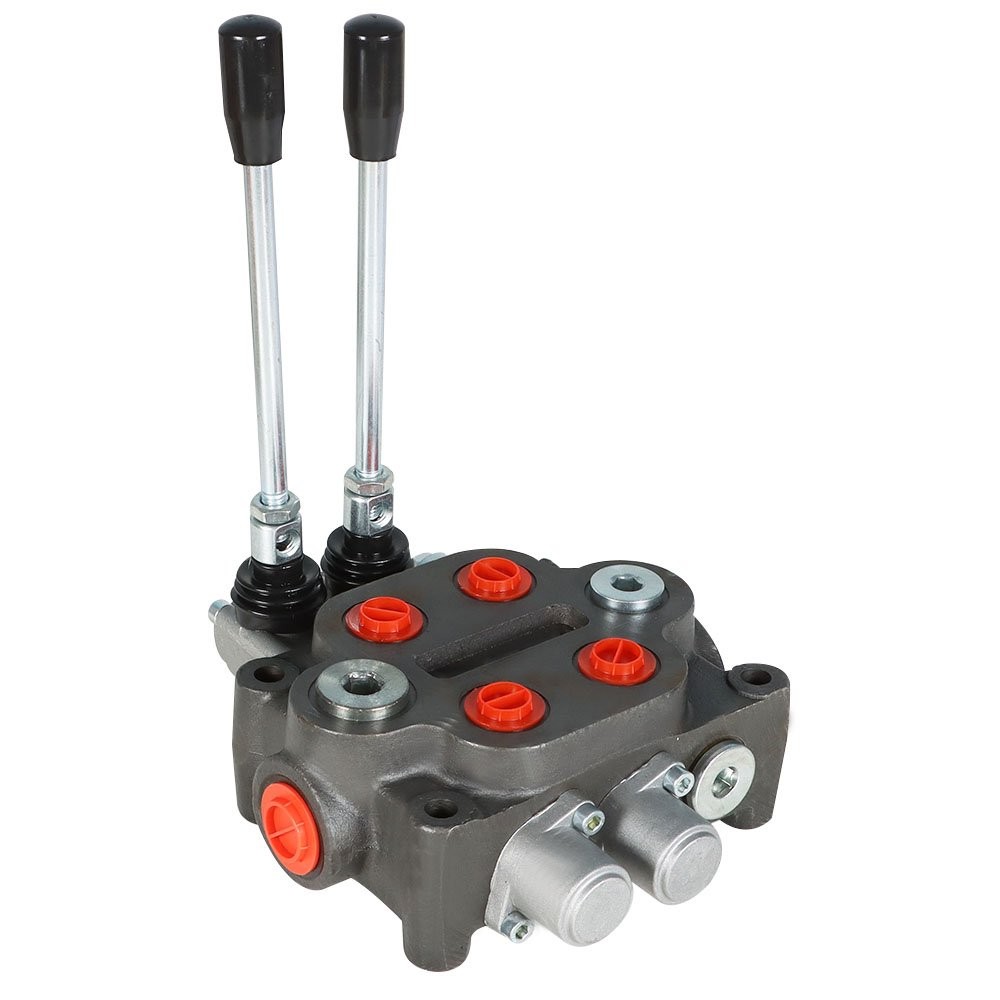

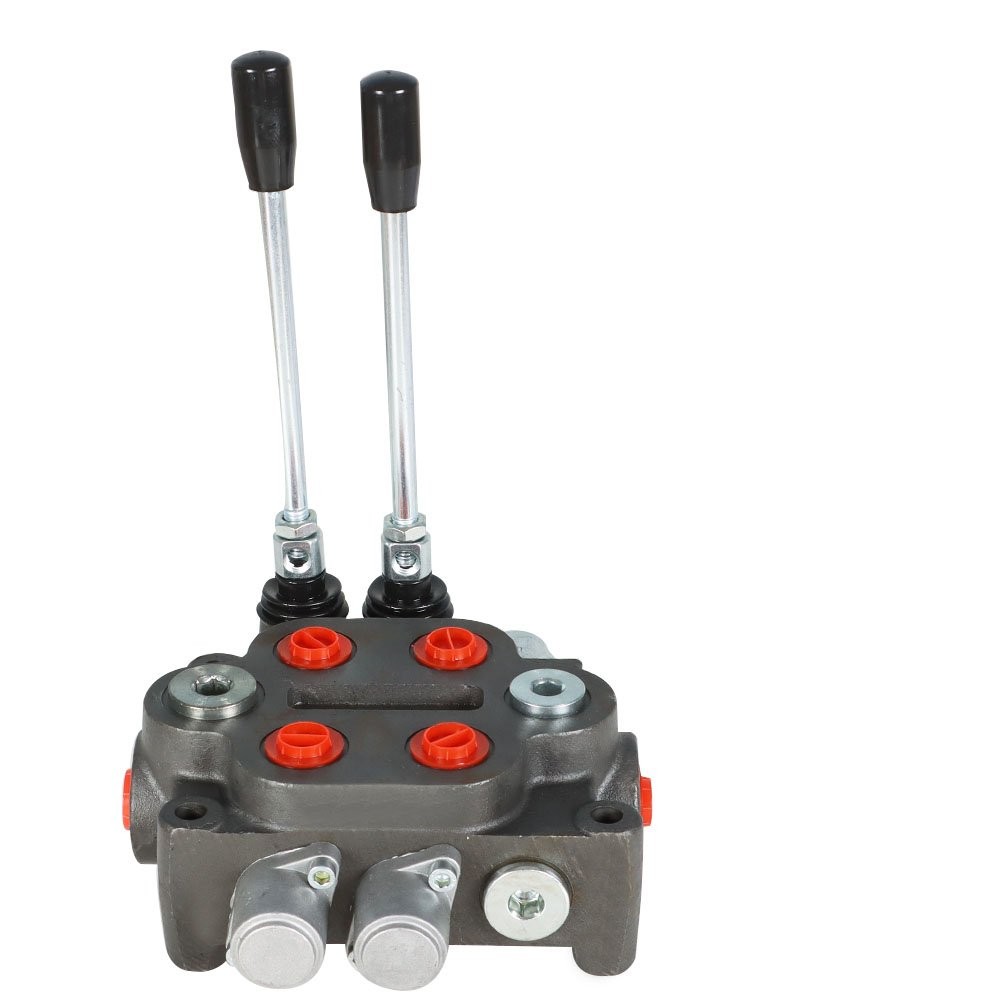

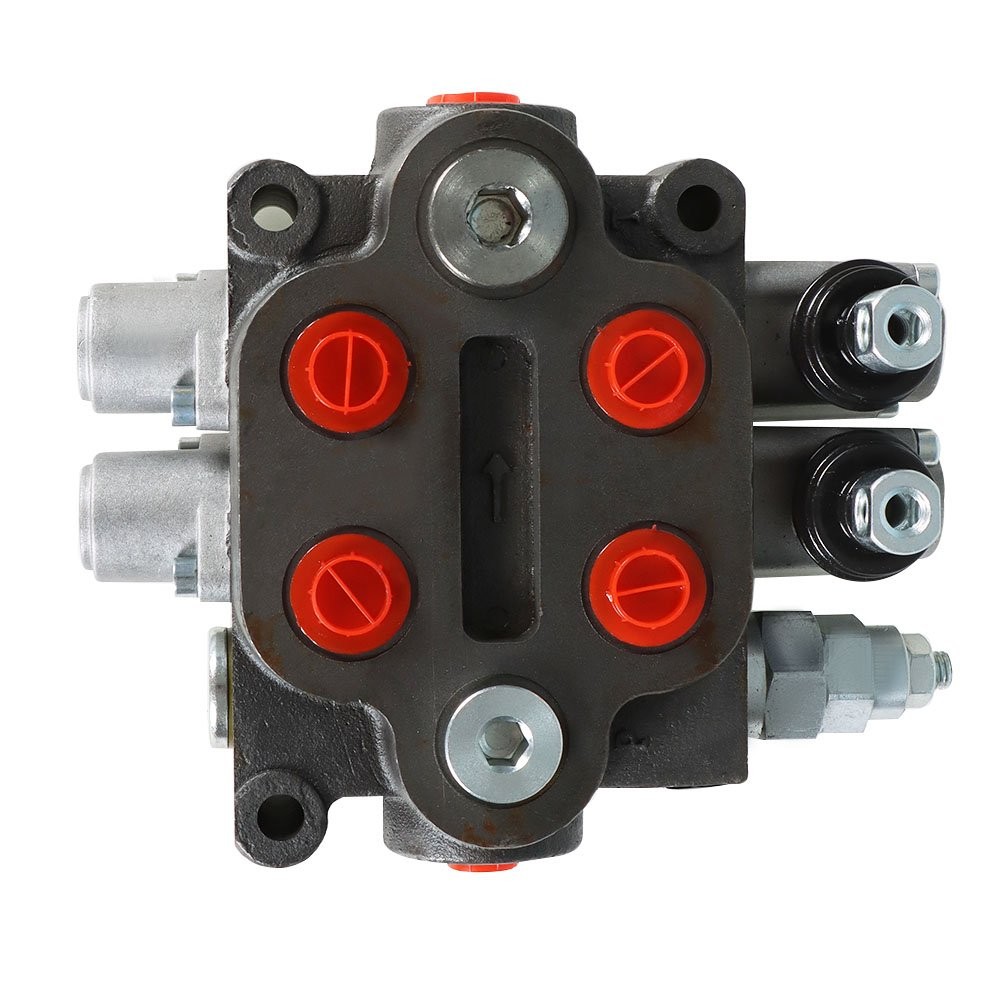

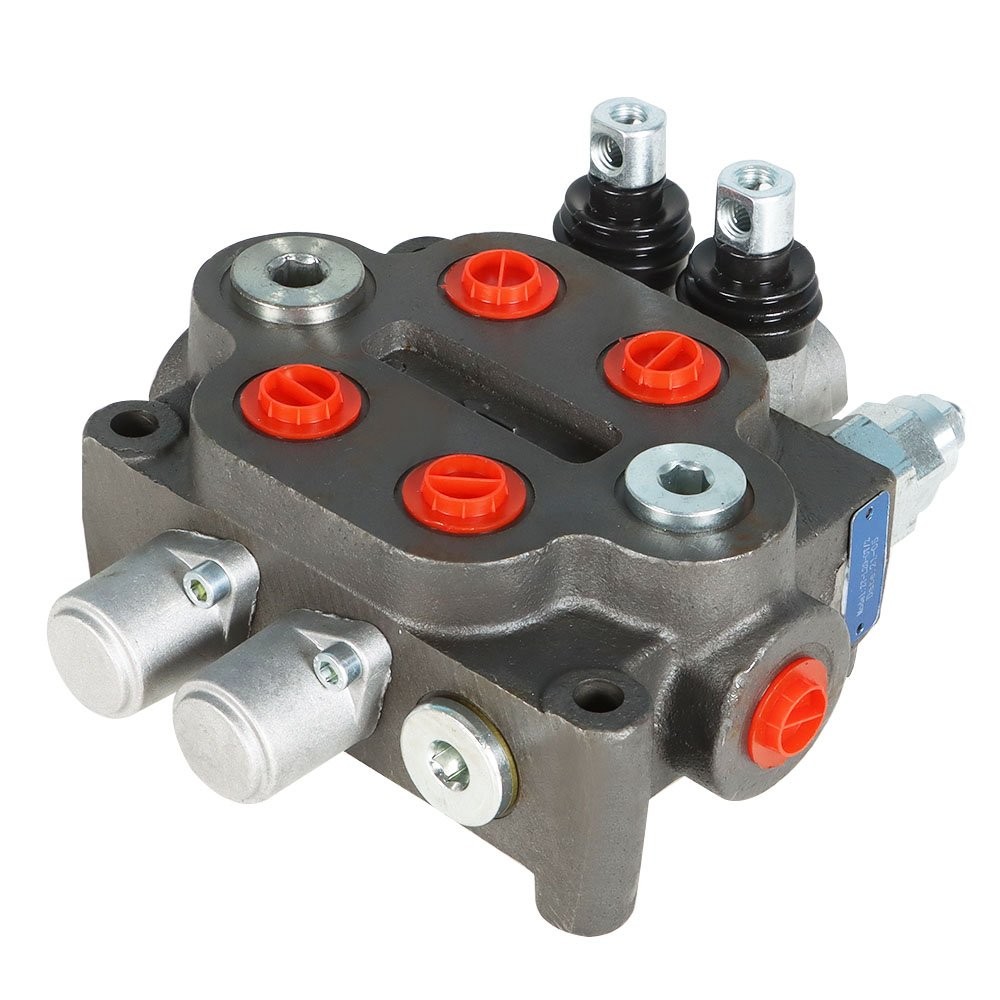

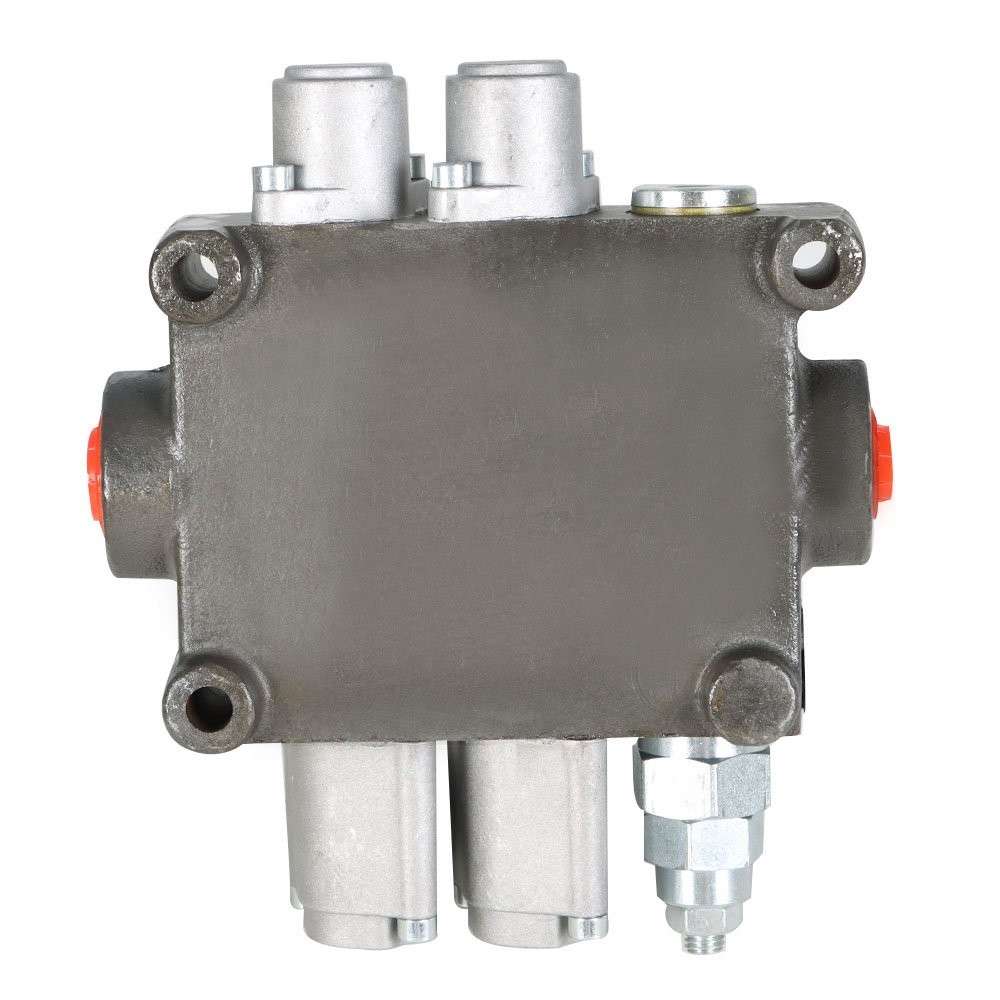

2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface
2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface 2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface 2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface 2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface 2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface 2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface

2 Spool Hydraulic Directional Control Valve 25 GPM, 3000 PSI, BSPP Interface

USD 57.42 USD
SKU: fmKJuzGc
Brand: ALL-CARB
GTIN: Does not apply
Condition: New
Tags: ≤10 um ≤1Mpa 10-400mm2/S 2 spool 20 Mpa 20-80℃ 25 GPM 3000 psi 31.5Mpa 90L/min ALL-CARB G1/2 G3/4 Hydraulic Manual Manual Valve United States
Categories: Heavy Equipment, Parts & Attachments

Specifications

Country Of OriginUnited States
BrandALL-CARB
Valve OperationManual
Spool Count2-Spool
Max Flow25 GPM
Maximum Pressure3000 PSI
Suitable MediaHydraulic
Nominal Pressure20 Mpa
Mac Pressure31.5Mpa
Om.flow90L/min
Allowable Pressure≤1Mpa
Temperature-20 -, 80℃
Visc. Range10-400mm2/S
Filtrating Accuracy≤10 um
P/A/BG1/2
T/NG3/4

Specifications: Nominal pressure:20 Mpa Max pressure: 31.5Mpa Nom.flow: 90L/min Allowable pressure: ≤1Mpa Temperature: -20 - +80℃ Visc. Range: 10-400mm2/S Filtrating accuracy: ≤10 um Note: the maximum permissible degree of contamination of the oil is according to GB/T14039-19/16 P/A/B：G1/2 T/N：G3/4 .
