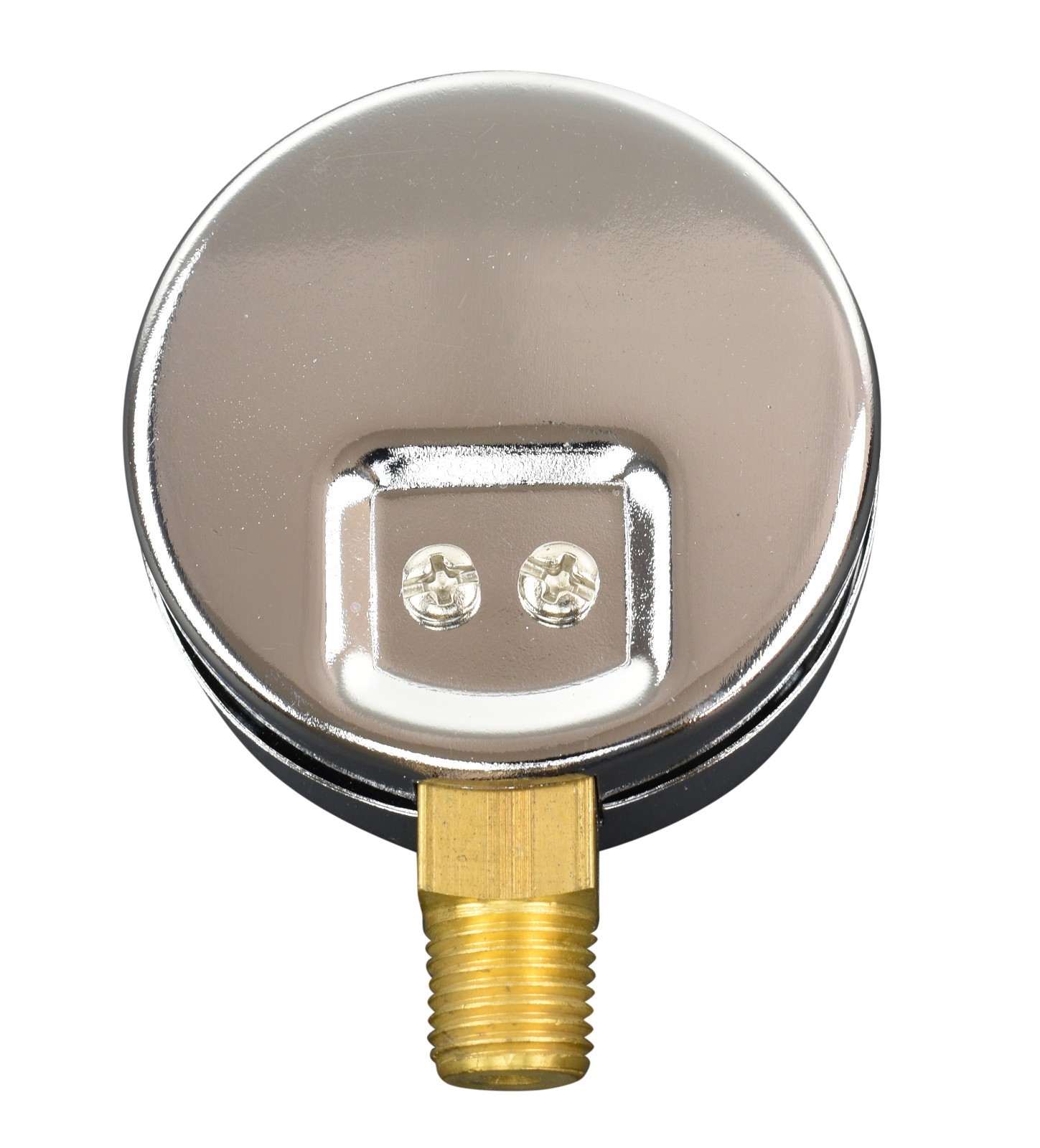

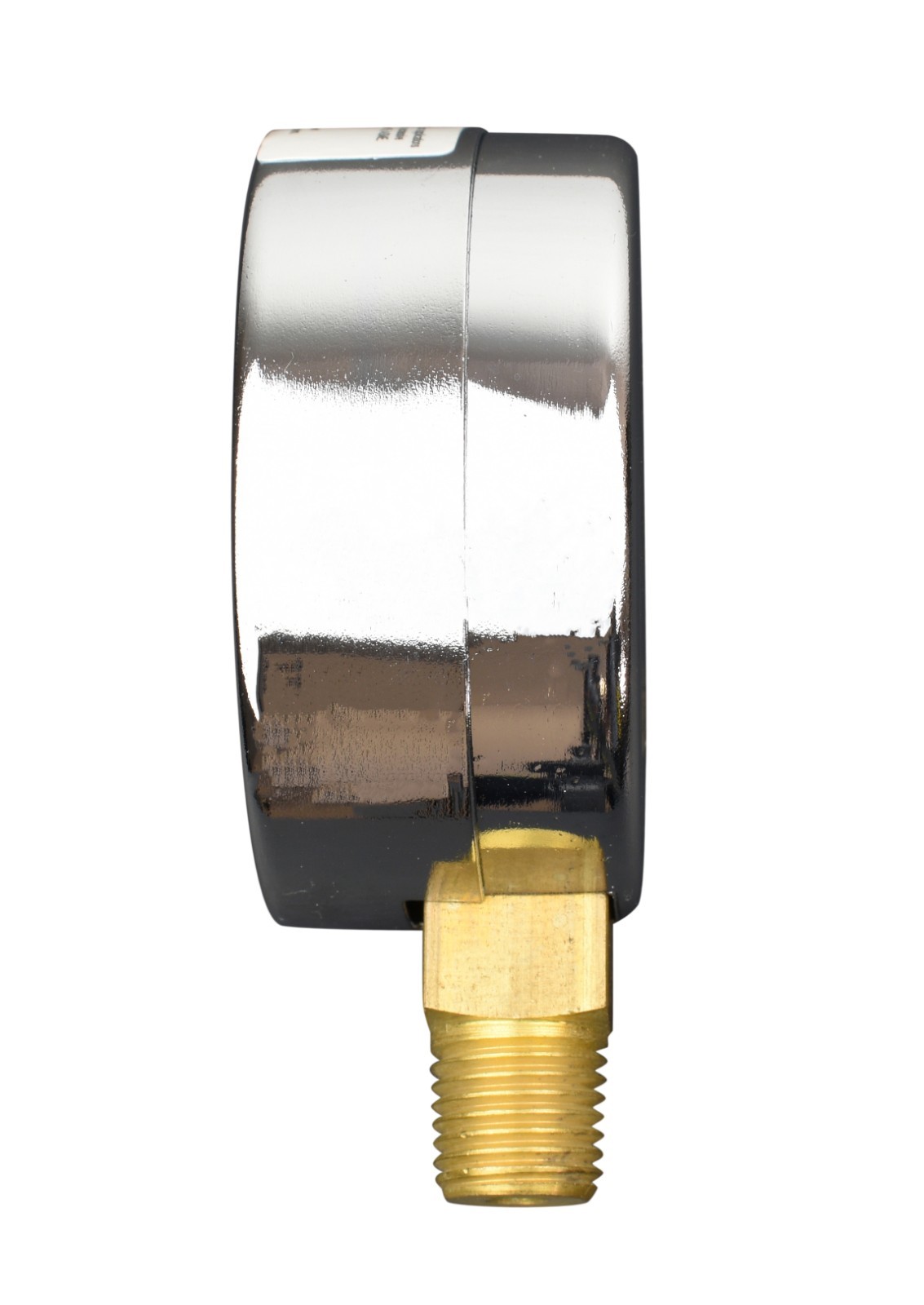

2″ Pressure Gauge – Chrome Plated Steel Case, 1/4″ NPT, Lower Mnt. 300 PSI
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Brand | CARBO INSTRUMENTS |
| Face Diameter | 2 in (50.8 mm) |
| Connection Diameter | 1/4 in |
| Mounting Position | Side/Bottom Mount |
| MPN | D20-CSL-300 |
| Manufactured | 2020 |
| Country/Region Of Manufacture | Unknown |
| Maximum Pressure | 300 psi (20.7 bar) |
D25-BSC DRY PRESSURE GAUGE 2" Chrome Plated Steel Case - Lower Mount Product Features & Applications ü ASME B40.1 Grade B Accuracy Compliance ü Chrome Plated Steel Case - Durable ü Large Dial Print ü Reliable and Economical ü Applications: Oil, Water, Air, Compressor, Hydraulics, HVAC, Gaseous & Liquid media that are not highly viscous or crystallizing and not corrosive or oxidizing to copper alloy parts Pressure Range: 0-300 Psi Accuracy ASME B40.1 Grade B Accuracy ± 3-2-3 % of span Dial Size 2" (50.8 mm) Connection 1/4" NPT Lower Mount. Scale Dual Scale: psi / bar with kPa guidance. Case Design Crimped Style Casing Material Movement: Copper Alloy Bourdon Tube: Copper Alloy Connection: Copper Alloy Window: Glass Lens Casing: Steel Case Pointer: Aluminum Permissible Ambient Temperature -4°F to 140°F (-20°C to 60°C) Fill: Dry Manufactured in an ISO 9001 Certified factory to meet and exceed your expectation Options: - Custom Dial Layout - Anti Vibration - see D20 Series - Special Connection Size - Adapters & Mounting kit Specifications subject to change without notice at any time, and information provided may vary from the actual Product. Warning: This product contains chemicals such as lead in brass component known to the state of California to cause cancer and birth defects or other reproductive harms. Drawings, sizes, dimensions and all other specifications are subject to change without notice at any time, and information provided may vary from the actual Product. </fo
