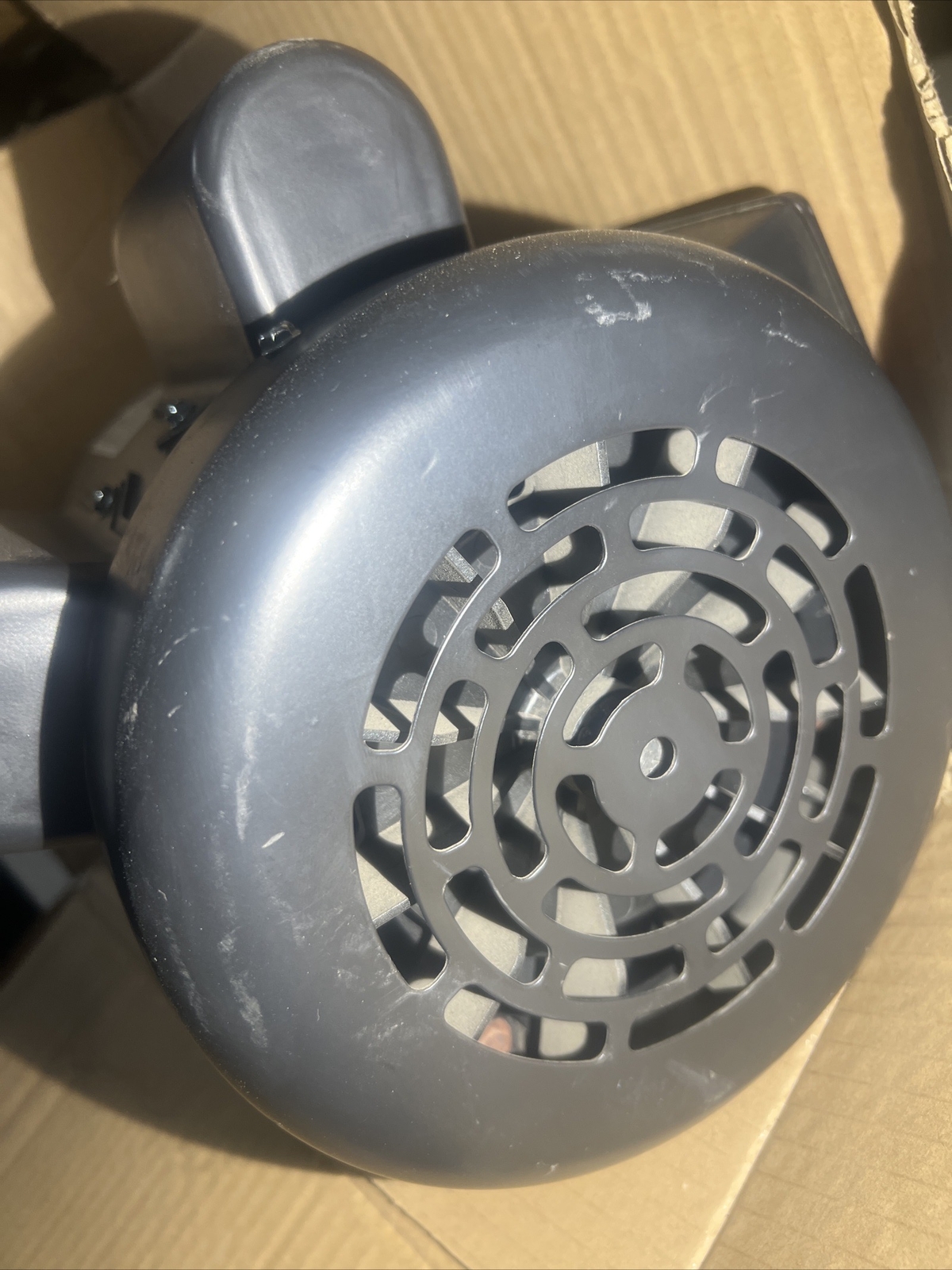

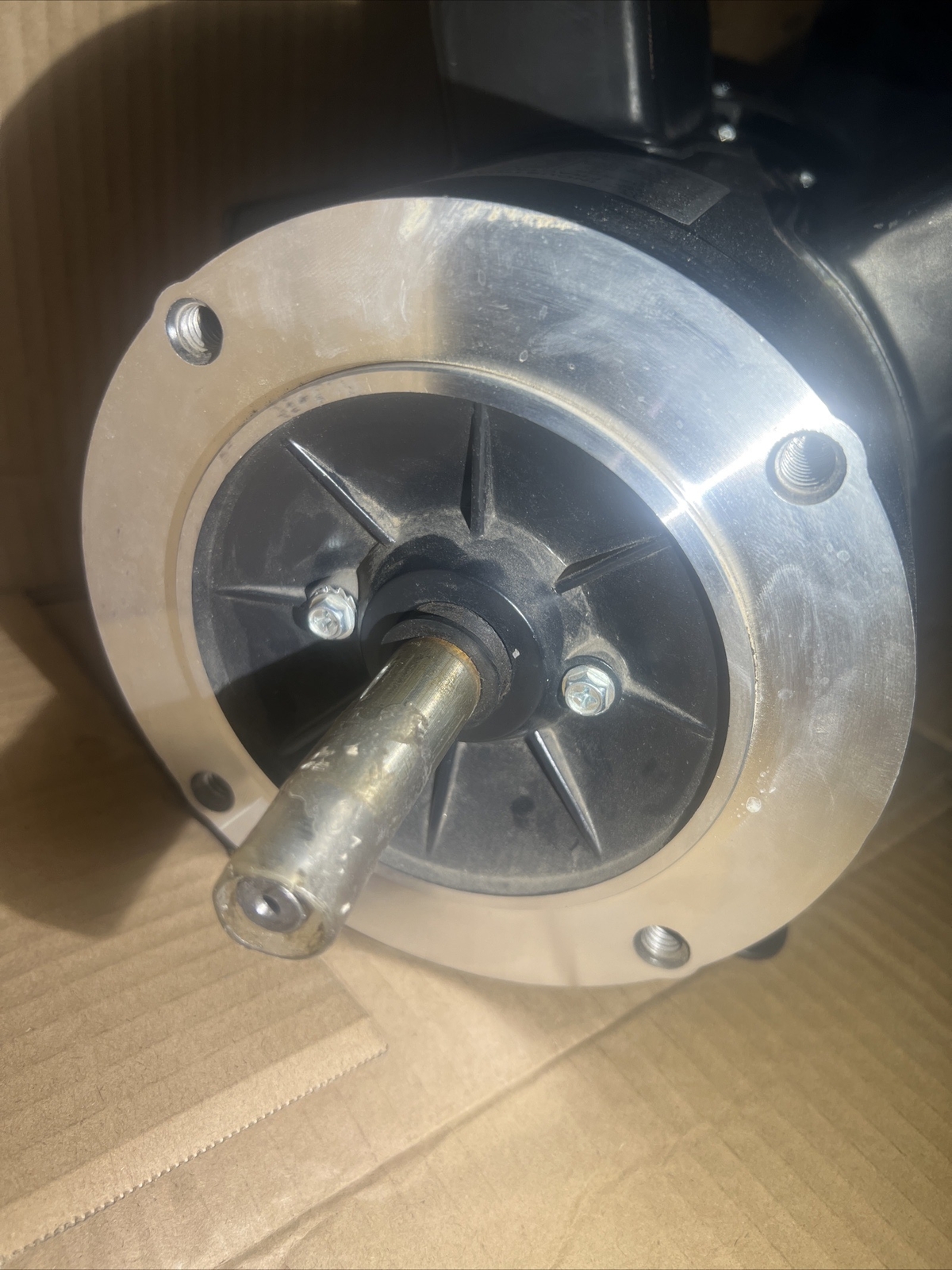

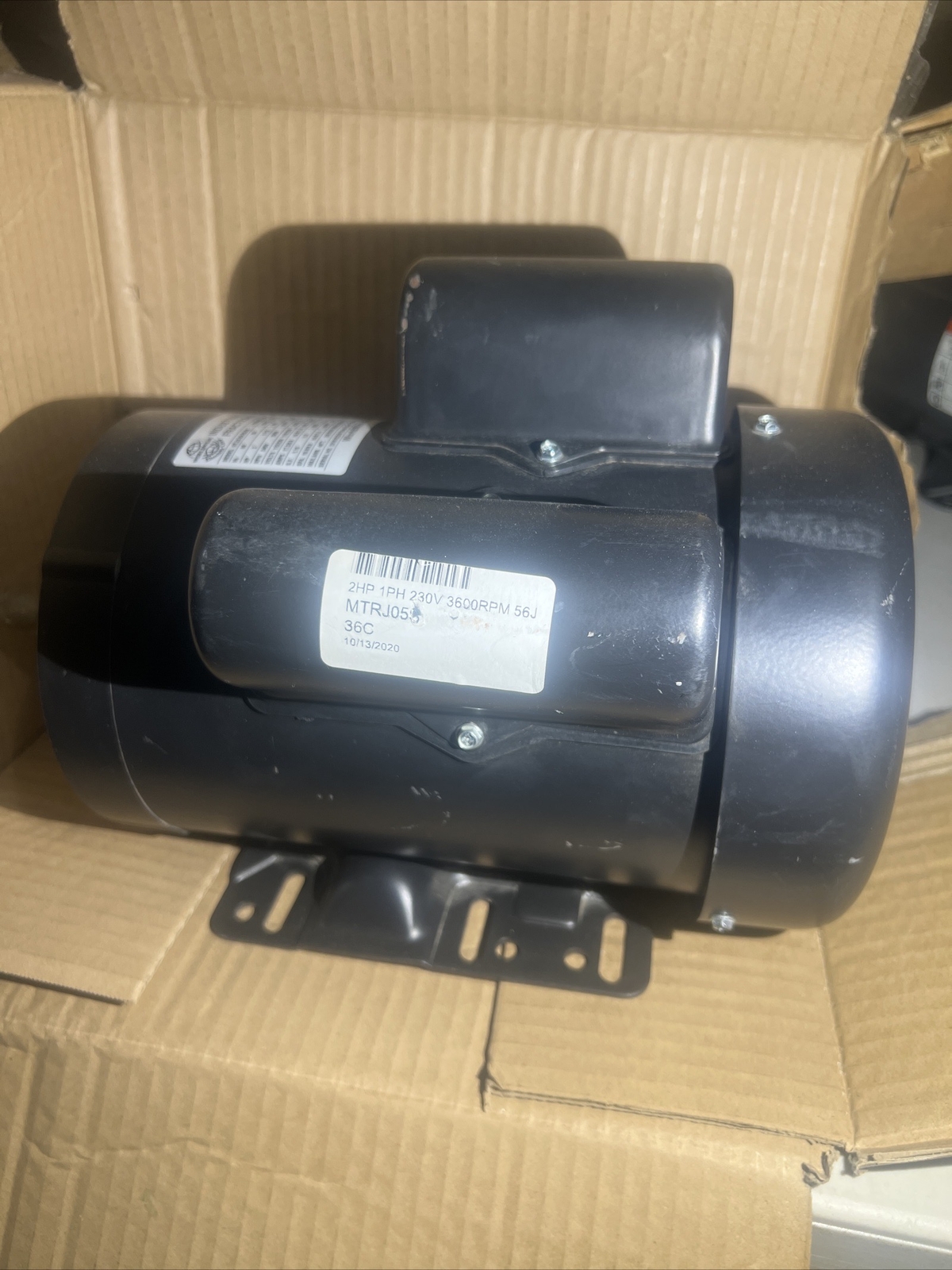

2 HP Electric Motor Single Phase 56H Frame 3450 RPM TEFC 115 / 230V C Face
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Special Motor Construction | Frame Motor |
| Size | 56C Frame |
| Base RPM | 3600 RPM |
| MPN | NT J2-36-56JB |
| Insulation Class | F (Max 311°F) |
| Design | 115/230 Volts |
| Service Factor | 1.15 |
| Style | Single Phase |
| Full Load Amps | 9.1 |
| IEC Frame Size | 56J |
| AC Frequency Rating | 50/60 Hz |
| Shaft Type | Keyed |
| Color | Black |
| Shaft Diameter | 5/8 in |
| Mounting Type | Base-Mounted |
| Brand | WorldWide Electric |
| Reversible/Non-Reversible | Reversible |
| Protection Against Liquids | Not Protected |
| IP Rating | IP43 |
| Nominal Rated Input Voltage | 115 V |
| Model | NT J2-36-56JB |
| Country/Region Of Manufacture | China |
| AC Phase | Single Phase |
Worldwide Electric Jet Pump Motor NTJ2-36-56JB, GP, TEFC, REM-C, 1 PH, 56J, 115/208-230V, 2 HP Model #: T9FB762793 MPN #: NTJ2-36-56JB Worldwide Electric Jet Pump Motor NTJ2-36-56JB, GP, TEFC, REM-C, 1 PH, 56J, 115/208-230V, 2 HP | Questions & Answers (0) PRICE $338.95 1 Add To Cart Ships in 3 Business Days Enter a Zip Save Easy online or call-in returns. Read return policy Product Description Features New without original box or packing 2 HP 3600 RPM 115/208-230V 56J Frame 40 Lbs. Specifications Weights & Dimensions Weight40 lbs BaseC-Face Removable Product Details RPM3600 rpm Is_MotorYes Horsepower2 HP Frame56J Motor RPM 60 Hertz3600 rpm Enclosure TypeTotally Enclosed Full Load Efficiency75 Voltage115/208-230 V Phase3 Full Load Amps9.1 FLA Manufacturers Part NumberNTJ2-36-56JB EnclosureTEFC BrandWorldwide Electric Corporation
