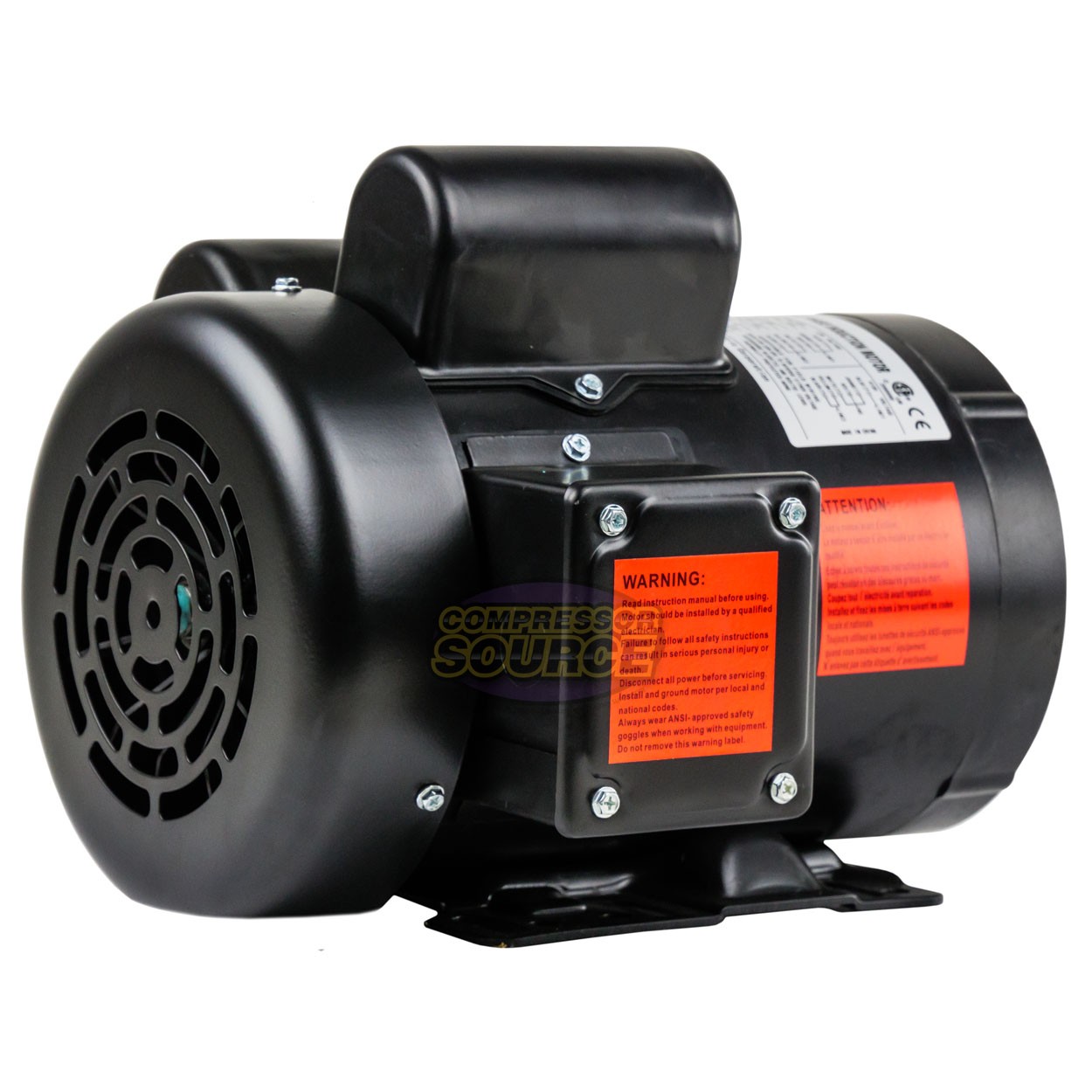

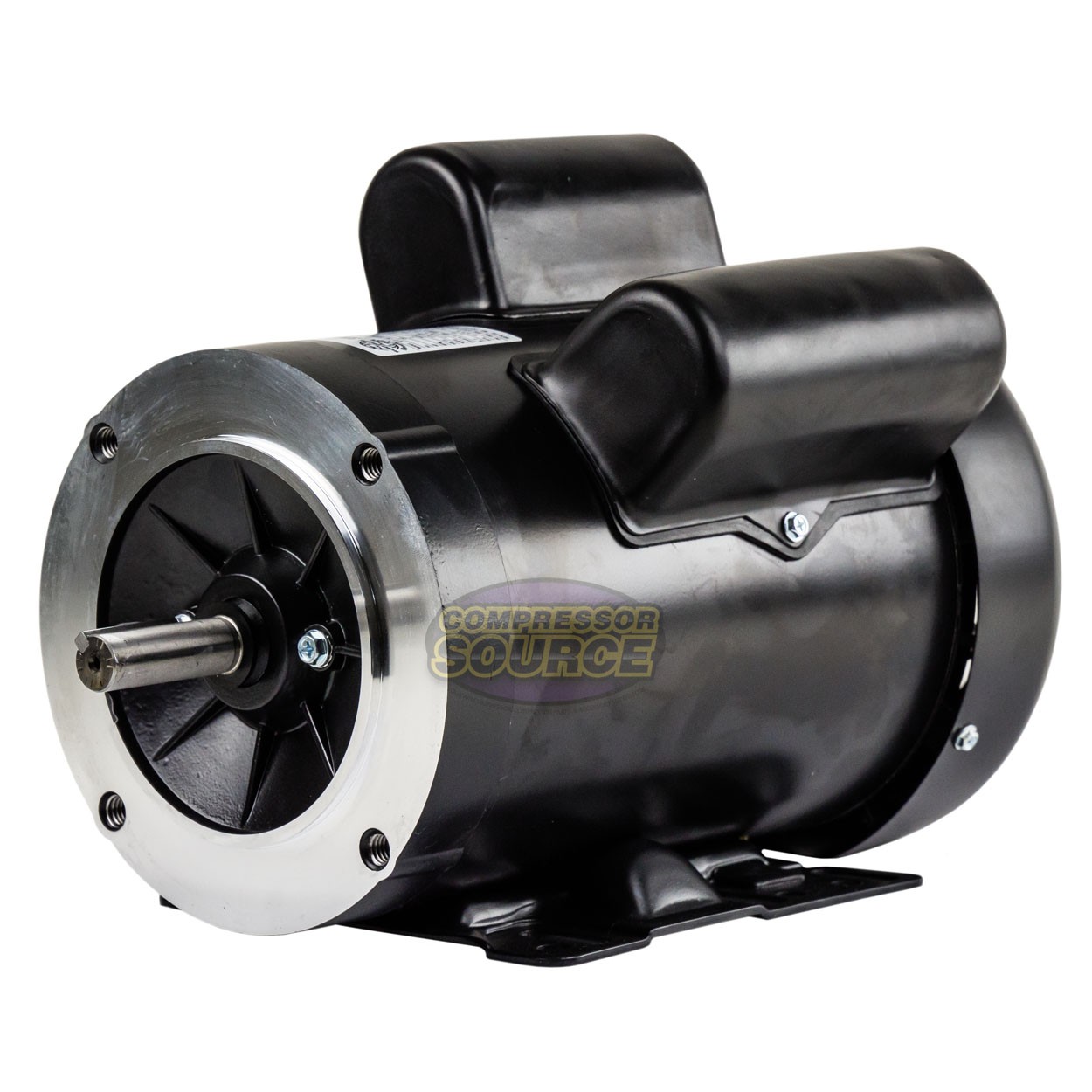

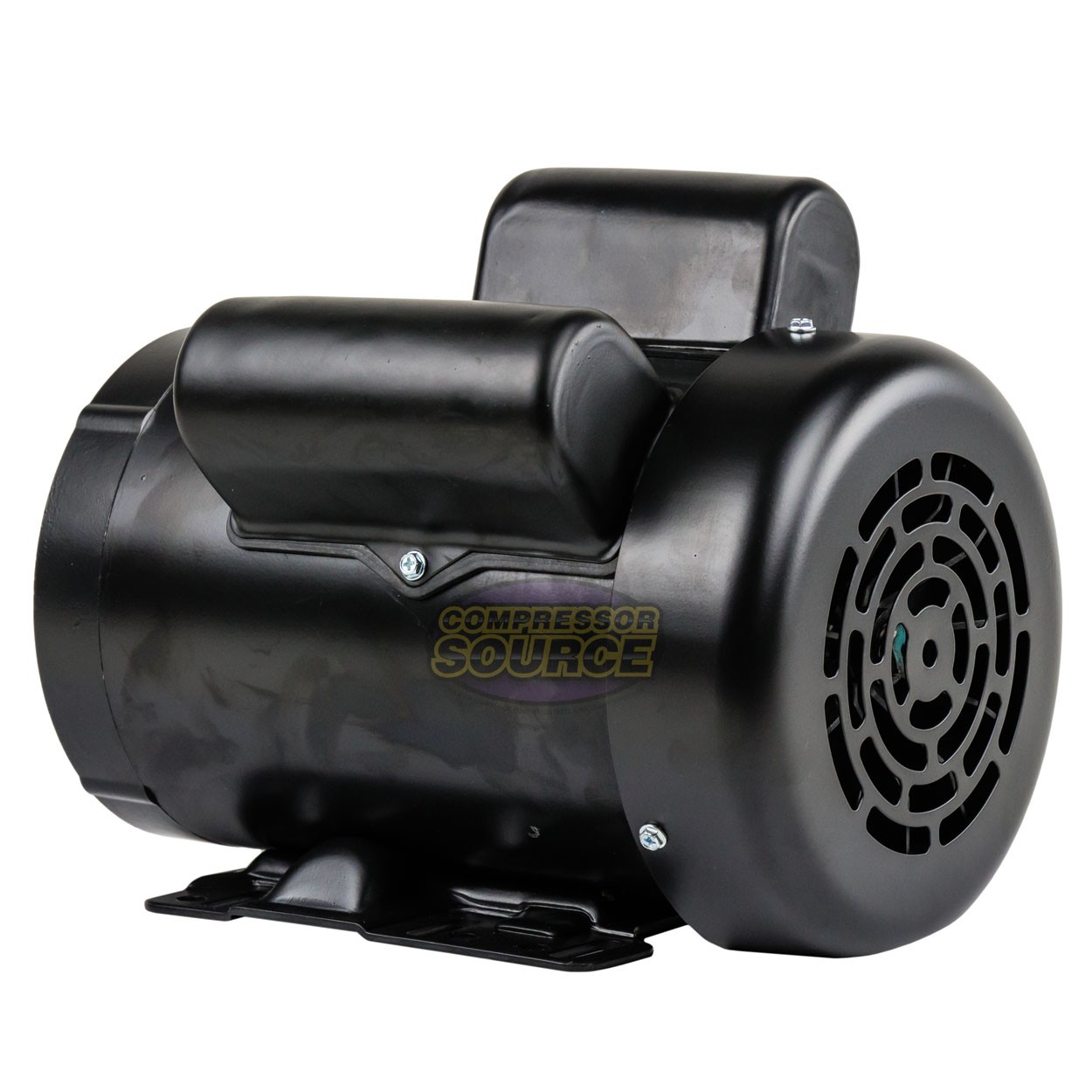

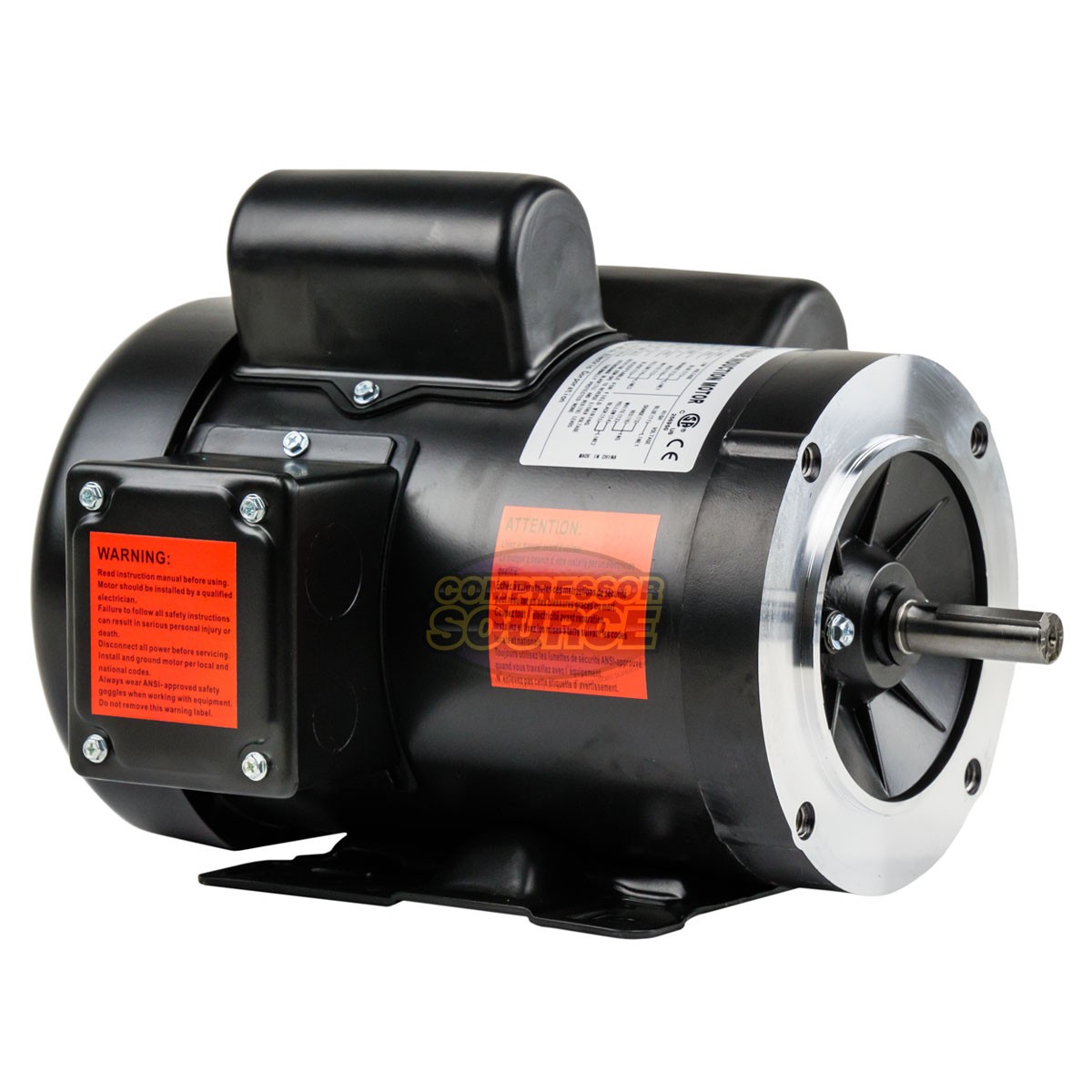

2 HP Electric Motor Single Phase 56H Frame 3450 RPM TEFC 115 / 230V C Face
USD 359.95 USD
Specifications
| Brand | WorldWide Electric |
| Shaft Diameter | 5/8 in |
| MPN | NT2-36-56CB |
| Model | NT2-36-56CB |
| Country Of Origin | China |
| Current Type | AC, DC |
| AC Phase | Single Phase |
| Nominal Rated Input Voltage | 115 V, 230 V |
| Service Factor | 1.15 |
| AC Motor Type | Induction/Asynchronous |
| AC Frequency Rating | 60 Hz |
| Mounting Type | Base-Mounted |
| DC Stator/Winding Type | Permanent Magnet |
| Reversible/Non-Reversible | Reversible |

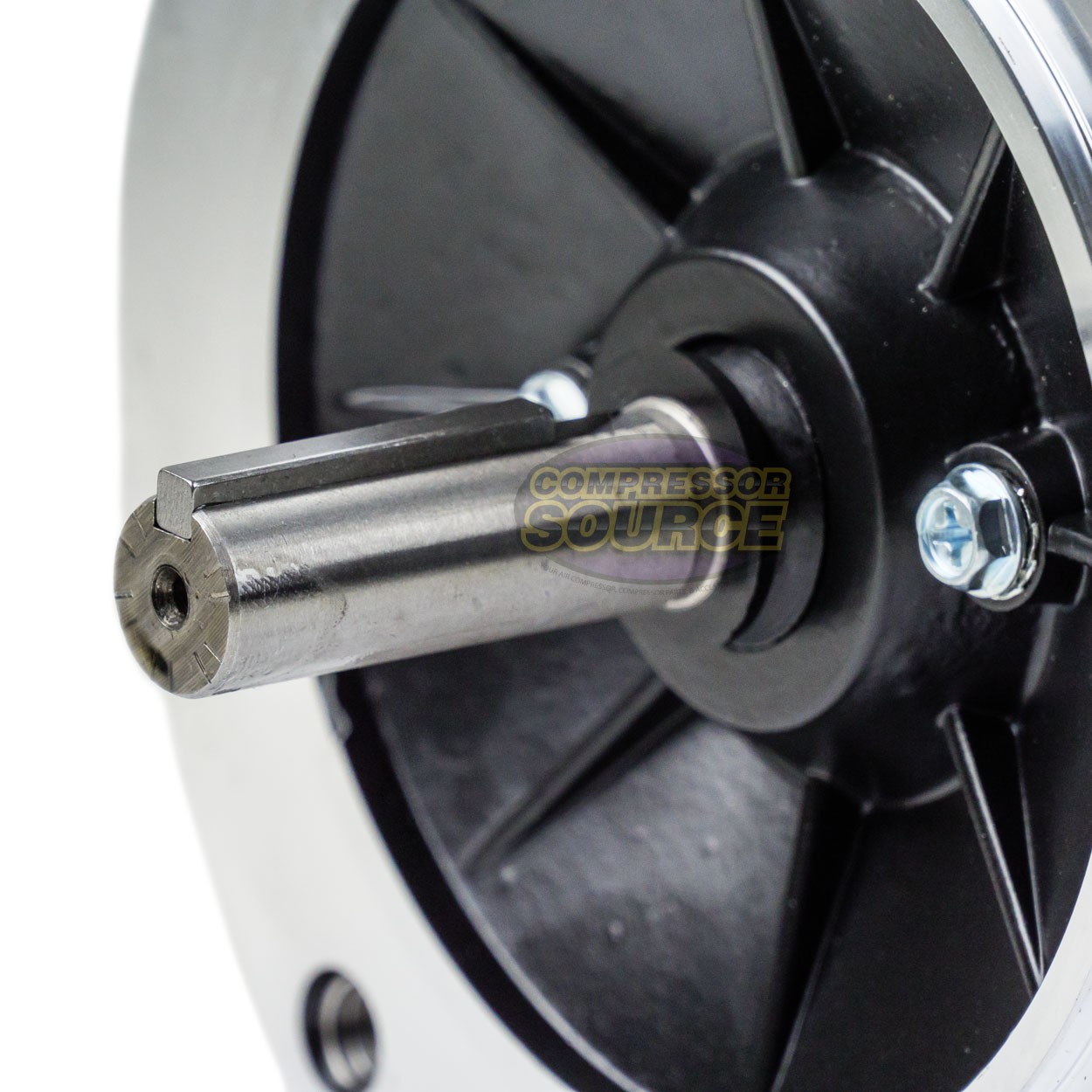

| Shaft Type | Keyed |
| IP Rating | IP43 |
| Insulation Class | F (Max 311°F) |
| Protection Against Liquids | Not Protected |
| Base RPM | 3450 |
| Full Load Amps | 17.0 |
| Unit Type | Unit |
| Style | Single Phase |
| Color | Black |
| Features | 2 Horsepower |
| Size | 56C Frame |
| Design | 115/230 Volts |
| UPC | 842530124098 |
2 horsepower, single phase electric motor. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, and has a 1.15 service factor, but is also suitable for 50Hz operation with a 1.0 service factor. All the worldwide TEFC enclosed 56-frame single-phase motors have a removable base, with a C-face, and shaft slinger to keep moisture and contaminants from the end of the drive-end bearing for longevity.
