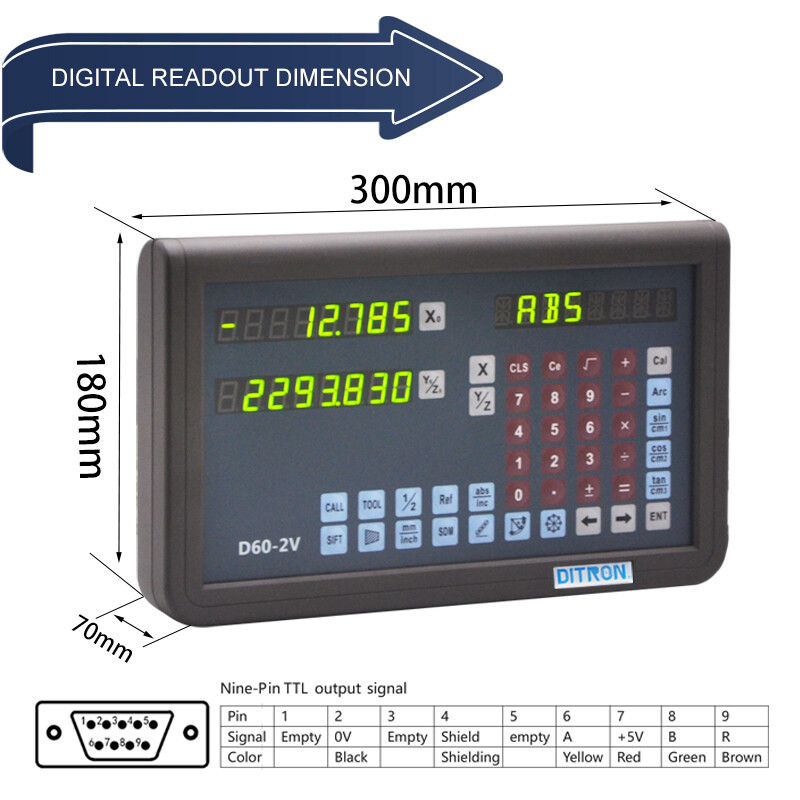

2/3Axis DRO 5um Magnetic Scale DRO Digital Readout Display Lathe MachineUS stock
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Magnetic Scale Output SIgnal | RS422 |
| Country/Region Of Manufacture | China |
| Voltage | AC80V-260V/50-60HZ |
| Magnetic Scale Sealing Protection | IP67 |
| Power Disspation | 15W |
| Resolution | 5um |
| MPN | Does Not Apply |
| Brand | Ditron |

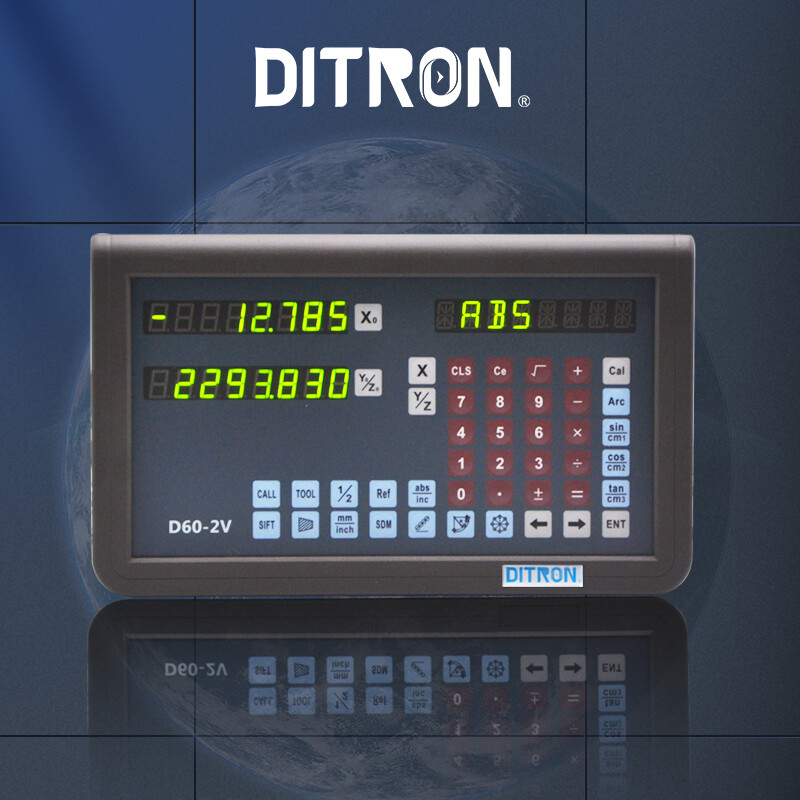

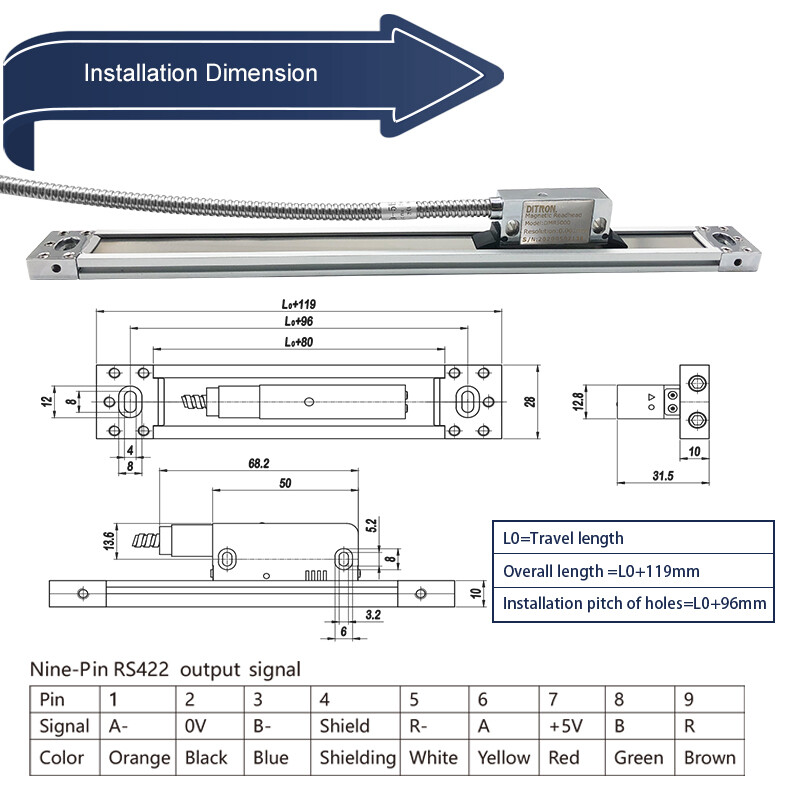

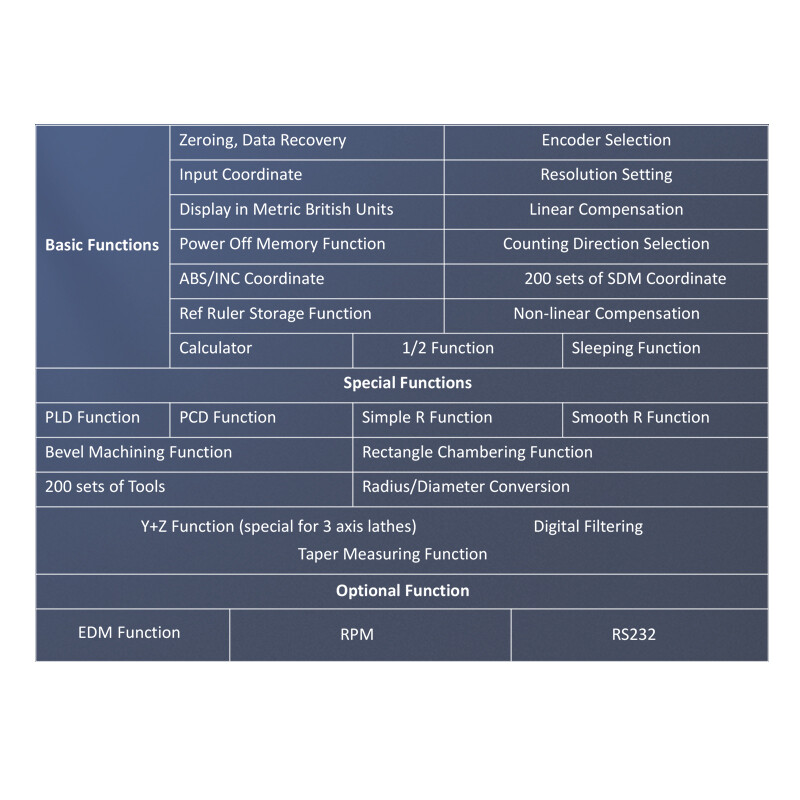

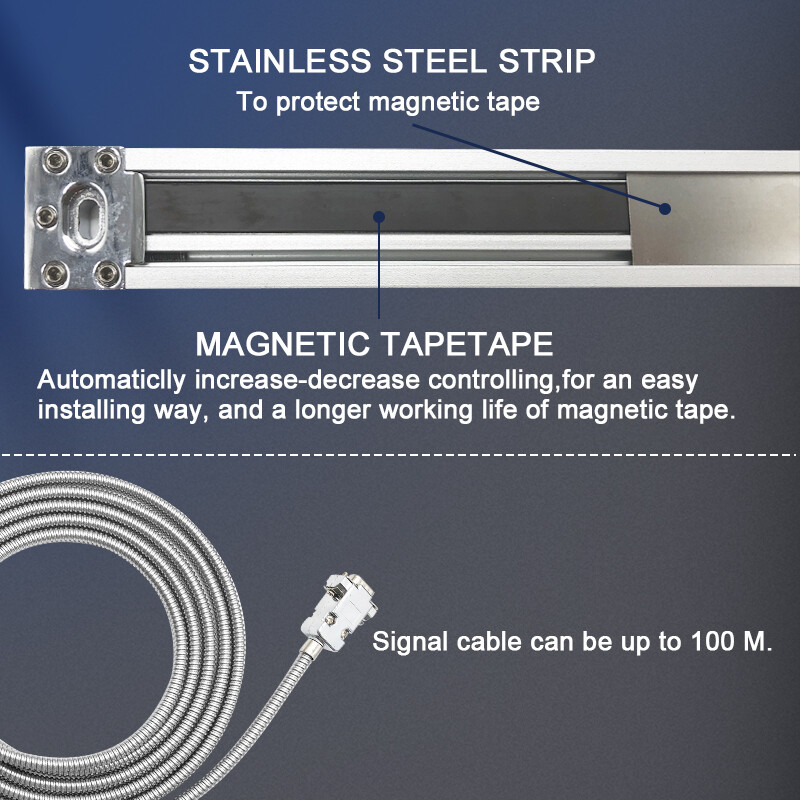

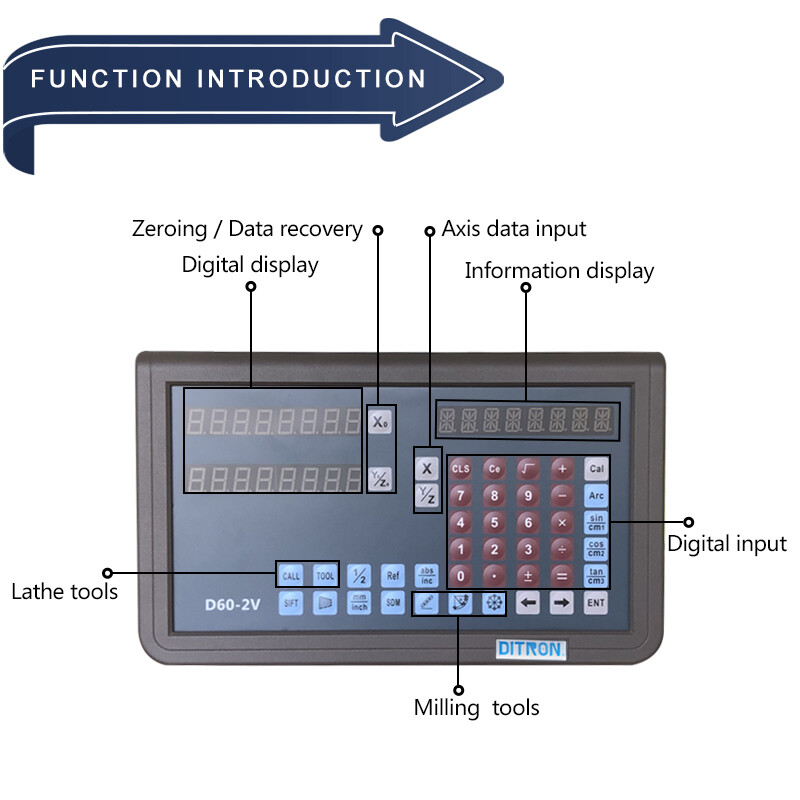

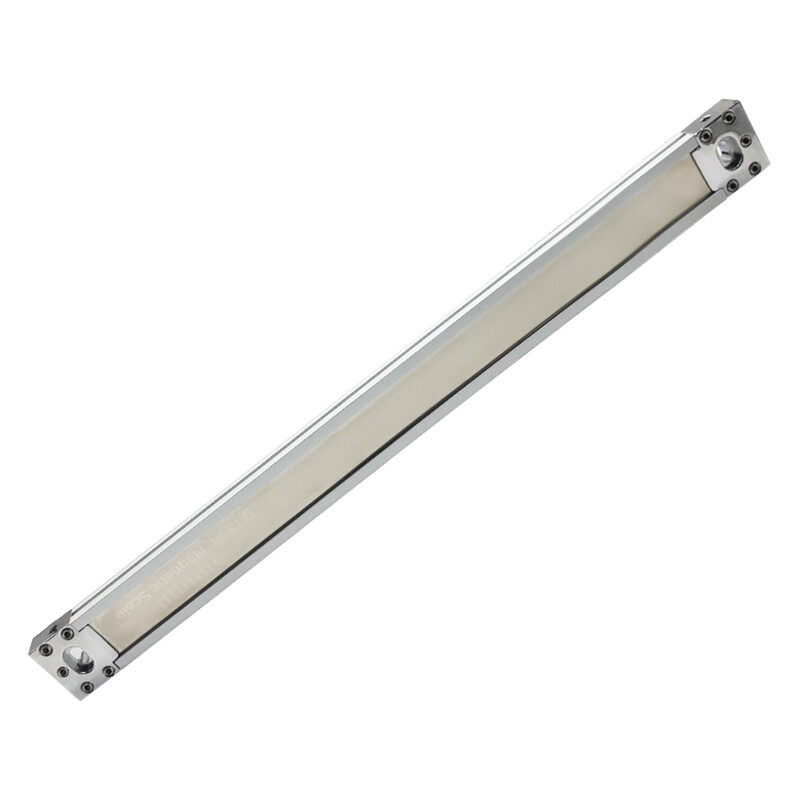

2 Axis dro only= 1 pcs 2 axis digital readout without linear scale 150mm Travel = 1pcs 150mm linear scale without digital readout .... 520mm Travel = 1pcs 520mm linear scale without digital readout .... Any Question ,Pls contact with seller DMA MODEL INSTALLATION DIMEISION EG :DMA-200MM( Travel length 200mm ) If magnetic scale is longer you can cut thealuminium profileto the suitable length.Combine it together. Technical Parameters:● Voltage:4.7V to 7.5V(The range of anti-pole and over-voltage protection:-20V-+20V)●Supply current:＜35mA●Cable Voltage-drop:~4.8mV/m-without load~12.5mV/m-with 120Ω load●Output signal:RS422,TTL●Signal Level:UH≥2.5V at-IH=20mAUL≤0.5V at IL=20mA●Temperature: working:-10℃-+80℃Storage：-40℃-+85℃●Resolution:0.01mm,0.005mm,0.001mm●Repeat Accuracy:1 pulse●Maximum cable length:200M DRO INFORMATION 【HIGH PERFORMANCE】- The lathe readout adapts the sensor with a glass precision metrology grating as the measurement reference, characterized by high scanning frequency, quick graphic machining, and low measuring error; users can preset the parameters, the repeatability of the measure is more stable.【INTELLIGENT FUNCTIONS】- The digital readout display meter system is equipped with a variety of intelligent functions: SDM 200 sets memory, bevel processing, power-off memory, circumference drilling, oblique line drilling, 1/2 centering, also a calculator is equipped for more convenient usage.【BRACKETS & SCREW SET】- All accessories are included for easy installation and operation, two brackets, one screw set, one cable, individualized components, easy to install and operate, and more convenient for users to maintain.【WIDE APPLICATION】- The digital readout is applicable for millers, lathes, boring machines, grinding machines and EDM, video measuring machines, movement control, position monitoring, coordinate Measurement. Technical Parameters:●Voltage Range:AC80V-260V/50HZ-60HZ●Power Dissipation:15W●Working Temperature:-10℃~60℃●Coordinate Display:2,3, Axi●Operating Keypad:Mechanical Keypad●Input Signal:5V TTL/RS422●Input Frequency:≤4MHZ●Resolution:0.1μm，0.2μm，0.5μm，1μm，2μm，2.5μm， 5μm，10μm，50μm Function ListZeroing,Data Recovery,Value Inputting,Metric and Imperial SwitchingPower off memory,EncoderSelection(Rotary or Linear),Linear Compensation,Non-linear Compensation,CalculatorCounting DirectionSetting,ABS/INC Coordinate200 sets of SDM Coordinates,REF Centering,PLD Function,PCD Function ,Simple R function,、Smooth R Function,Radius/Diameter switching,Axis summing,Digital Filtering Function,Taper Measuring Function，Bevel Function ,Rectangle Chambering Function,Rotational Speed Measurement ,Linear Measuring Basing Rotary Encoder,16 sets of Tool Memory,Dynamic GraphicPreview Drawing Any question,Pls contact with Seller
