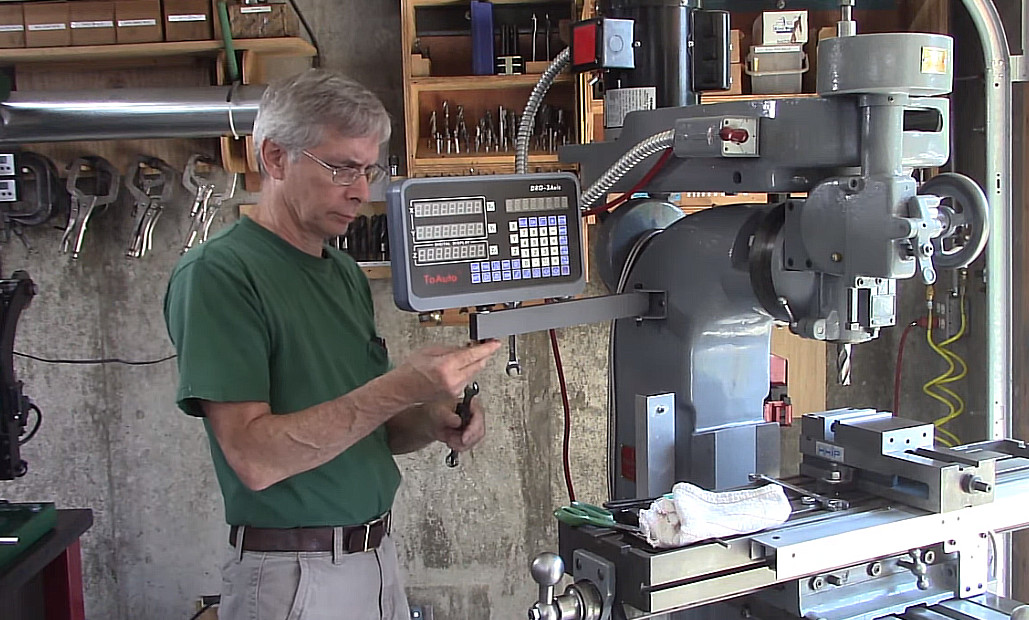

2/3 Axis Digital Readout Linear Scale DRO Display 5um for Bridgeport/Knee Mill
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | DRO / Linear Scale |
| MPN | Does Not Apply |
| Brand | ToAuto |
| Axis | 2Axis / 3Axis |
| Scale | Optical |
| Power Consumption: | 15VA |
| Precision | 5µm |
| Type | Linear Scale |
US 2Axis/3Axis DRO Display Kit Digital Readout TTL Linear Glass Scale Milling Application : This kind of DRO is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy. Basic Information : Supply Voltage range : AC 80V~260V; 50~60Hz，US Plug available Power consumption: 15VA Operating temperature: 0~45 degree centigrade Storage temperature: -30~70 degree centigrade Relative humidity: Less than 90% Readout allowable input signal: TTL square wave Allowable input signal frequebcy: Less than 5M Hz Max resolution of digital display length: 5µm (0.005mm/0.0002") Min resolution of digital display angle :0.0001/pulse RESOLUTION OPTIONAL
