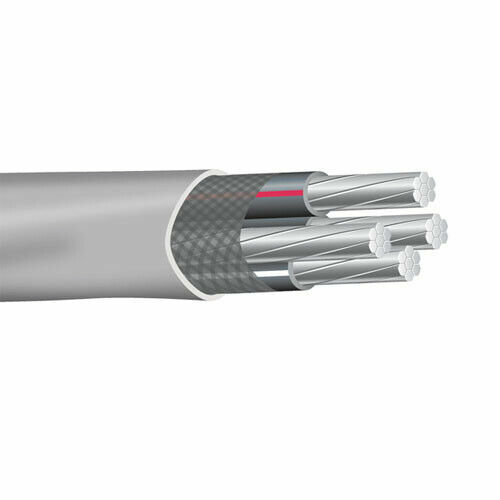

2/0-2/0-2/0-1 Aluminum SER Service Entrance Cable PVC Jacket Gray 600V
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Current Rating | 150 A |
| Wire Gauge | 2/0 AWG |
| Sheath Color | Gray |
| Brand | Nassau |
| Wire Style | Stranded |
| Voltage | 600 V |
| Conductor Material | Aluminum |
| Country/Region Of Manufacture | United States |
| Resistance Properties | Sunlight Resistant |
HomeView All ListingsStore PoliciesNewsletterFeedbackContact Us Store Categories Aluminum URD Cable Aluminum Service Drop Cable Aluminum XHHW Aluminum XLP USE Aluminum SER Alpha Wire Belden Cable Bus Drop Cable Copper SER Copper XHHW Copper XLP USE Diesel Locomotive Cable Festoon Cable Fire Alarm Cable High Temperature Wire Jumper Cable Mining Cable Type G & GG-C Thermostat Cable Power Power Cable NM-B Wire Security Fire Alarm Cable SIS Switchboard Wire Solar Photovoltaic PV Wire Stage Lighting Cable Submersible Pump Cable THHN THWN-2 Copper Wire Tray Cable Type W Power Cable UF-B Cable Welding Cable 2/0-2/0-2/0-1 Aluminum SER Service Entrance Cable 600V Click Thumbnails to Enlarge APPLICATION 2/0-2/0-2/0-1 Aluminum SER cable is primarily used as panel feeder in multiple unit dwellings and for branch circuits. Maximum operating temperature is not to exceed 90°C in wet locations. Voltage rating is 600 volts. CONDUCTOR - Compact Strand Soft Drawn 8000 Series Aluminum Conductor, per ASTM B-801 INSULATION - Type XHHW-2 Cross linked polyethylene (XLP) insulation. - The conductors are cabled together with a bare aluminum alloy ground. JACKET - Gray Sunlight Resistance Polyvinyl Chloride (PVC) Jacket. STANDARDS - ASTM B-800 - ASTM B-801 DISCLAIMER - Picture May Not Represent Actual Cable and Is Only Used As A Representation Please Refer to The Specifications For Product Accuracy. PRODUCT SPECIFICATIONS Insulated Conductor Size 2/0 AWG Bare Ground Conductor Size 1 AWG Overall Diameter (inches) 1.197 Amps at 90°C 150 Weight (lbs/1000ft) 668 CUT TO LENGTH We Can do all Cut Length. If you are looking any Custom Length? Please feel free to contact us. OTHER VALUE ADDED SERVICES • Expedited Shipping • Cut to Length Paralleling • Color Striping & Dyeing • Reel Lagging • Special Labeling & Packages Shipping ***Free shipping on most orders. Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.*** Payment & Returns ***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping*** Feedback Feedback will be left as soon as feedback is left for us.
