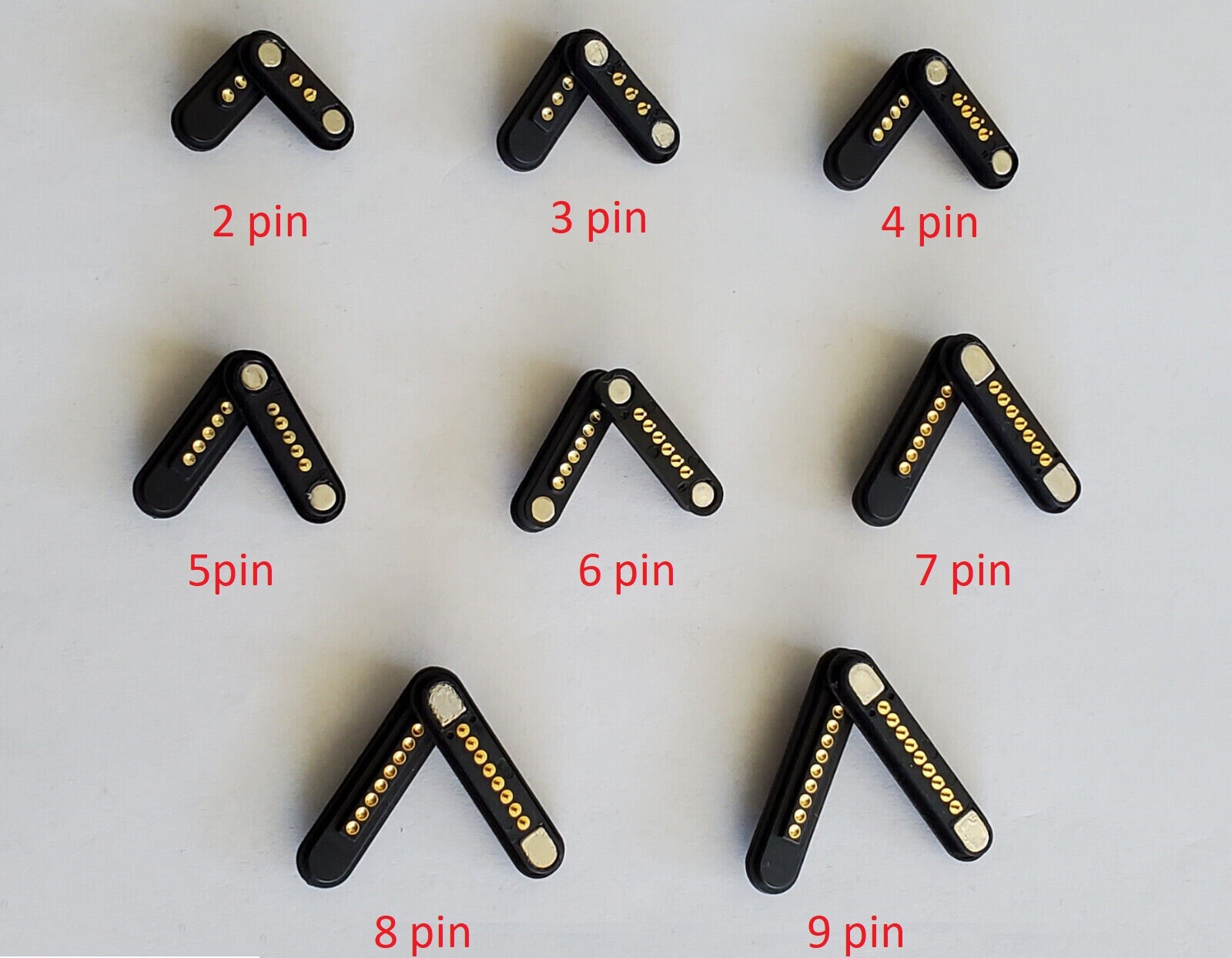

1Pair Magnetic Pogo Pin Connector 2, 3, 4, 5, 6, 7, 8, 9 PIN Gold Plated
USD 4.99 USD
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Unbranded |
| Type | Does Not Apply |
| Color | Black, |
| Manufacturer Part Number | Does Not Apply |
| Material | Array |
| Number Of Poles | 2, 3, 4 |
| Features | Array |
| MPN | Does Not Apply |
| Item Length | Less Than 5 in |
| Compatible Mounting Type | Panel |
Specifications: Current & Voltage: DC 12V;3A(max) Life test: 10.000 cycles Material and coating conform to ROHS and REACH standards Insulator: Black High Temperature Resistant Plastics Pogo Pin : Brass 0. 125um Au (Pogo pin: brass surface gold plated 5u) Magnet: NdFeB N52 I. 5um-2.5um Ni (Magnet: Matter iron boron N52 surface make nickel 60u- 100u) Cantact force: 80g士20g at 1. lm working storke Adsorption capacity test :The parent docking adsorption is 800g土20% Note: 1. Due to the light and screen difference, the item's color may be slightly different from the pictures. 2. Please allow 1-3cm differences due to manual measurement. Package Included: 1Pair Magnetic Pogo Pin Connector(Male+Female)
