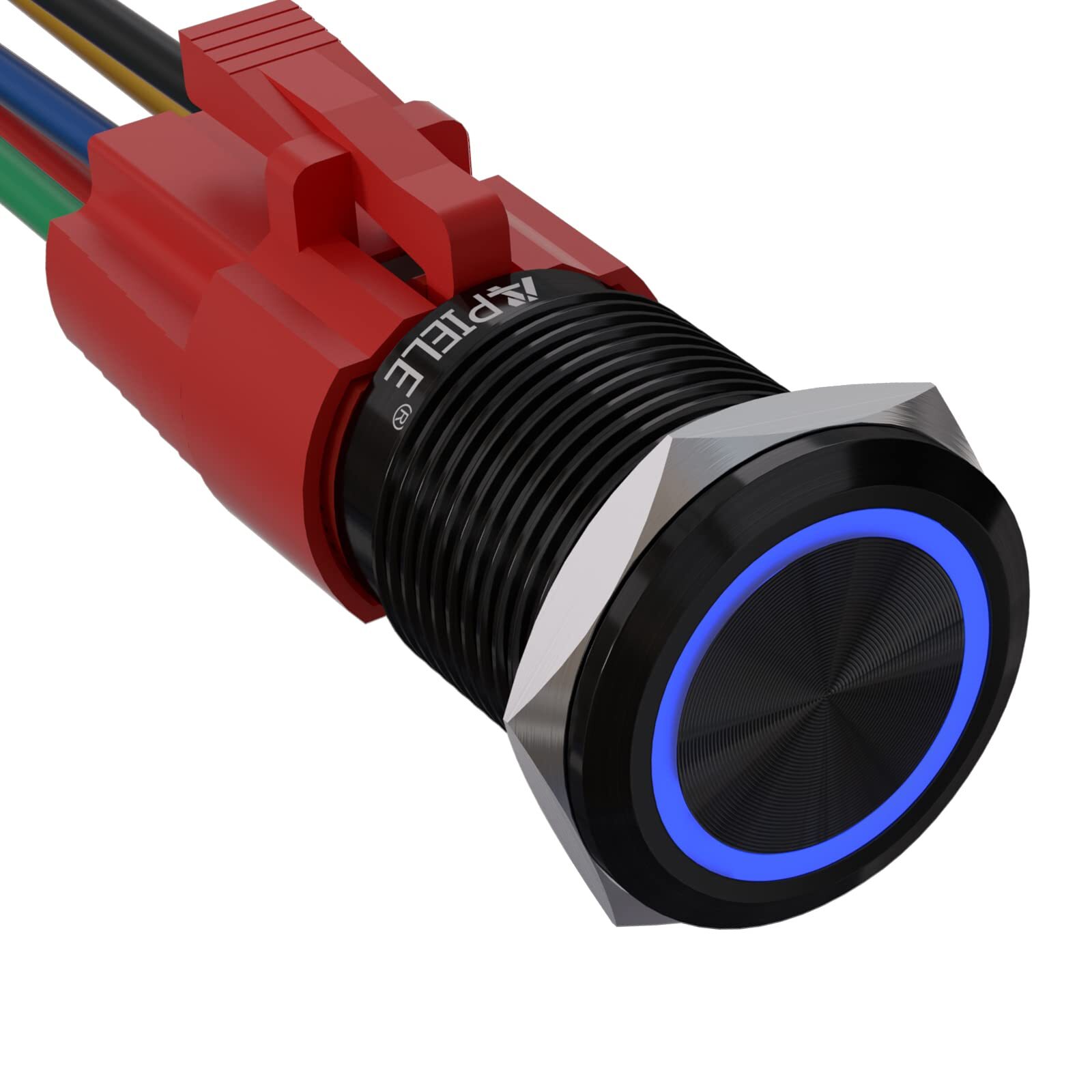

16mm Latching Push Button Switch 12V DC On Off Black Shell with LED Angel Eye
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Button Color | Black Shell-Blue |
| Size | Black Shell |
| EAN | 0746362282424 |
| ISBN | 0746362282424 |
| Package Dimensions LxWxH | 4.8x3.39x0.71 Inches |
| Weight | 0.04 Pounds |
| Type | Does not apply |
| Brand | APIELE |

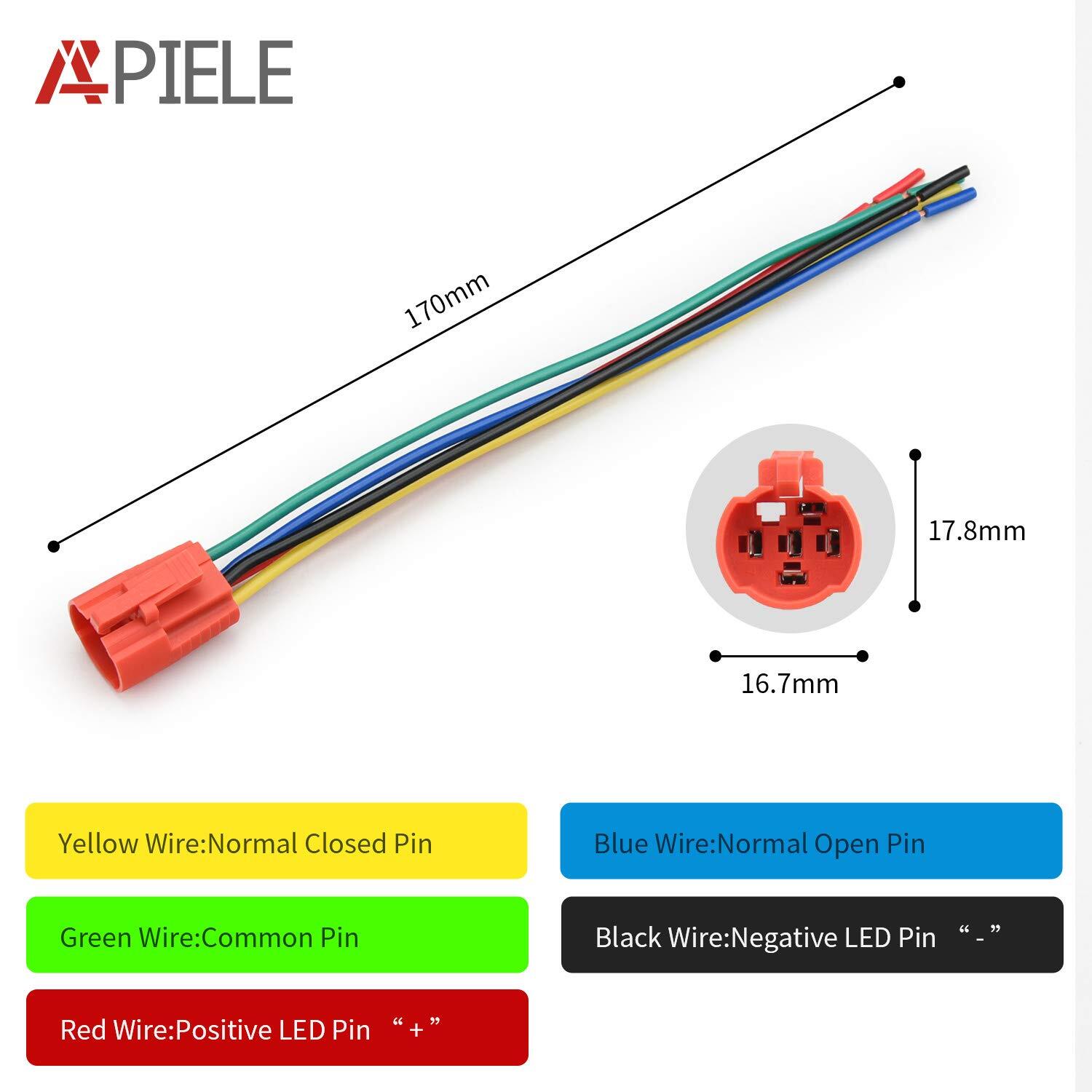

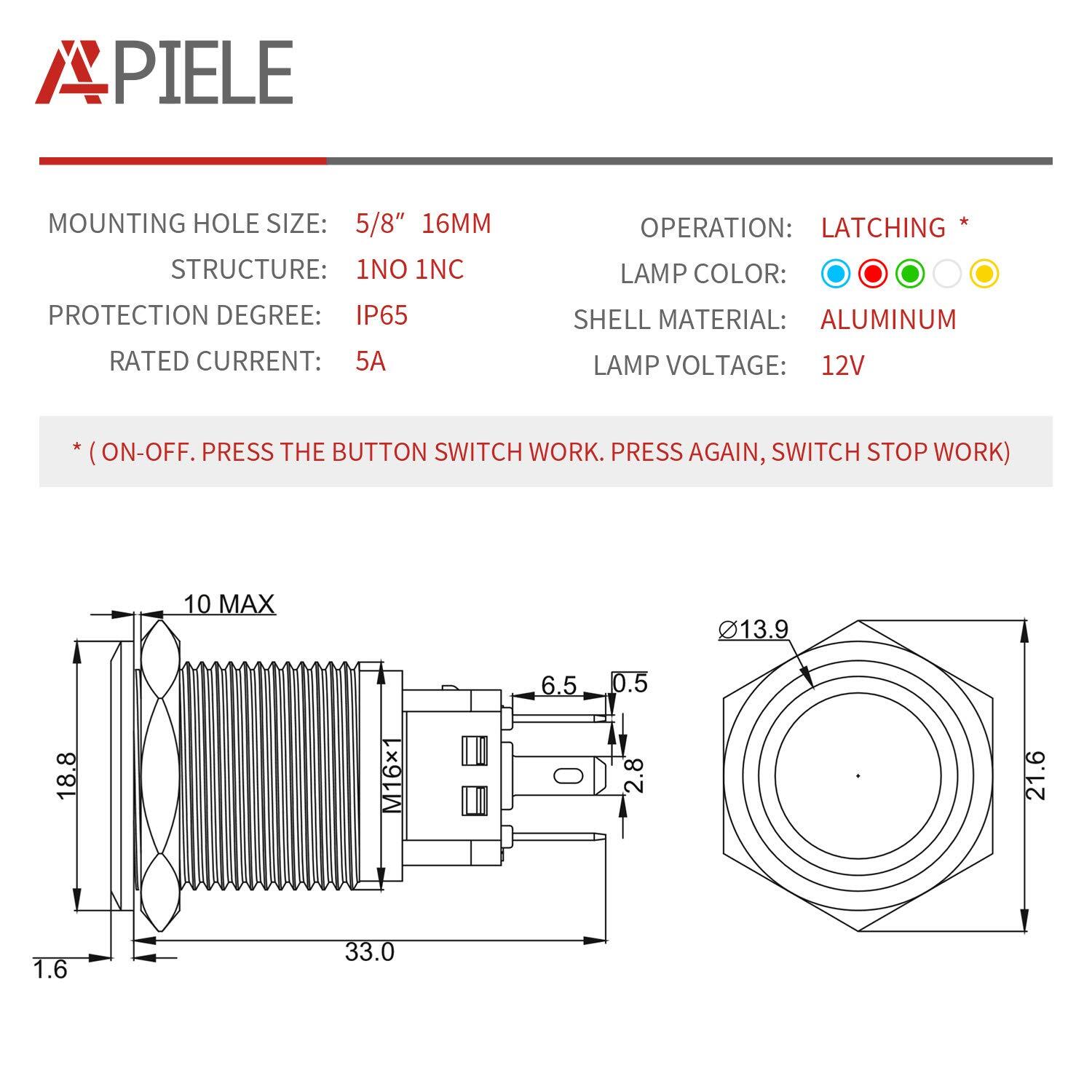

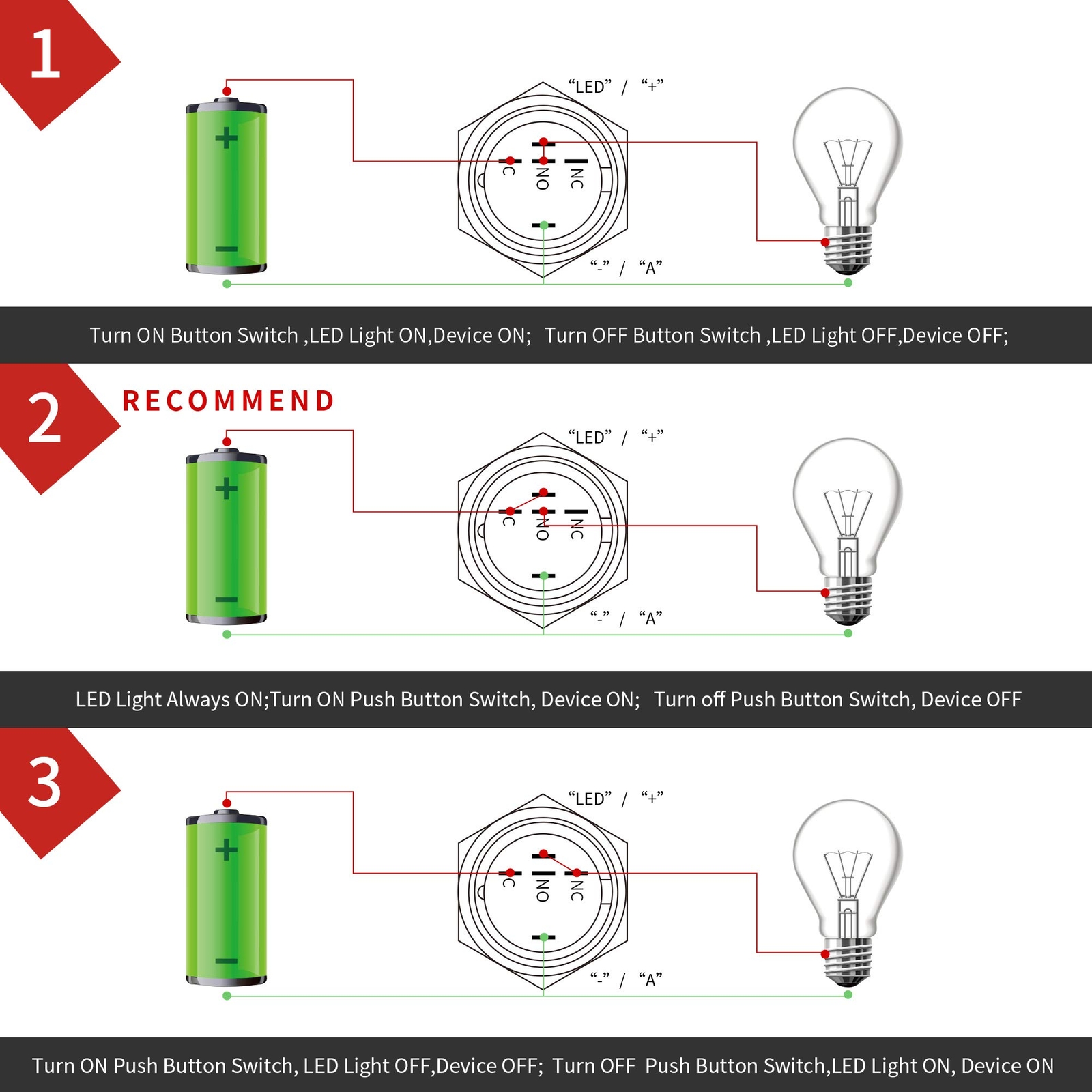

[3 Year Warranty] Get new one for free if switches not work in 3 year. Latching switch The Latching switch will remain on once it ispressed and stay on until it is pressed again. Specification: - Switch Rating: 5A/250VAC - Operation Temperature: -20℃~ +55℃ - Mechanical life: 1,000,000 cycles - Electrical life: 200,000 cycles - Panel thickness: 1 - 10mm - Protection level: IP65, IK10 - Mounting Cut Hole: 16mm - Operation Type: Latching - Switch Contact: 1NO 1NC - LED Rating: 15mA, AC/DC 12V - LED Pattern: Ring Indicator - Contact Material: Silver alloy - Button Material: Aluminium Oxide Note: - The switch come with a rubber O-ring which makesit splash resistant but it can NOT be submerged underwater. Packing Include: 1 x push button switch ,1 x pigtail socket,1 x Wiring diagram GET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH. Brand New 16mm Latching Switch; Black Shell Ring LED; LED voltage: 12V only, Hole size required: 0.63''/16mm Latching Push Button Switch: Push it, ON; Push it again, OFF. Contact Configuration: 1NO1NC； 12 volt switch Electrical life: 200 thousand times. Mechanical life: 1,000,000 cycles 12v on off Switch; High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
