15V DC 500ma Dual Power Supply – Rhodes DIY PCB – ++15 or +-15vdc 10W
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| MPN | AV15vdc-pcb |
| Construction Type | Open Frame |
| Nominal Voltage Rating (DC) | 15 V |
| Country/Region Of Manufacture | China |
| Model | 15v dual |
| Efficiency | 85 % |
| Actual Output Voltage Rating (DC) | 500ma |
| Nominal Power Rating | 10 W |
| Nominal Current Rating | 500 mA |
| Output Voltage Rating (DC) | 15 V |
| Brand | Avion Studios |
| Nominal Output Voltage Rating (DC) | 15 V |
| Output Voltage | 15V |

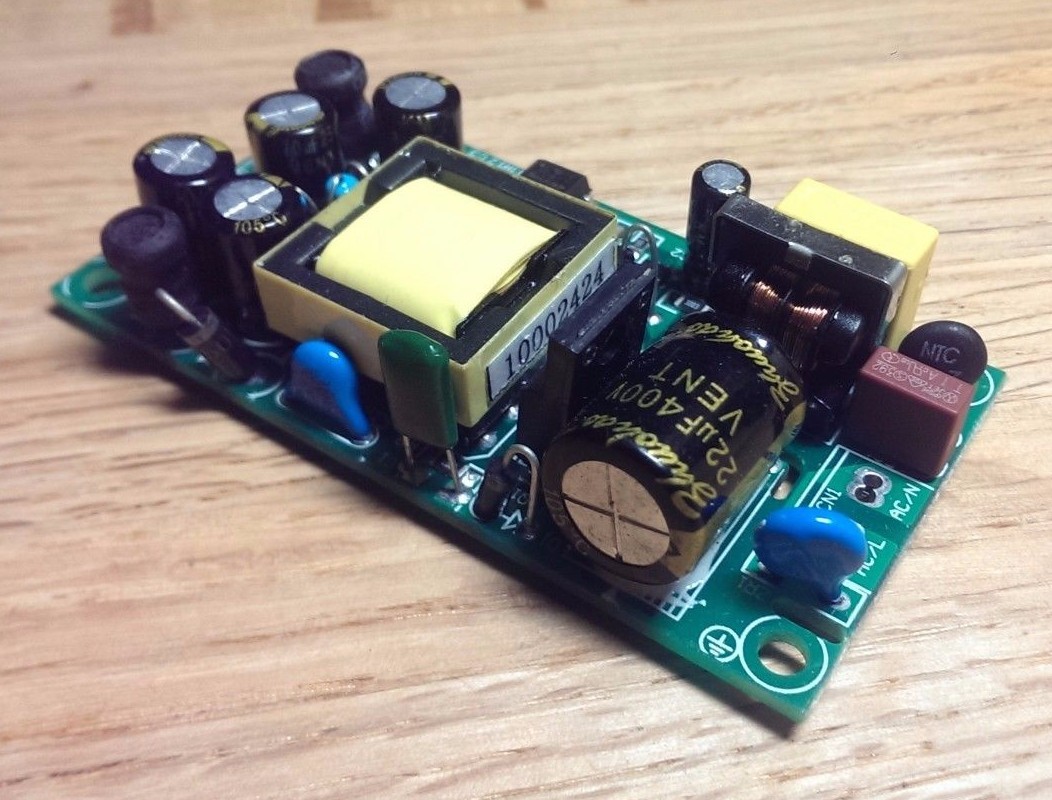

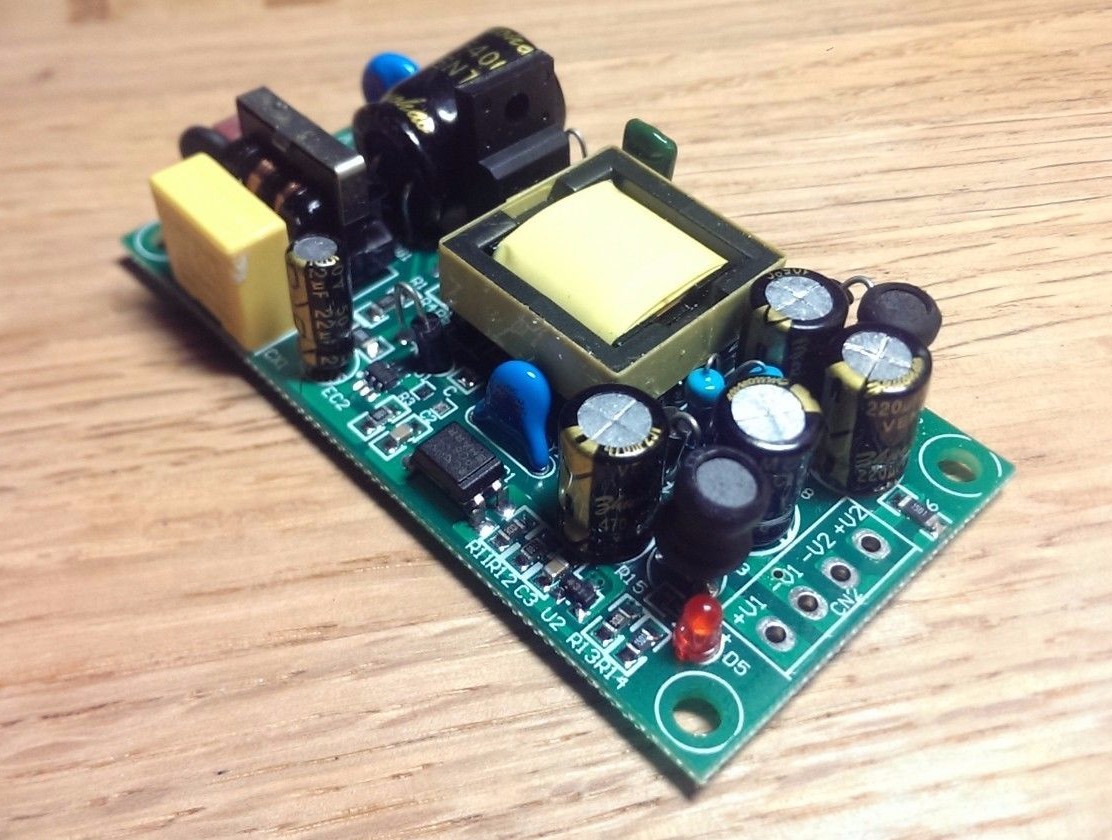

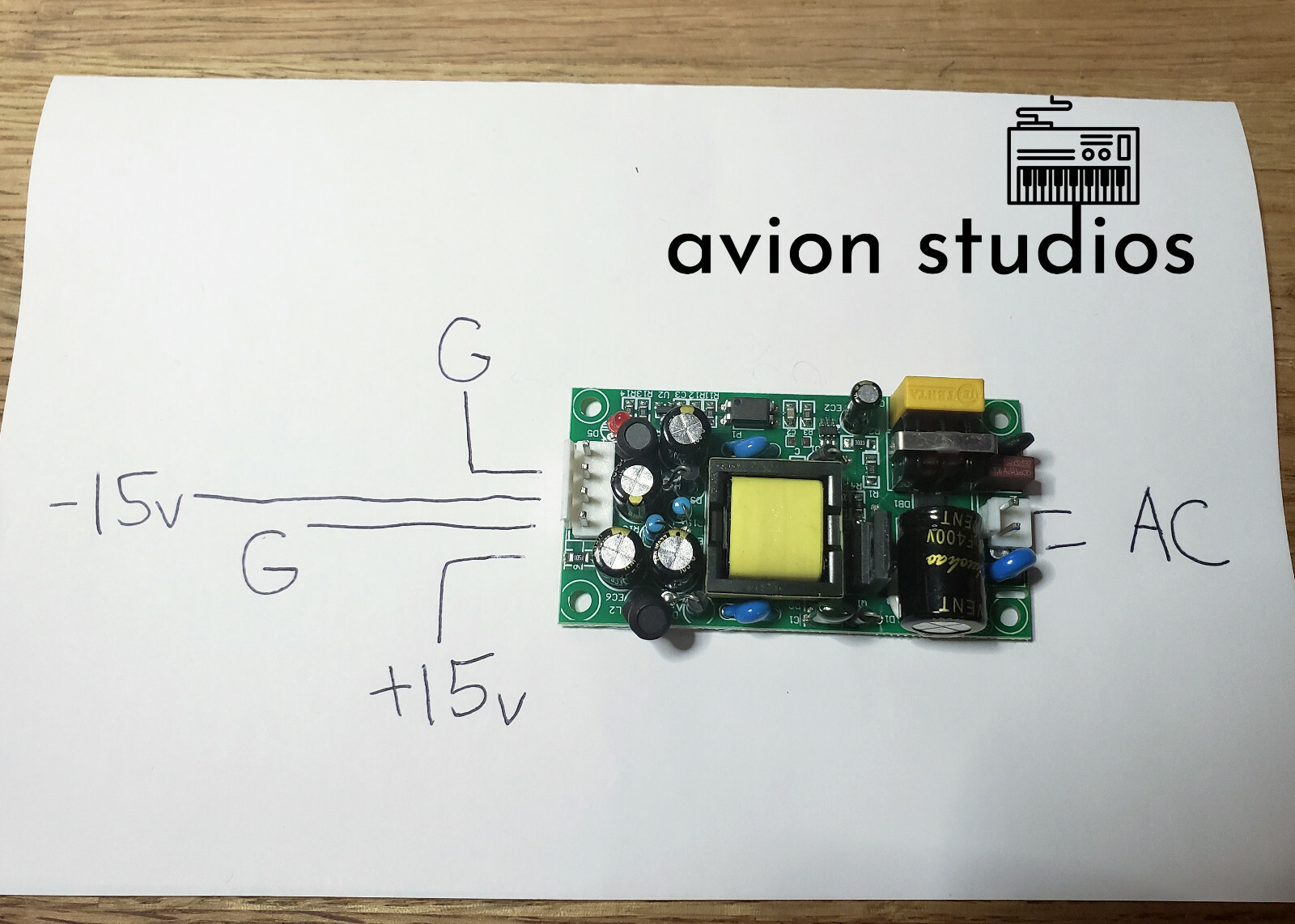

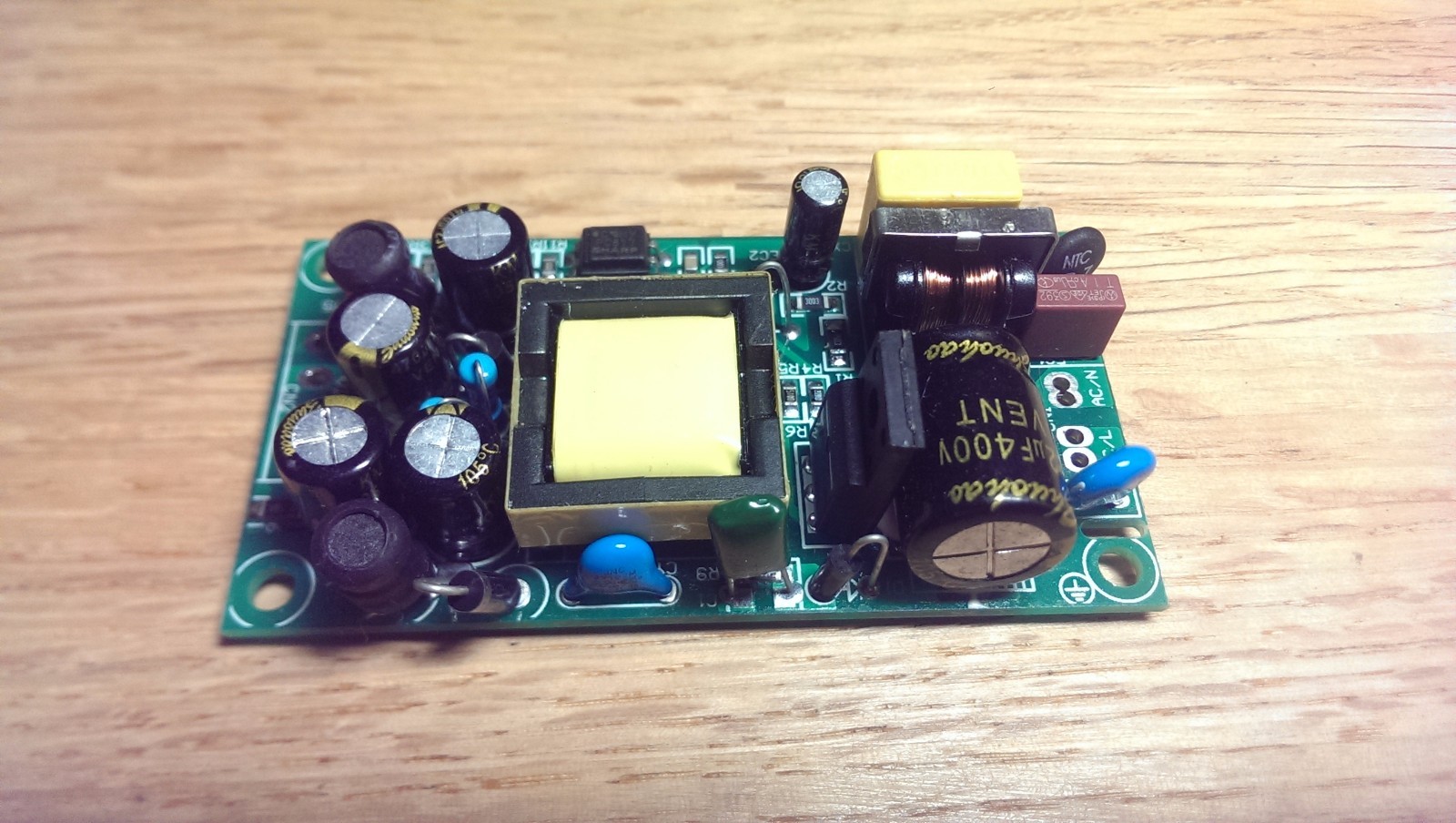

We worked with an established power supply company in China to make an upgraded version of this somewhat hard to find power supply. We took their existing supply design (which is very good in its own right) and had them make some minor changes to bring the specs up slightly. This is the same power supply we use in our RPS. It has several circuit protections, an LED power indicator and a capacity of 500ma per channel - 10 watts total.AC Input 85-265V - accepts any standard wall current85% efficientCooler operation and better energy consumption.Load regulation within 1%Overload, Over-Voltage and Short Circuit ProtectionSmall footprint: 76x40mm fits many housingsPin spacing 3.96mm(+15v +15v) or (+15 -15v) configurationFor Fender Rhodes users. This is the correct power supply for the Janus 5-pin preamp.For more Fender Rhodes, Wurlitzer or Piano products please visit our eBay store or site. Let us know if you have any questions.Thanks for looking!Avion Studios As with all DIY pieces, safety is paramount. While this component is simple - working with electricity is always dangerous. If you do not have a strong knowledge of what you are attempting - do not attempt! And if you do, exercise caution at all times.
