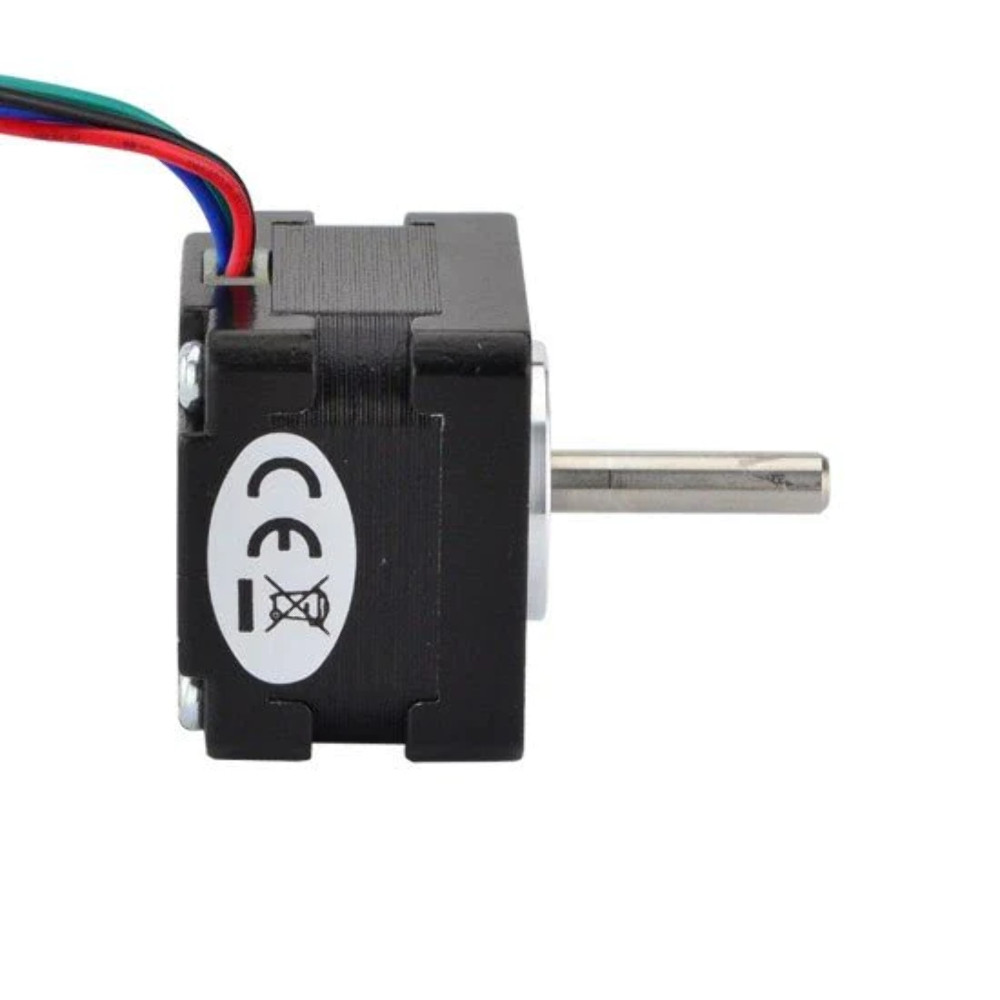

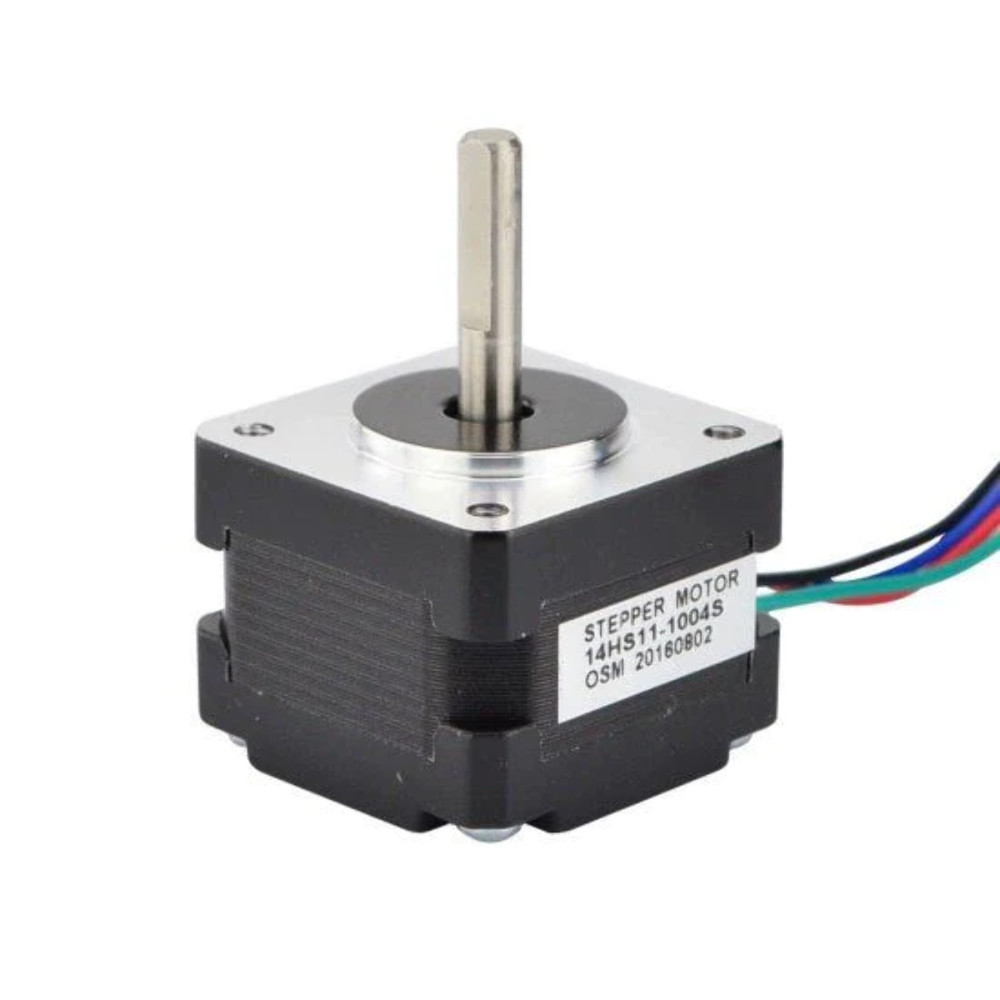

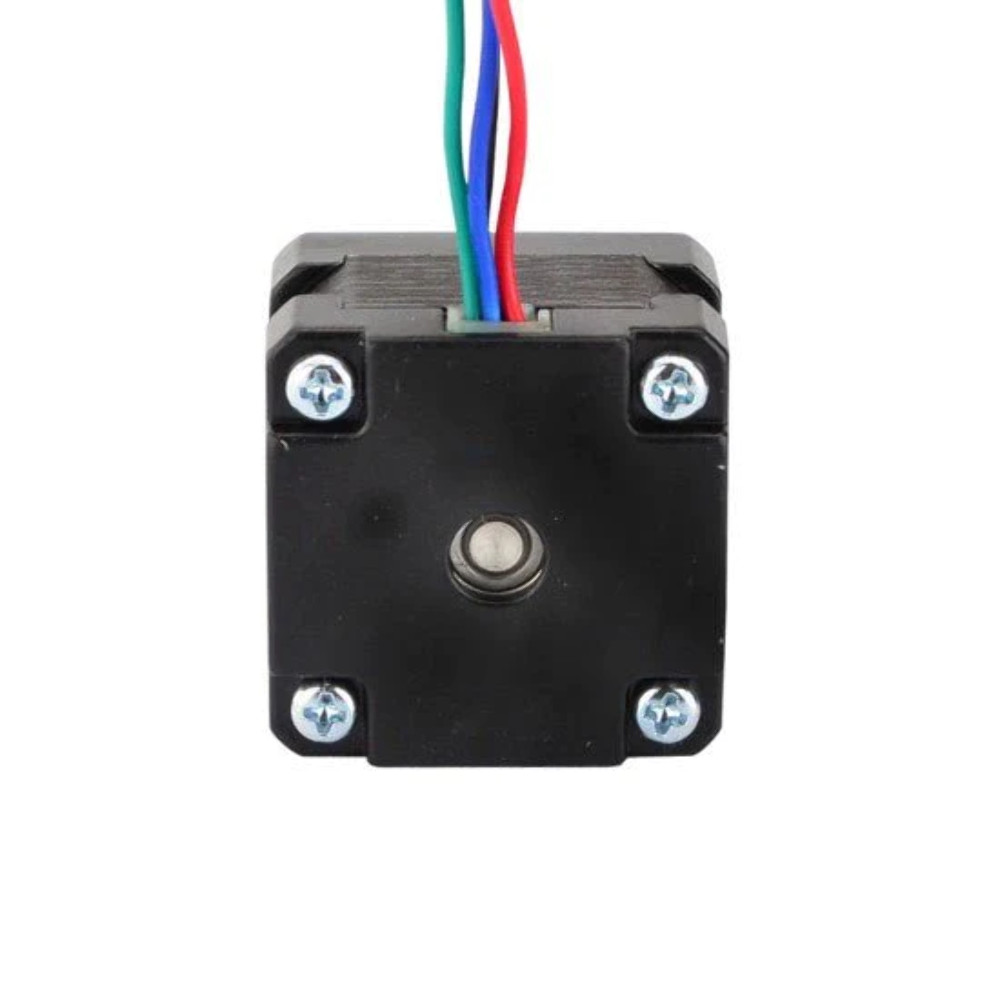

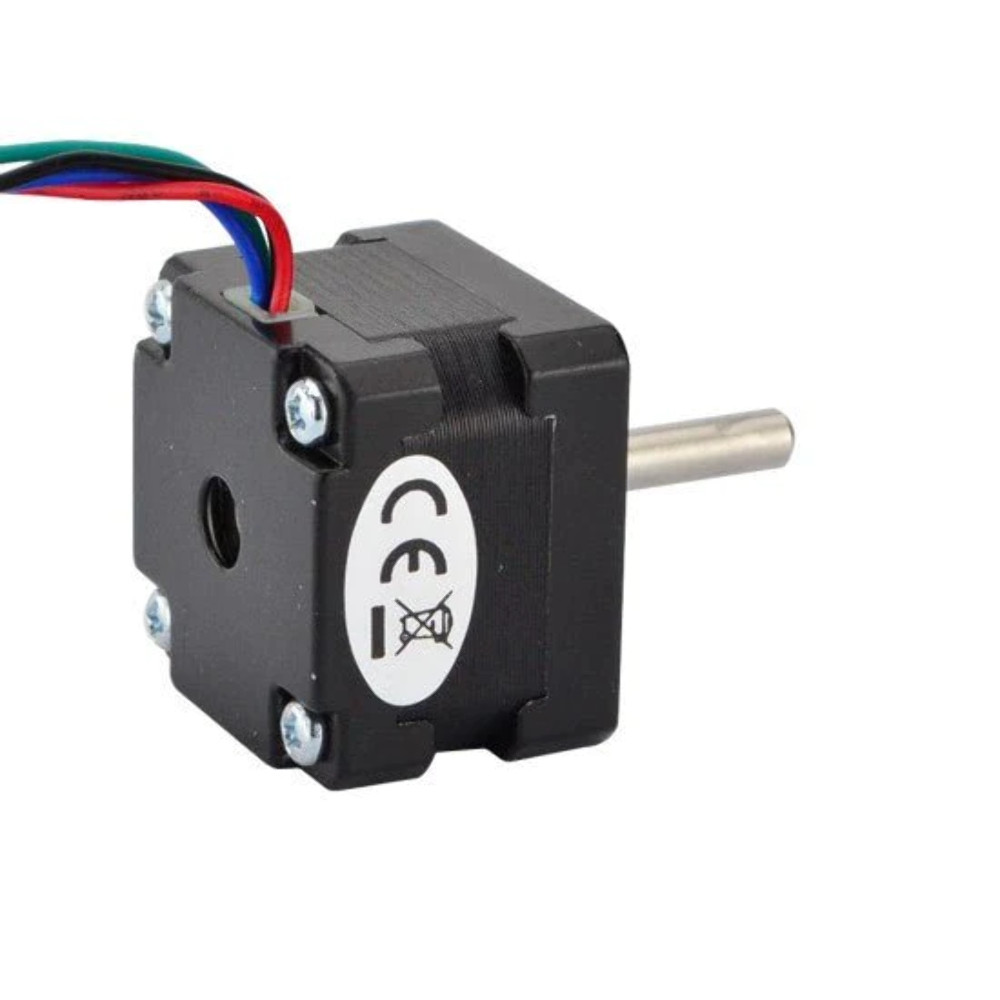

14HS11-1004S – Nema 14 1.8 Degree 1A Motor OMC – StepperOnline
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | OMC / StepperOnline |
| MPN | N/A |
14HS11-1004S - Nema 14 1.8 Degree 1A Motor OMC - StepperOnline his bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in). Electrical Specification Manufacturer Part Number: 14HS11-1004S Motor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque: 12.5Ncm(17.7oz.in) Rated Current/phase: 1.0A Phase Resistance: 3.5ohms Inductance : 3.5mH ± 20%(1KHz) Physical Specification Frame Size: 35 x 35mm Body Length: 28mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 300mm Weight : 140g Connection A+ A- B+ B- Black Green Red Blue Resources Full Datasheet: 14HS11-1004S.pdf Torque Curve: 14HS11-1004S Torque Curve.pdf STEP File: Here ELECTRICAL SPECIFICATION Inductance(mH) 3.5 Phase Resistance(ohm) 3.5 Rated Current(A) 1 Step Angle(deg.) 1.8 Bipolar/Unipolar Bipolar Holding Torque(Ncm) 12.5 Holding Torque(oz.in) 17.7 PHYSICAL SPECIFICATION IP Rating 40 Frame Size(mm) Nema 14 (35 x 35) Body Length(mm) 28 Single Shaft/Dual Shaft Single Shaft Output Shaft Type D-Cut Shaft Diameter(mm) 5 Shaft Length(mm) 24 No. of Lead 4 Lead Length(mm) 300 Weight(g) 120 14HS11-1004S - Nema 14 1.8 Degree 1A Motor OMC - StepperOnline his bipolar Nema 14 stepper motor with step angle 1.8deg and size 35x35x28mm. It has 4 wires, each phase draws 1 A at 3.5V, with holding torque 12.5Ncm (17.7oz.in). Electrical Specification Manufacturer Part Number: 14HS11-1004S Motor Type: Bipolar Stepper Step Angle: 1.8 deg Holding Torque: 12.5Ncm(17.7oz.in) Rated Current/phase: 1.0A Phase Resistance: 3.5ohms Inductance : 3.5mH ± 20%(1KHz) Physical Specification Frame Size: 35 x 35mm Body Length: 28mm Shaft Diameter: Φ5mm Shaft Length: 24mm D-cut Length: 15mm Number of Leads: 4 Lead Length: 300mm Weight : 140g Connection A+ A- B+ B- Black Green Red Blue Resources Full Datasheet: 14HS11-1004S.pdf Torque Curve: 14HS11-1004S Torque Curve.pdf STEP File: Here ELECTRICAL SPECIFICATION Inductance(mH) 3.5 Phase Resistance(ohm) 3.5 Rated Current(A) 1 Step Angle(deg.) 1.8 Bipolar/Unipolar Bipolar Holding Torque(Ncm) 12.5 Holding Torque(oz.in) 17.7 PHYSICAL SPECIFICATION IP Rating 40 Frame Size(mm) Nema 14 (35 x 35) Body Length(mm) 28 Single Shaft/Dual Shaft Single Shaft Output Shaft Type D-Cut Shaft Diameter(mm) 5 Shaft Length(mm) 24 No. of Lead 4 Lead Length(mm) 300 Weight(g) 120 × × × × × × Buy now and save! Shipping info Click the Shipping & Payments tab above the listing description for more info Click the Shipping & Payments tab above the listing description for more info! Additional delivery notes PICK UP OPTION Sorry, our items are NOT available for pick-up. PAYMENT Immediate payment is required upon selecting "Buy It Now" or upon checking out through the cart. We accept payment via U.S. PayPal accounts and all Major Credit Cards, Debit Cards & Google Pay. We are legally required to collect sales tax in those states and localities where we maintain a physical presence (nexus). The applicable amount of sales tax charged to an order will be calculated based on the shipment destination's state and local sales tax laws. Thank you for shopping with us on eBay! Additional Information No additional information at this time Ask seller a question You might also like LDO Motors MGN9H-1R-300/350/400 Linear Rails with Carriages Voron Hall Effect X/Y Endstop PCB Assembled LDO Motors 42STH48-2504AH NEMA 17 Stepper Motor - High Performance High Temperat AC Heated Bed PCB Fully Assembled Contact To contact our Customer Service Team, simply click the button here and our Customer Service team will be happy to assist. Ask seller a question © West3D Printing Shipping & Payments Click the Shipping & Payments tab above the listing description for more info Payment Accepted Payment Methods Immediate payment is required upon selecting "Buy It Now" or upon checking out through the cart. We accept payment via U.S. PayPal accounts and all Major Credit Cards, Debit Cards & Google Pay. We are legally required to collect sales tax in those states and localities where we maintain a physical presence (nexus). The applicable amount of sales tax charged to an order will be calculated based on the shipment destination's state and local sales tax laws. Thank you for shopping with us on eBay! Returns Returns are accepted Items must be returned within 30 days of the auction ending Seller will pay for return shipping. eBay integration by
