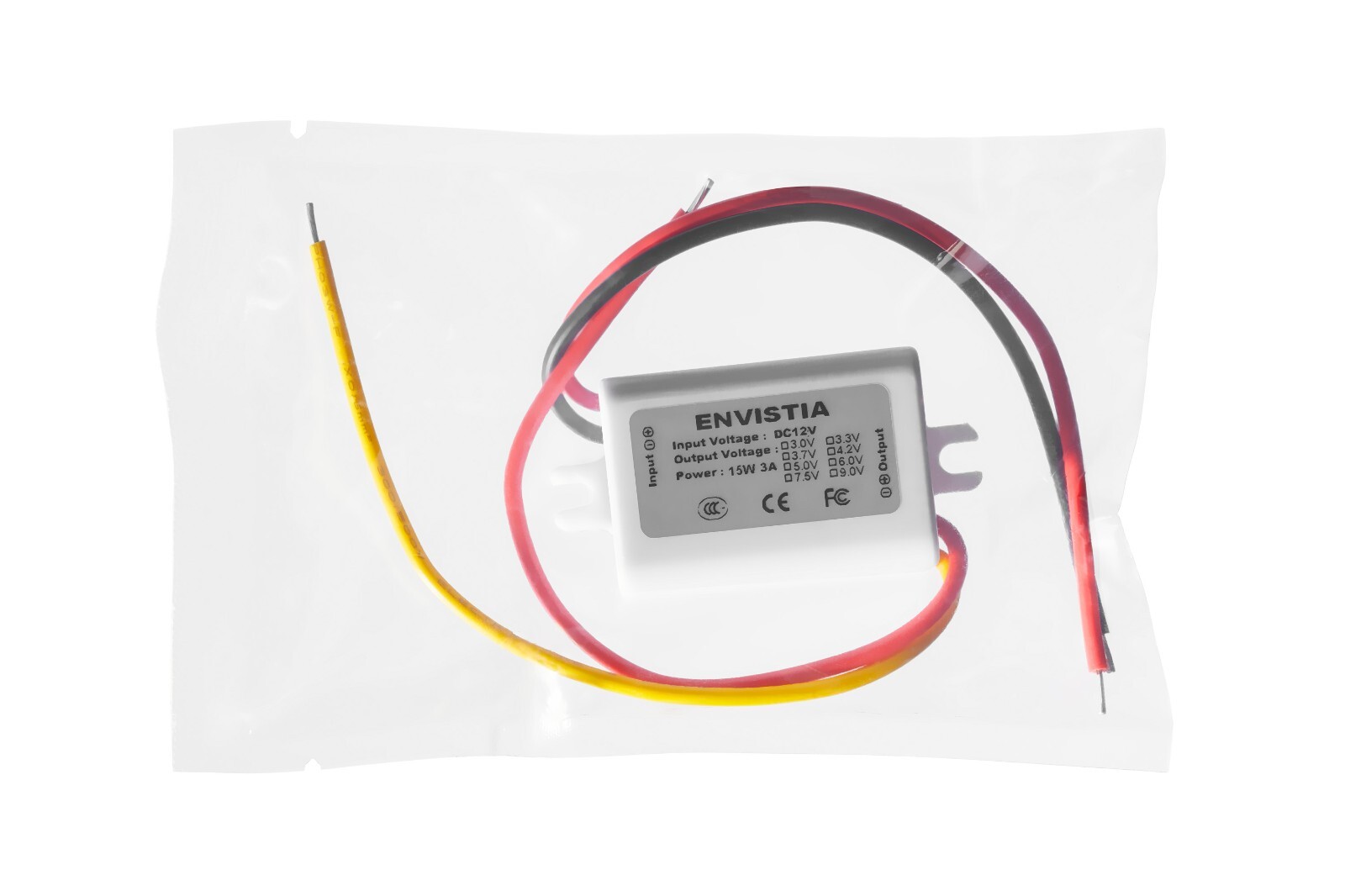

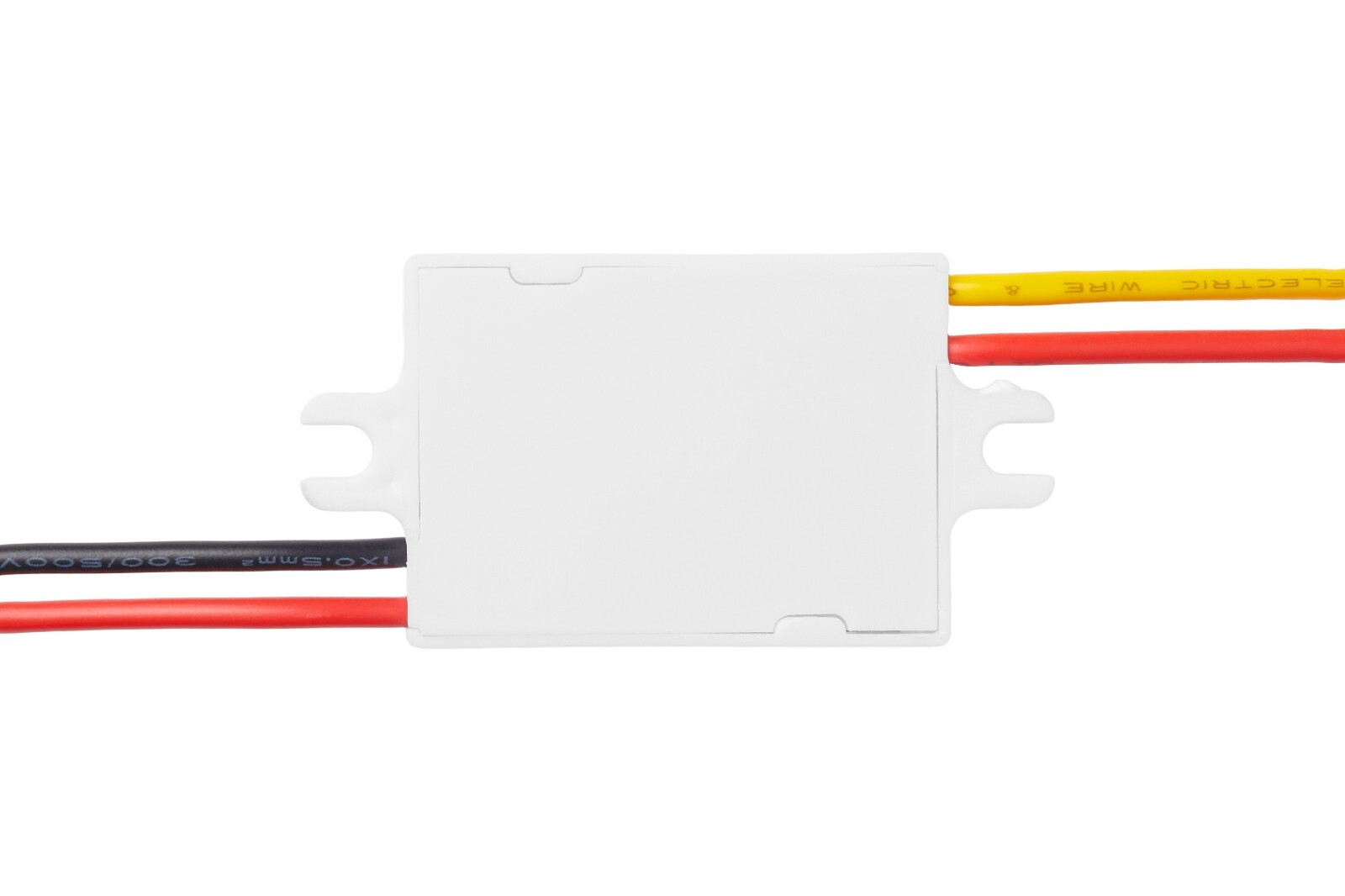

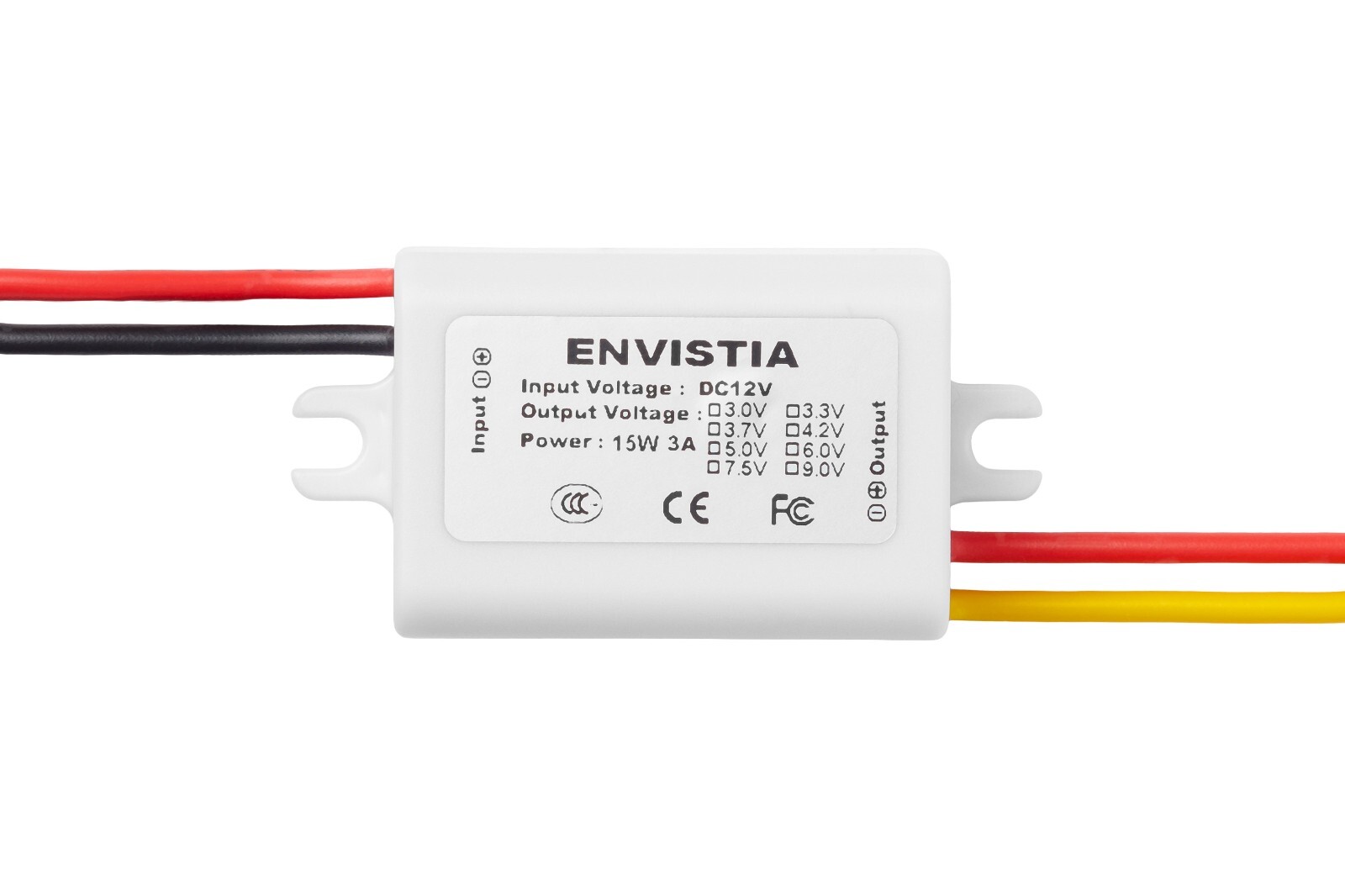

12V To 6V 2.5A 15W DC-DC Step Down Converter DC Power Supply Module Waterproof
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Chassis Mount |
| Nominal Voltage Rating (DC) | 12 V |
| Maximum Continuous Output Current | 2.5A |
| Nominal Current Rating | 2.5 A |
| Current Conversion | DC to DC |
| Nominal Power Rating | 15 W |
| MPN | 12V to 6V Waterproof |
| Installation Area | Indoor/Outdoor |
| Device Function | Voltage Converter |
| Brand | Envistia |
| Product Type | Power Converter |
| Conversion Direction | Step-Down |
| Output Voltage Rating (DC) | 6 V |
| Model | 12VDC to 6VDC 2.5A DCPS |
| Inrush Current Rating | 2.5 A |
| Input Voltage Range | 8V to 24V |
| Country/Region Of Manufacture | China |
| Maximum Peak Output Current | 2.5A |
12V Input to 6V Output 2.5A 15W DC-DC Step-Down Power Converter DC Power Supply Module WaterproofThis miniature DC-DC step-down converter module converts an 8V to 24V (perfect for 12V automotive) DC input to 6V DC output at up to 2.5A current (15W maximum).This 12V to 6V converter is perfect for 6V to 12V automobile conversions, to provide 6V DC to power the original 6V dashboard gauges from the 12V system. Specifications:Epoxy sealed waterproof housingLightweight, compact, convenient to use and transportNon-isolatedWith overload / over-current / over / low voltage protection, stable performanceAuto recoveryInput voltage: DC 12V nominal, will operate on any input voltage from 8V to 24V DCQuiescent input current (no load attached): 96%Size (L x W x H): 38 * 27 * 23 mm (Length including mounting tabs is 52mm)Weight: 30gCase color: WhiteCable length: 12cm (approx)Operating Notes:As with any DC-DC converter, the input DC power supply powering this converter must be capable of providing the maximum power drawn by your load. If the input supply is not capable of providing the power, the converter will fold back the output voltage as necessary. Example: If your load draws 2.5A at 6V (15W), and the input supply is only capable of providing 12V at 1/2A (6W), the maximum output voltage the converter will deliver is 2.4V (6W/2.5A).The inputs and outputs are labeled on the sticker on top of the converter, the red and black wires are the + and - 12V input, and the red and yellow wires are the + and - 6V output. Package includes:1X 12V to 6V 2.5A Waterproof DC-DC Step Down ConverterContact us for quantity/OEM pricing.Get it faster! Stocks and ships from our US Colorado office for quick delivery.We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
