12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car
12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car 12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car

12V Linear Actuator 6000N/1320lbs Max Lift Heavy Duty W/ Controller for Auto Car

USD 18.99 USD
SKU: ThJyyFGs
Brand: SZMWKJ
GTIN: Does not apply
Condition: New
Tags: -26°C to +65°C 1 Meter / 40inch 10" 12V 1320lbs 2min/18min (Max) 4.5mm/s 4000N/880lbs 48 dB 48dB 6000N 6000N/1320Lbs Aluminum alloy Black; Silver China DC 12V IP54 Only Motor Controller SX6000N-ZC SZMWKJ Yes
Categories: Envelopes & Mailers

Specifications

Stroke LengthOnly Motor Controller
ModelSX6000N-ZC
Country/Region Of ManufactureChina
Protection LevelIP54
Working Temperature-26°C to +65°C
Built-in Limit SwitchYes
Input VoltageDC 12V
MaterialAluminum Alloy
ColorBlack, Silver
Power Cord Length1 Meter / 40inch
Load Capacity6000N/1320Lbs
Max Push Load6000N/1320Lbs
Max Pull Load4000N/880lbs
Speed4.5mm/s
Duty Cycle10%
Operating Frequency2min/18min (Max)
Noise Level48db
Rated Load1320lbs
BrandSZMWKJ
Actuation Force6000N
Voltage12V

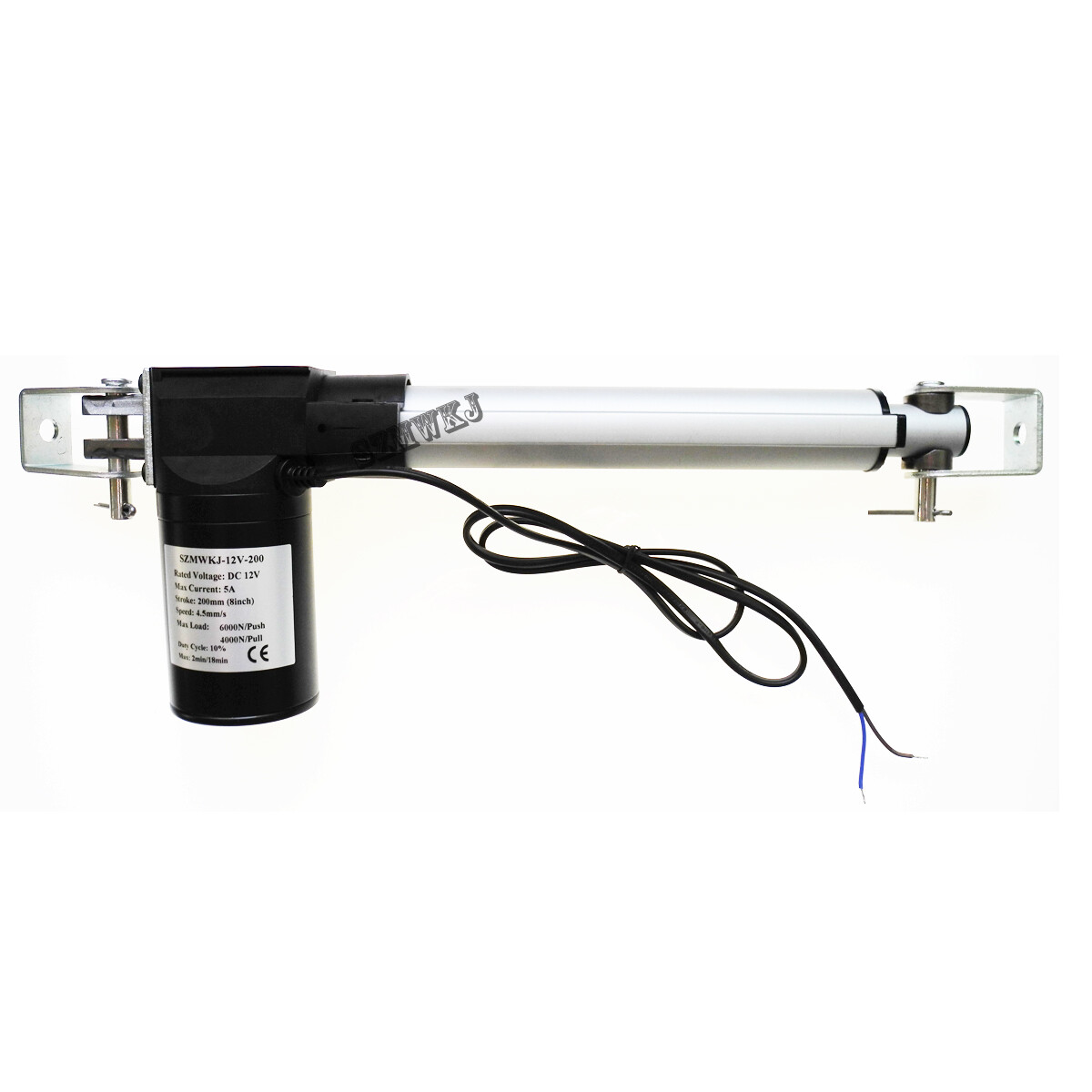

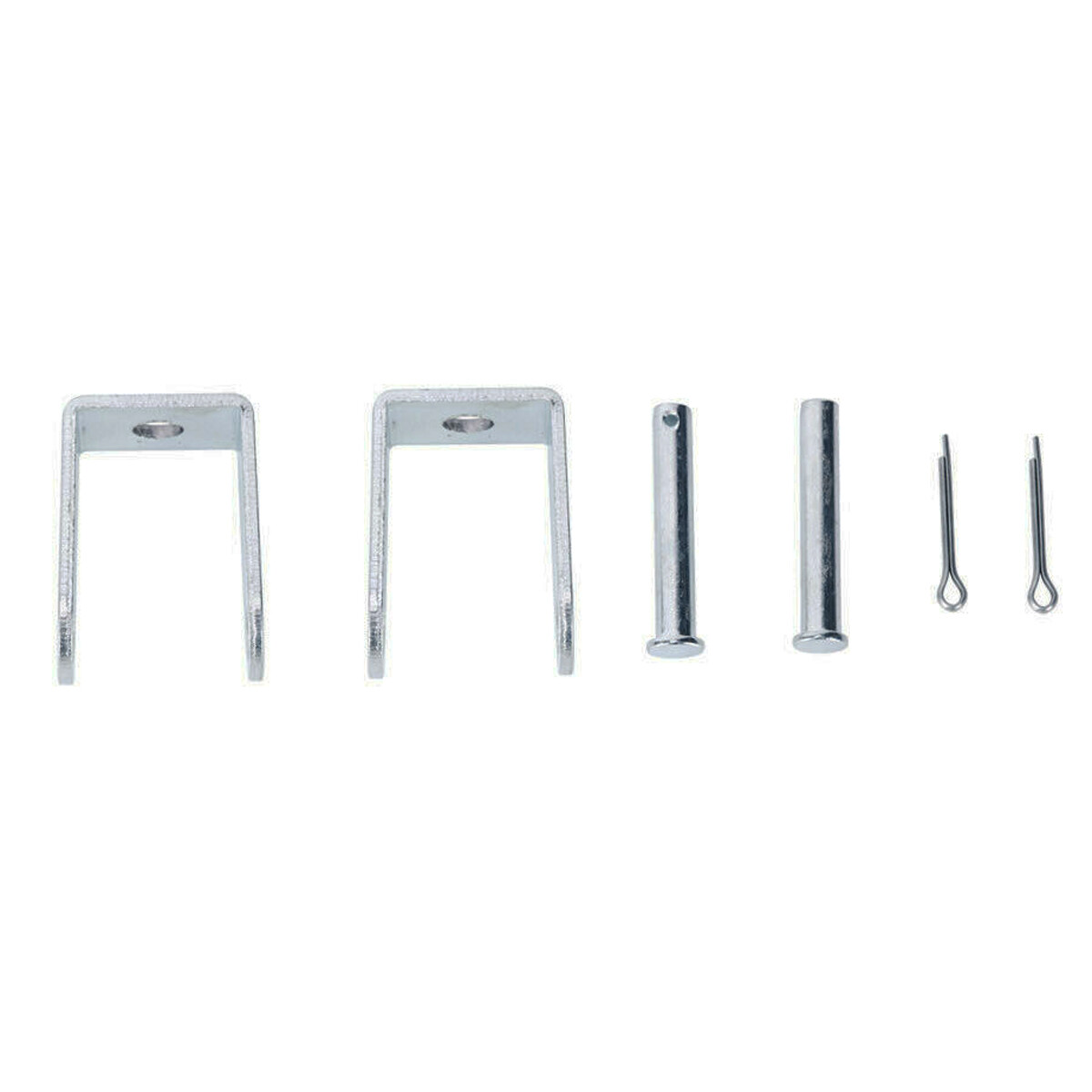

6000N DC 12V Linear Actuators This is 6000N DC 12V linear actuators, we provide100/150/200/300/400/450mm Stroke Length Optional, each linear actuator has 2PCS mounting brackets together. The linear actuator actuator is with 4.5mm/s speed, it can provide a pushing force of up to 6000N and a pulling force of up to 4000N.
