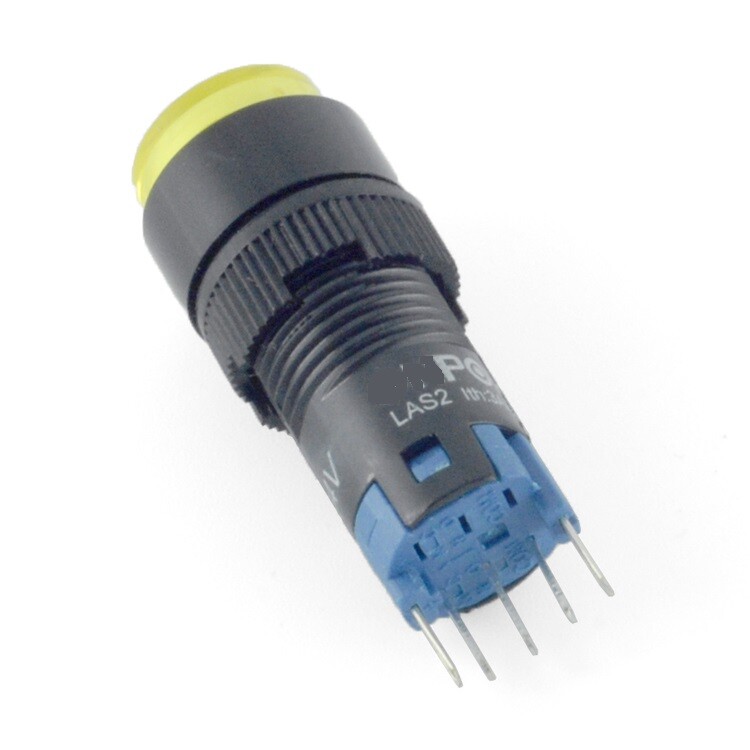

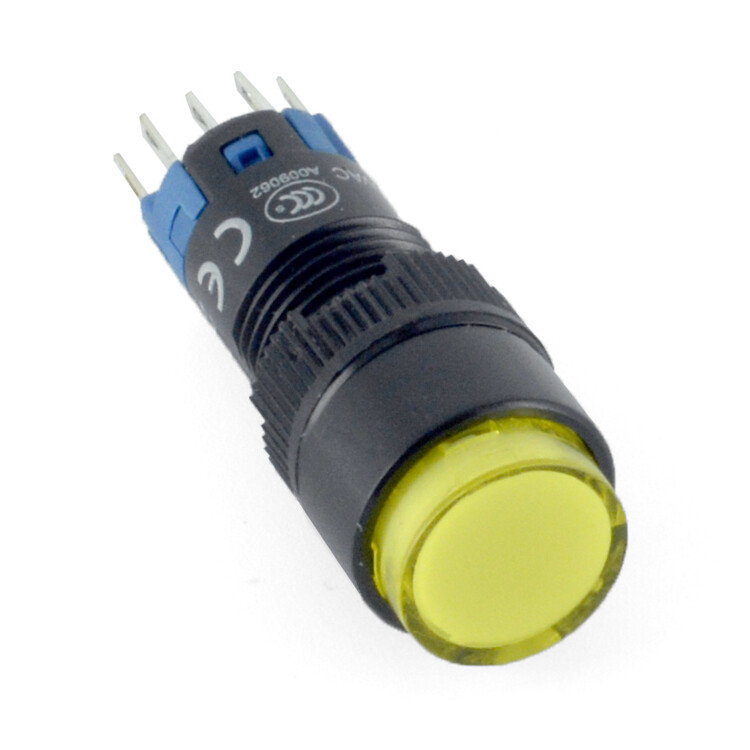

12mm 1NO 1NC/2NO 2NC Momentary Round Plastic Push button Switch (LAS2Y) CE ROHS
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Current Rating | ---- |
| Model | LAS4Y-11 |
| Maximum Amperage | ---- |
| Current Type | AC/DC |
| Switch Style | Push Button/Retractive |
| Smart Home Compatibility | ---- |
| Material | ABS/Plastic |
| Coil Voltage | 220V |
| Type | Round Selector Switch |
| Features | Illuminated |
| Smart Home Protocol | ---- |
| Color | Black |
| MPN | LAS4Y-11 |
| Finish | ---- |
| Operation Method | On/Off |
| Brand | Unbranded |
| Suitable For | ---- |
| Application | Automotive |
| Termination Type | Solder Lug |

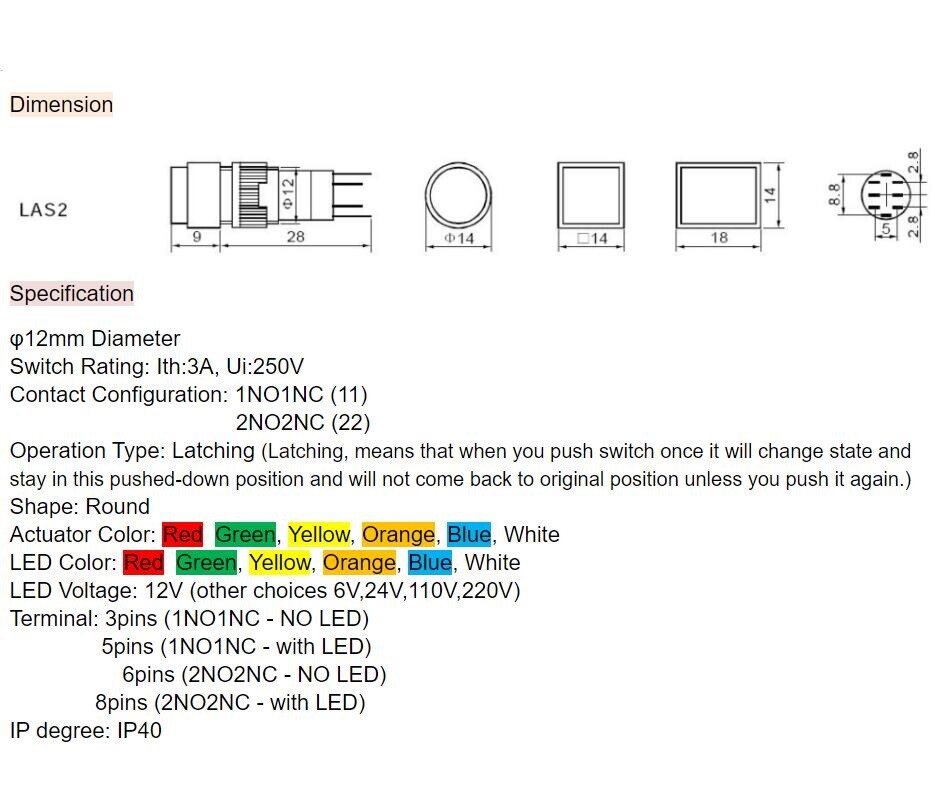

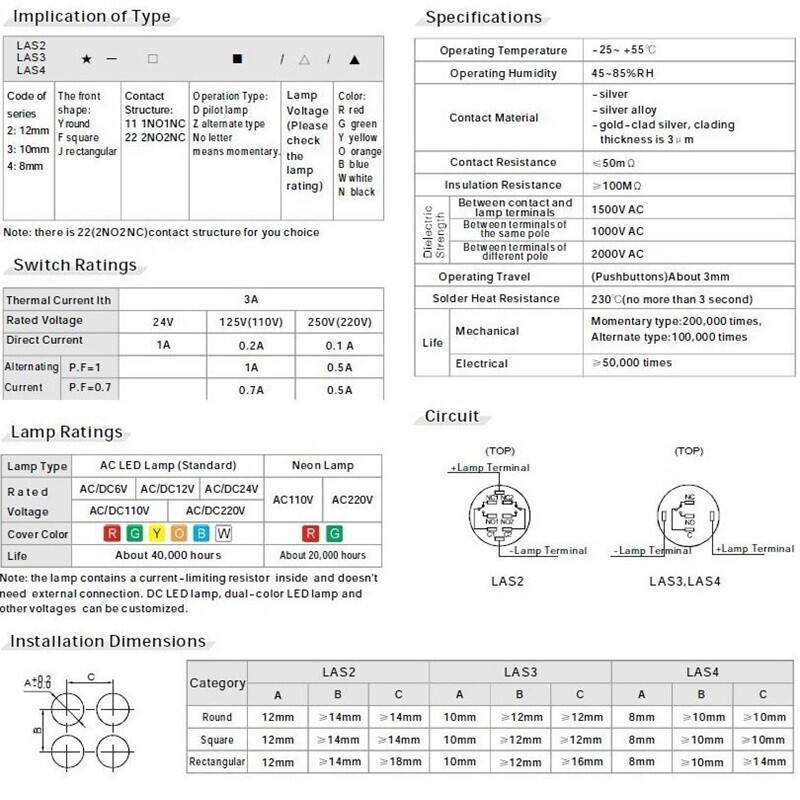

Item specifics Model Number:LAS1-AF-11D/G/12V Protection Level:IP40/IP65 Max. Current:5A Max. Voltage:230V Material:plastic Operation type:momentary Function:1NO1NC/2NO 2NC Terminal type:5/8pin Terminals Head shape:Round head Actuator LED color:Red (Green, blue, yellow, white, orange) Mounting hole diameter:12mm Type:plastic illuminated push button switch Certificate:CE ROHSProduct DescriptionSpecification φ12mm DiameterSwitch Rating: Ith:3A, Ui:250VContact Configuration: 1NO1NC (11) Operation Type: Momentary (when you push switch and then move your finger, the actuator will back to the original position.)Shape: RoundActuator Color: Red Green, Yellow, Orange, Blue, WhiteLED Color: Red Green, Yellow, Orange, Blue, WhiteLED Voltage: 12V (other choices 6V,24V,110V,220V)Terminal: 3pins (1NO1NC - NO LED) 5pins (1NO1NC - with LED) 8pins (2NO2NC - with LED)IP degree: IP40 Packaging Details Unit Type: lot ( pieces/lot) Package Weight: 0.04kg (0.09lb.) Package Size: 2cm x 2cm x 2cm (0.79in x 0.79in x 0.79in)
