12 V – 1750 RPM – Slow Speed Electric DC Motor w/ Cable + Connector – High TQ
USD 19.95 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | RS-545PH-19185 |
| Actual Rated Input Voltage | 12 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Knurled |
| Nominal Rated Input Voltage | 12 V |
| Model | RS-545PH-19185 |
| Reversible/Non-Reversible | Reversible |
| Shaft Diameter | 3.17 mm |
| Base RPM | 1,750 |
| Brand | Mabuchi |
| Mounting Type | Face-Mounted |
| Type | General Purpose Motor |

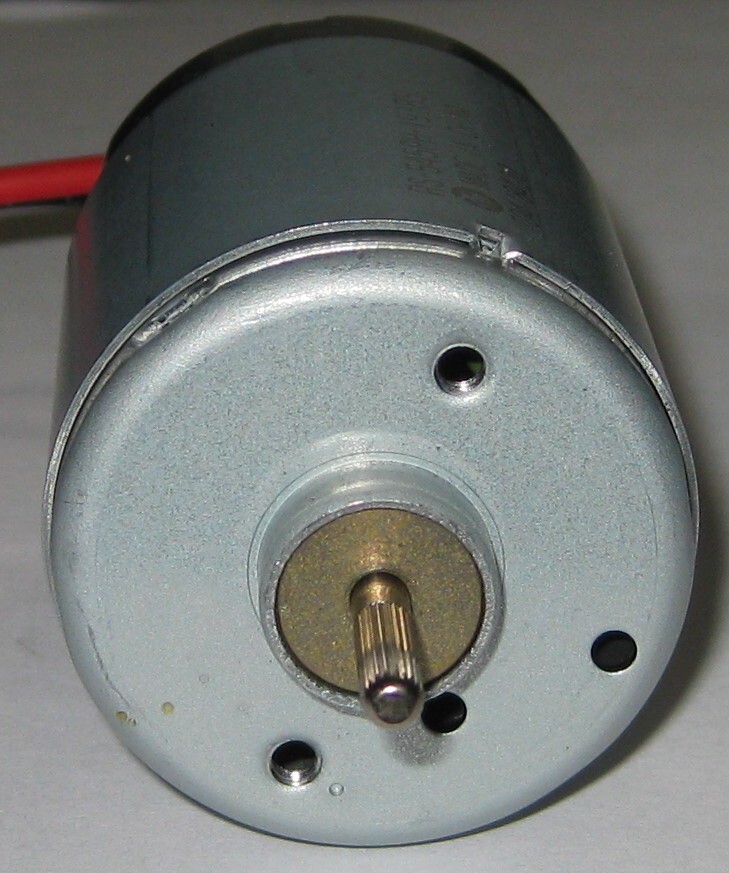

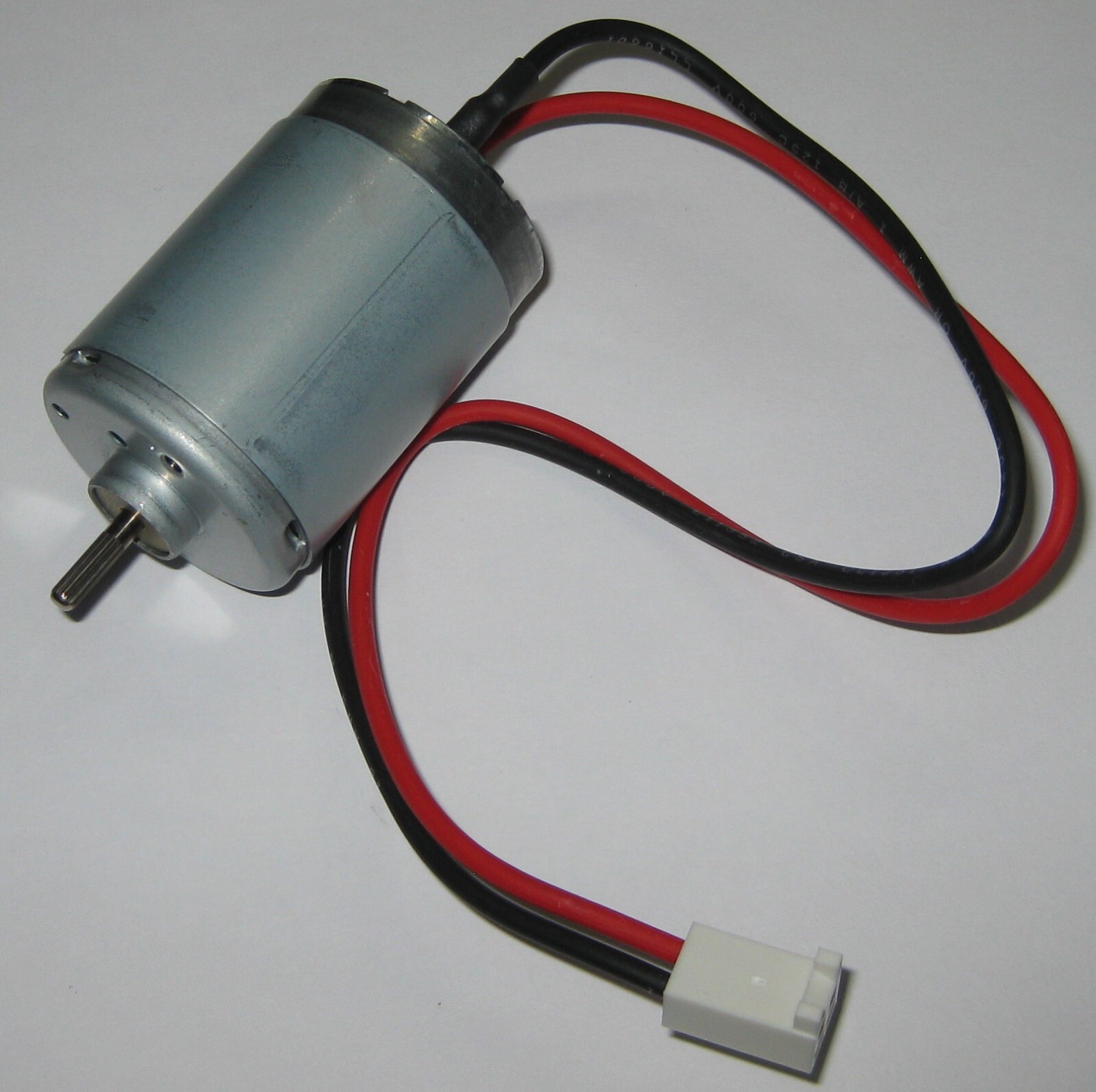

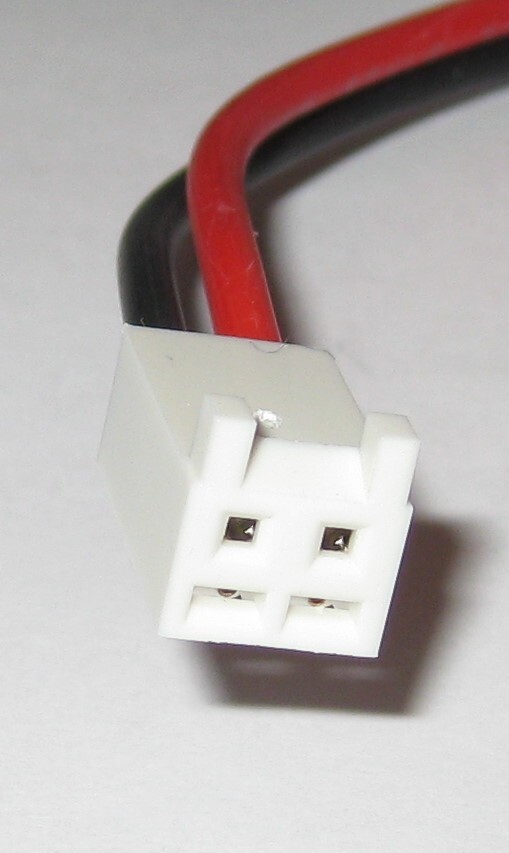

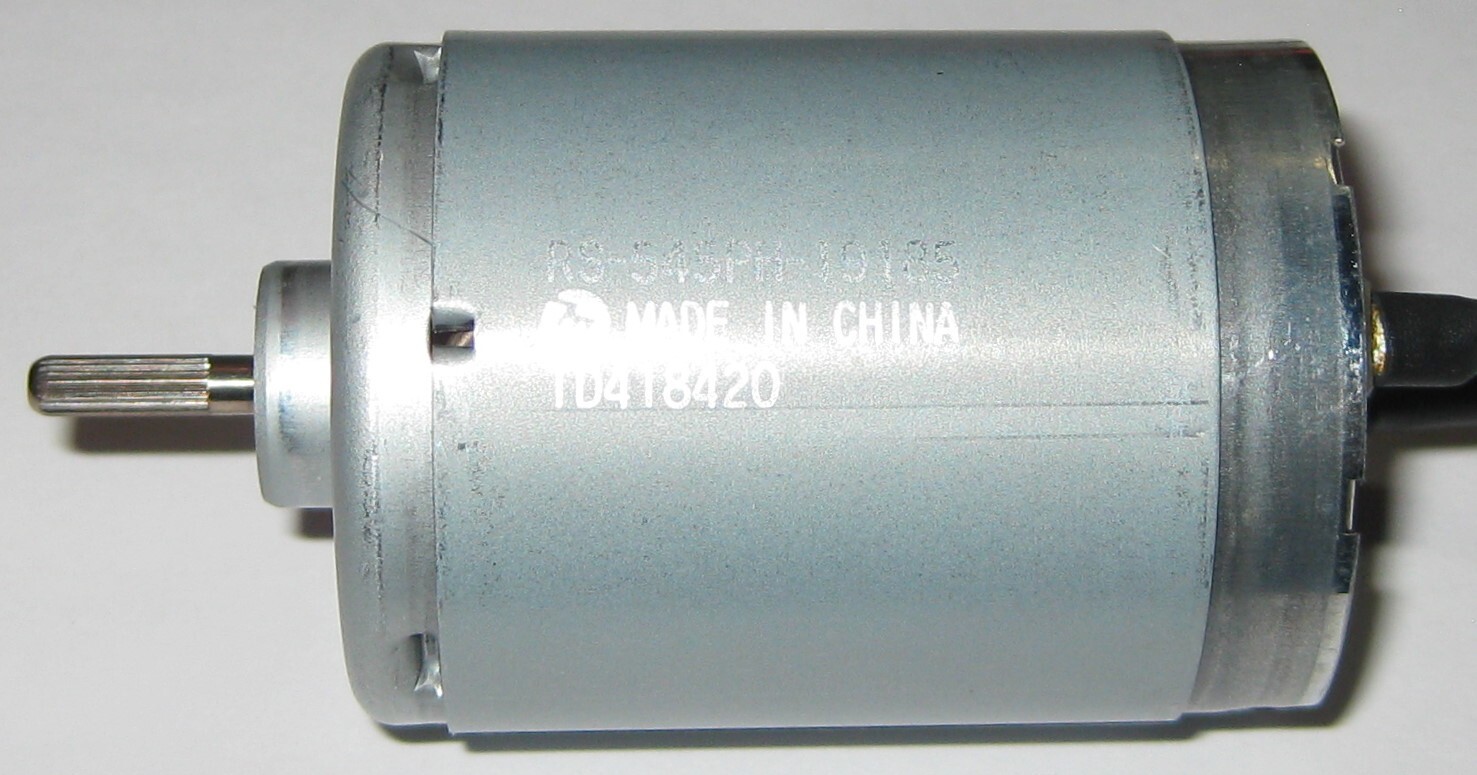

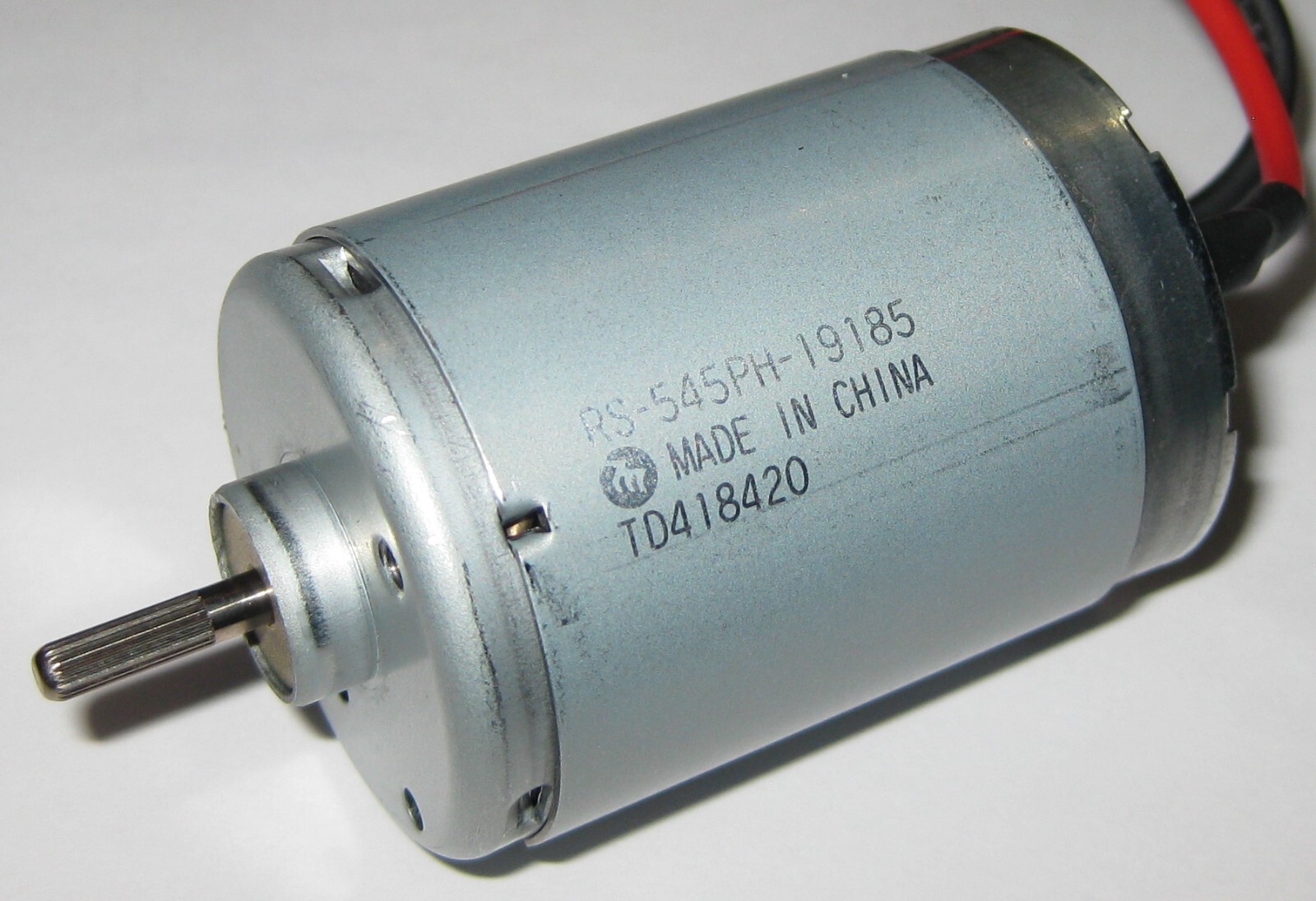

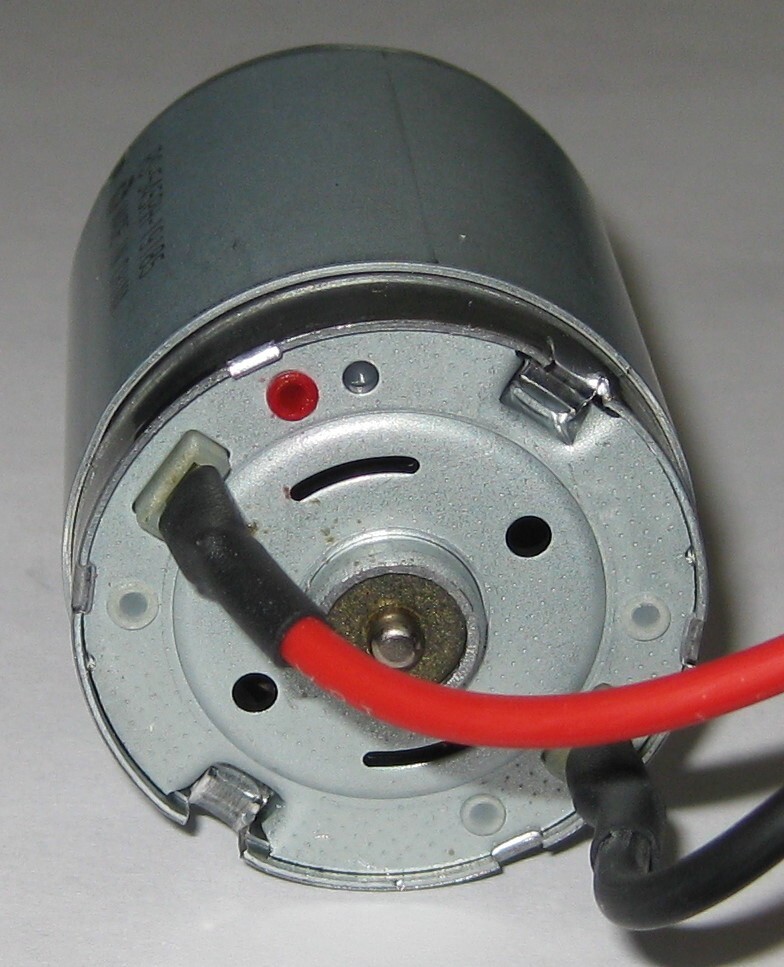

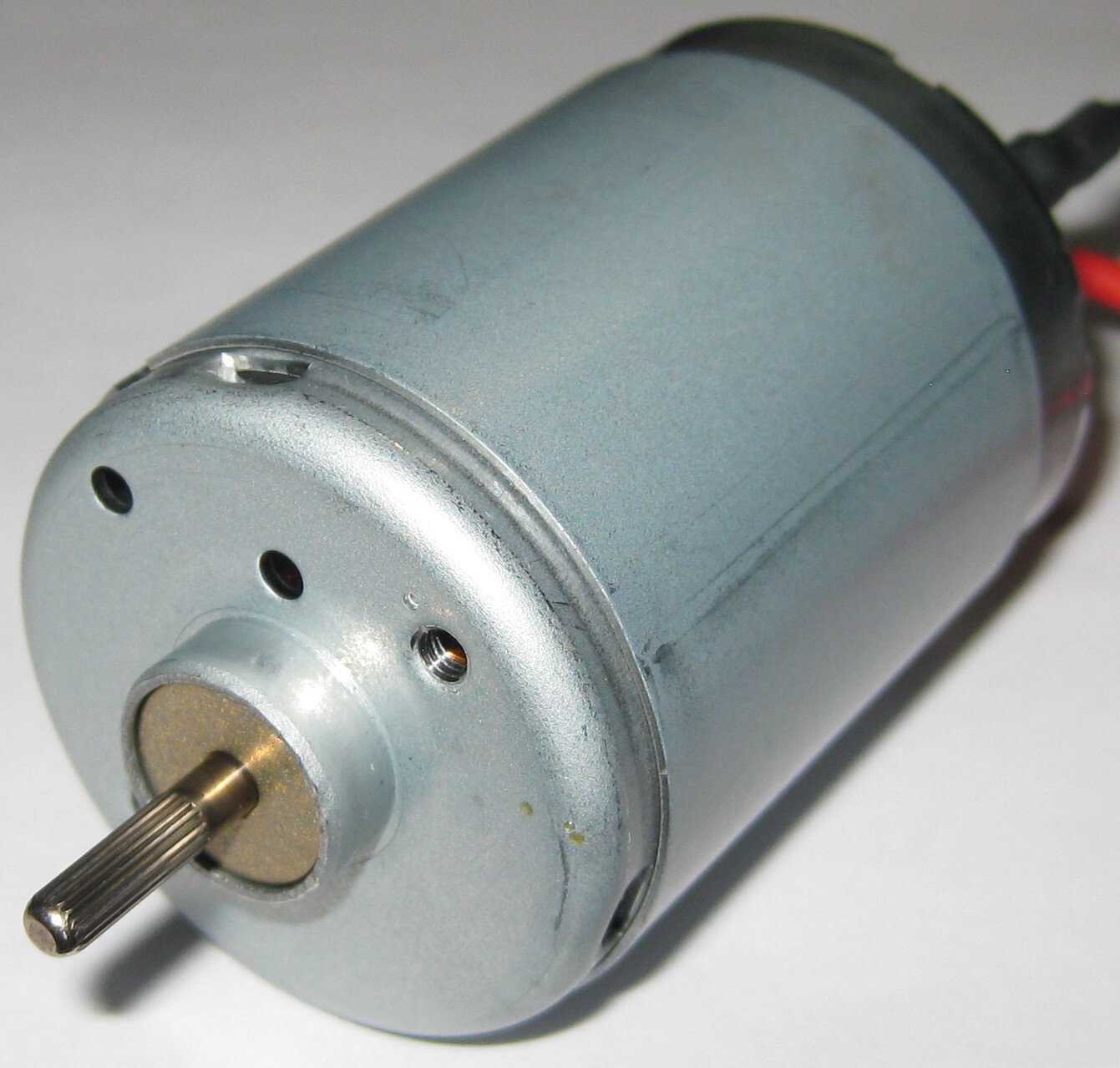

12 V - 1750 RPM - Slow Speed Electric DC Motor w/ Cable + Connector - High TQ Permanent magnet electric DC motor Manufacturer: Mabuchi Model: RS-545PH-19185 Voltage: 12 V DC No load speed at 12 VDC: 1,750 RPM No load current: 50 mA Stall current: 1.05 A Intermittent duty Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 50 mm long x 37 mm diameter Knurled shaft dimensions: 12 mm long x 3.17 mm diameter 12" long power leads terminated with a 2 pin female connector Features 2 threaded (M3 x 0.5) mounting holes on 25 mm centers Weight: 6.9 oz (195 g)
