110V Dust-free Pneumatic Woodworking Hinge Drilling Machine 45-9.5 0.6-0.8MPA
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | TECHTONGDA |
| Speed | 3400r/min |
| Machine Type | Hinge Boring Machine |
| Power Source | Pneumatic |
| Voltage | Voltage |
| Air Pressure | 0.6-0.8MPA |
| Combined Drill Model | 45-9.5 |
| MPN | 027313-27 |

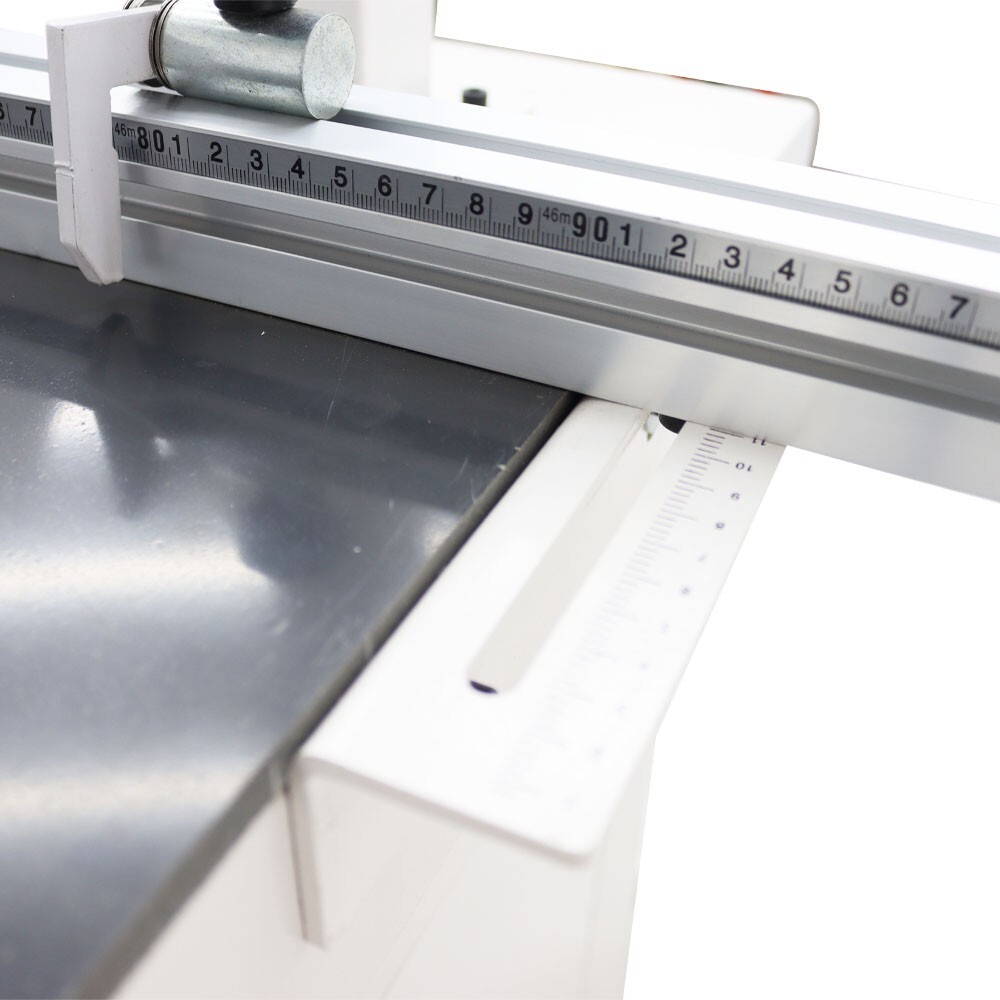

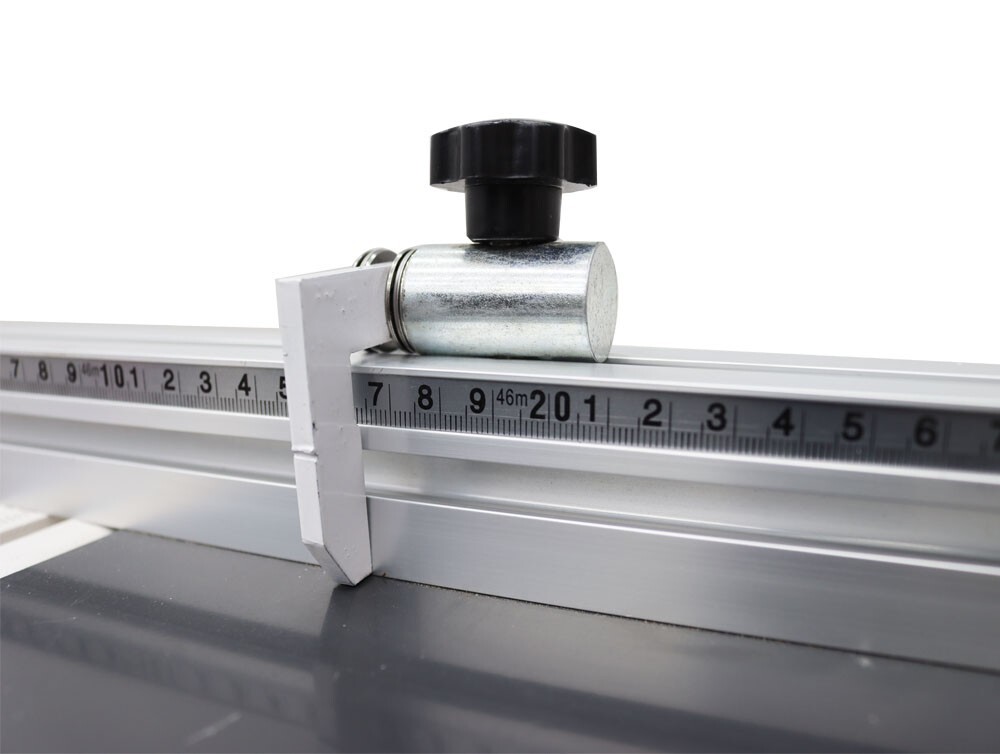

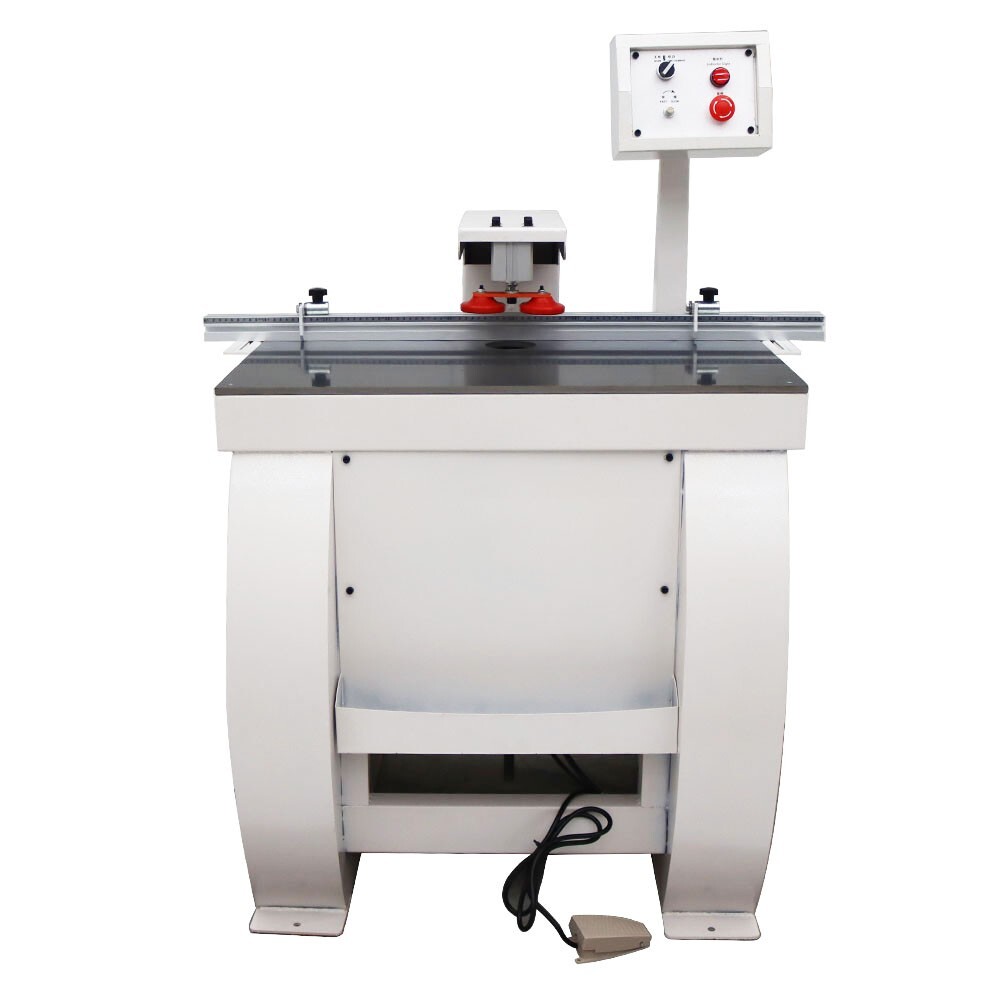

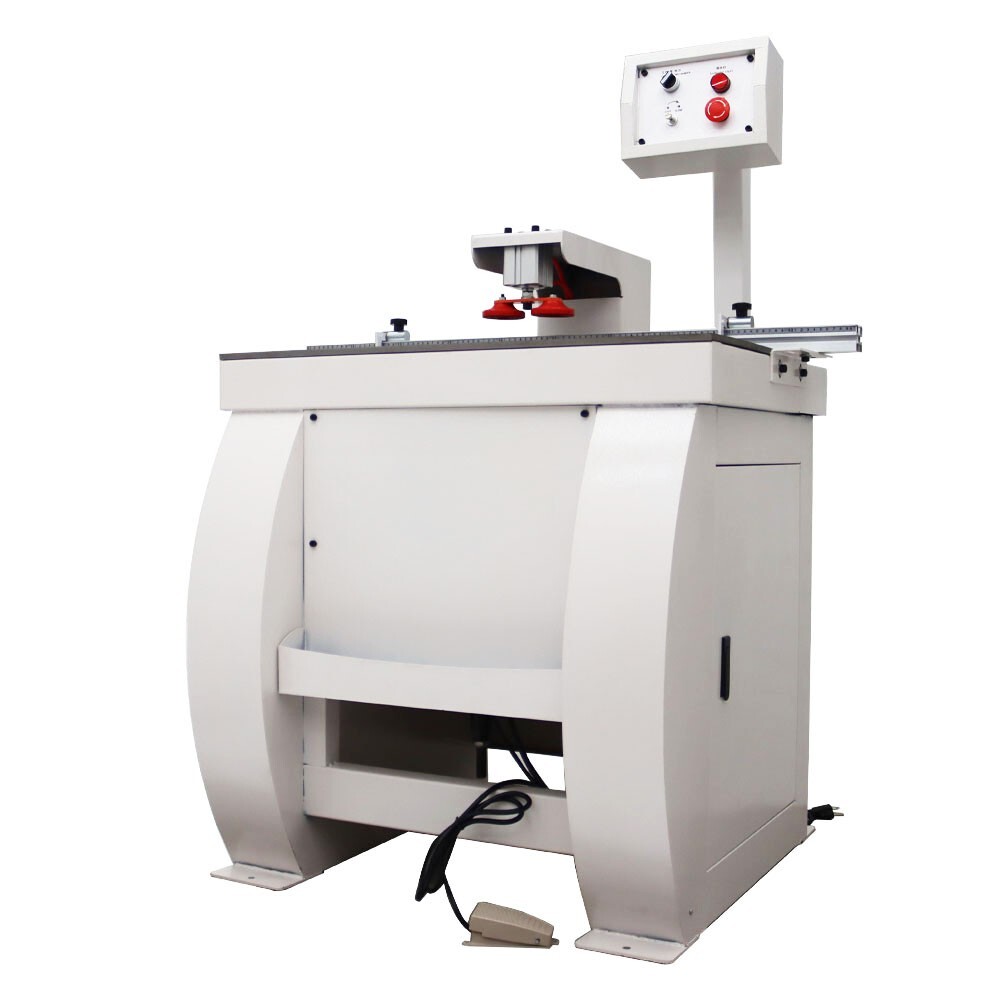

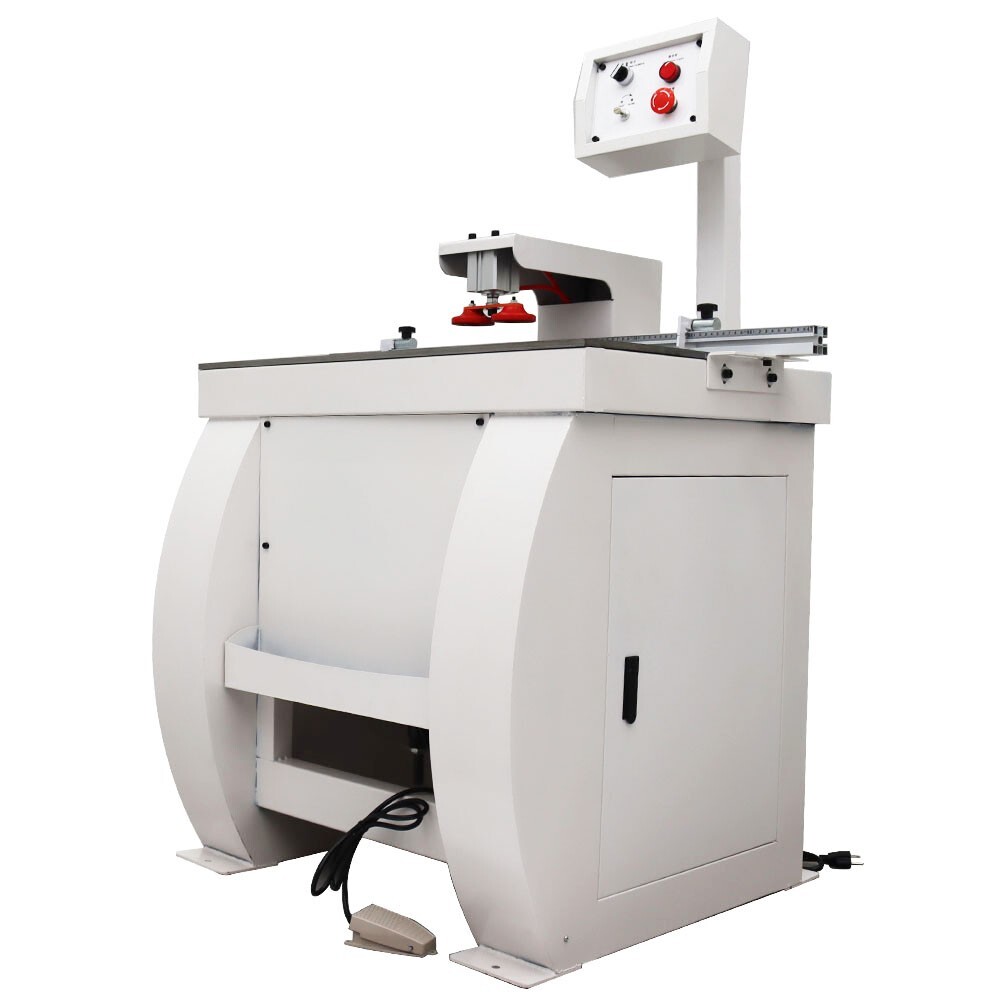

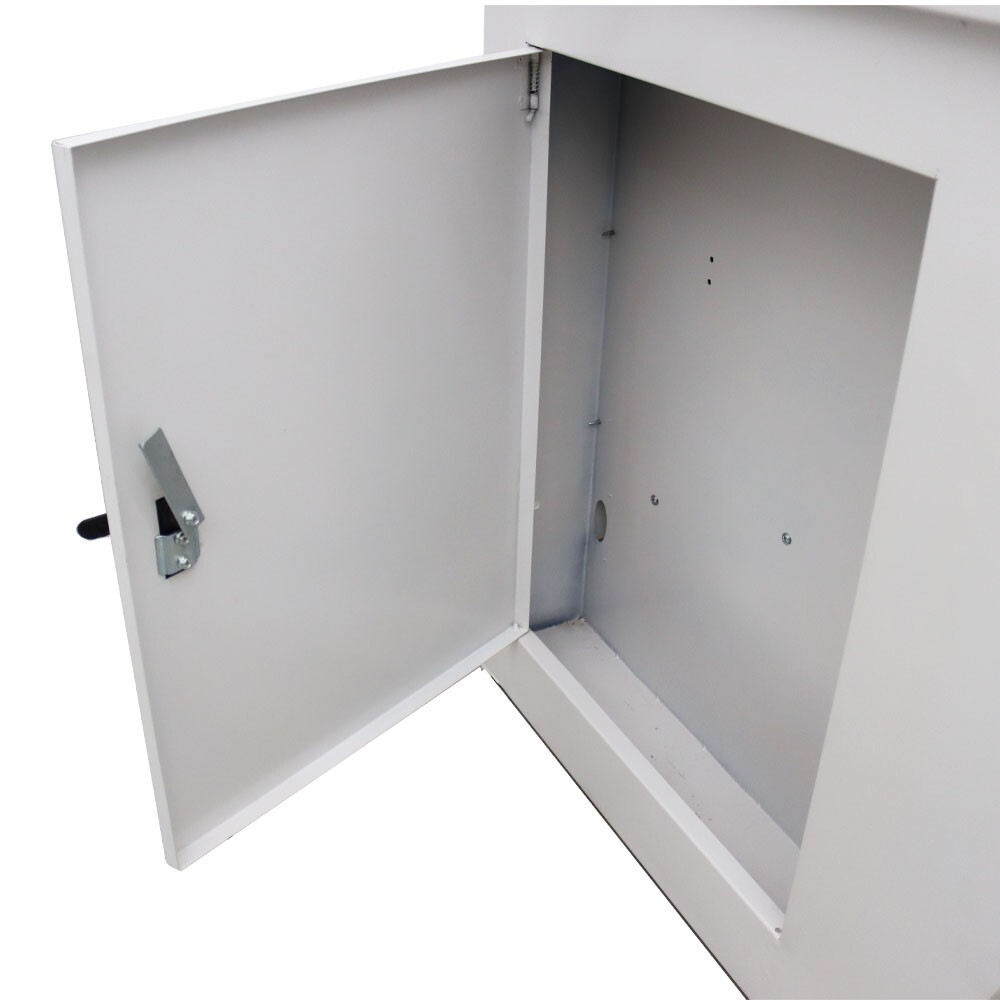

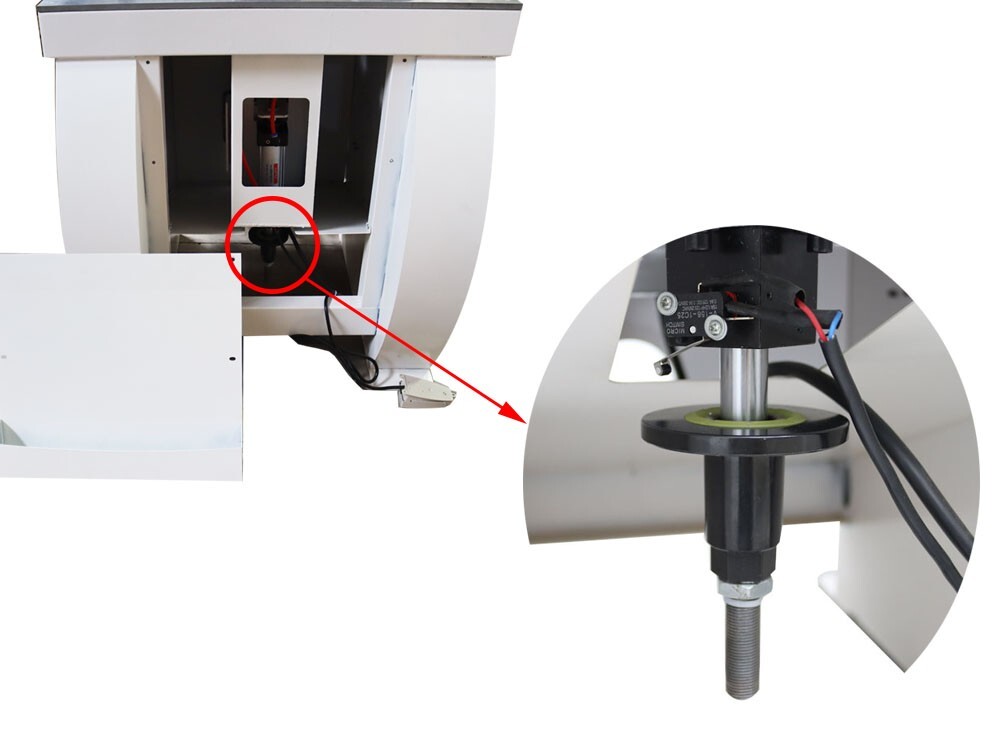

110V Dust-free Pneumatic Woodworking Hinge Drilling Machine 45-9.5 Bult-in Drill Bit 0.6-0.8MPA 1500W The machine is mainly for loose and hinge drilling, work piece positioning plate vertical and horizontal can be adjusted, convenient and fast to adapt to the requirements of drilling. It is the ideal equipment for door processing and manufacturing factory of wardrobe door, kitchen cabinet door, bookcase door and so on.This single head woodworking hinge drilling machine features elegant appearance, humanized design, simple and convenient operation, flexible, stable and reliable drilling operation, high efficiency.The machine has no tool calibration device, which can ensure the need of drilling depth. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole. Suitable for drilling various profiles.The dust-free hinge drill belongs to the bottom drilling design, and the debris generated during drilling is collected in the box to avoid dust flying. It is clean and environmentally friendly, and more suitable for environmental requirements. NOTE：Confirm drill hole size before purchase. Voltage 110V Power 1500W Punching Depth 0-30mm Speed 3400r/min Drill φ35mm*1,φ8mm*2 Combined Drill Model 45-9.5 Scale 39.4″(100cm) Air Pressure 0.6-0.8MPA Gross Weight 229LBS（126kg） Package Size 34.7*34.3*48.4inch(88*87*123cm) Precautions For Use： 1.Before starting the equipment, check whether the voltage, oil pump, oil quantity, etc. are normal, whether thelubrication is good, and whether the fixture is intact and normal. 2.After the device is switched on, it must perform the mechanical zero return operation at first, and then the test run.The time is 5 minutes, check whether the operation of the machine is normal, after that everything canbe continued. 3. By using the calibration knife switch on the control panel, after the drill bit is raised, the guiding ruler andpositioning pin are fixed through measurement. After repeated experiments to obtain the accurate position, thework can begin. 4. The drill speed should not be too fast, and the drill should be sharp. Too fast feed speed will cause chip removaldifficulties, cause drilling smoke, hole wall carbonization, and fast feed speed is more likely to lead to seriousconsequences of spindle break. 5. After working for a period of time, the drilling head slide may be loose, if not adjusted, it will cause the processedhole is oval or diagonal hole, and in serious cases, it will cause the spindle to bend and break. The method is to loosenthe screw fixing the slide seat, adjust the lock screw on the side of the slide block, so that the drill can not swing backand forth, up and down, and then it should be locked, but not adjusted too tight, otherwise the drilling head can notmove smoothly, crawling phenomenon. 6. When there’s something wrong with this equipment, the operator should handle it in time. If it can't be handled,or if the problem is serious, please turn off the power of the equipment immediately and notify the professionalmaintenance personnel to solve the problem. Item Number: 110V Woodworking Dust-free Hinge Drilling Machine 027313 You can make order with no worry.Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on theweekends & public holidays.Warranty: 6 months' warranty for the machines, not for the consumables.We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support fromus with low cost. On Jul 2, 2024 at 01:31:30 PDT, seller added the following information:
