11 Pcs Black PCB Proto / Perf Boards Double Sided Combo Pack
USD 4.90 USD
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| PCB Type | Double-Sided PCB |
| Country/Region Of Manufacture | China |
| Item Height | 1.2 mm / 1.6 mm |
| Mounting Style | Chassis Mount |
| Material | FR-4 |
| Series | AB2Tech Protoboards |
| Type | Perfboard |
| Brand | AB2Tech |

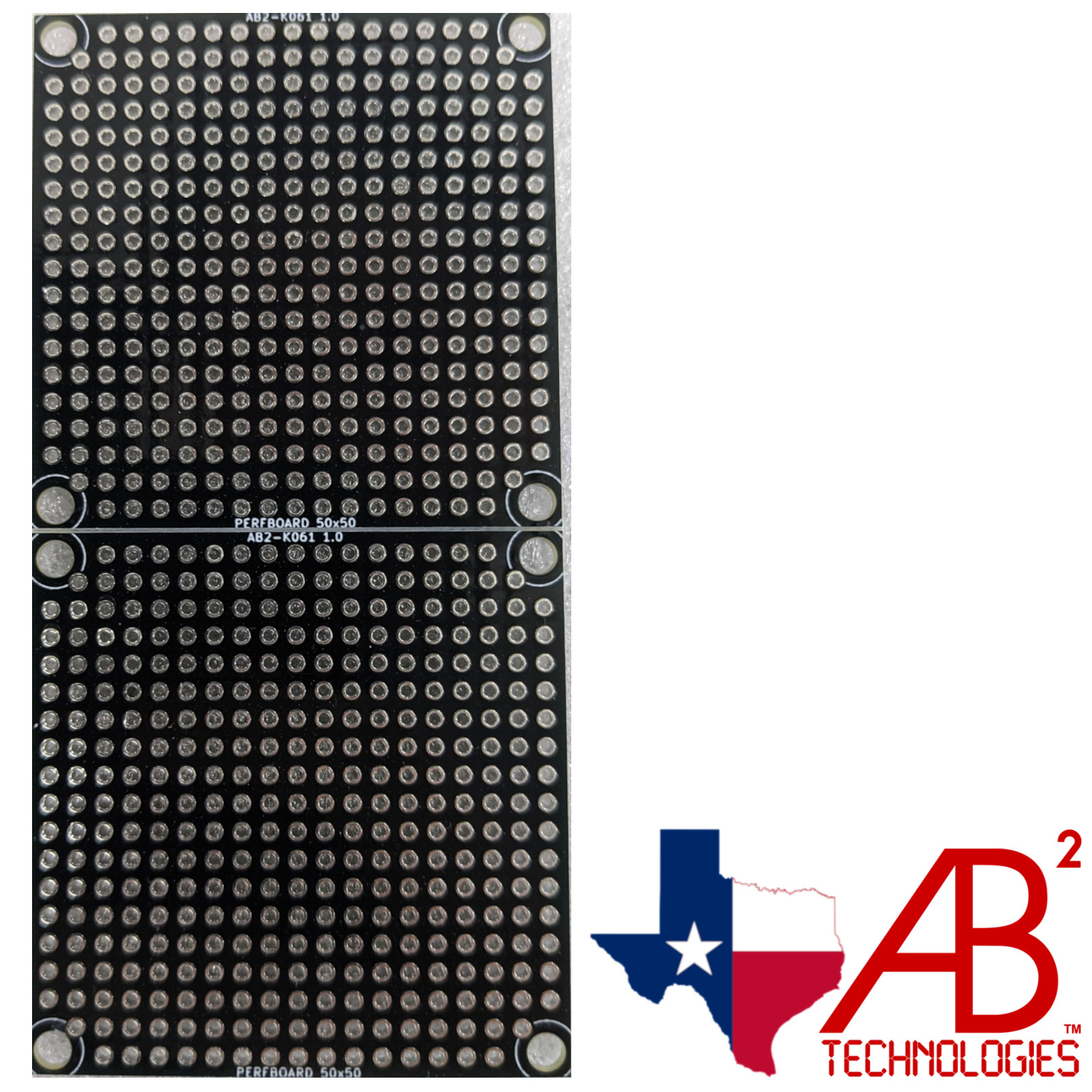

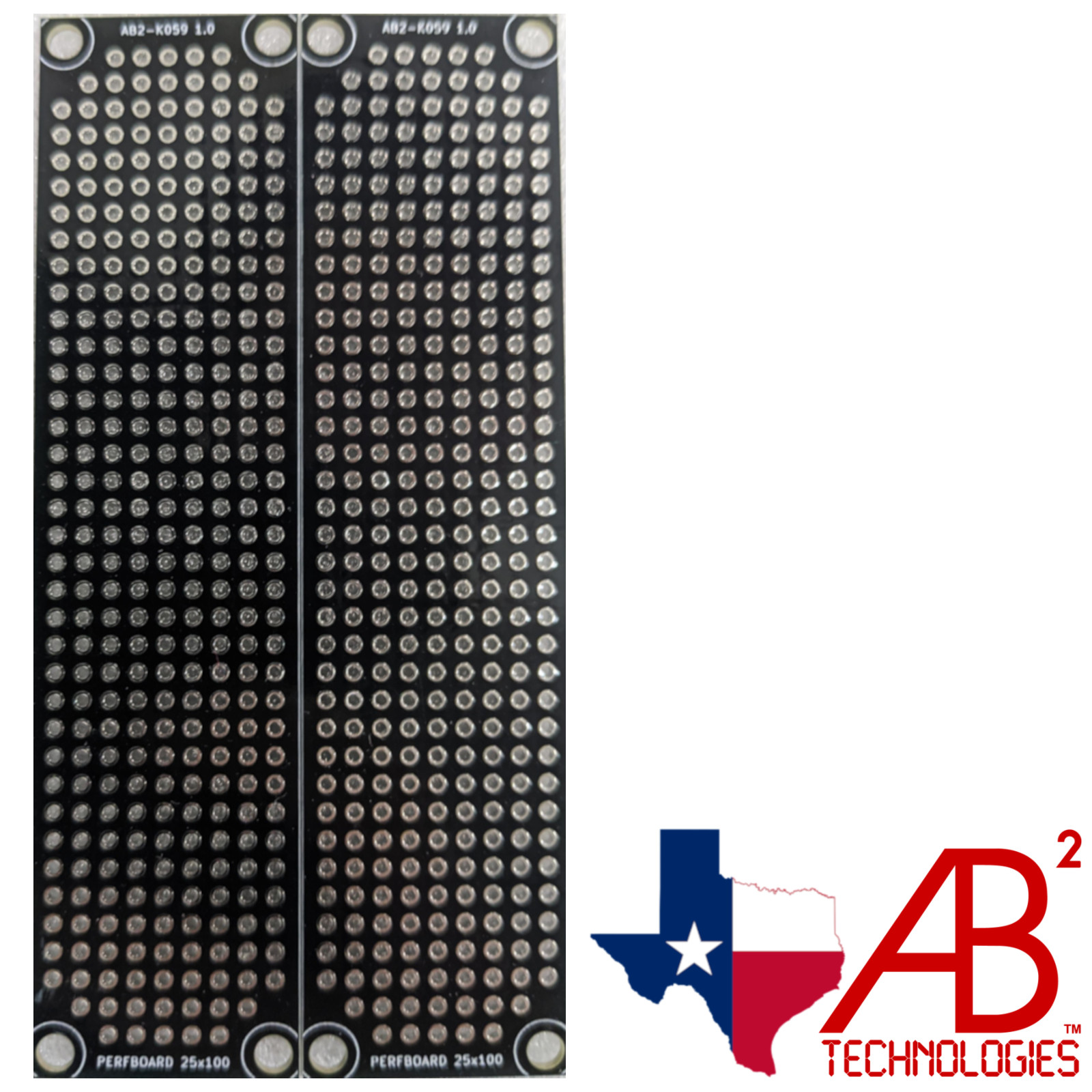

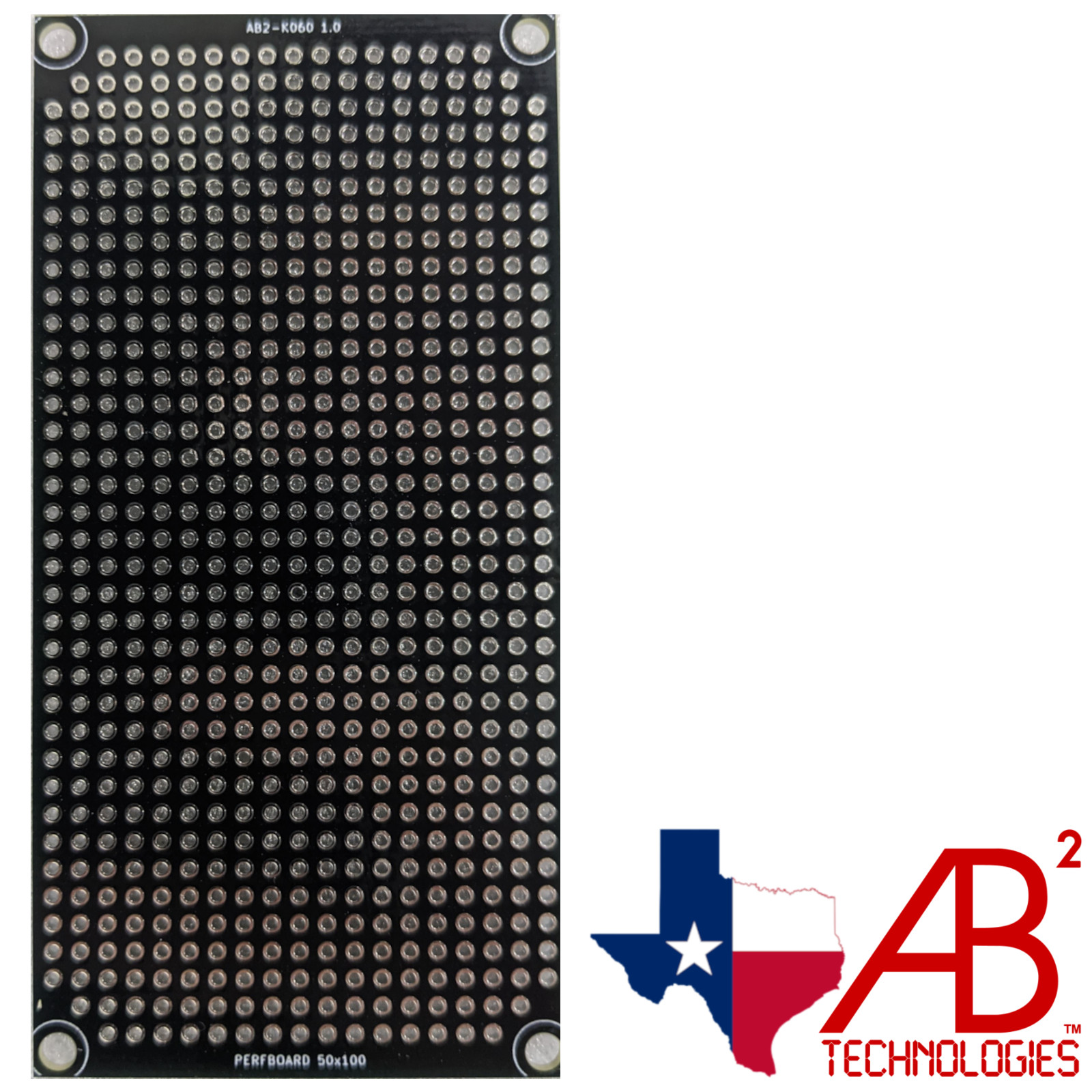

We occasionally need to quickly prototype and verify a design, so we created these perfboards to help speed up the proof of concept process. Since we are able to panelize these boards we would like to share them at a reasonable price and hope that you can find a use for them in your projects as well. Panels are v-scoredSolder Mask: BlackSilk Screen: WhiteDimensions: 4pcs 25mm x 25mm2pcs 25mm x 50mm2pcs 25mm x 100mm2pcs 50mm x 50mm1pcs 50mm x 100mm 11pcs total Each perf-board has 4 non-plated mounting holes with a diameter of 3.302mm (130mils). The plated through-holes on a 2.54mm (100mil) grid with 1.106mm (40mil) drill and 1.6764 (66mil) pad diameters. Thanks for looking!
