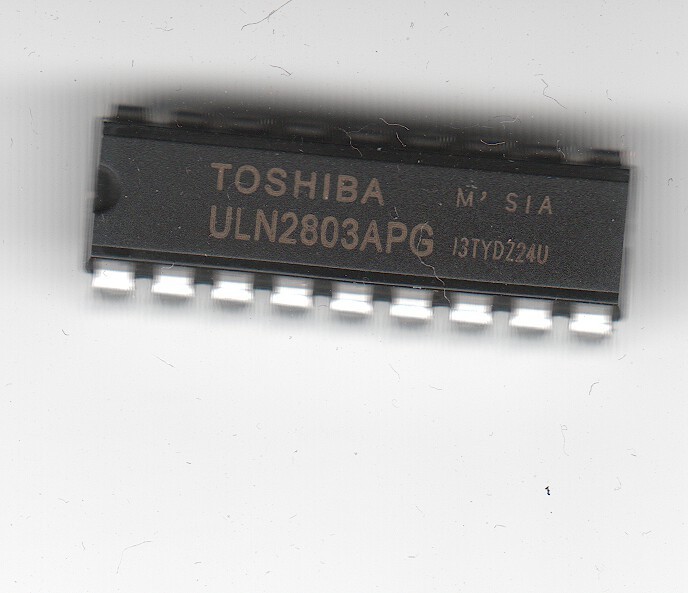

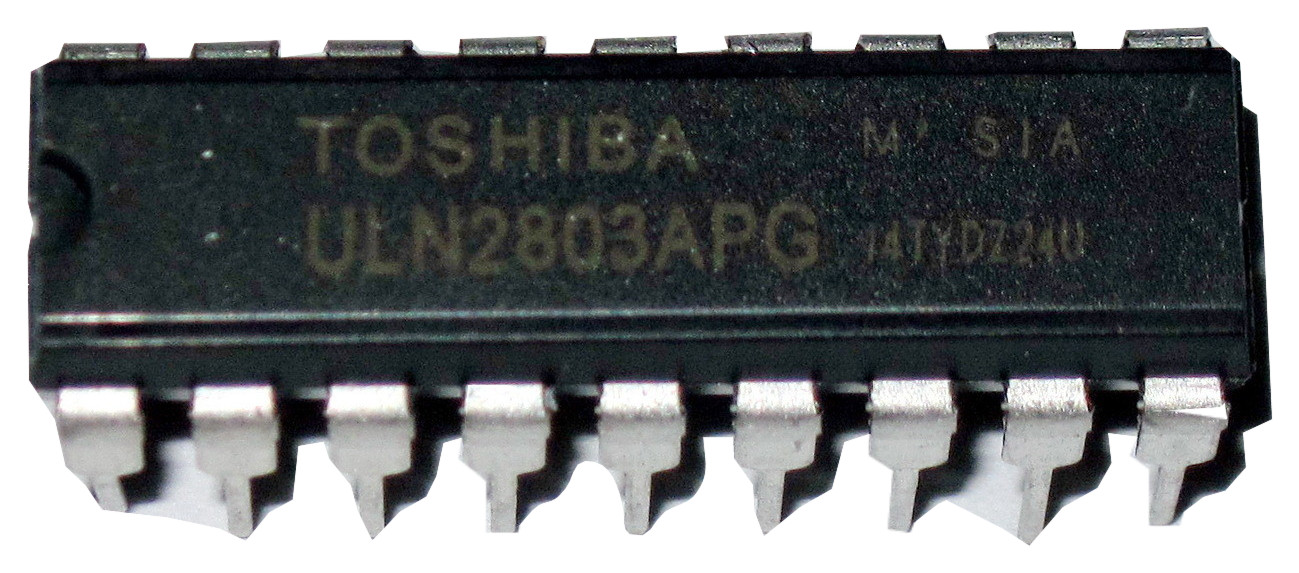

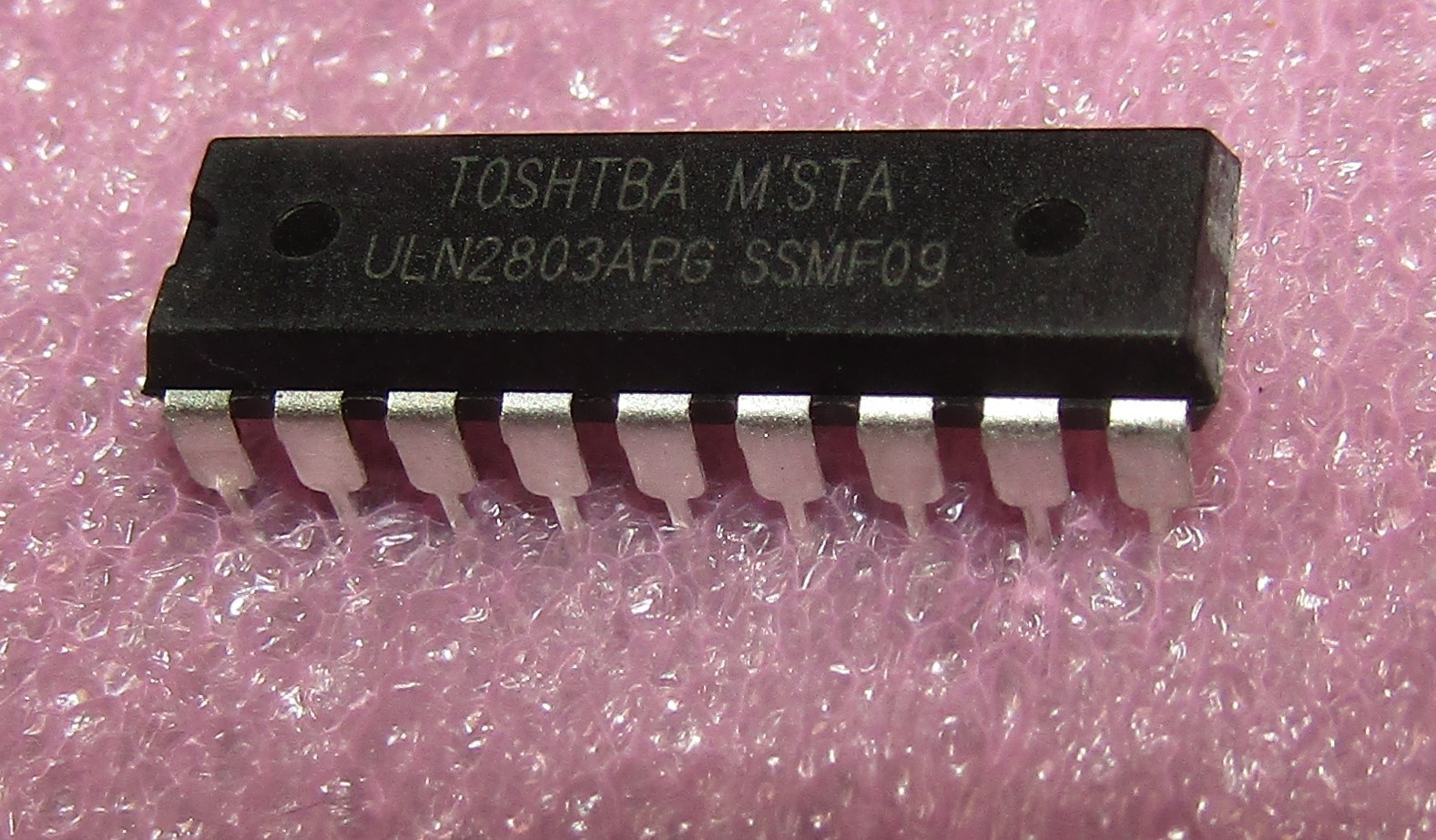

10pcs ULN2803APG ULN2803A ULN2803 8 Channel Darlington Driver for Solenoid/motor
USD 10.49 USD
Specifications
| Mounting Style | PCB Mount |
| Collector-Emitter Voltage | -50 V, 50 V |
| Package/Case | DIP |
| MPN | ULN2803APG |
| Transistor Category | Power Transistor |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Brand | Unbranded |
| Series | ULN2 |
| Unit Type | Unit |
| Maximum DC Collector Current | 123 mA |
| Packaging | DIP |
| Maximum Power Dissipation | 760 mW |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Country Of Origin | China |
Device Marking: ULN2803APG. Transistor Type: Power Darlington. Transistor Case Style: DIP. The inputs can be driven by 3.3V or 5V logic. Fits nicely in any breadboard or perfboard. of Channels: 8. DC Collector Current: 123mA.
