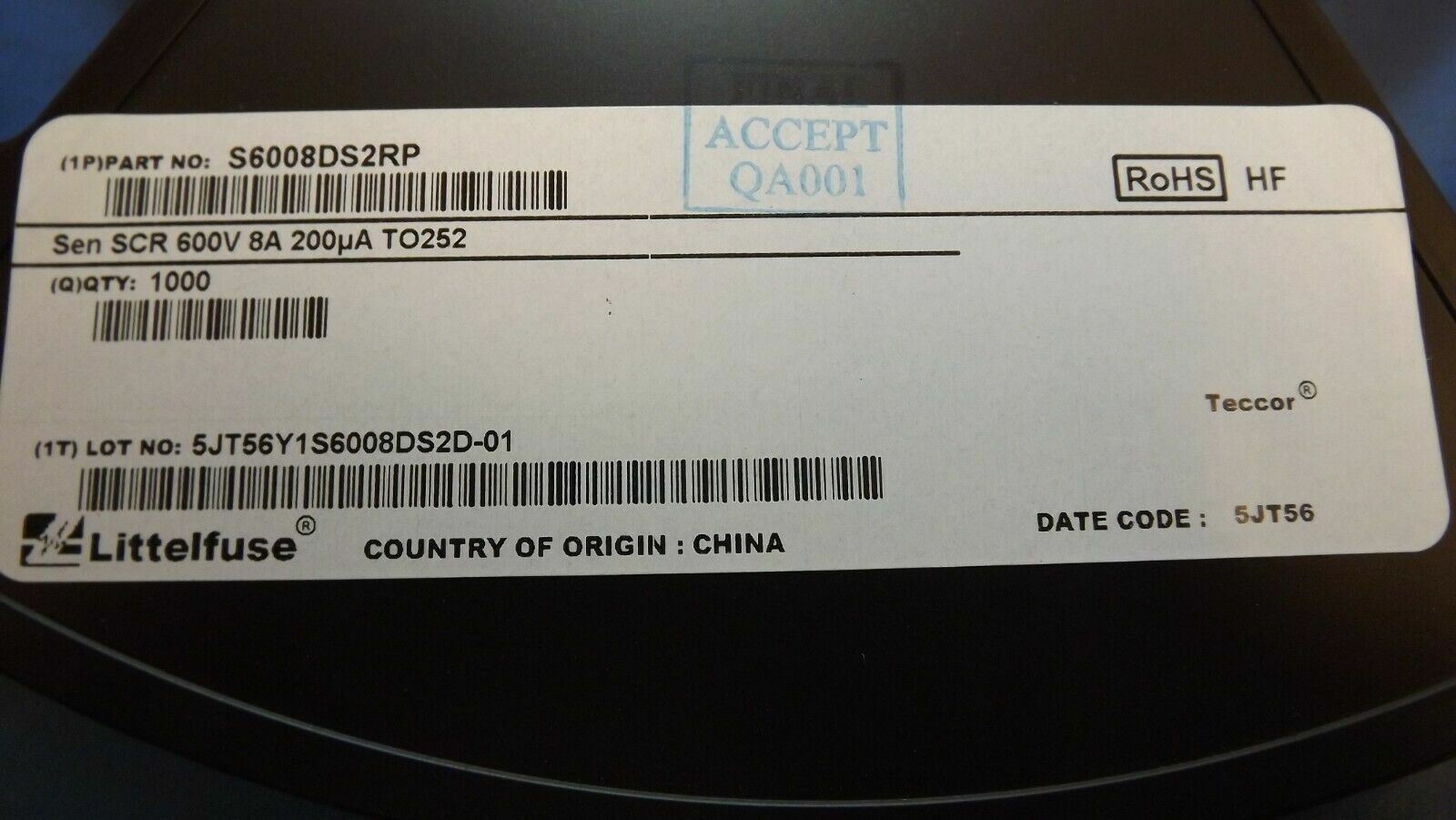

(10PCS) S6008DS2RP LITTELFUSE SCR SENS 600V 8A SMT TO-252AA
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | S6008DS2RP |
| Brand | LITTELFUSE/TECCOR |
THIS LISTING IS FOR (10PCS) OF S6008DS2RP BY LITTELFUSE/TECCOR SPECIFICATIONS Mfr Package Description ROHS COMPLIANT, PLASTIC, DPAK-3 EU RoHS Compliant Yes Status Active Trigger Device Type SCR Case Connection ANODE Configuration SINGLE DC Gate Trigger Current-Max 0.2 mA DC Gate Trigger Voltage-Max 0.8 V Holding Current-Max 6.0 mA JEDEC-95 Code TO-252AA JESD-30 Code R-PSSO-G2 JESD-609 Code e3 Leakage Current-Max 0.25 mA Non-Repetitive Pk On-state Cur 100.0 A Number of Elements 1.0 Number of Terminals 2 On-State Current-Max 5100.0 mA Operating Temperature-Min -40.0 Cel Operating Temperature-Max 110.0 Cel Package Body Material PLASTIC/EPOXY Package Shape RECTANGULAR Package Style SMALL OUTLINE Peak Reflow Temperature (Cel) 260 Repetitive Peak Off-state Voltage 600.0 V Repetitive Peak Reverse Voltage 600.0 V RMS On-state Current-Max 8.0 A Sub Category Silicon Controlled Rectifiers Surface Mount YES Terminal Finish Matte Tin (Sn) Terminal Form GULL WING Terminal Position SINGLE Time@Peak Reflow Temperature-Max (s) 40 Additional Feature UL RECOGNIZED Listing and template services provided by inkFrog
