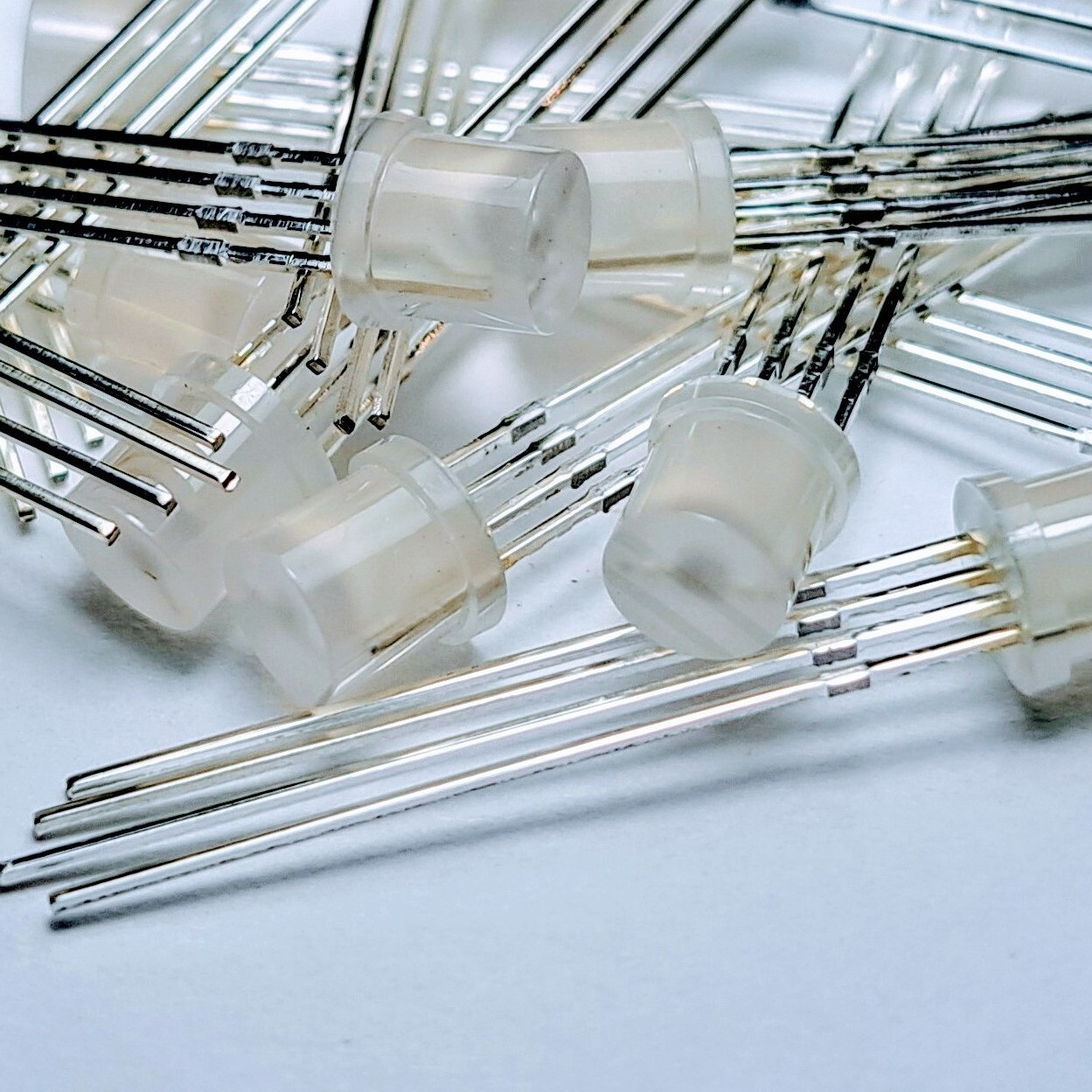

10pcs 5MM LED Common Cathode Frosted Diffused RGB Red Green Blue
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Mounting Style | Through-Hole |
| Nominal Current Rating | 20 mA |
| Lens Surface | Diffuse |
| LED Color | RGB |
| Lens Shape | Flat |
| Nominal Voltage | 3 V |
| LED Size | 5 mm |
| Wavelength | Multiple (RGB) |
| Brand | Fragments of a Dream |
| Type | Multi-Chip Based LED |
| Country/Region Of Manufacture | China |
| Forward Voltage | 3 V |
10pcs 5MM LED Common Cathode Frosted Diffused RGB Red Green Blue 1 business day or less handling on most orders These can be very difficult to find but super useful, 3 LEDs in 1 with a convenient diffused flat top package! By varying the brightness of each LED a single RGB LED can also display the full spectrum of color. A specific color can be set through the choice of resistors in series with each color wire. By using the PWM outputs of a microcontroller such as Arduino or other microcontroller, the brightness of each of the three LEDs can be controlled independently. A PWM value of 0.0 would be off and a 1.0 full on for each color LED. This allows a program to vary both the color and brightness level of the LED, providing dynamic control of the LED's output color and brightness Features:Tri-color(RGB): Red, Green, BlueHigh reliabilityCommon Cathode (negative) = longest lead in pictureCan be color mixed with PWM output to create virtually any colorLens Color: DiffusedLED Size: 5mm Specifications (@ 20mA):Typical Forward Voltage: Red=2.25VGreen=3.5VBlue=3.5V Additional Questions? Please send us a quick message
