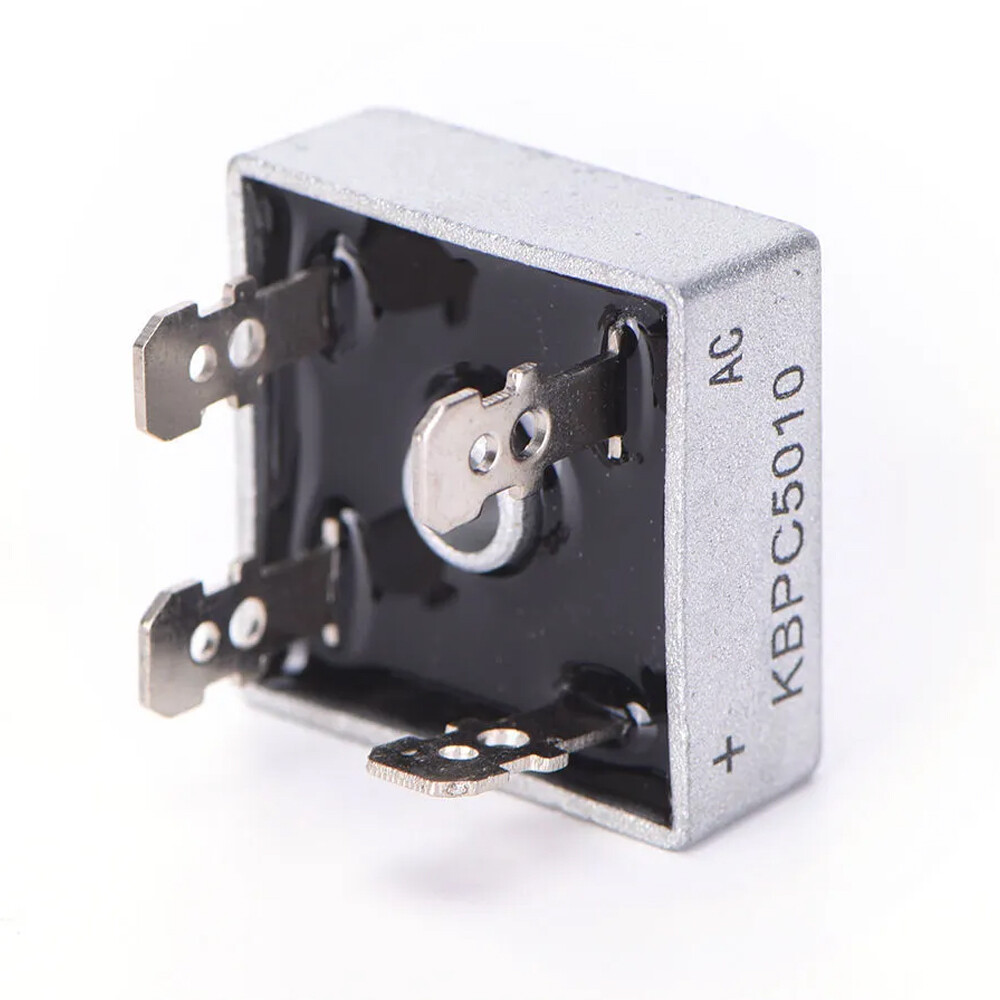

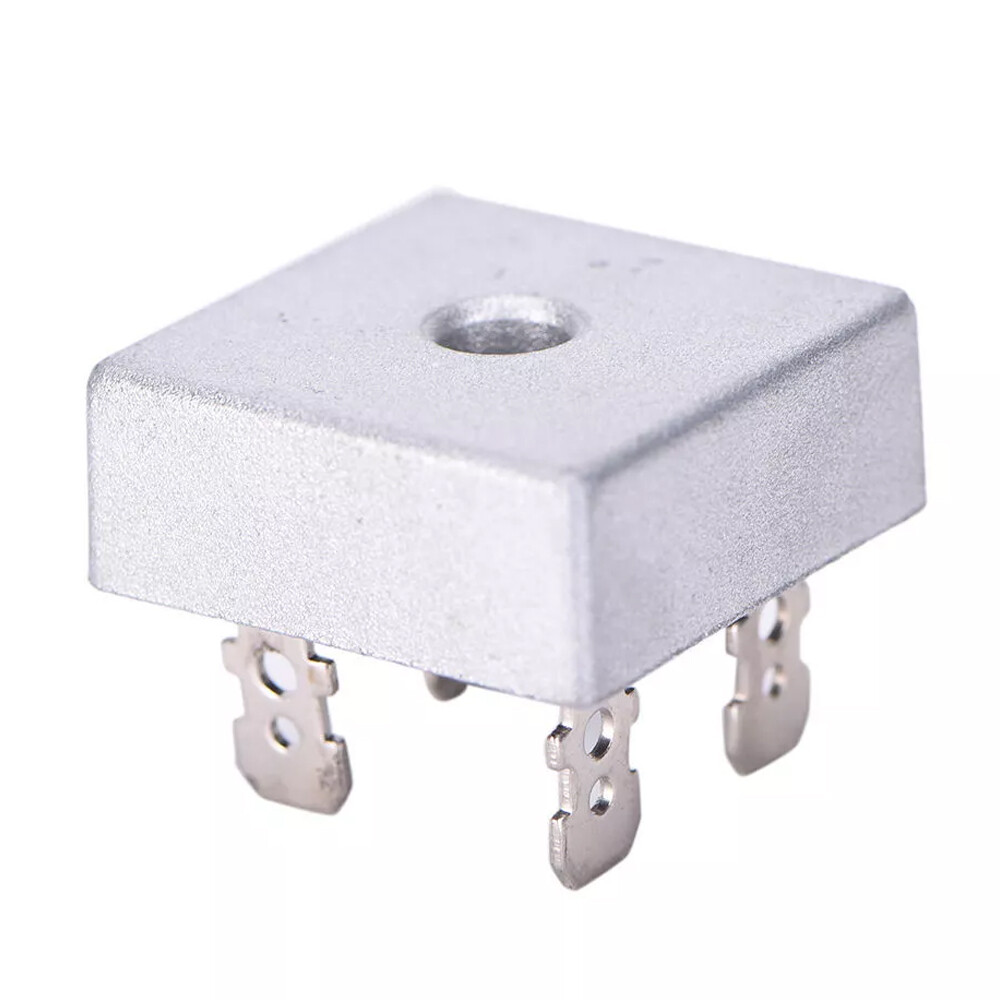

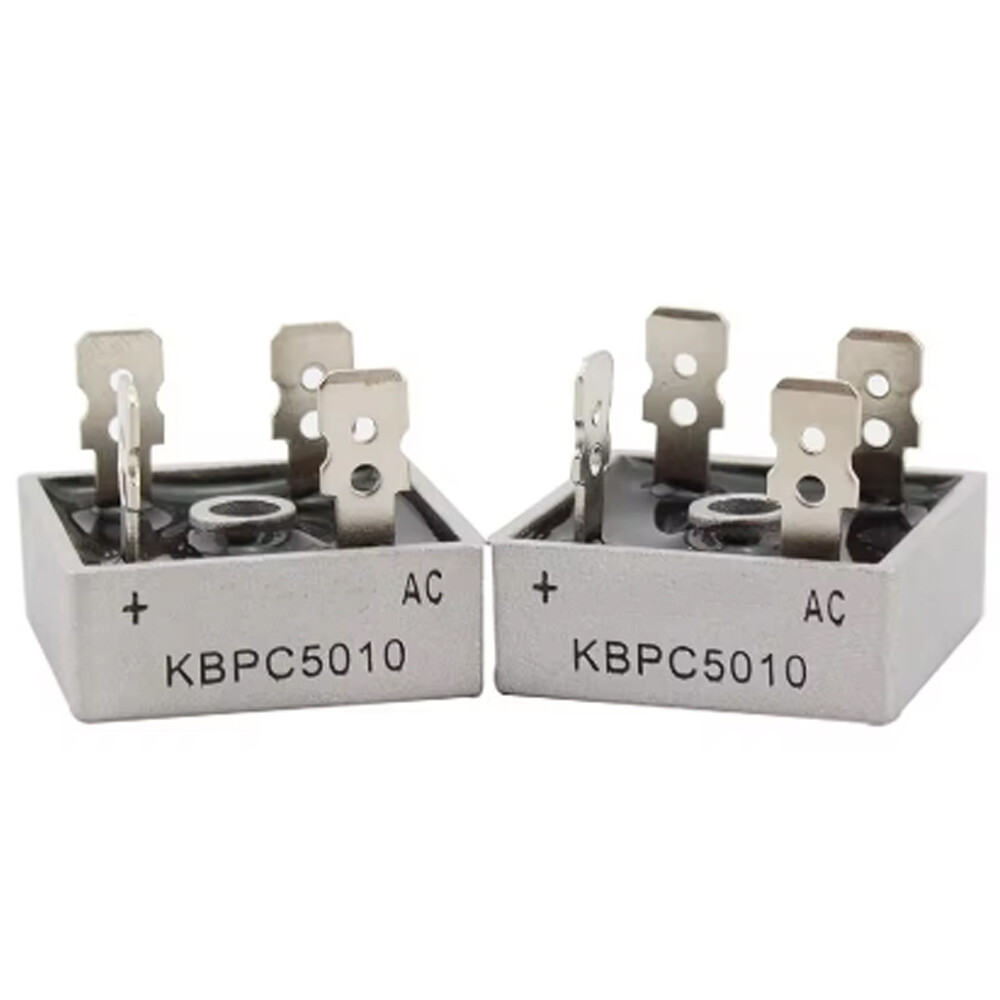

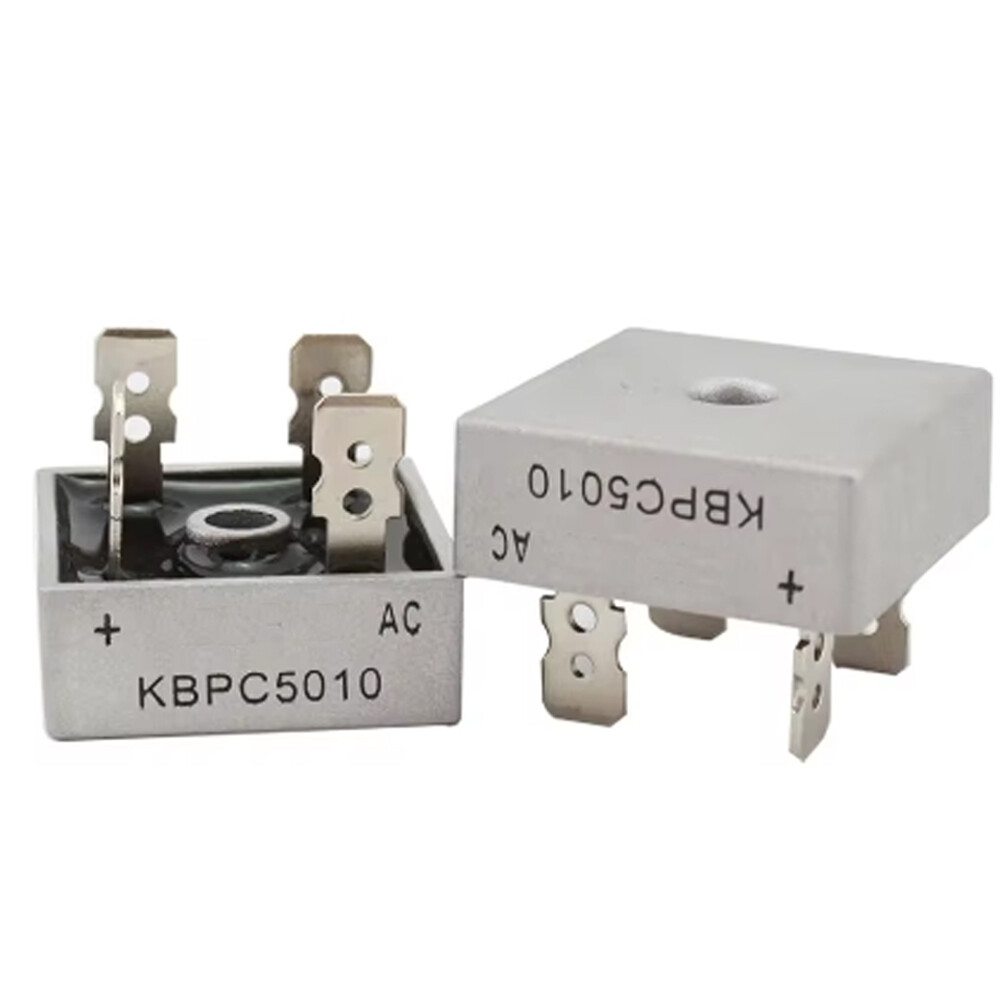

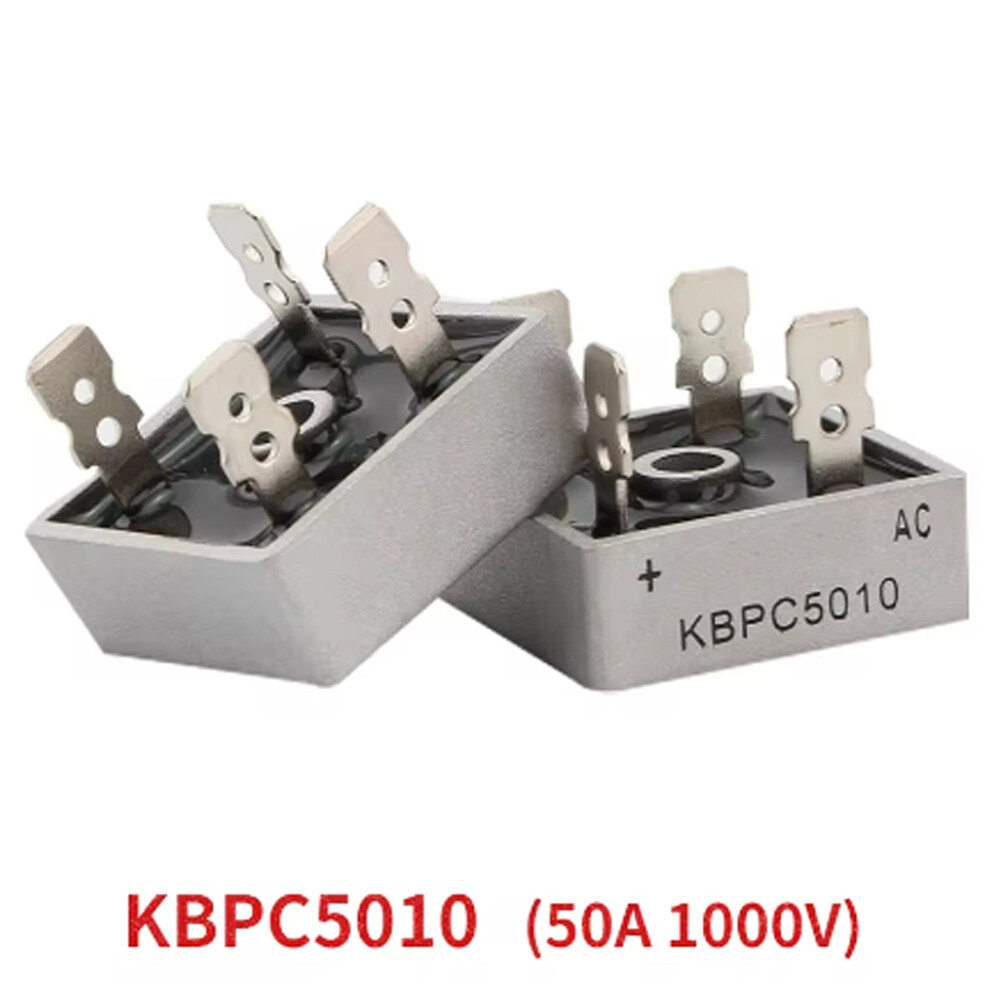

10Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier KBPC5010 10X
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded |
| Type | Bridge Rectifier |
| Mounting Style | Chassis Mount |
| Maximum Operating Temperature | 150 °C (302 °F) |
| Minimum Operating Temperature | -55 C (-67 F) |
| Material | Metal |
| Peak Reverse Repetitive Voltage | 1000 V |
| Peak Surge Current | 400 A |
| Maximum Continuous Current | 50 A |
| Reverse Current | 10 µA |
| Peak Forward Voltage | 1 V |
| UPC | Does not apply |
| EAN | Does not apply |

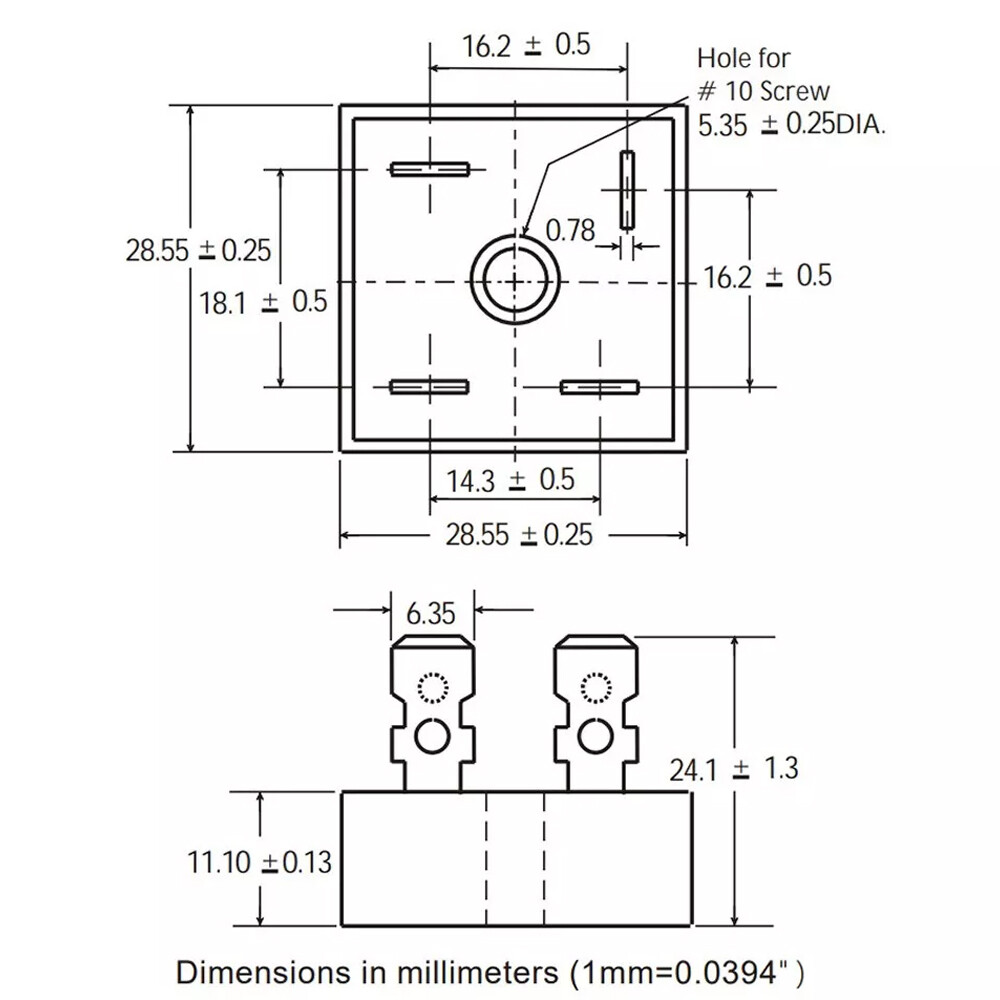

KBPC5010 Features: Surge overload ratings to 400 amperes Electrically isolated metal case for maximum heat dissipation Case to terminal isolation voltage 2500V Electrical Specifications: Maximum repetitive peak reverse voltage (VRRM): 1000V Maximum RMS bridge input voltage (VRMS): 700V Maximum DC blocking voltage (VDC): 1000V Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A Typical thermal resistance per element (ReJA): 2.5 degrees C/W Operating junction and storage temperature range: -55 to +150 C Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V Maximum DC reverse current at rated TA=25 C (IR): 10uA DC blocking voltage per element TA=125 C (IR): 500uA Mechanical Data: Case: Metal case Terminals: Plated .25"(6.35mm) Mounting Position: Bolt down with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency Universal 4-way terminals, snap-on, wrap-around, solder or P.C. Board mounting Mounting Torque: 20 in-lb max. Package includes: 10x (10 pieces) KBPC5010 50A 1000V Metal Case Single Phase Diode Bridge Rectifier On Jul 24, 2024 at 10:05:31 PDT, seller added the following information:
