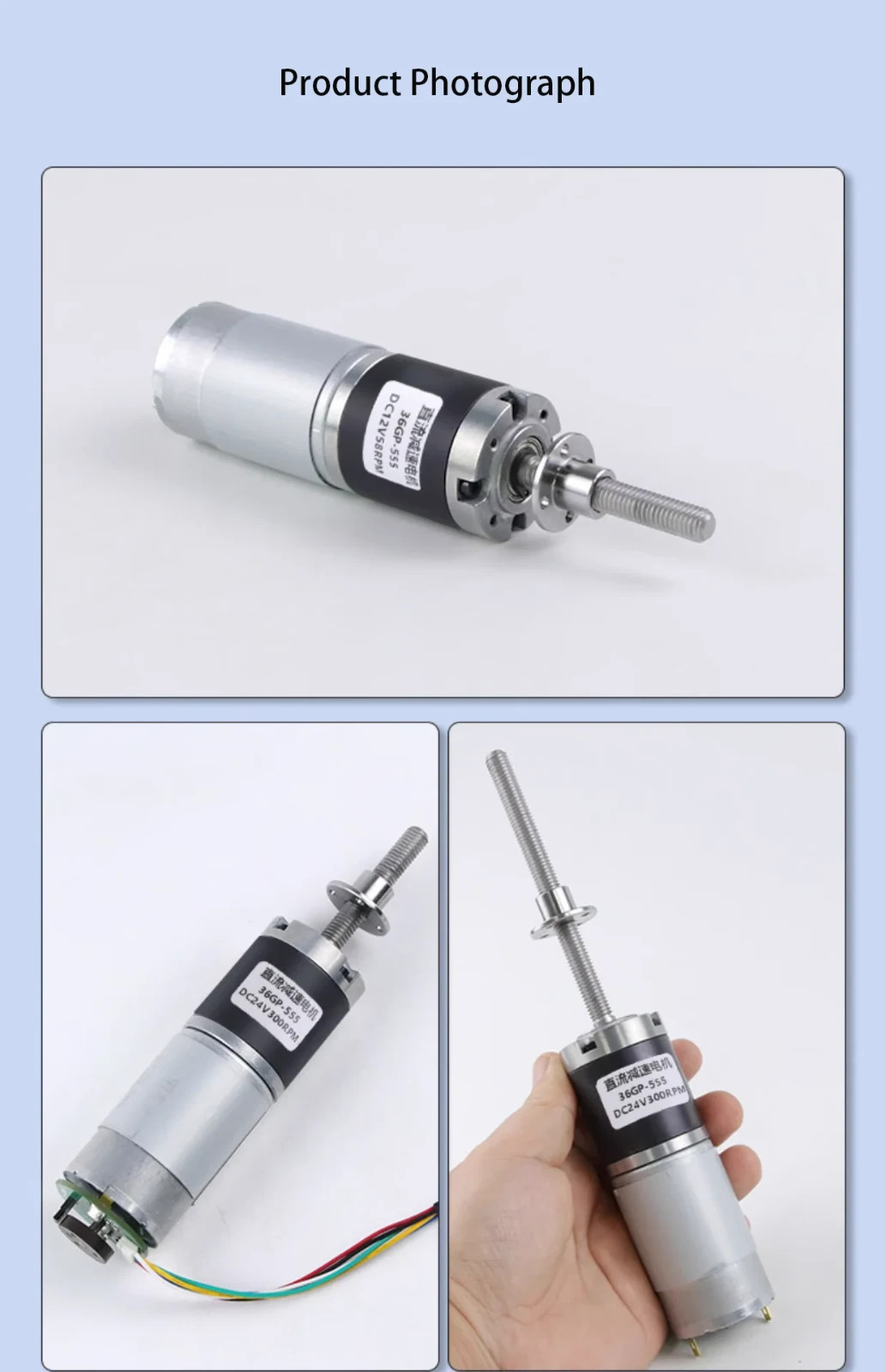

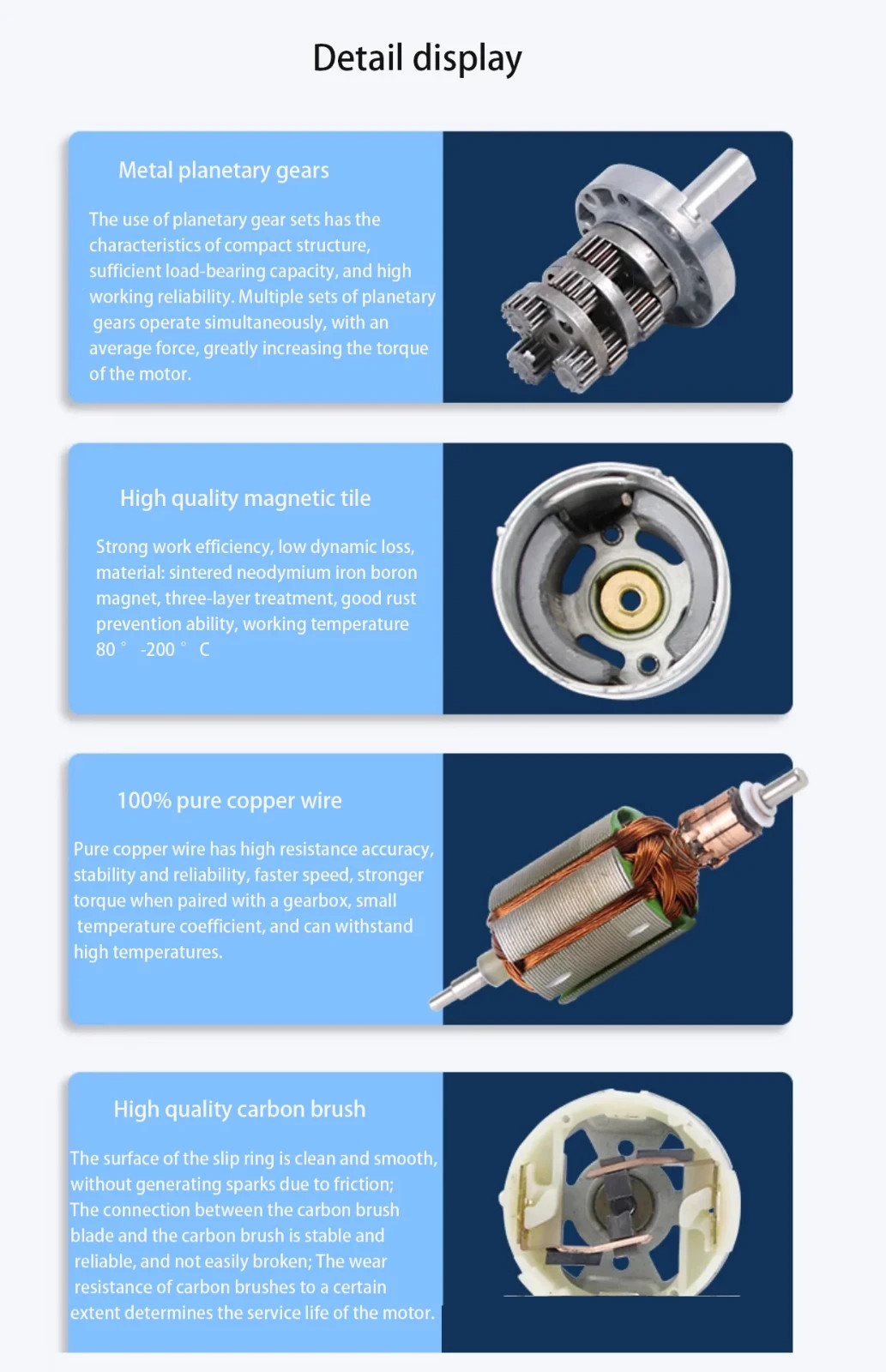

100KGF.CM 36-555 M8 Screw DC Reduction planetary 12V24V Encoder Gear Motor
USD 51.52 USD

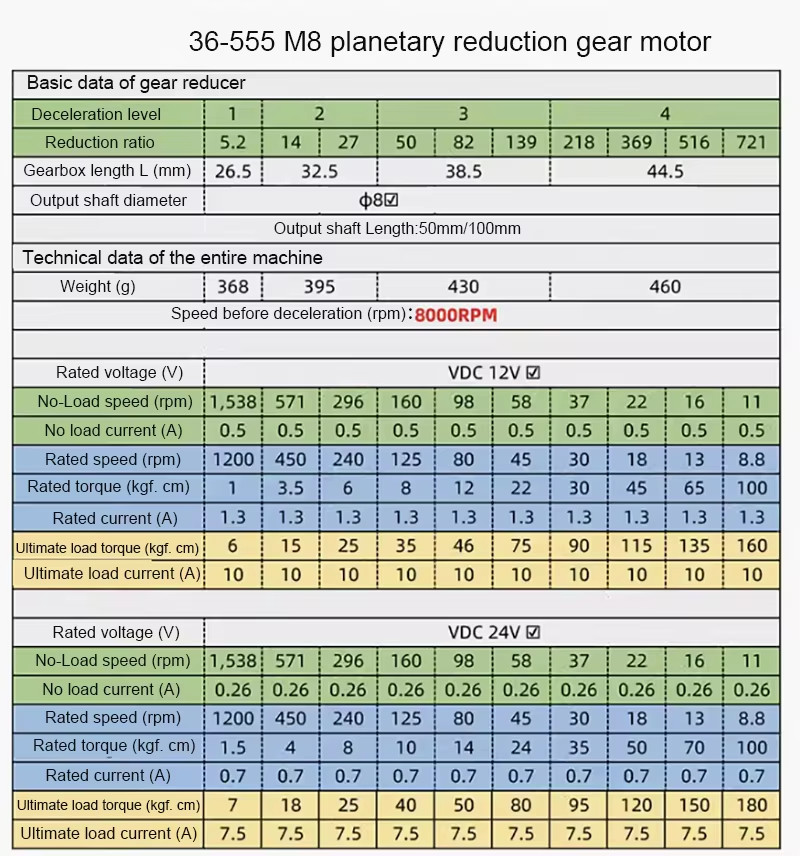

Specifications
| Shaft Length | 50mm |
| Voltage | 12V |
| Speed(RPM) | 11RPM |

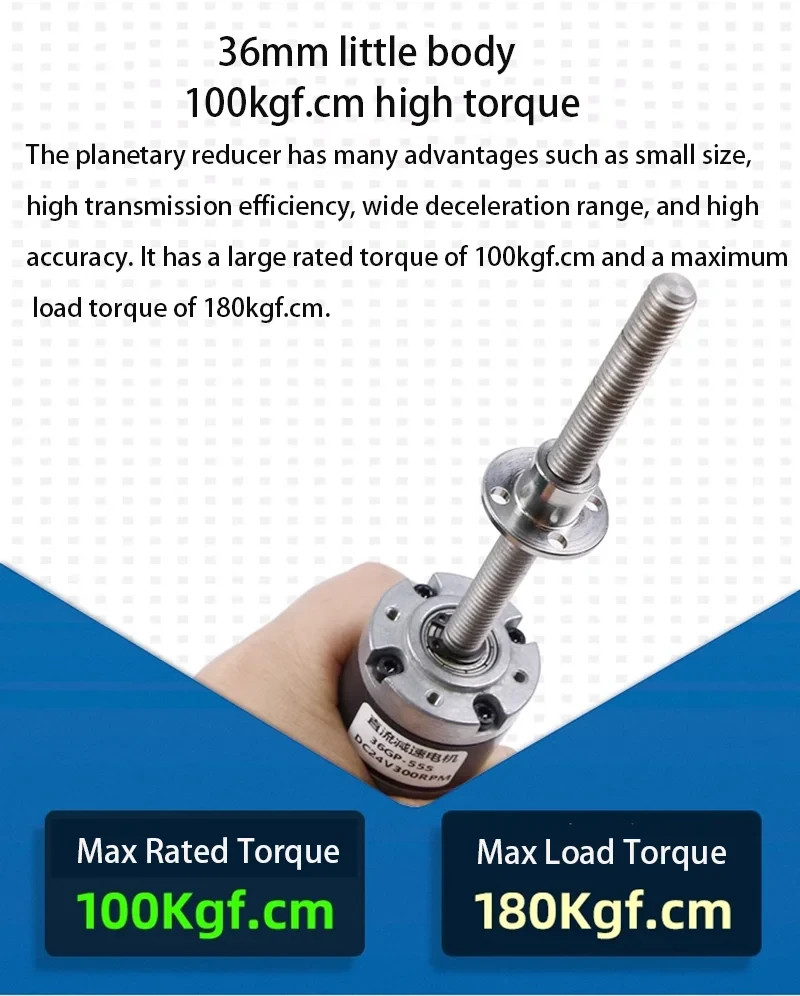

| Rated/Full-Load Torque | 1-100kgf.cm |
| Special Motor Construction | Explosion-Proof Motor |
| Enclosure Type | DP (Drip-Proof) |
| MPN | 36-555 M8 |
| Insulation Class | H (Max 356°F) |
| Brand | Unbranded |
| Reversible/Non-Reversible | Reversible |
| Nominal Rated Input Voltage | 12 V, 24 V |
| Model | 36-555 M8 |
| Shaft Angle | Parallel |
| Country/Region Of Manufacture | China |
| Country Of Origin | China |

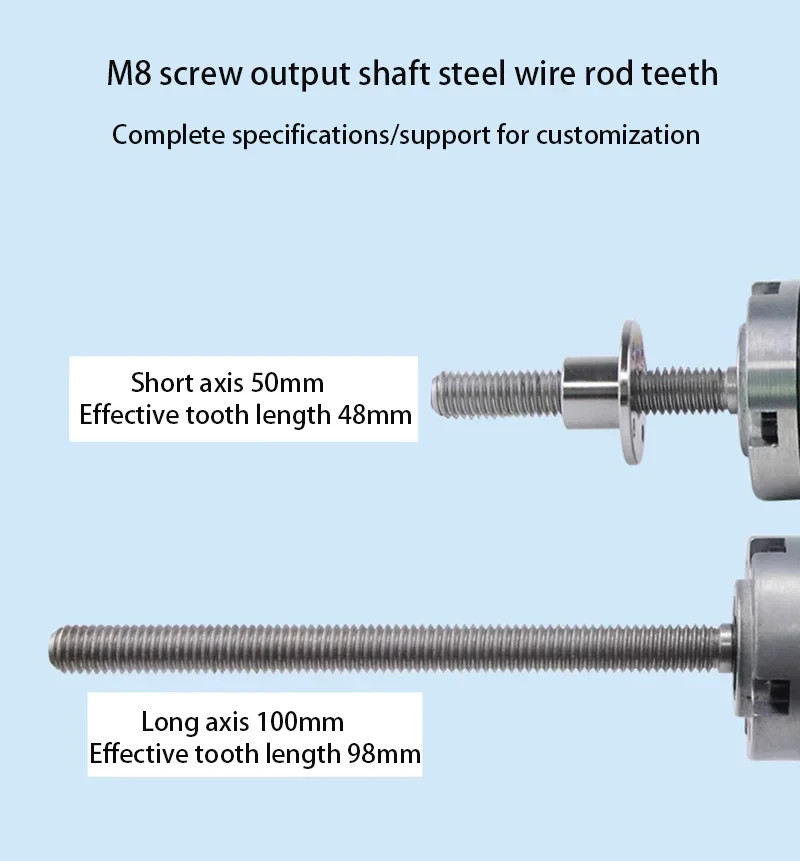

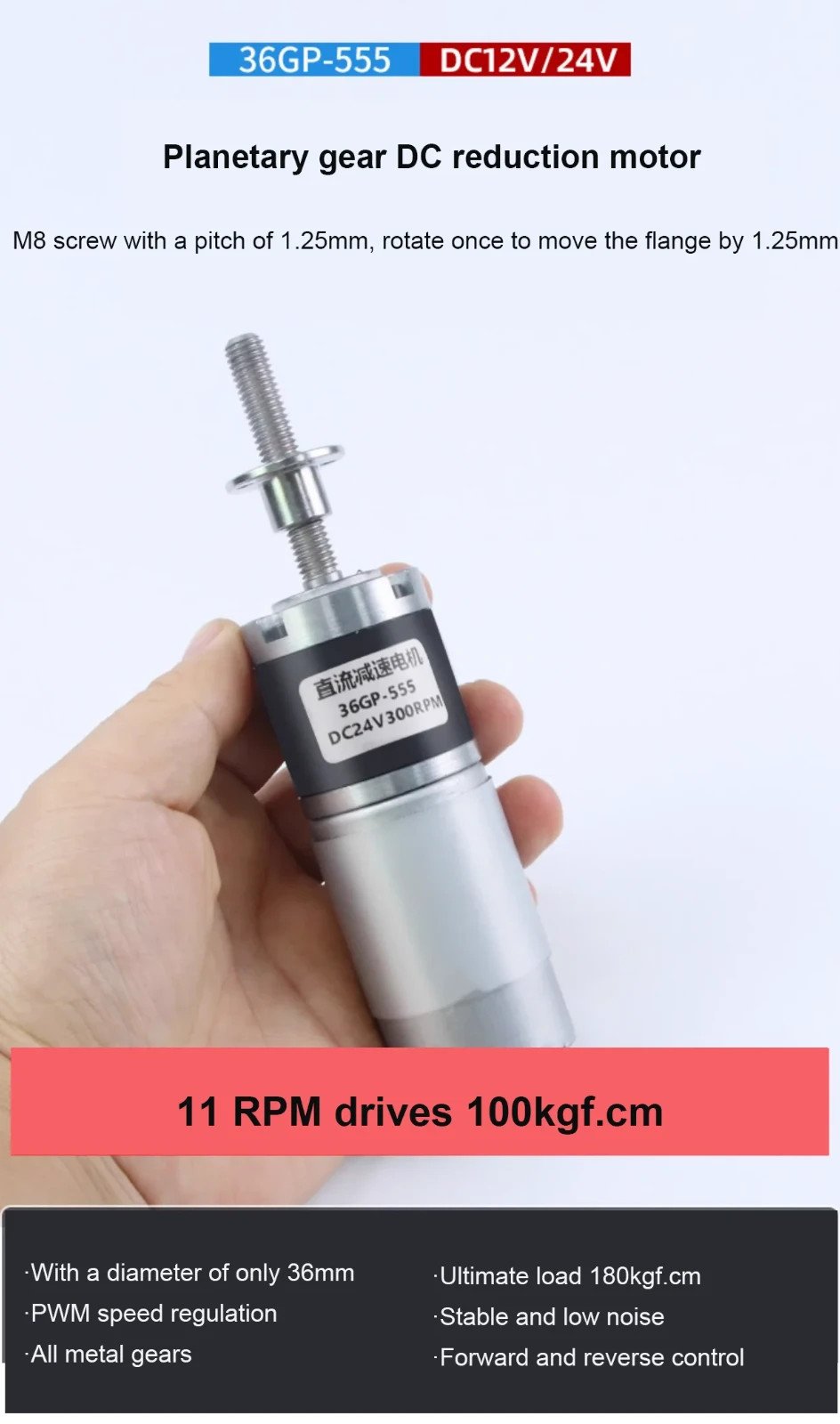

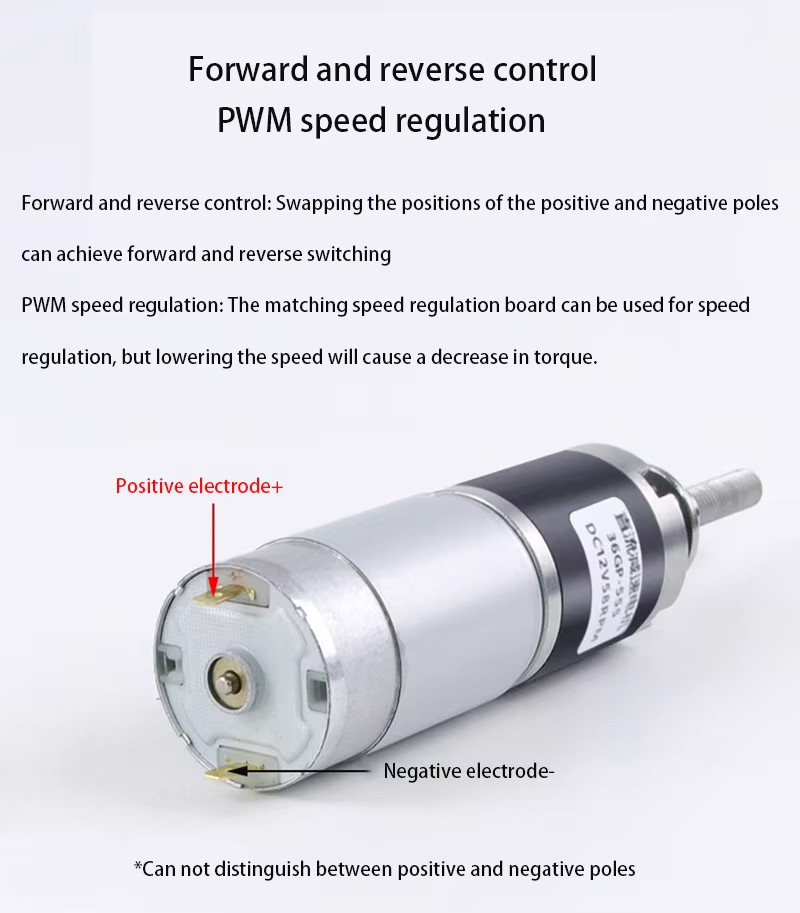

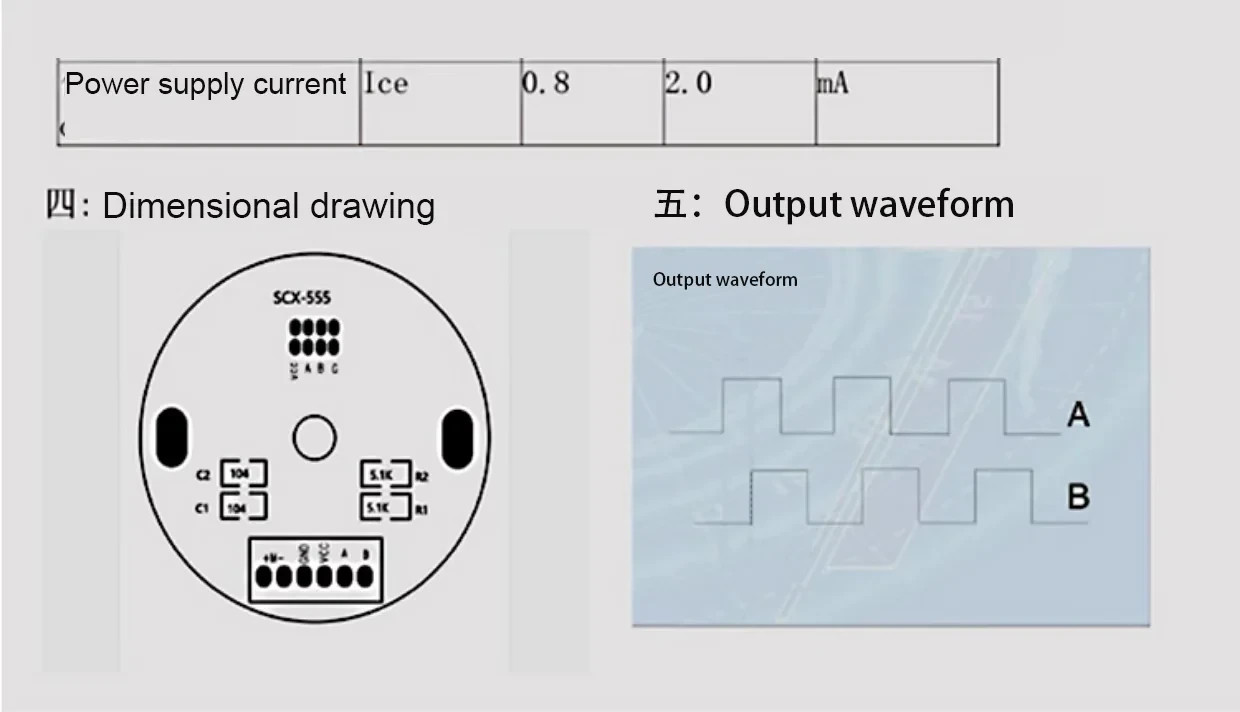

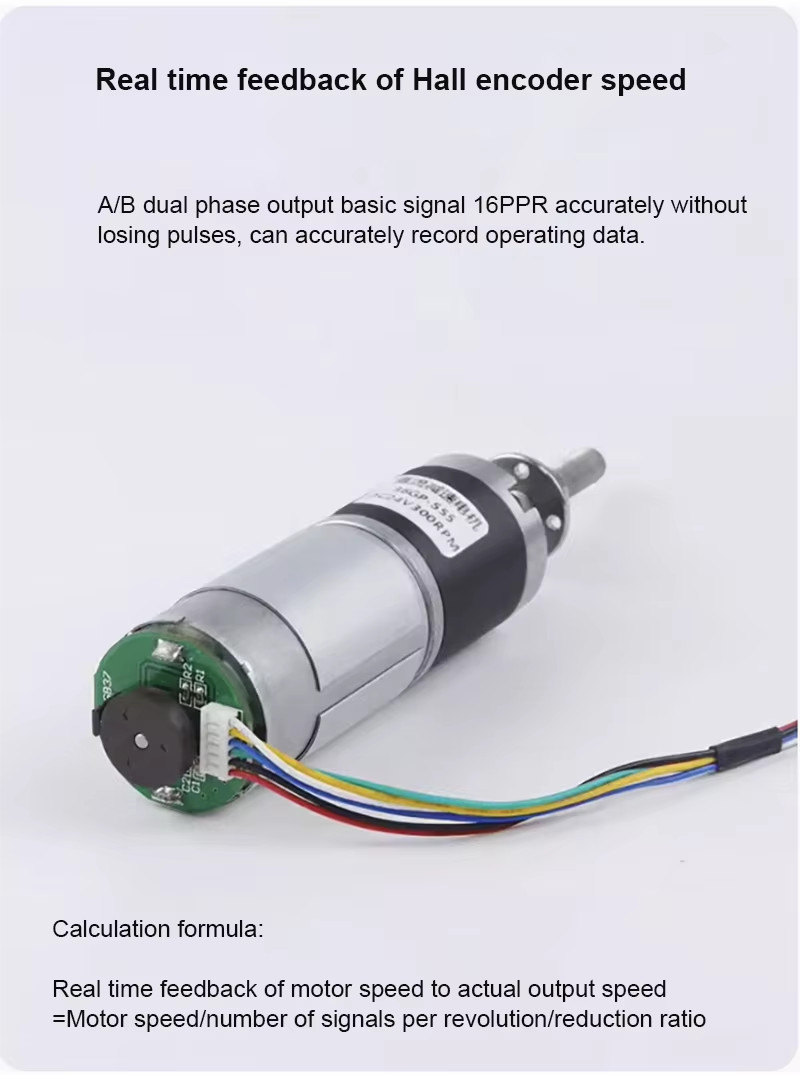

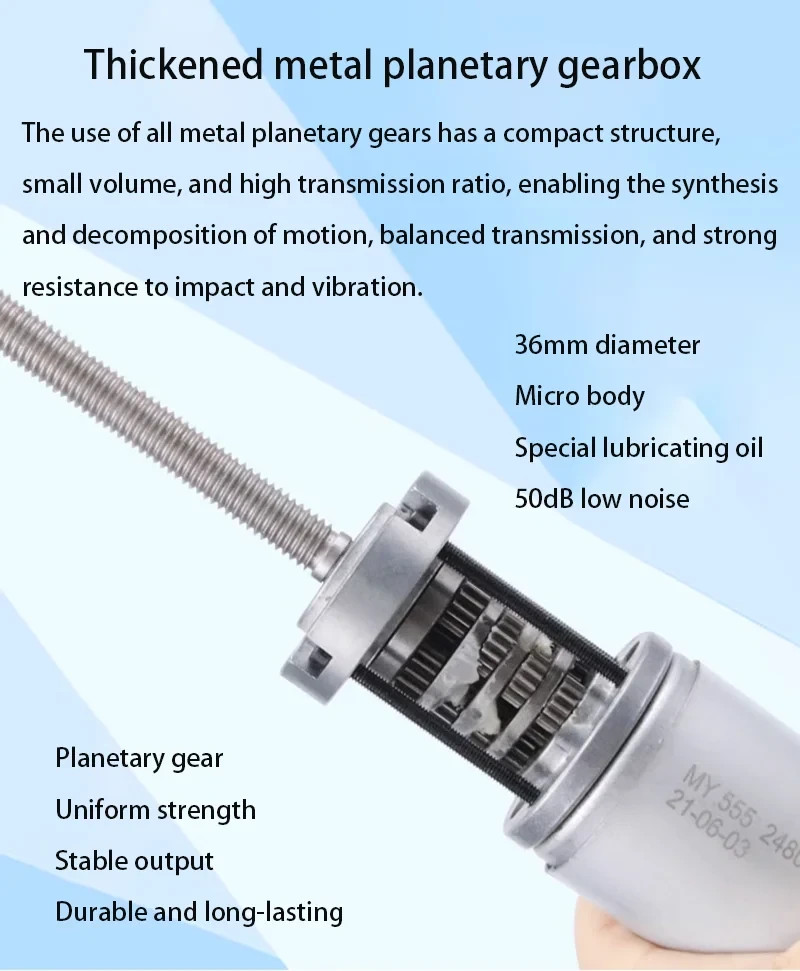

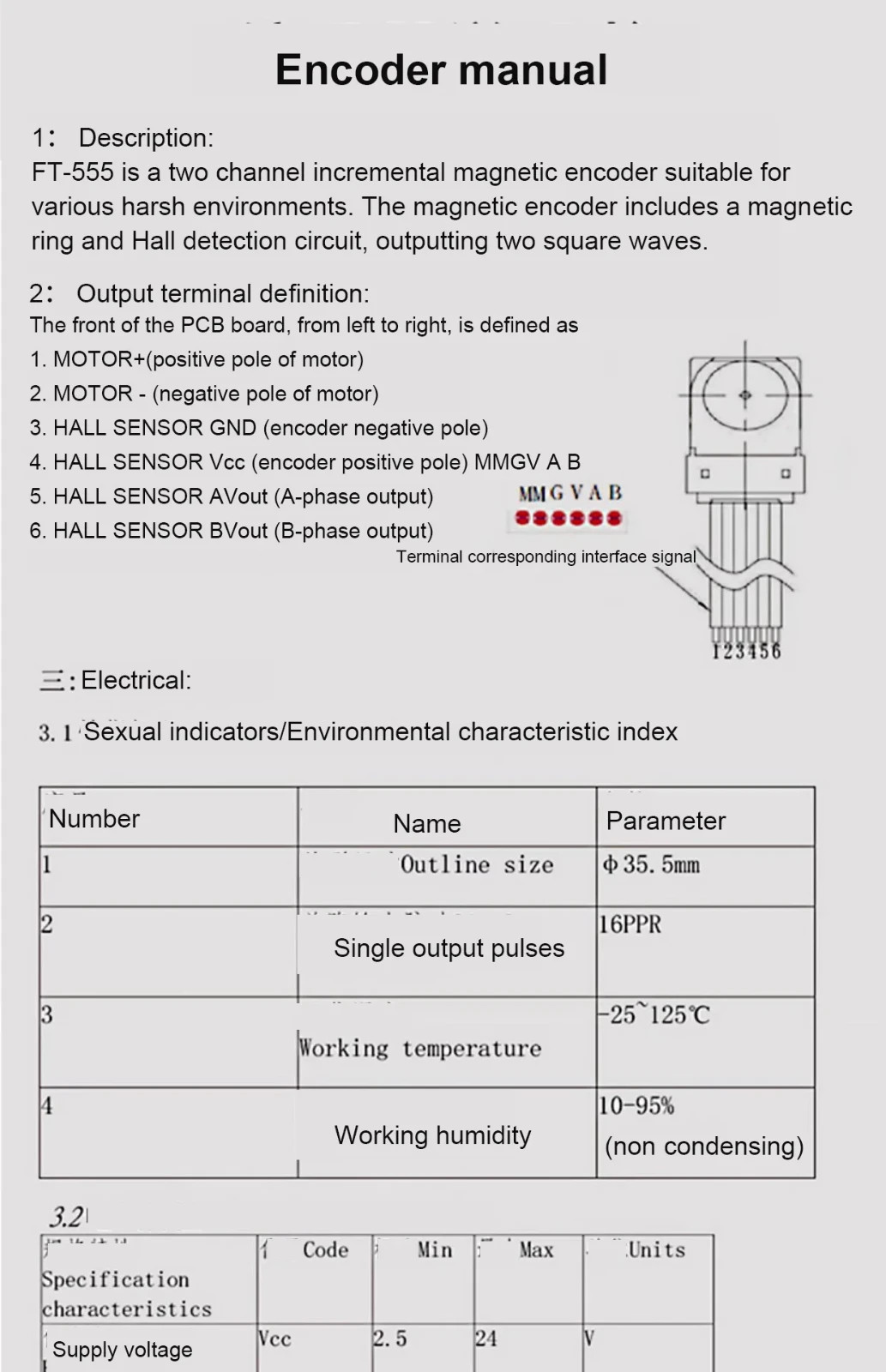

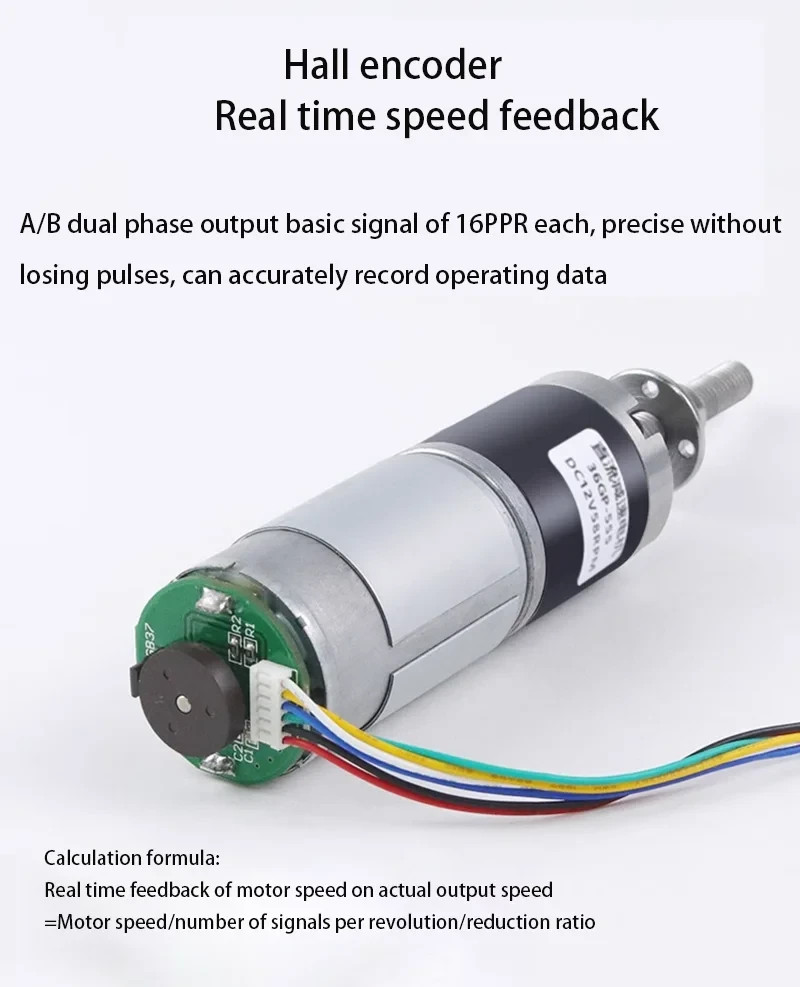

M8 national standard screw. Hall encoder. M8 screw output shaft. 12V/24V DC planetary reduction motor. The M8 screw pitch is 1.25 mm, and the flange moves by 1.25 mm after rotating one circle. Forward and reverse switching.
