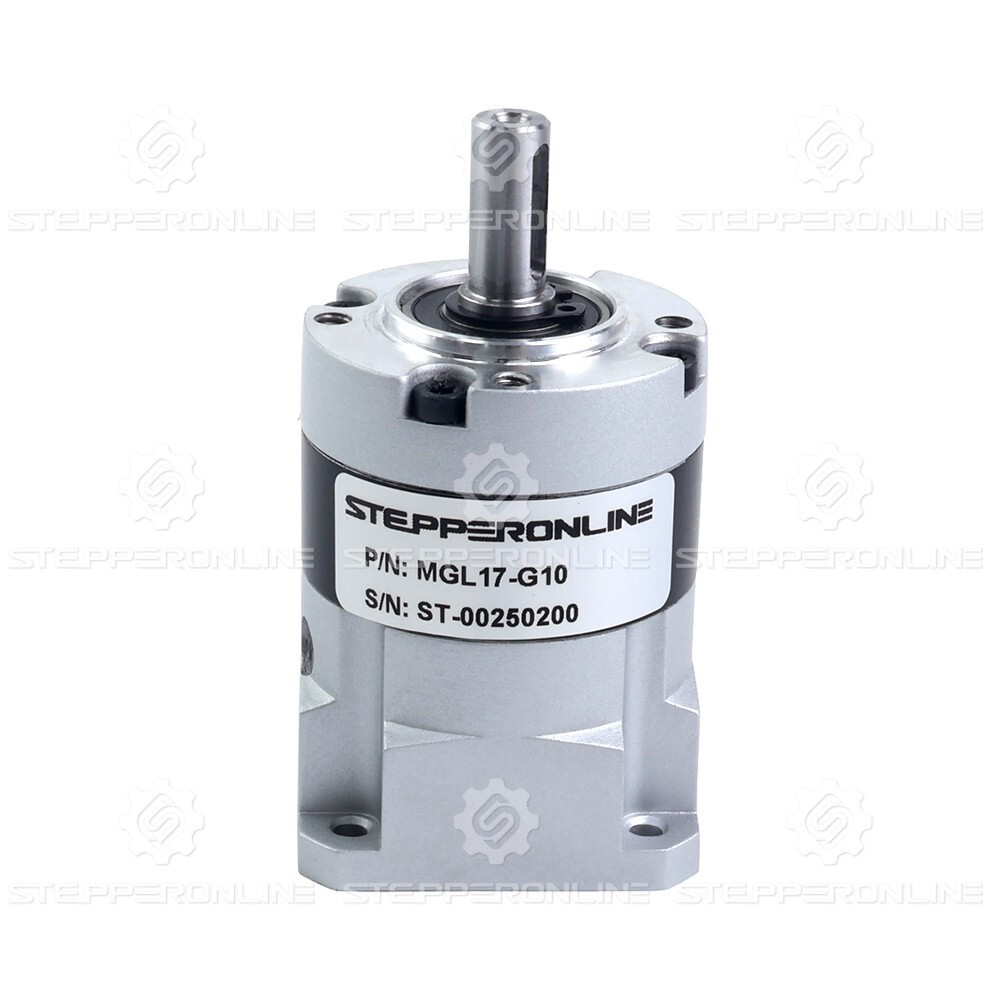

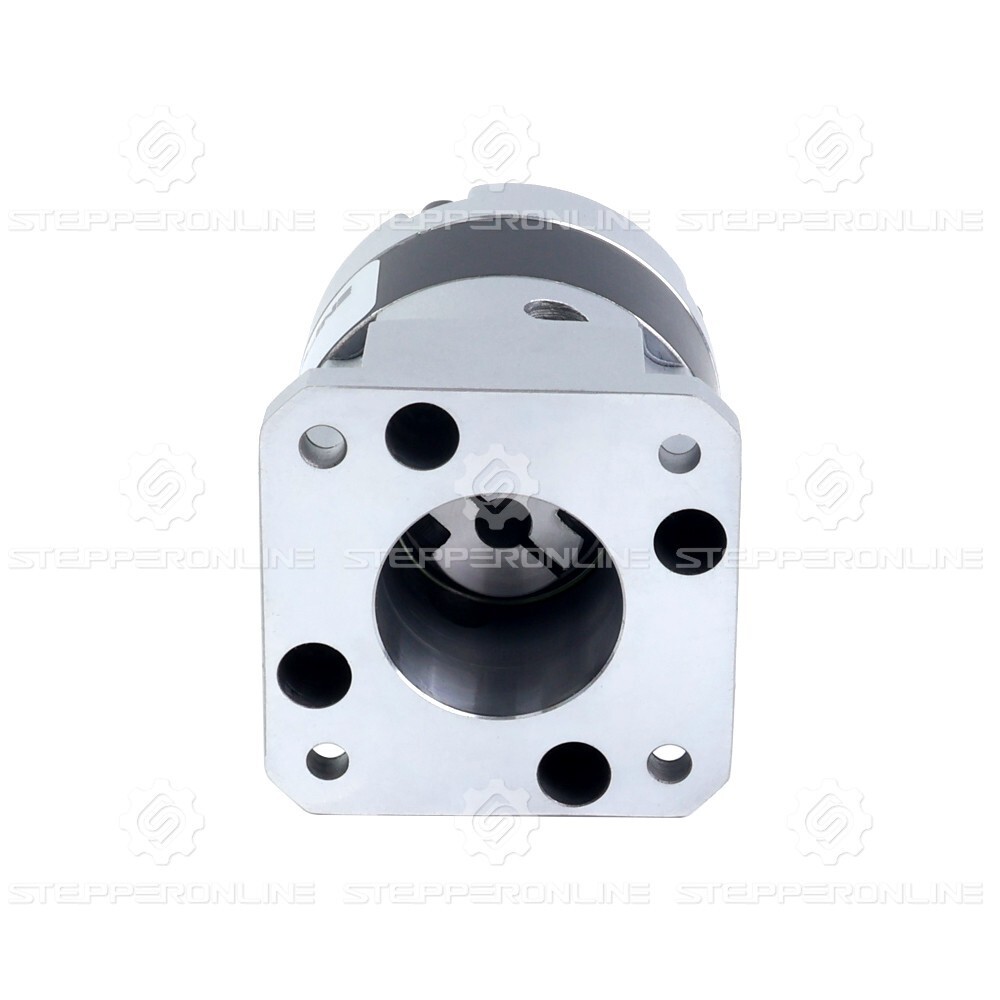

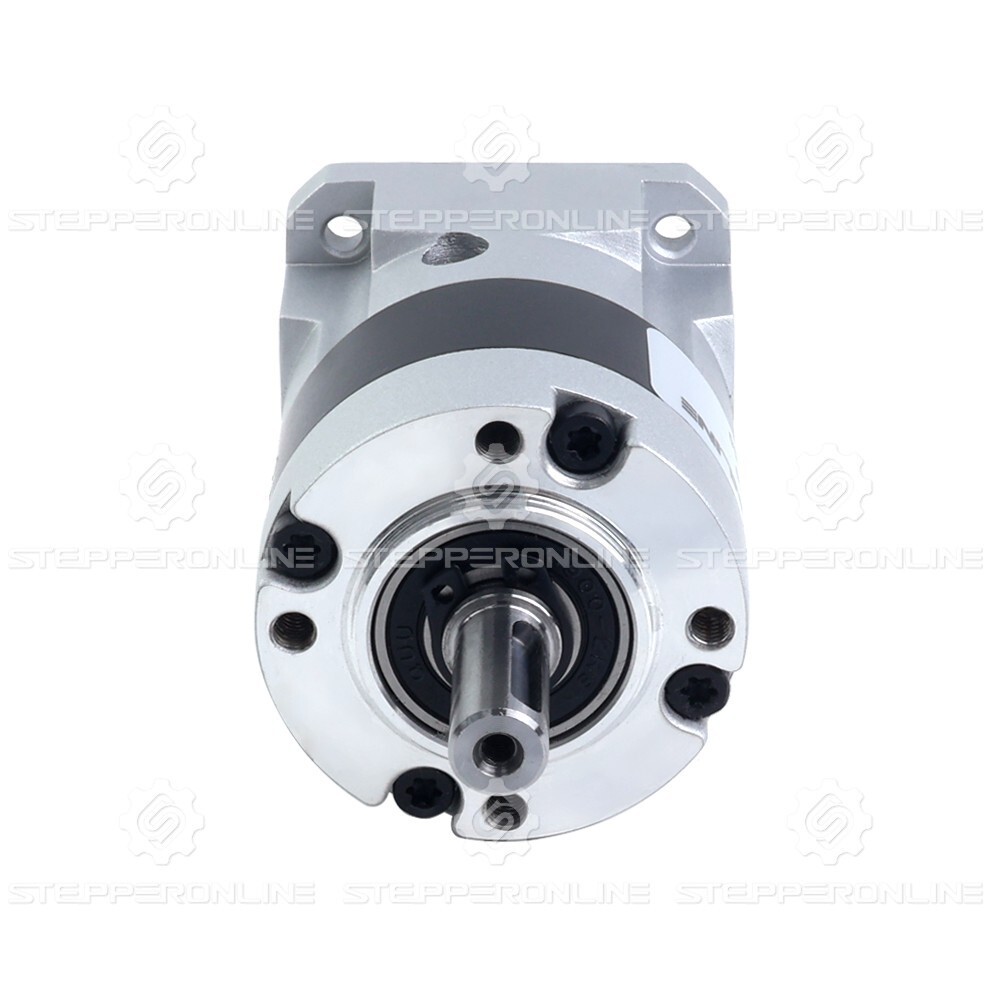

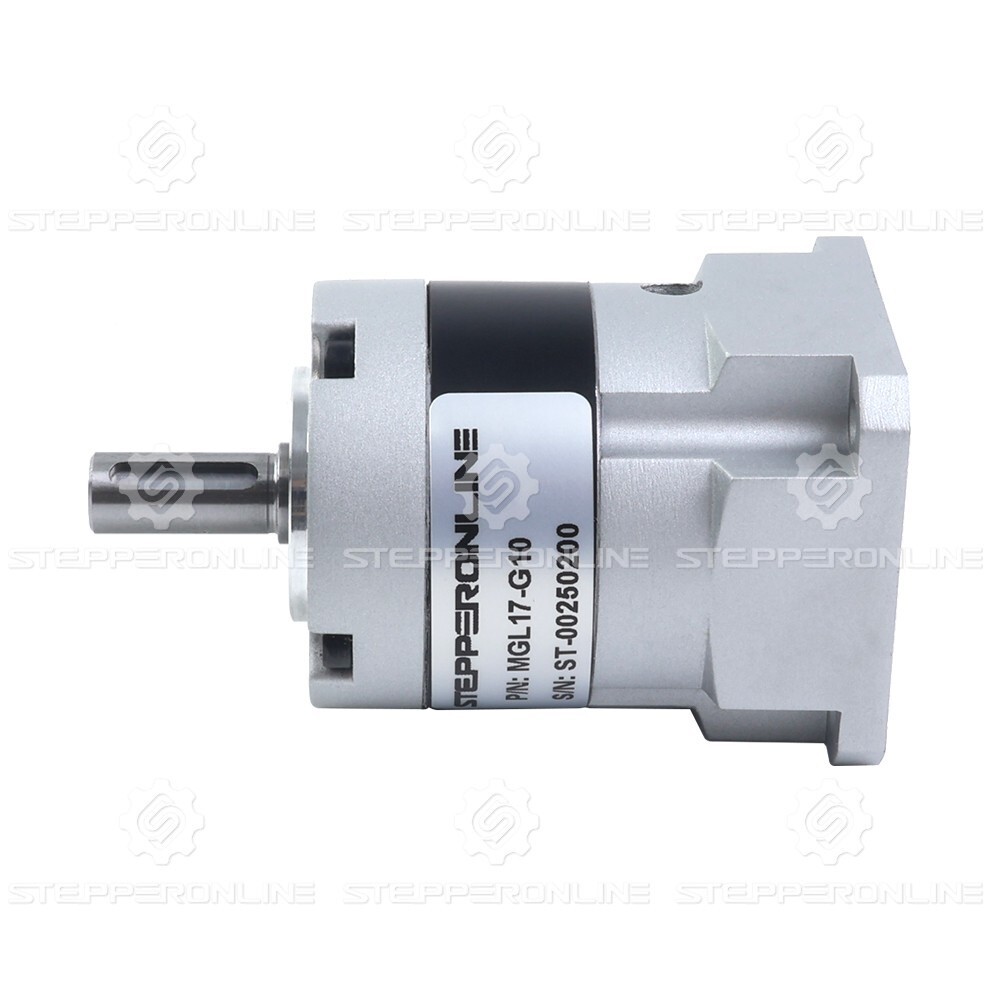

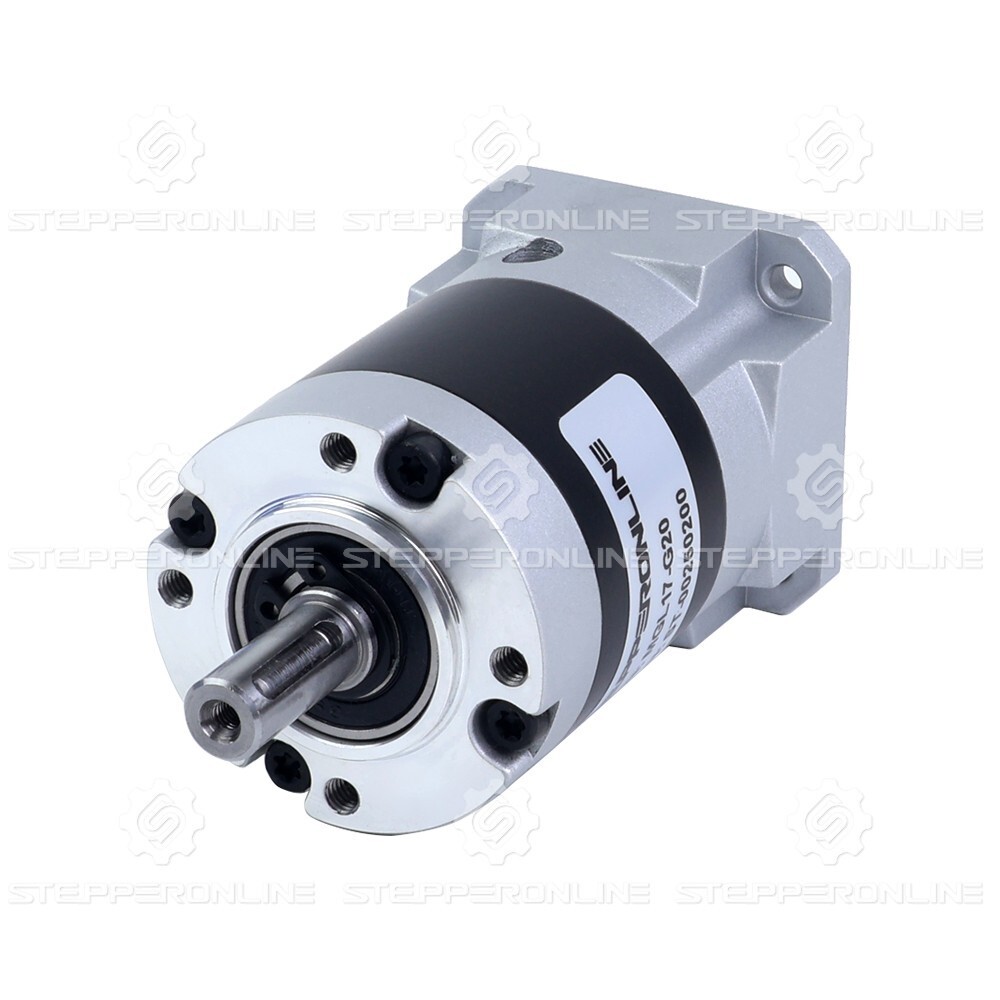

10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor
10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor 10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor 10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor 10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor 10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor 10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor 10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor

10:1 /20:1 30~45arc-min Planetary Gearbox for 5mm Standard Nema17 Stepper Motor

USD 19.67 USD
SKU: TLy2AMHD
Brand: STEPPERONLINE
MPN: MGL17
GTIN: Does not apply
Condition: New
Tags: 1000rpm 100N 21.5-25mm 21.5mm 300N 5 min China IP54 KeyWay MGL17 Ratio 10:1 Spur Planetary STEPPERONLINE Φ5mm Φ8mm
Categories: Woodworking Equipment

Specifications

RatioRatio 10:1
BrandSTEPPERONLINE
MPNMGL17
Country/Region Of ManufactureChina
MarkeSTEPPERONLINE

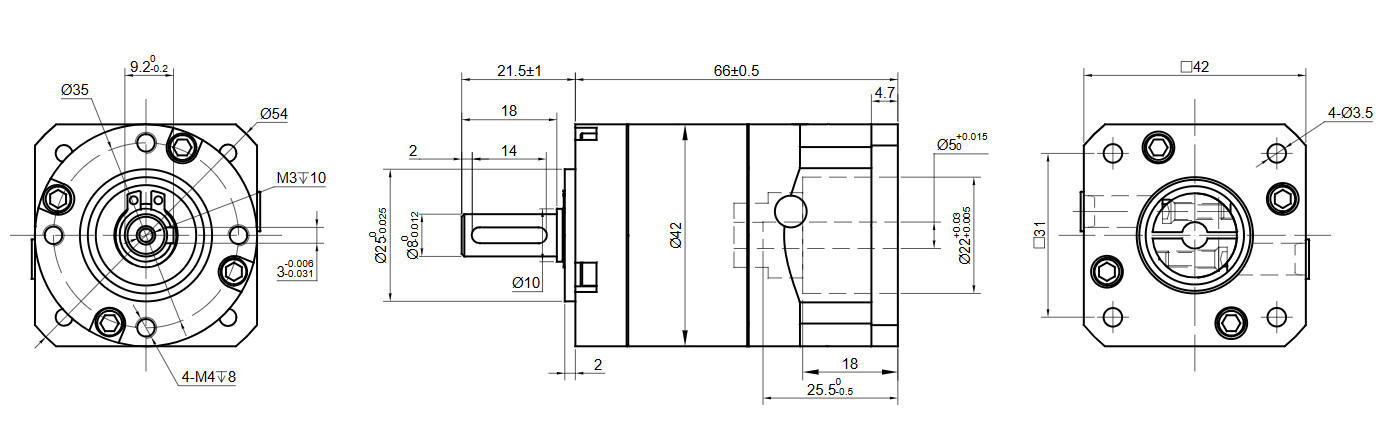

Input Shaft DiameterΦ5mm
Output Shaft DiameterΦ8mm
Output Shaft TypeKeyWay
Gearbox TypeSpur Planetary
Input Shaft Length21.5-25mm
Output Shaft Length21.5mm
Waterproof RatingIP54
Shaft Maximum Axial Load100N
Shaft Maximum Radial Load300N
Rated Input Speed1000rpm

Gearbox Type: Spur Planetary. Gearbox Specifications. This MGL series gearboxes are ideally suited for standard Nema 17 motors featuring a long shaft length of 21.5-25mm. Rated Input Speed: 1000rpm. Maximum Input Speed: 2000rpm.
