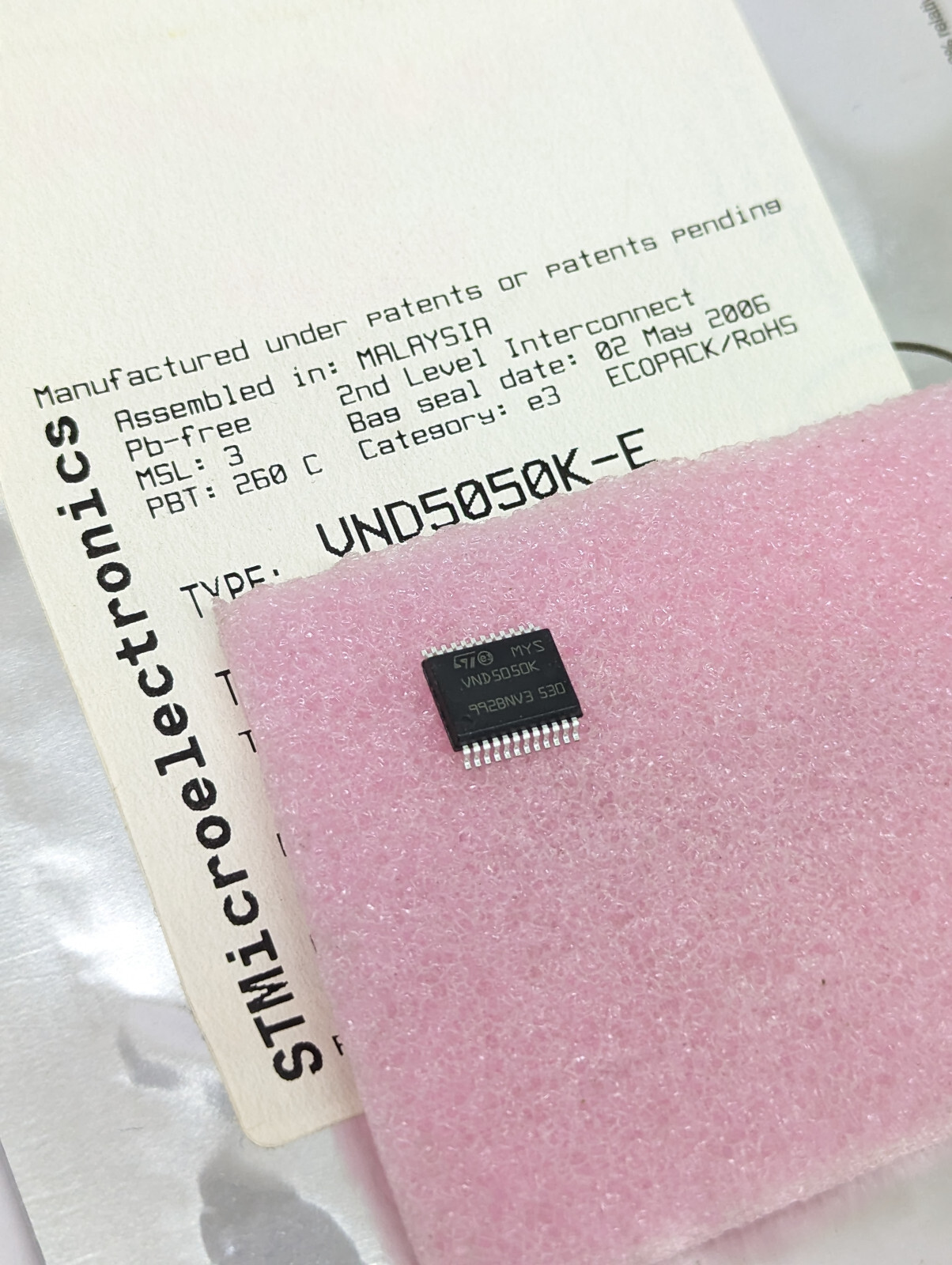

1 Stück VND5050K | Double channel high-side driver | 50mΩ | 18A | 41V | PowerSSO
Specifications
| Nach Erhalt Des Artikels Sollte Ihr Käufer Innerhalb Der Folgenden Frist Den Kauf Widerrufen Oder Den Rückgabeprozess Einleiten | 1 Monat |
| Herstellernummer | VND5050K |
| Marke | STMicroelectronics |
| Serie | VND5050 |

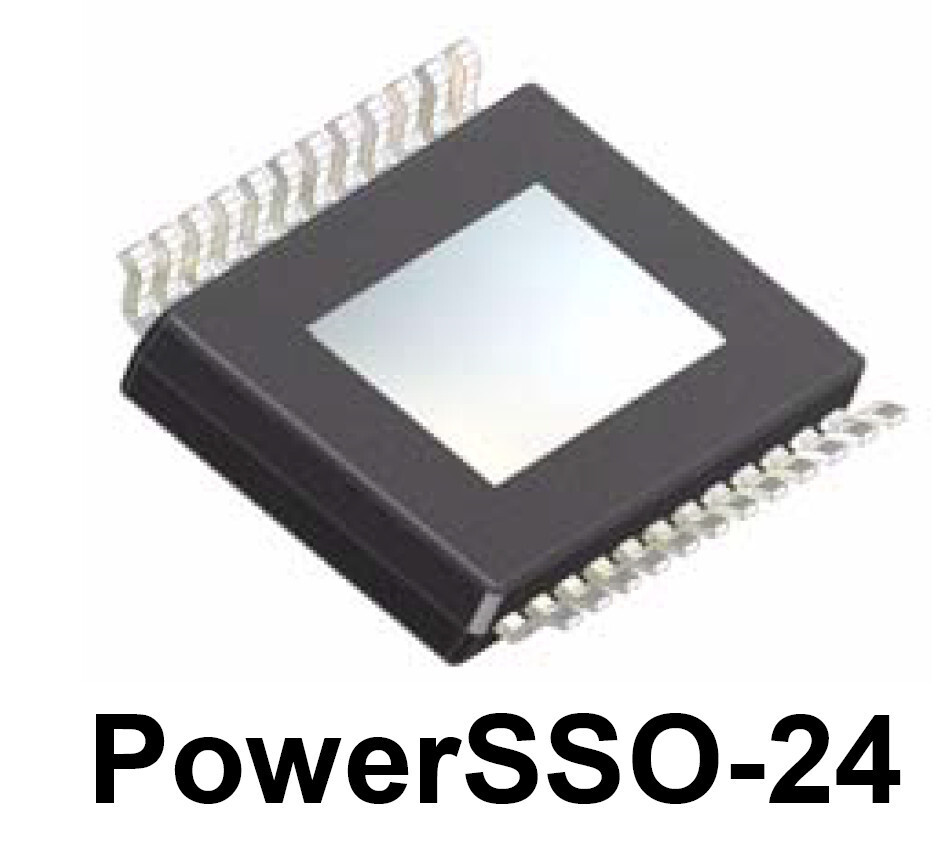

1 Stück / 1 piece VND5050K Double channel high side driver for automotive applications VCC 41V | Current limitation (typ) ILIMH 18A | PowerSSO-24package Manufacturer: STMicroelectronics Package: PowerSSO-24 Product: Double channel high side driver 3.0 V CMOS compatible input The VND5050K-E and VND5050J-E are monolithic devices made using STMicroelectronics VIPower M0-5 technology. they are intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the devices against low energy spikes (see ISO7637 transient compatibility table). The devices detect open load condition both in on and off-state, when STAT_DIS is left open or driven low. Output shorted to VCC is detected in the off-state. When STAT_DIS is driven high, STATUS pin is in high impedance state. Output current limitation protects the devices in overload condition. In case of long overload duration, the devices limit the dissipated power to a safe level up to thermal shutdown intervention. Thermal shutdown with automatic restart allows the devices to recover normal operation as soon as fault conditions disappear.. Main – Inrush current active management by power limitation – Very low standby current – 3.0 V CMOS compatible input – Optimized electromagnetic emission – Very low electromagnetic susceptibility – In compliance with the 2002/95/EC European directive Diagnostic functions – Open drain status output – On-state open load detection – Off-state open load detection – Thermal shutdown indication Protections – Undervoltage shutdown – Overvoltage clamp – Output stuck to VCC detection – Load current limitation – Self limiting of fast thermal transients – Protection against loss of ground and loss of VCC – Thermal shutdown NEW OLD STOCK (NOS) NOT PULLED - NOT USED - NOT REFURBISHED - NOT SOLDERED - NOT RE-MARKED - NOT FAKED EXCLUSIVELY AUSSCHLIESSLICH NUR ALTE NEUE WARE (NOS) aus Altlagerbestand entnommen aus der original Verpackung (siehe Foto) Bitte fragen sie uns an, falls sie größere Stückzahlen benötigen oder geben Sie uns hierzu Ihren Preisvorschlag
