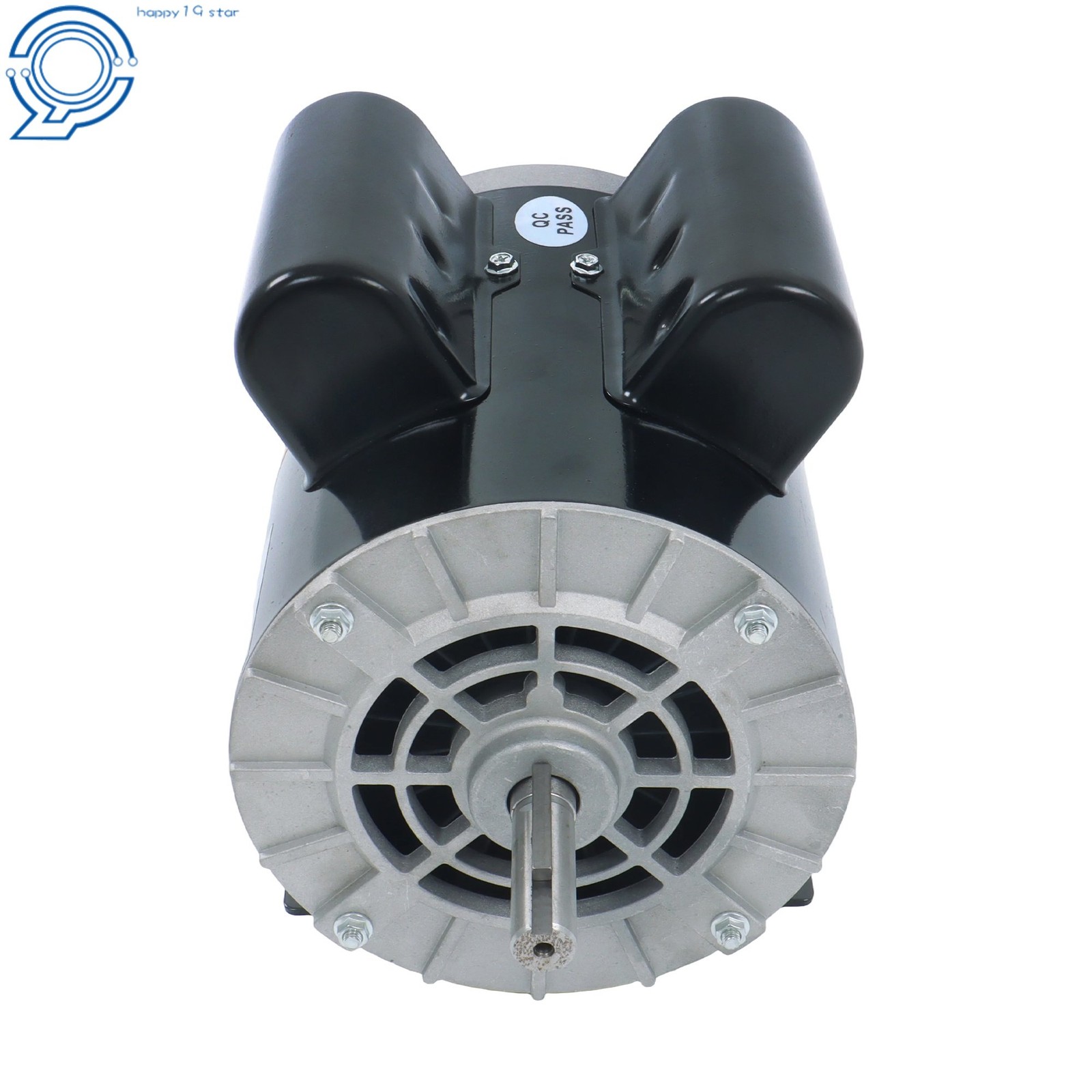

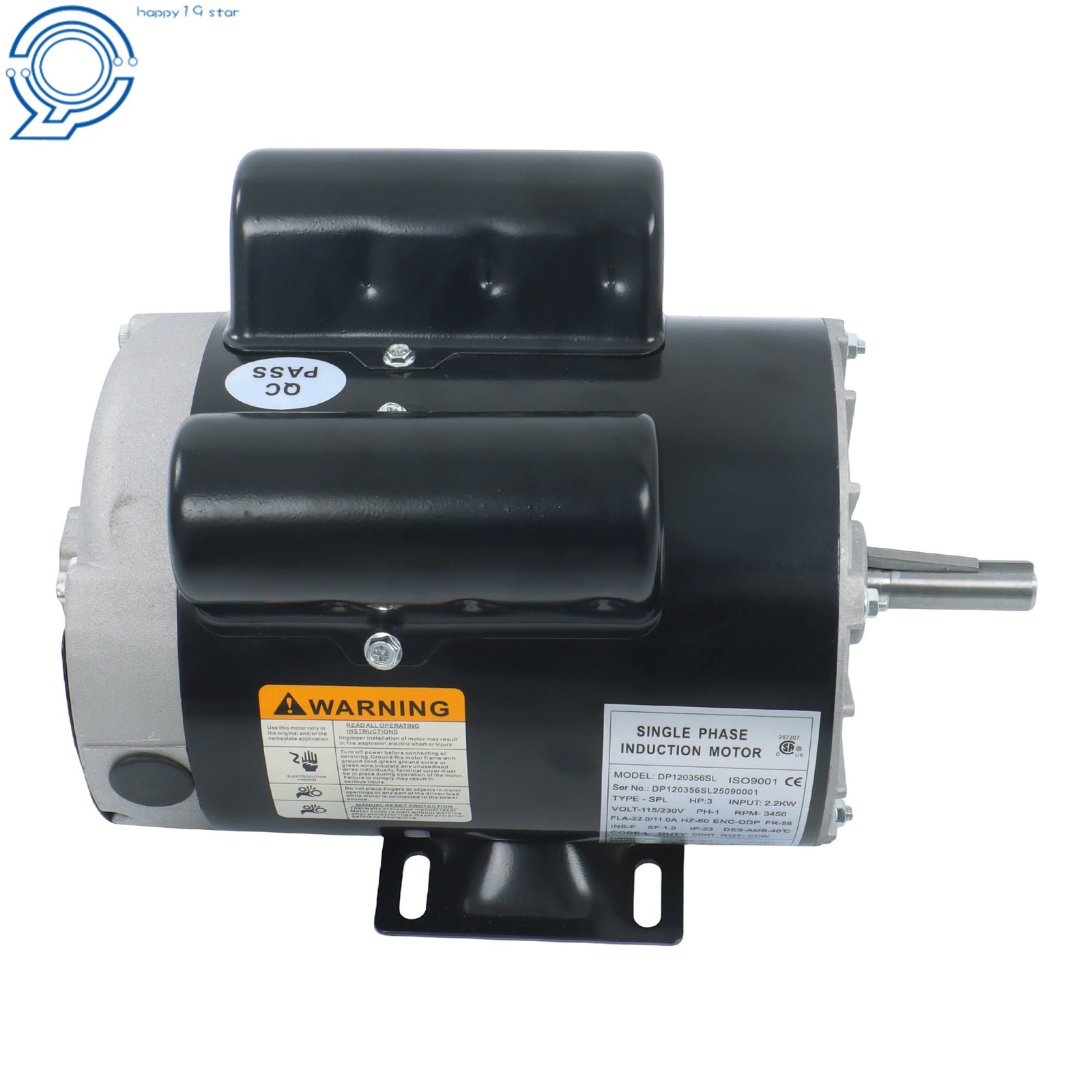

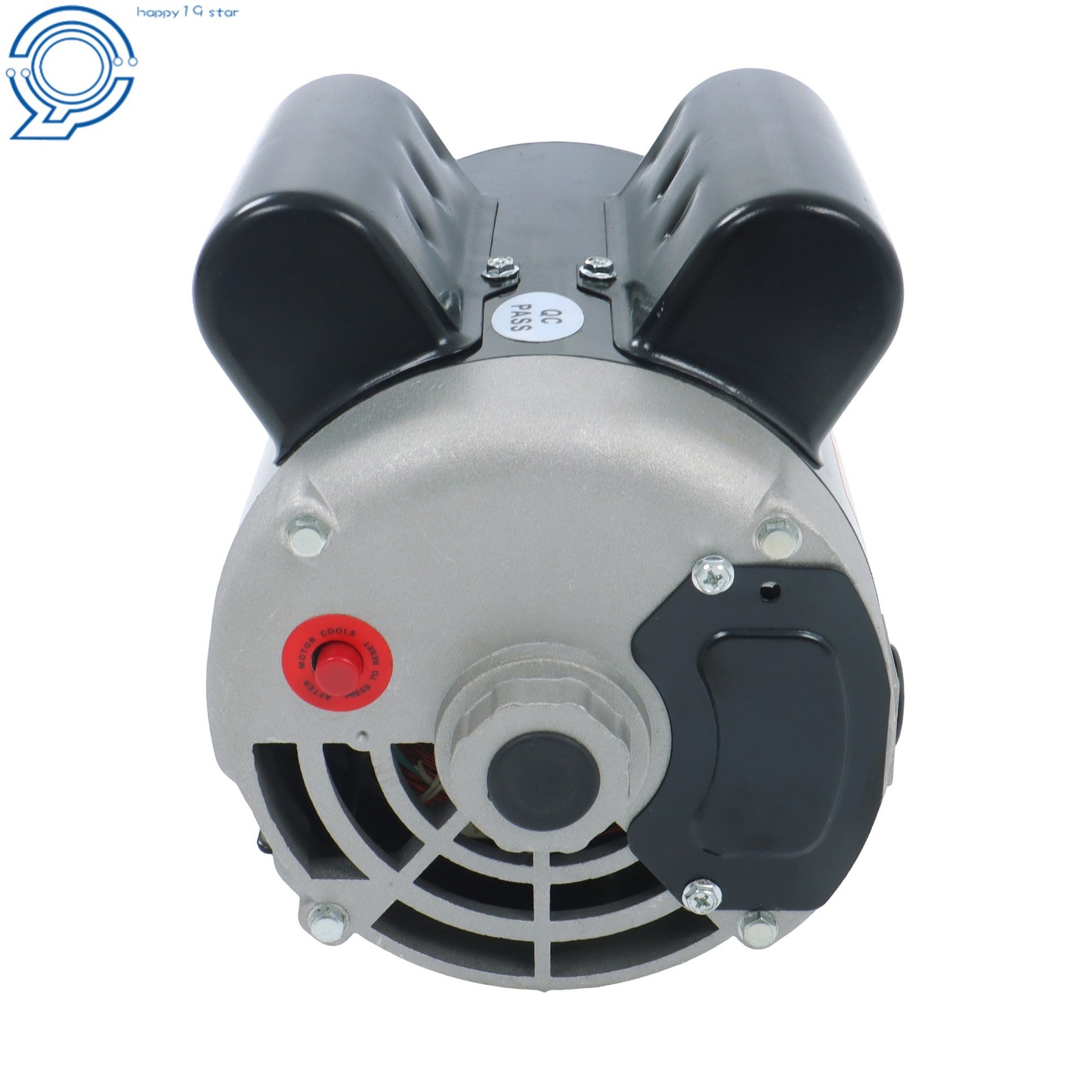

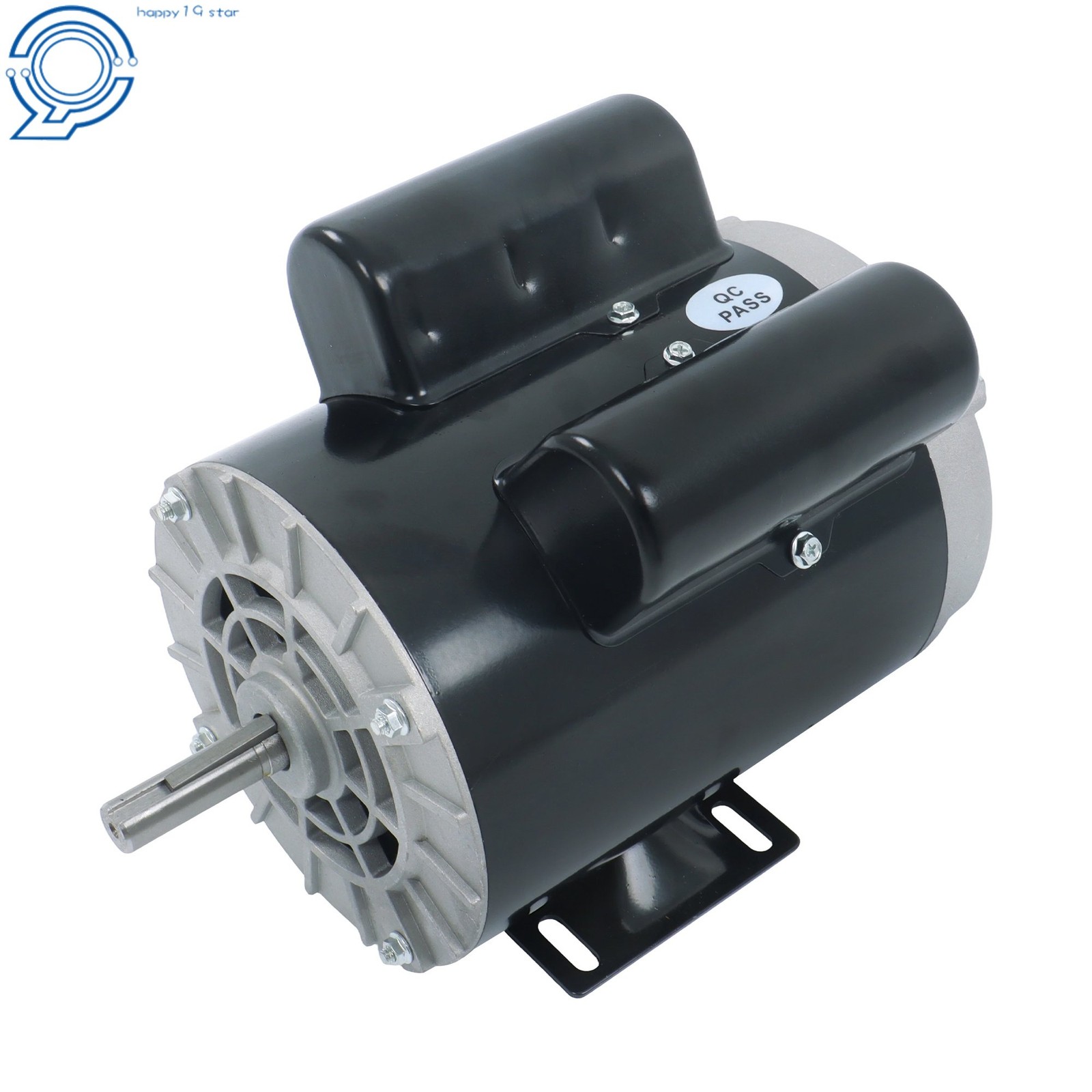

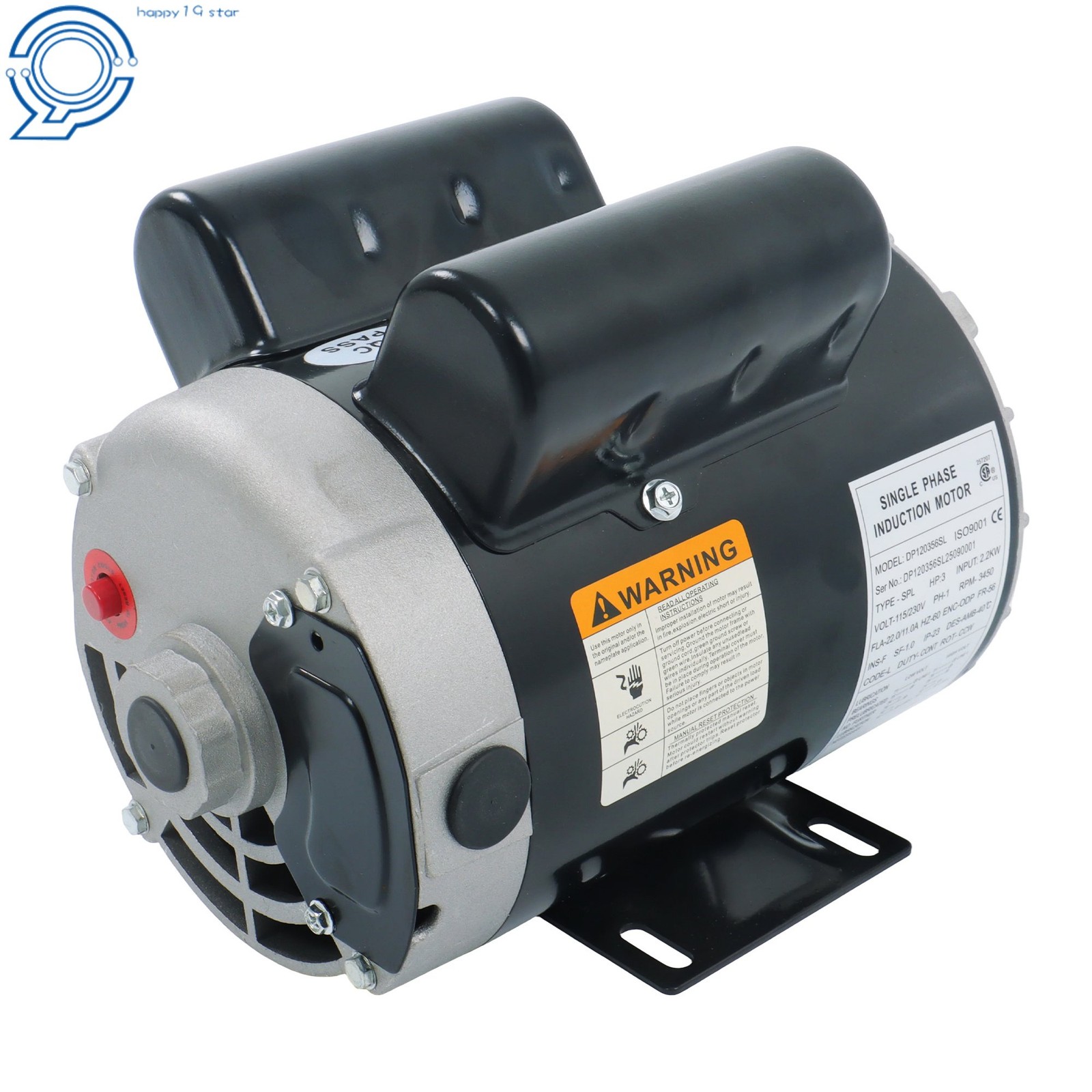

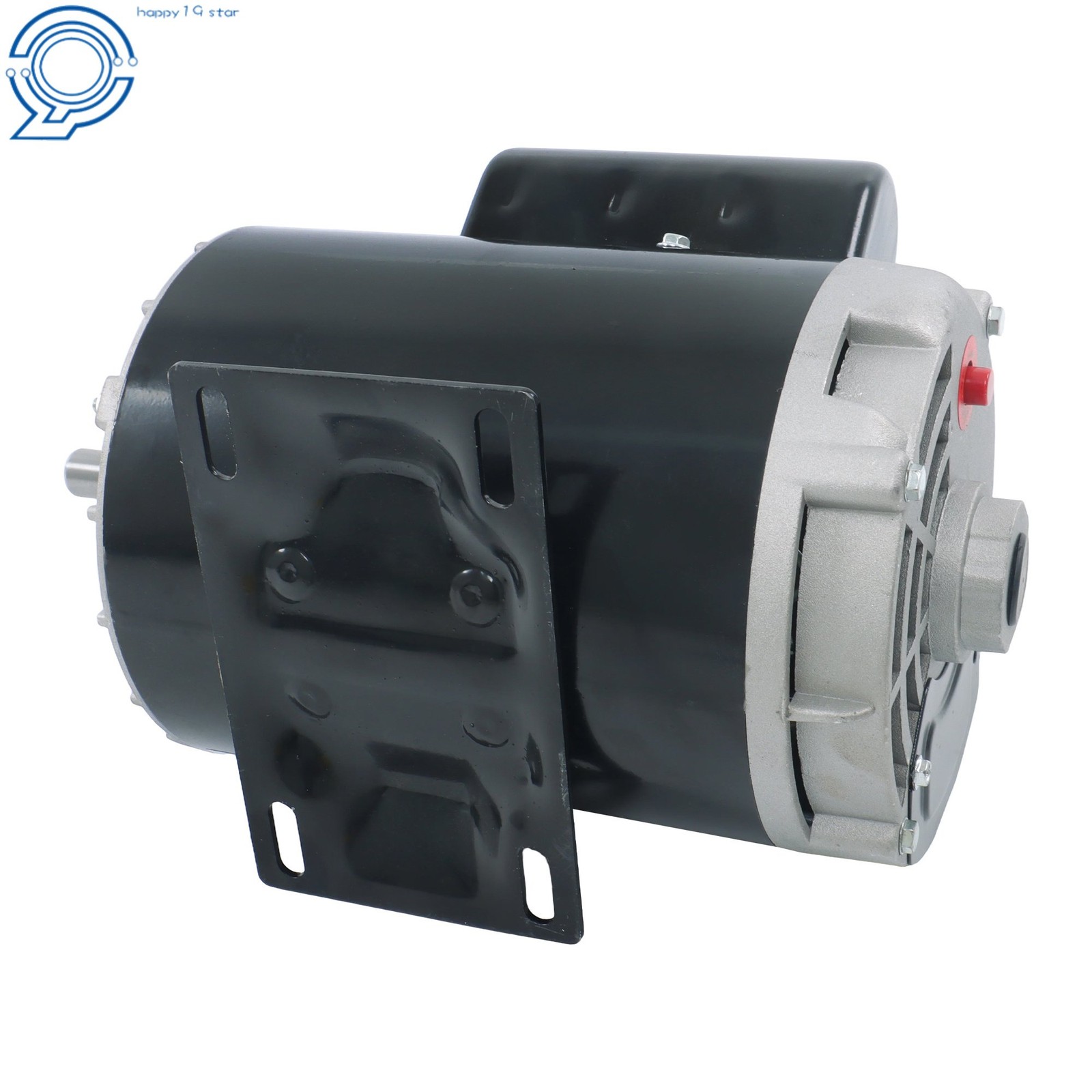

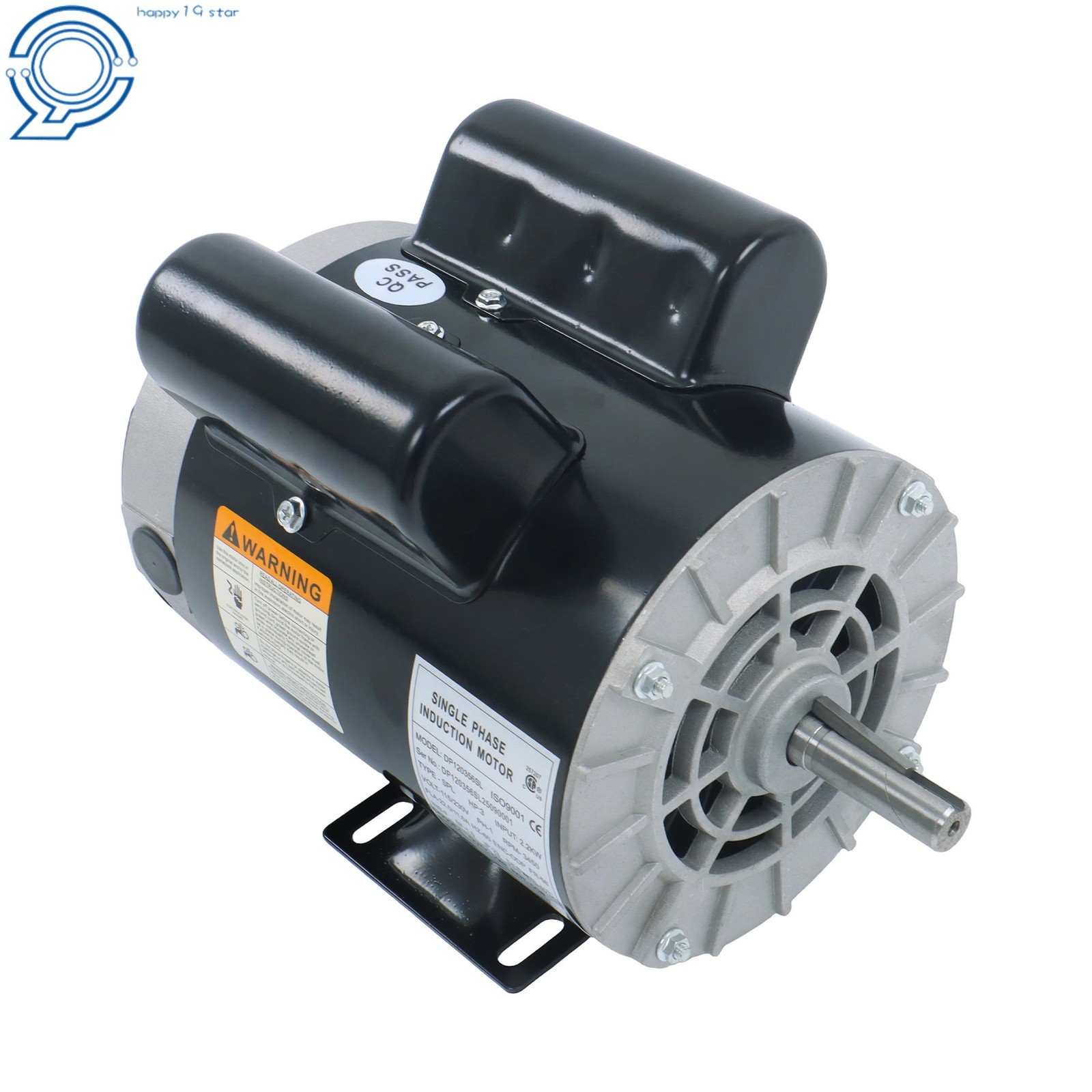

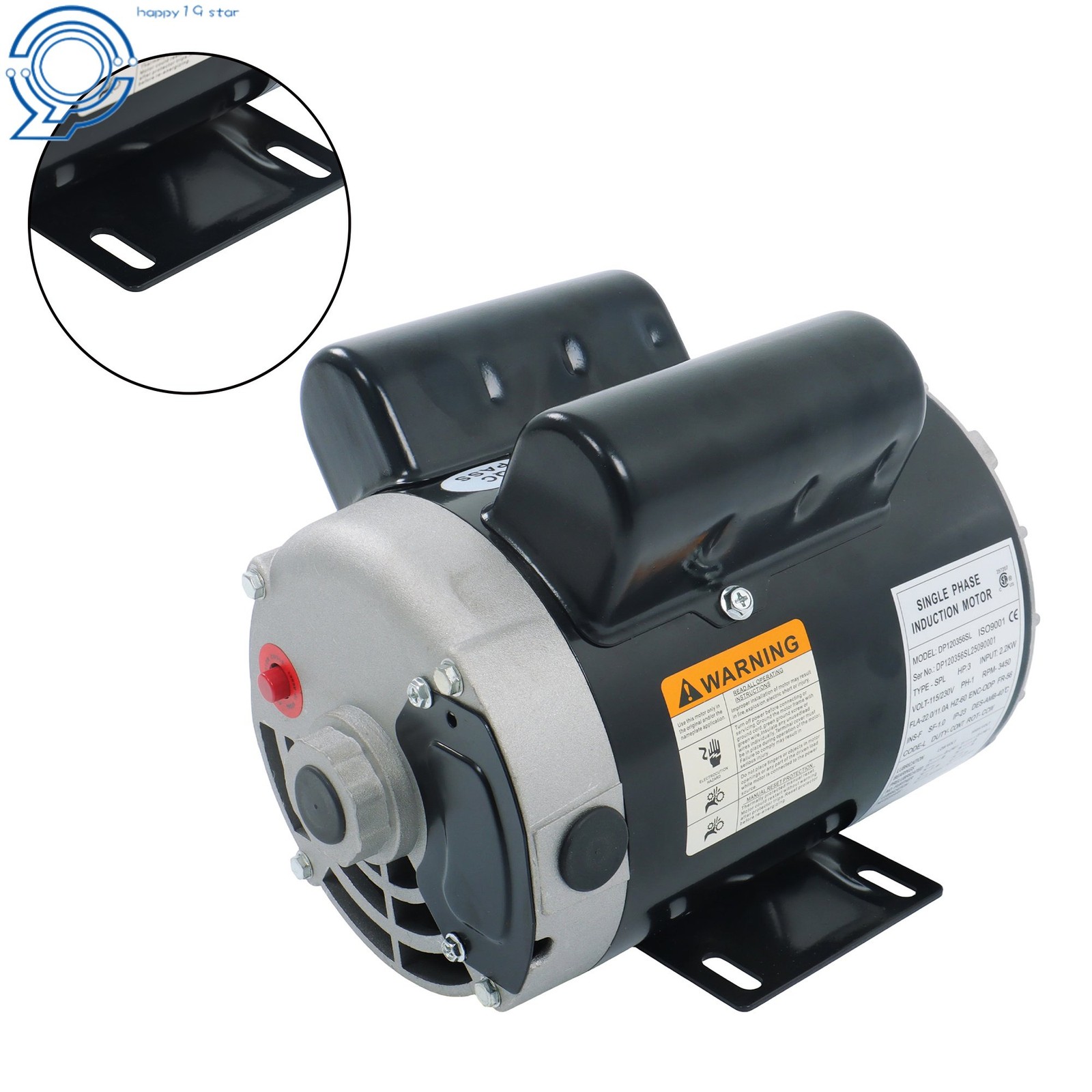

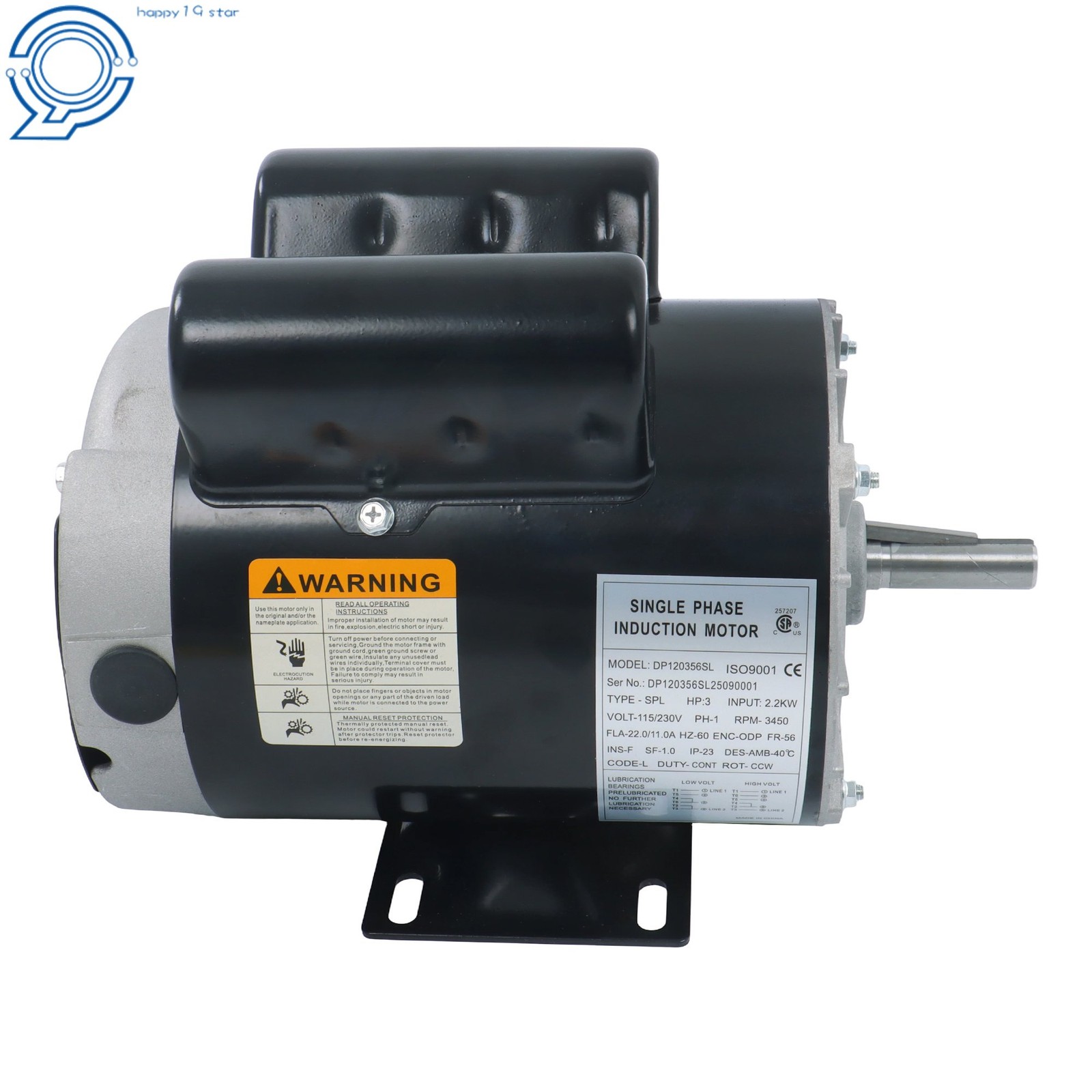

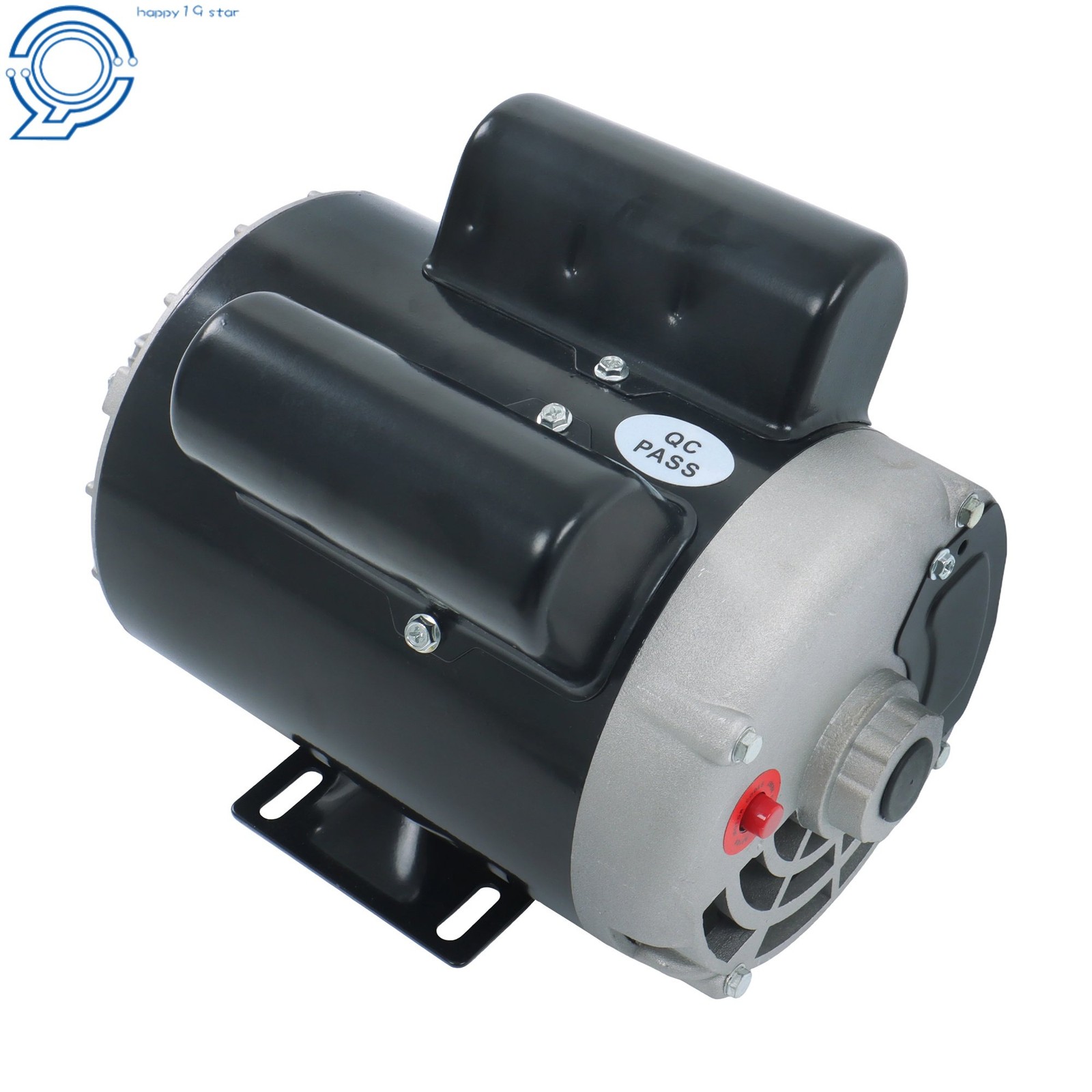

1 Phase 115-230 Volts 3 HP SPL 3450 RPM Electric Motor 56 Frame 5/8″
USD 105.38 USD
Specifications
| Country Of Origin | United States |
| Brand | happy19star |
| MPN | HP75312 |
| NEMA Frame Suffix | 56 Frame |
| Mounting Type | Rigid |
| IP Rating | IP23 |
| Type | SPL |
| Input | 2.2 KW |
| Synchronous Speed | 3600 RPM |
| Shaft Length | 1.88 inch |
| Efficiency | 75 % |
| Actual Rated Input Voltage | 115/230, |
| Rated Load (HP) | 3HP SPL |
| Full Load Amps | 22/11 A |
| AC Frequency Rating | 60 Hz |
| Enclosure Type | ODP (Open Drip-Proof) |
| Base RPM | 3450 |

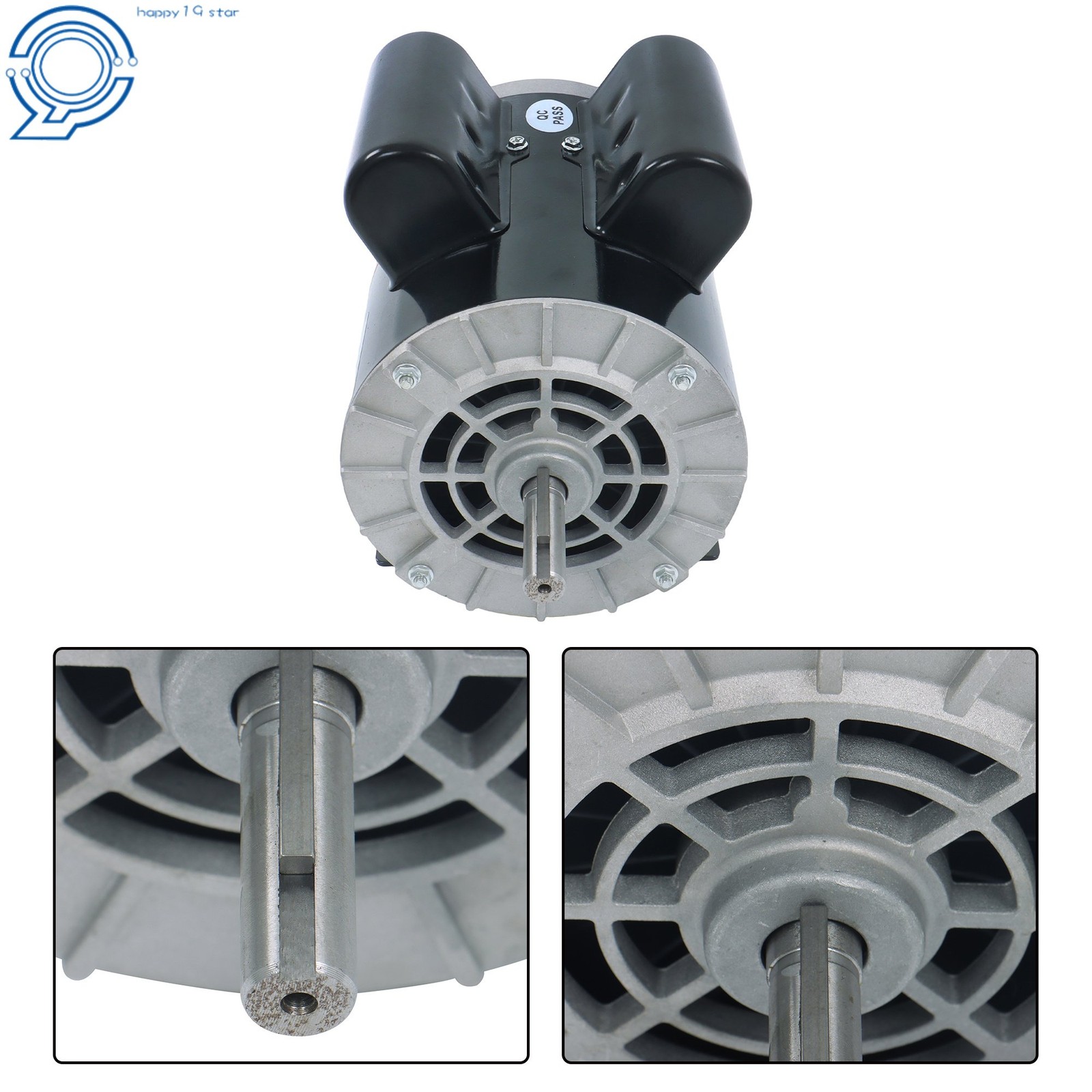

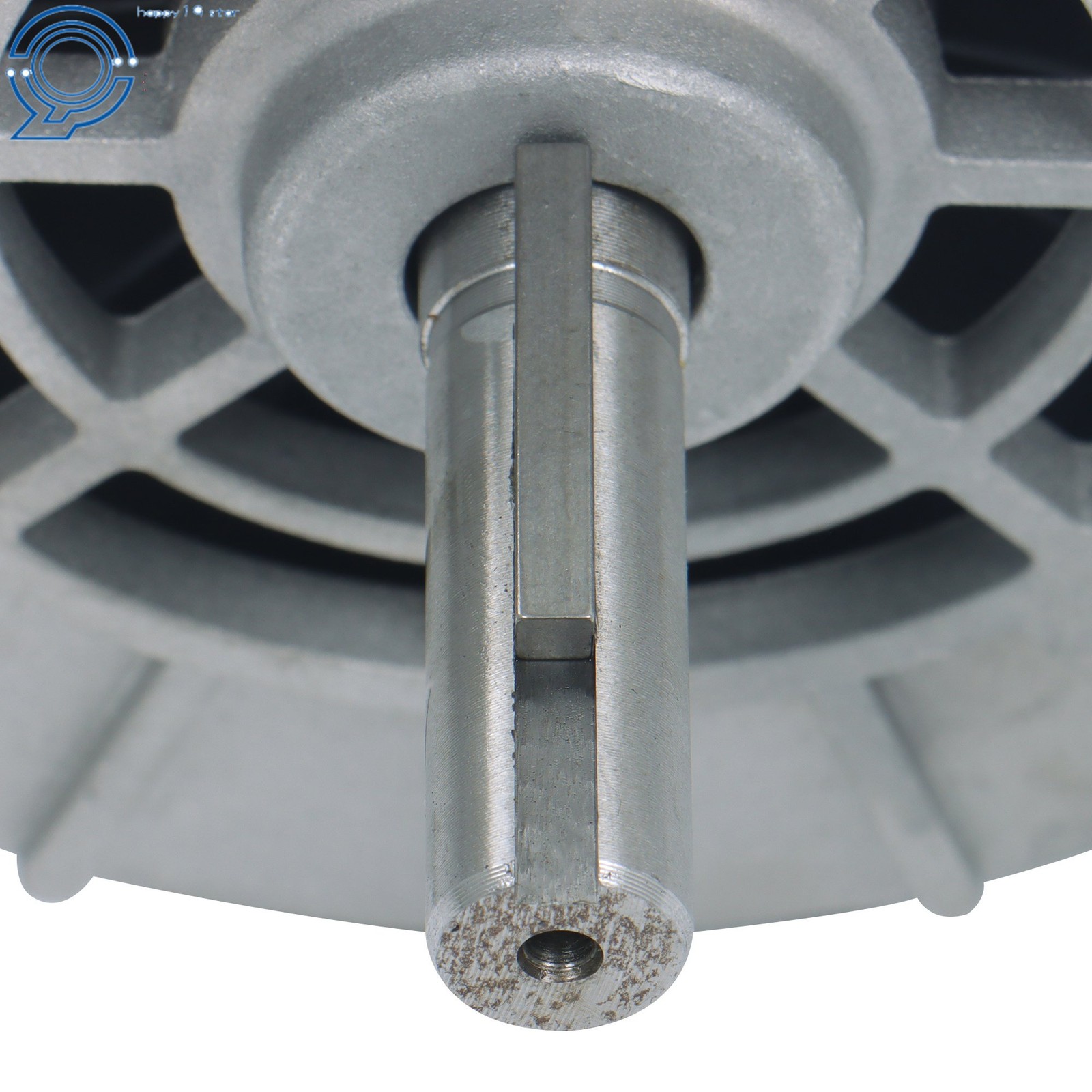

| Shaft Type | Keyed |
| AC Motor Type | Induction/Asynchronous |
| Shaft Diameter | 5/8 in |
| Reversible/Non-Reversible | Non-Reversible |
| Service Factor | 1.00 |
| AC Phase | Single Phase |
| Model | DP120356SL |
| Manufacturer Warranty | 1 year |

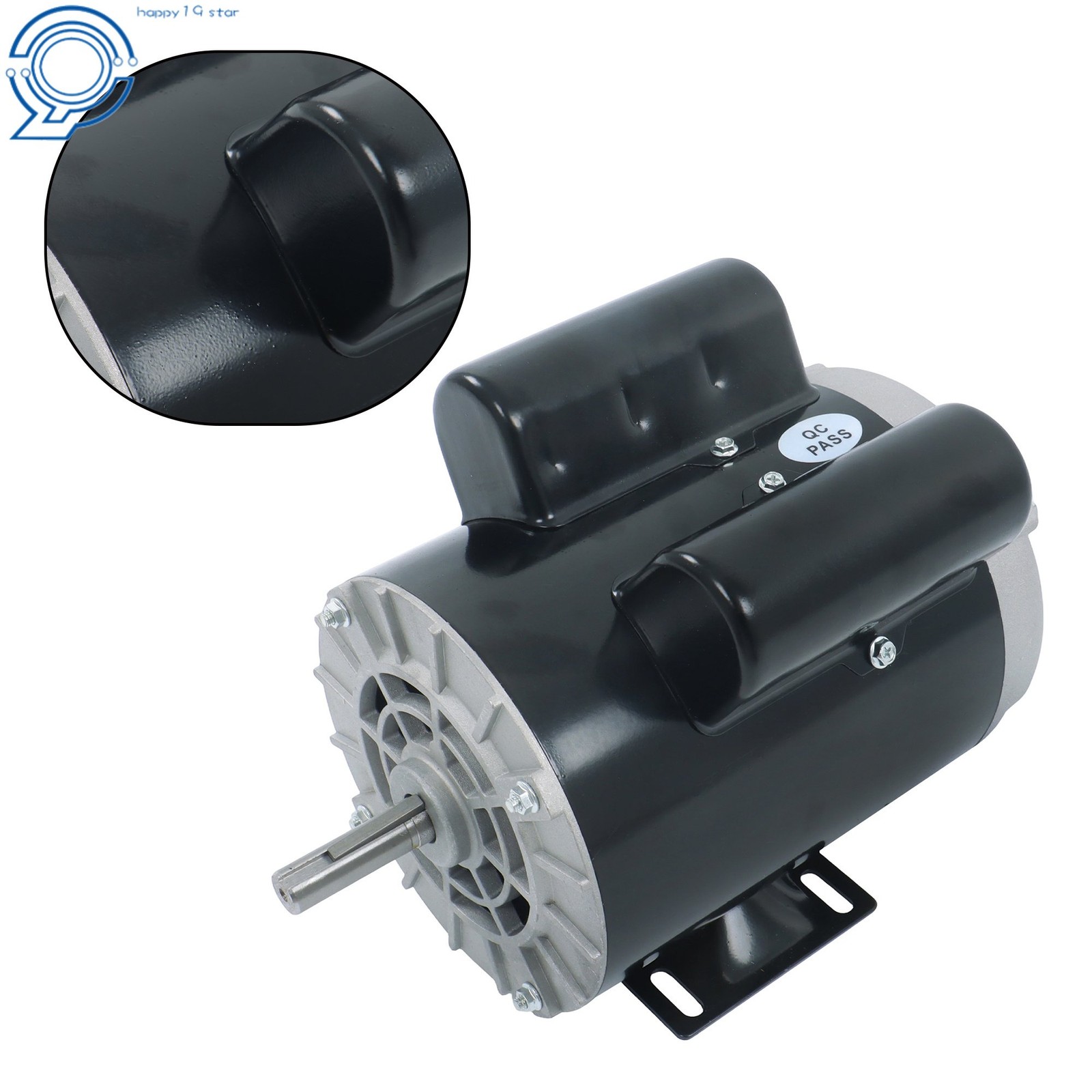

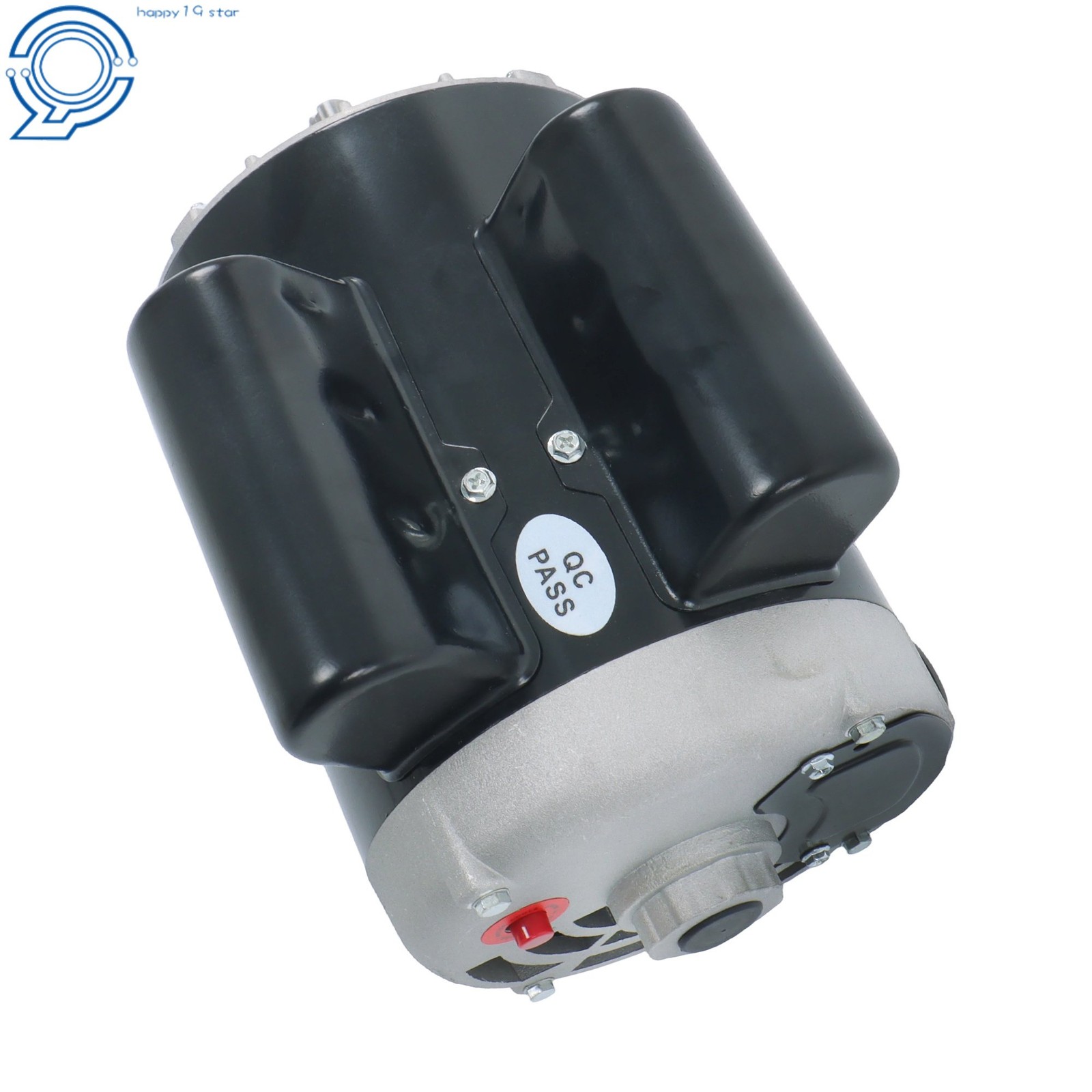

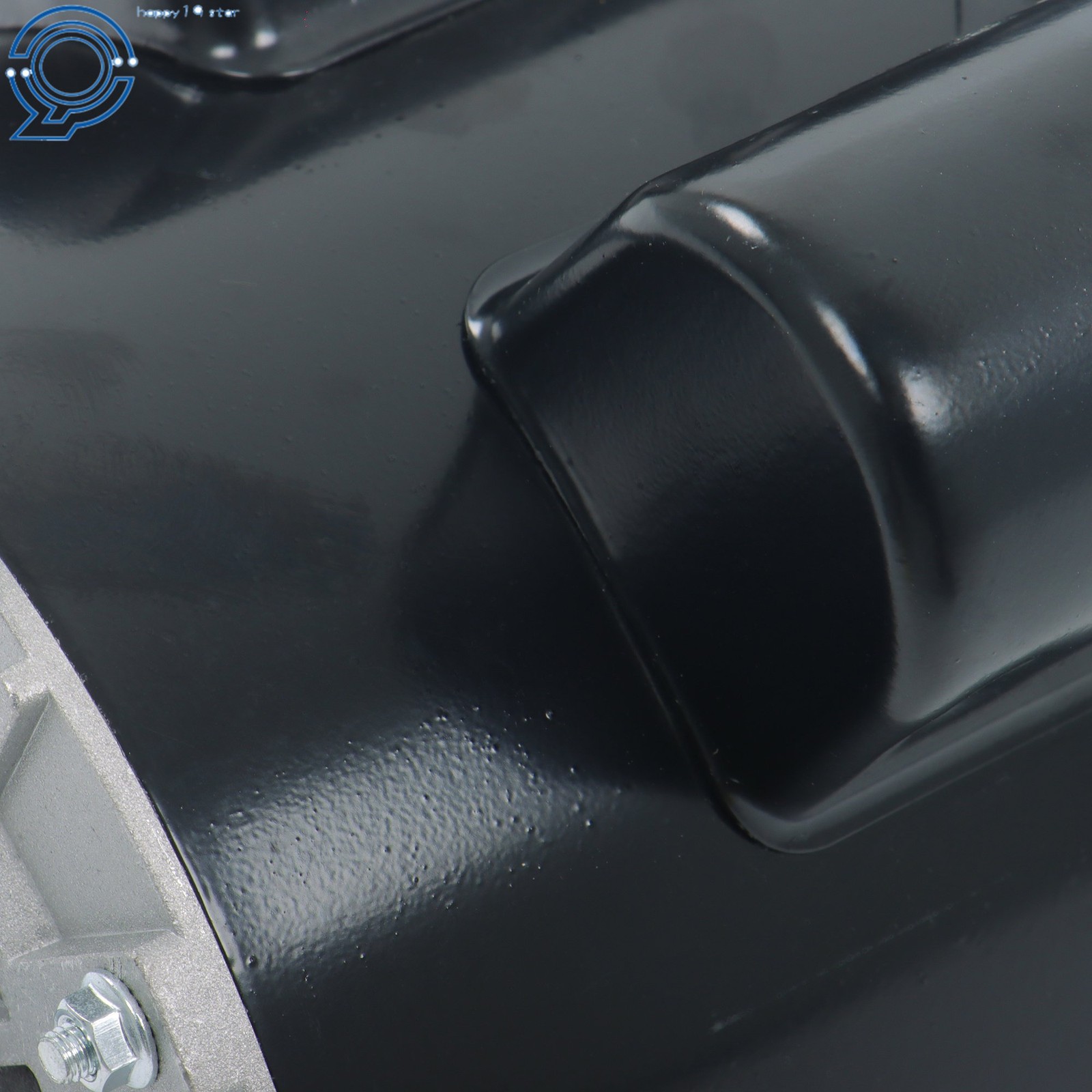

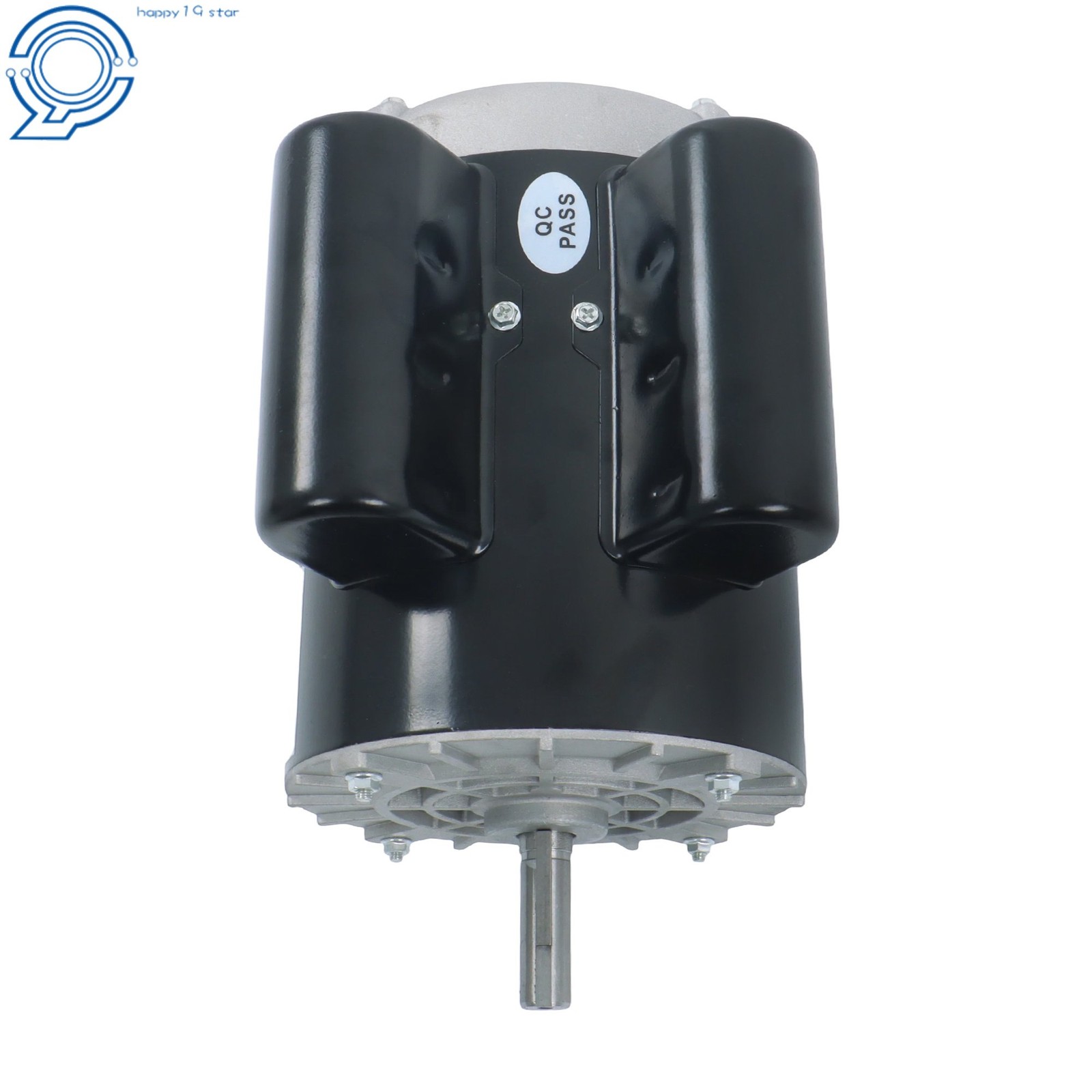

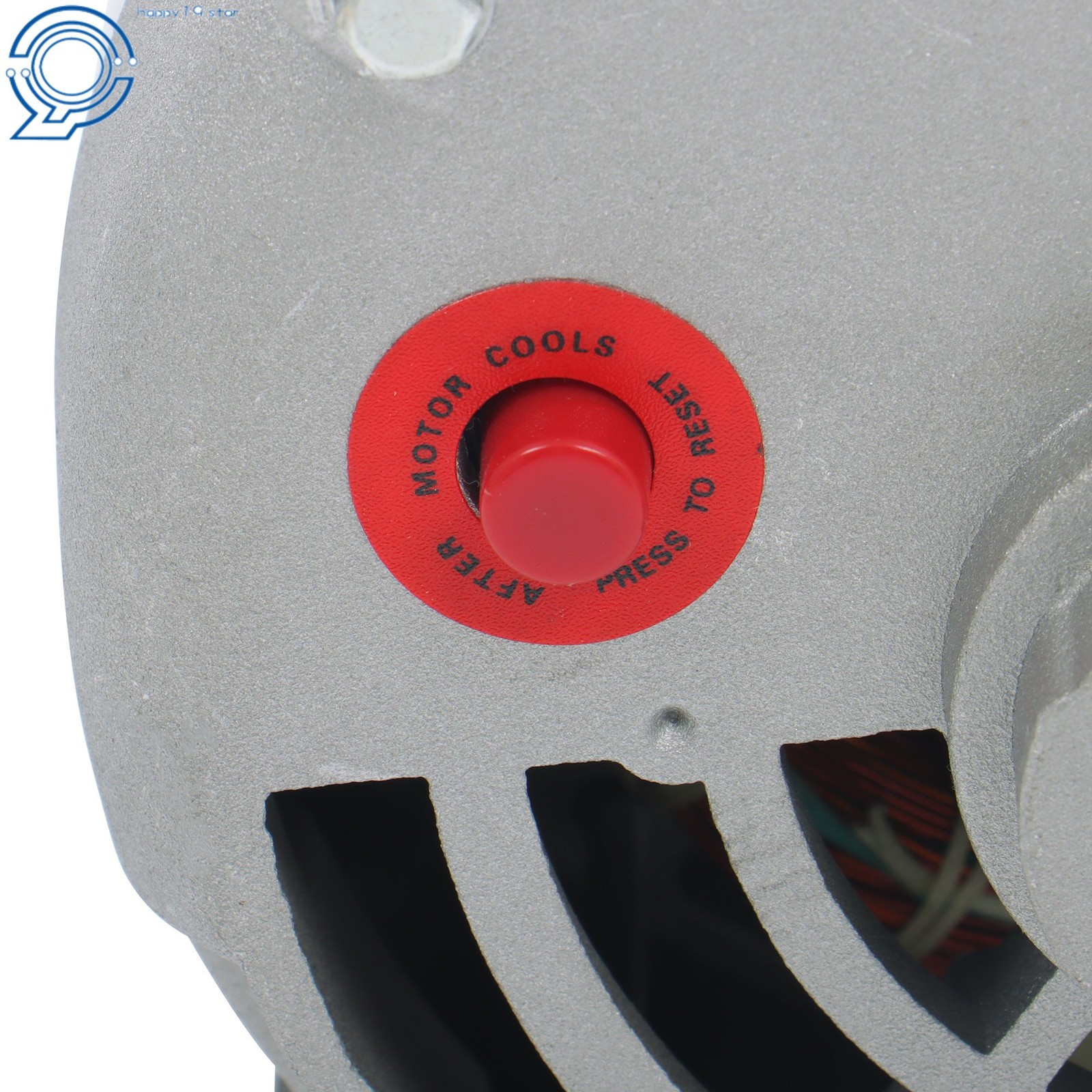

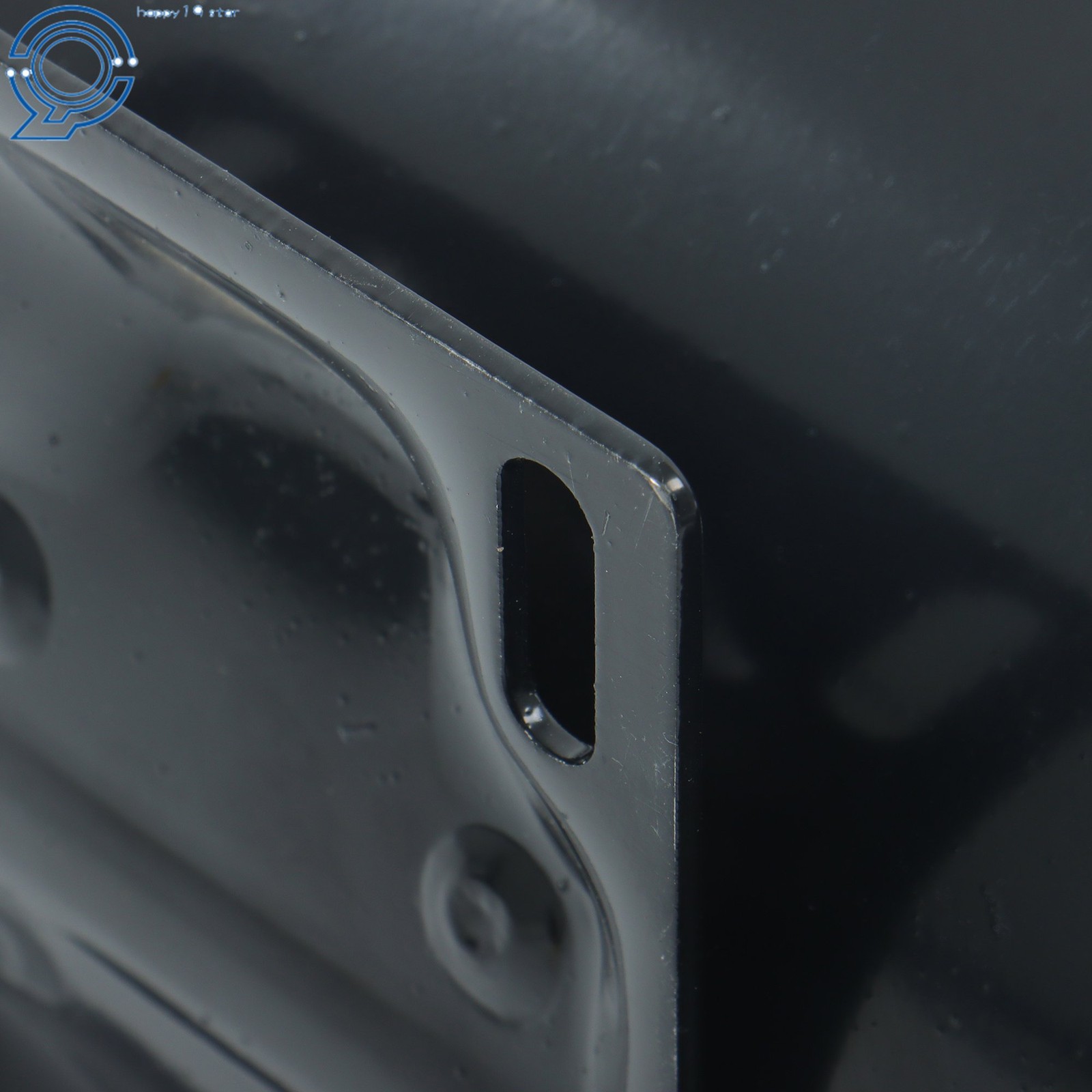

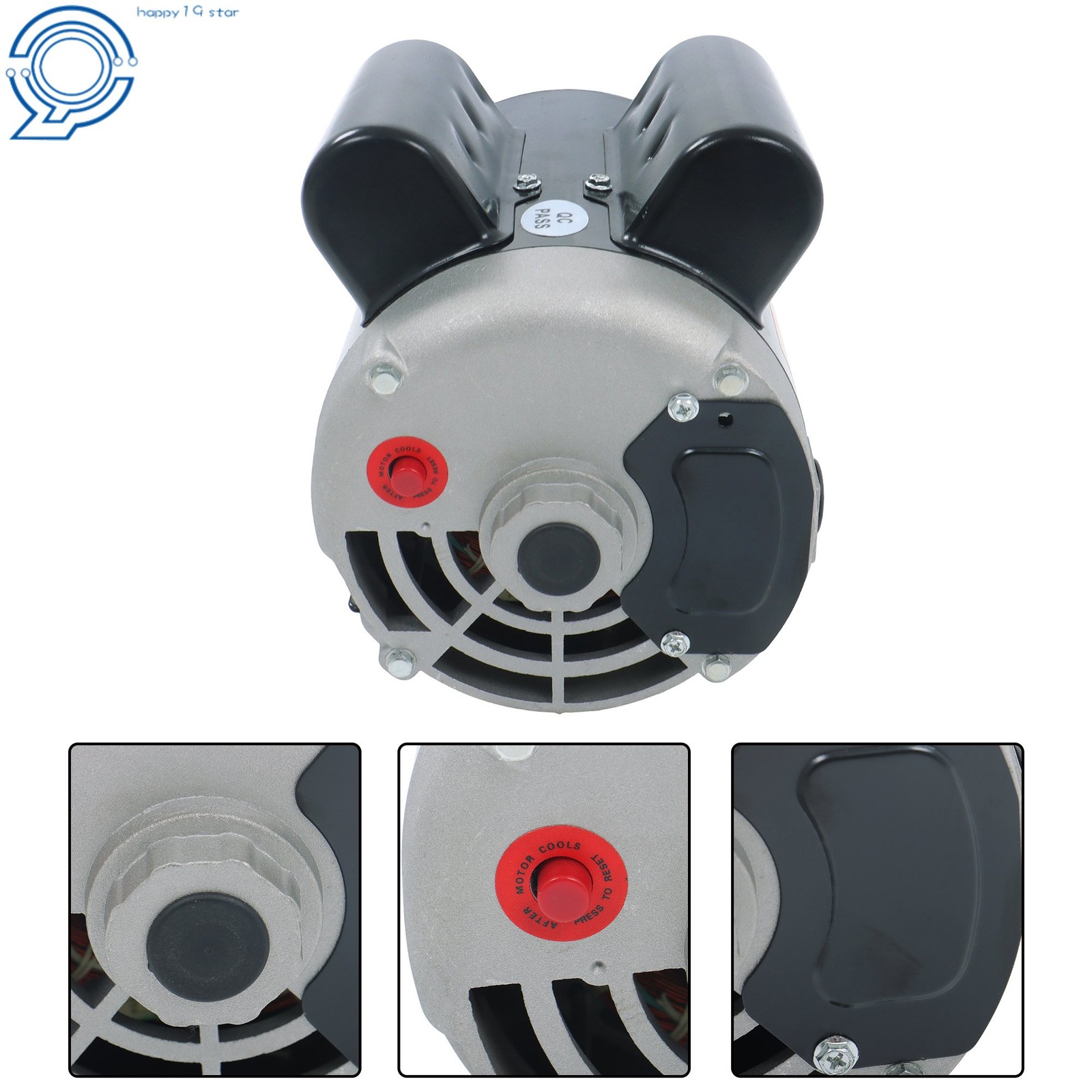

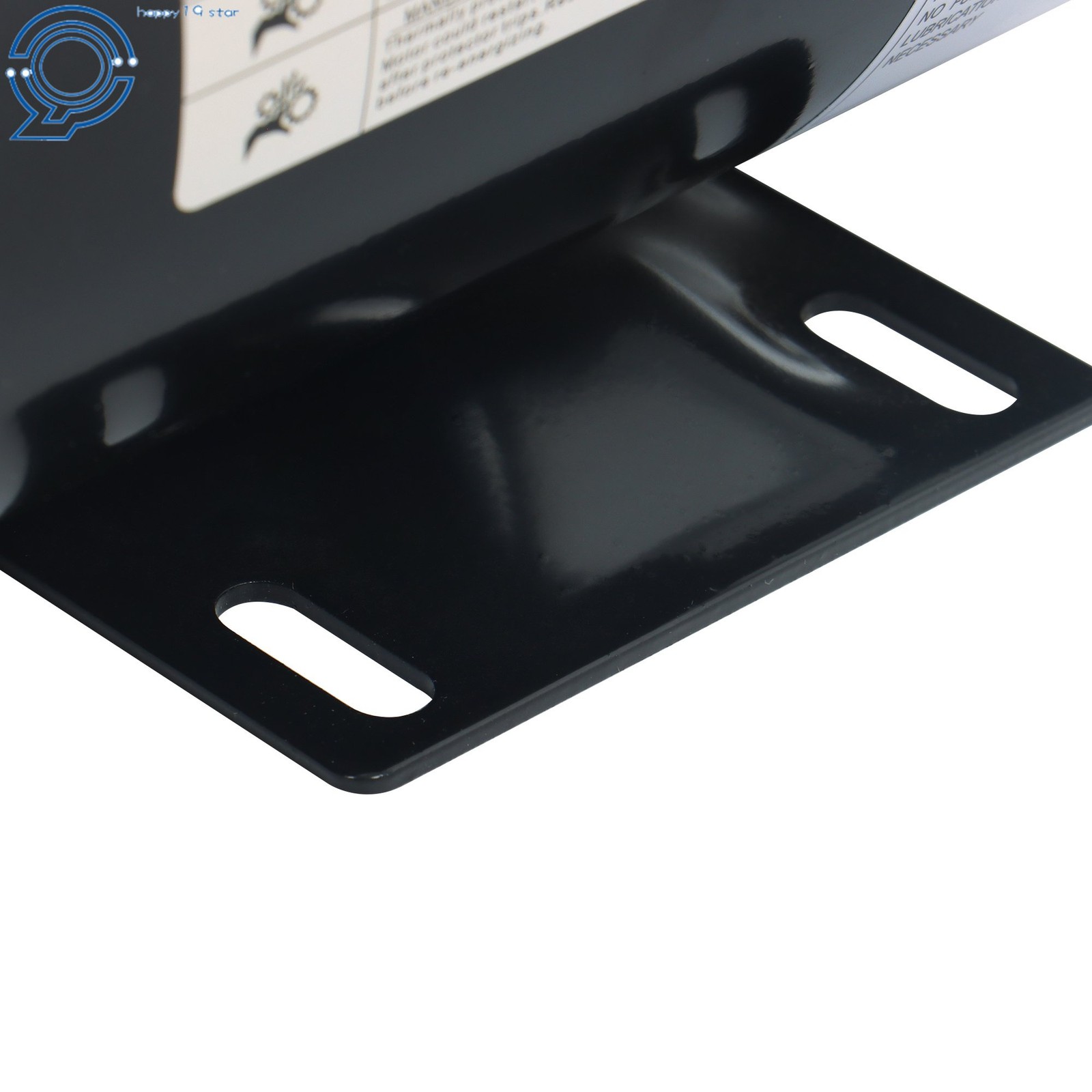

Description: Sturdy Steel Construction The 3 HP SPL compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted. Overload Thermal Protector The 3HP SPL electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load.Insulation Class: F, Service Factor: 1. .
