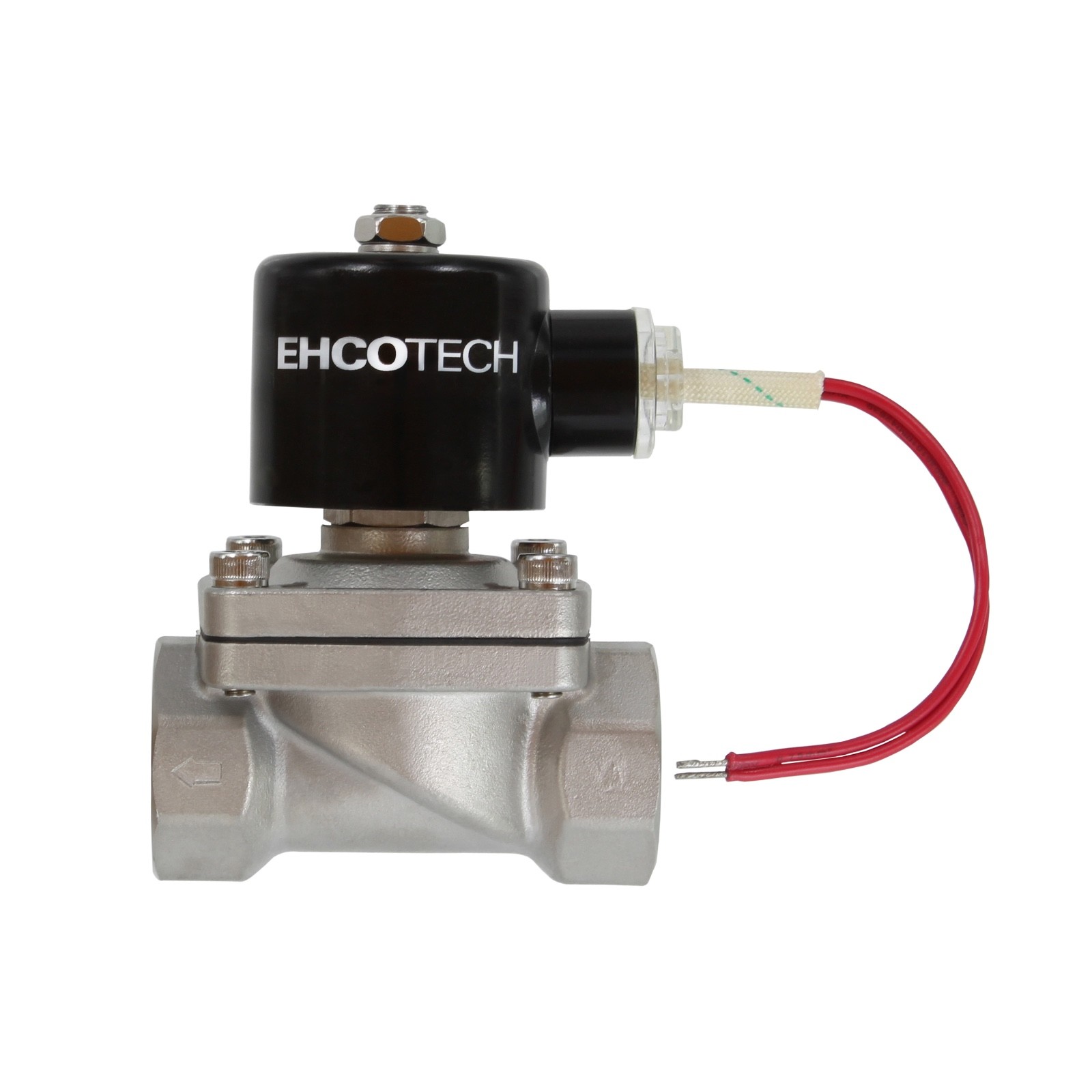

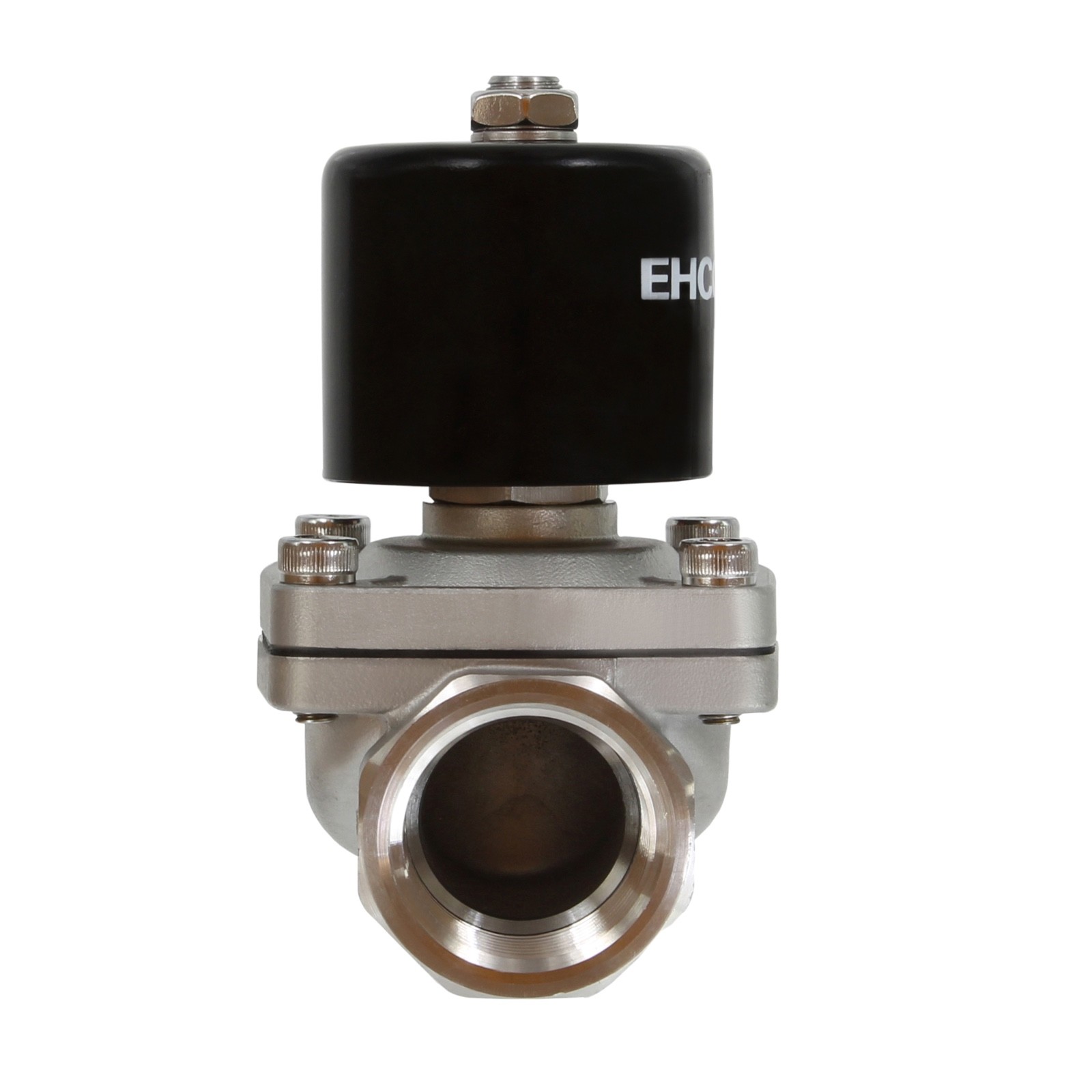

1″ NPT 110V / 120V AC Solenoid Valve Stainless/Viton Electric Water Air Fuel NC
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Type | Normally Closed |
| Voltage | 110 / 115 / 120-Volt AC |
| Max Pressure | 145 psi |
| Max Temp | 265 F |
| MPN | S21V-1-CC-120VAC |
| Brand | EHCOTECH |

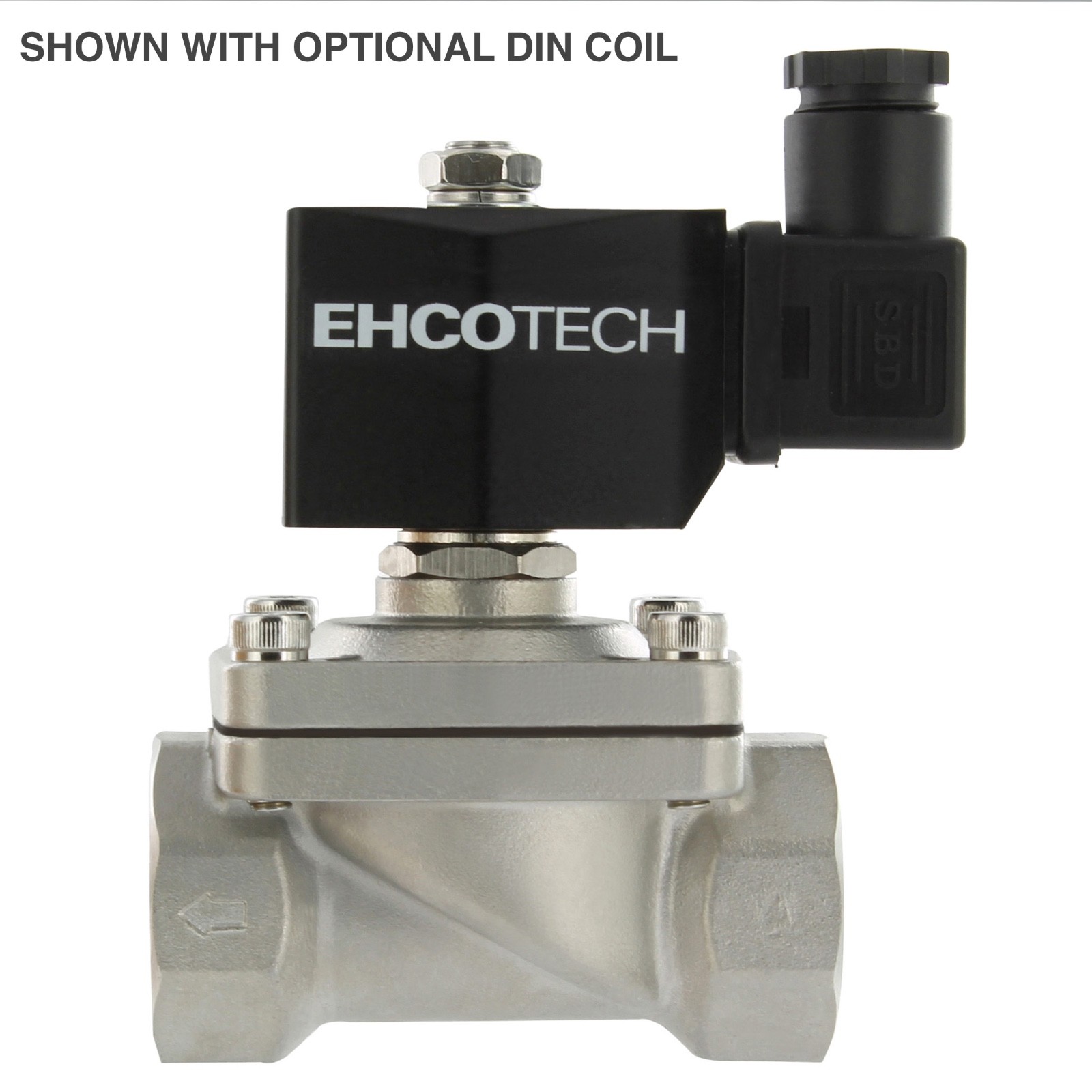

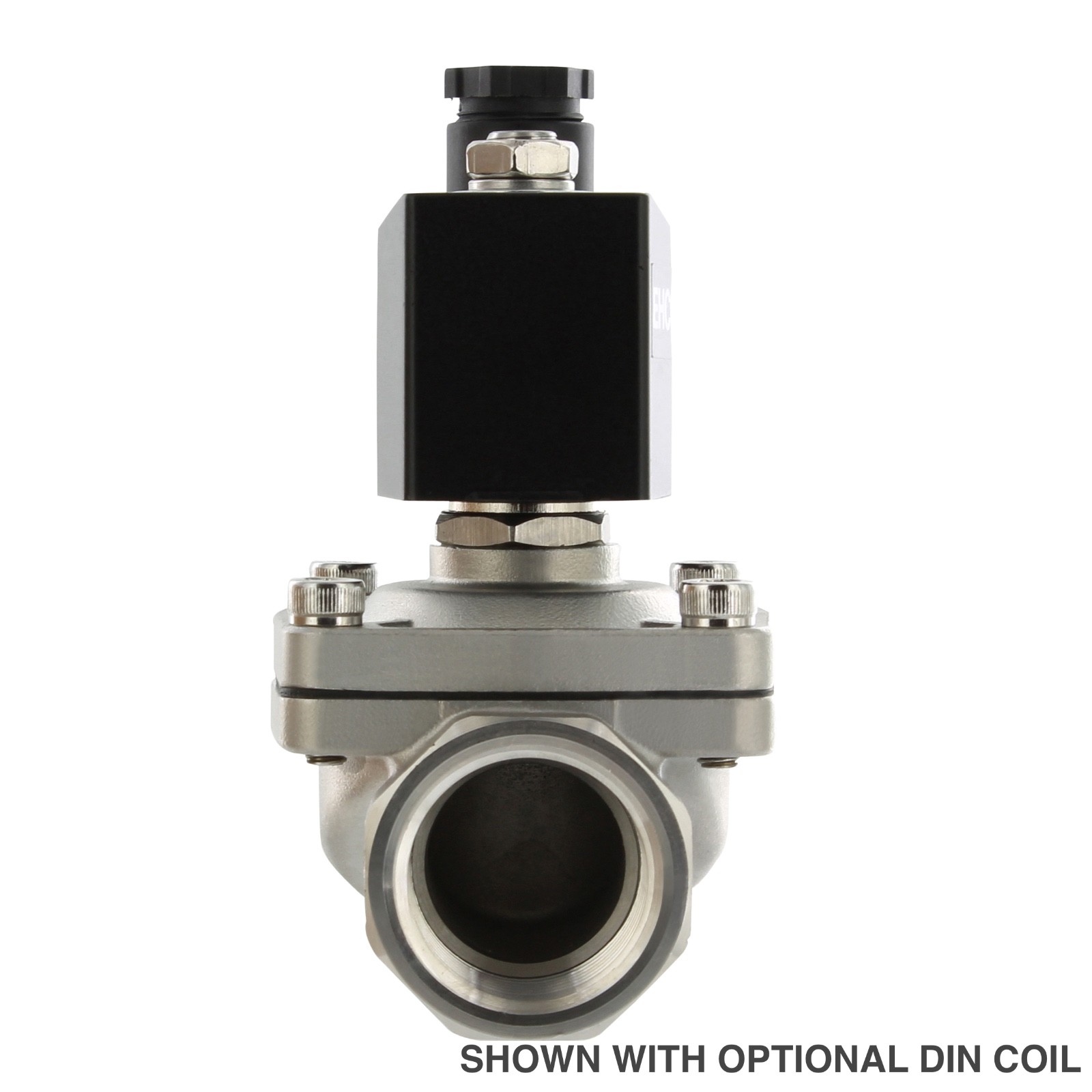

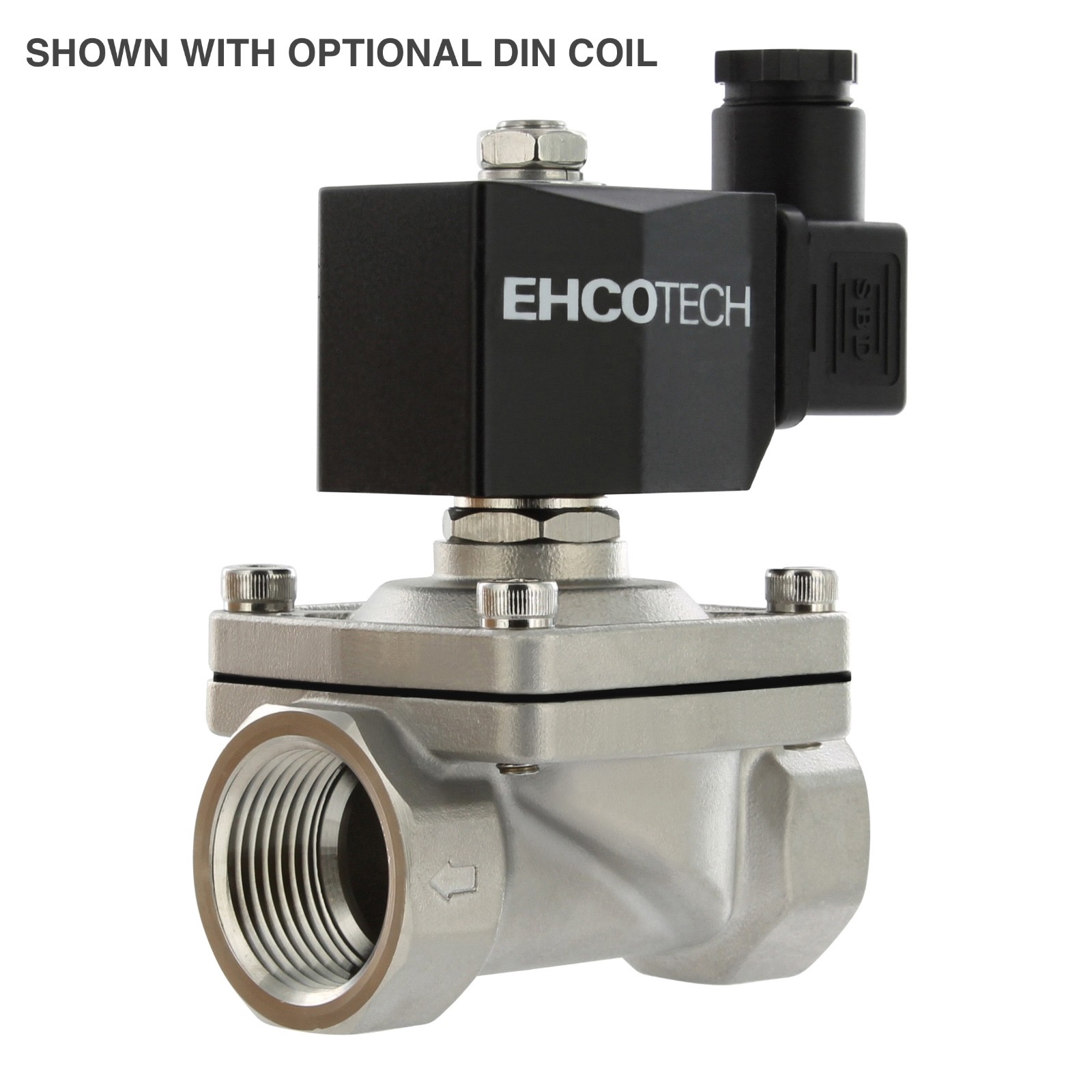

S21V-1-CC-120VAC Valves4projects — supplying high quality valves since 2004. Over 40,000 valve orders shipped. EHCOTECH S21V-1-CC-120VAC SOLENOID VALVE 1" NPT | 120-Volt AC | Stainless Body / FKM (Viton) Seal | Normally Closed | 0 - 145 psi More than 20,000 EHCOTECH 21-series valves have been delivered to hobbyists, businesses and manufacturers. General Great general purpose valve for many water, air, fuel, or gas projects 2-way, Normally Closed (energize to open, de-energize to close), unidirectional Semi-Direct Acting Valve (allows for good low pressure performance and gravity feed capability) Fast acting Port / Orifice Size 1" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 1.315 inches / 11.5 TPI Large internal orifice (1" or 25 mm internal orifice diameter) Cv value: 12 Pressure and Temperature 0 to 145 psi or Vacuum Max media temp: 265° F (130° C) Excellent choice for low pressure applications due to semi-direct lift design Suitable Media Water Air Gases Diesel Gasoline (with or without Ethanol) Glycol Other media compatible with FKM/Viton Coil Options 120-Volt AC / 22 Watts (or 22 VA) COIL OPTION #1: LEAD WIRE COIL (see pictures) IF NO SPECIAL REQUEST IS MADE, WE WILL SHIP WITH THE LEADWIRE COIL Metal shielded coil (IP54 rating) 5.5" lead wires (fast/simple wiring for quick projects) 1/2" conduit connection COIL OPTION #2: DIN CONNECTOR COIL (see pictures) YOU MUST REQUEST THIS OPTION VIA EBAY MESSAGE OR LEAVE A NOTE DURING CHECKOUT Resin encapsulated coil (IP65 rating) Screw-down terminals inside the connector for your own cable/wires Valve Materials Valve body: Stainless Steel (SS304) Plunger and plunger guide tube: Stainless Steel (300 and 400 series) Diaphragm: FKM (Viton) Dimensions Height: 4-1/2" Width: 2-5/8" Length: 3-5/16" Weight: 2 lb 4 oz Store Policies If you are not completely satisfied, please contact us and we will make it right! 12 month warranty Copyright © Ehcotech International Inc. 2017
