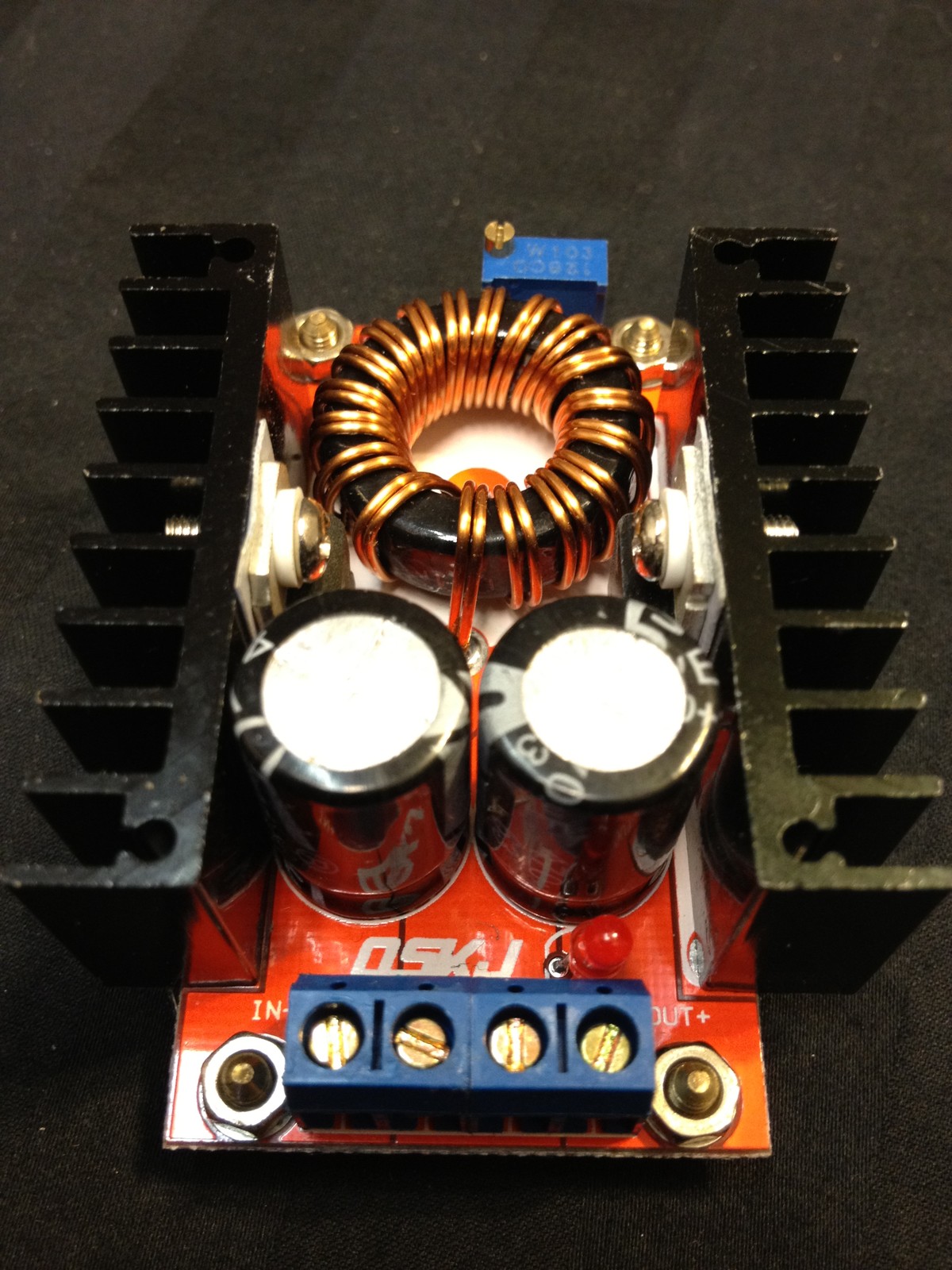

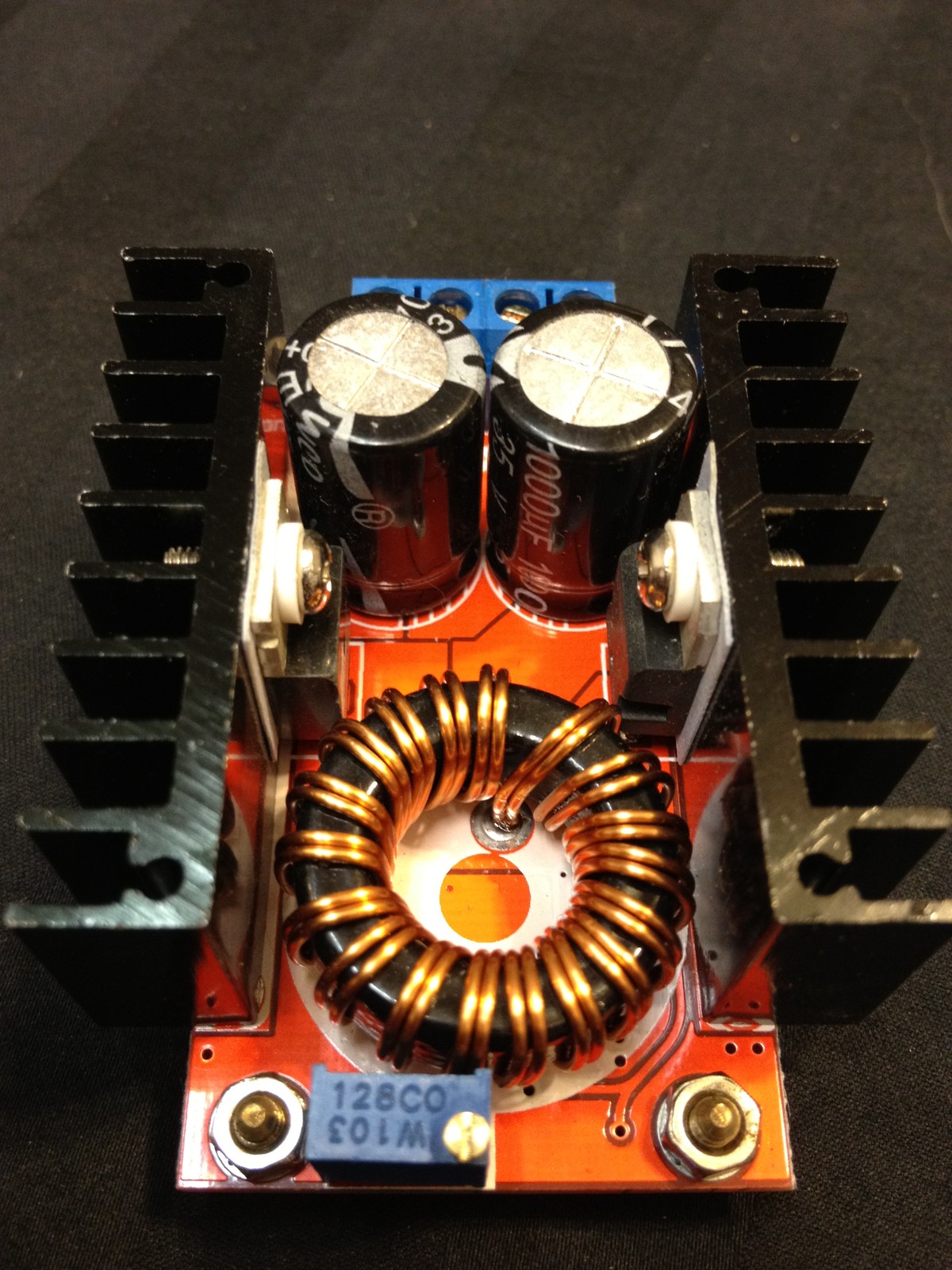

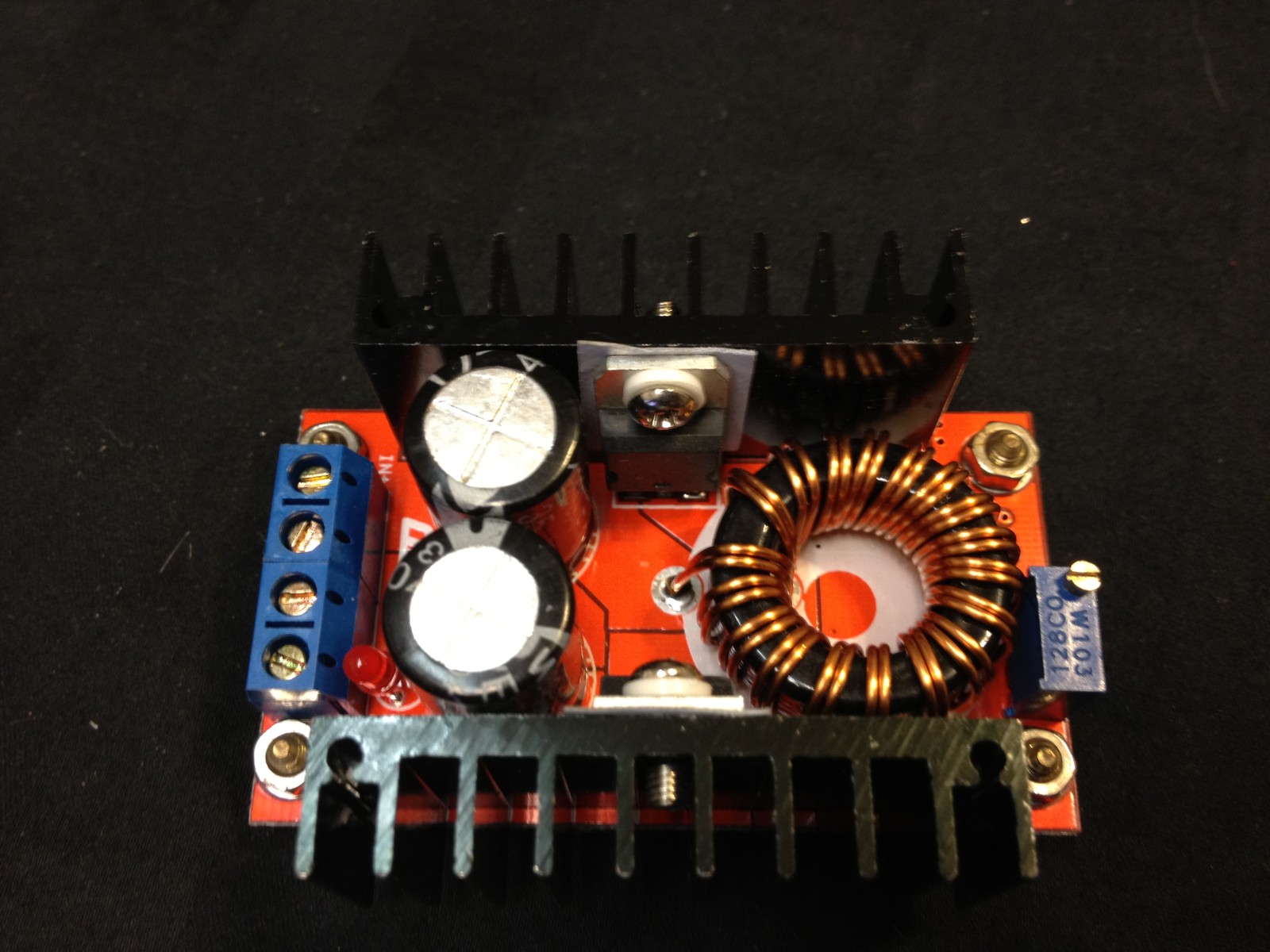

1 DC-DC 150W 10-32V to 35-60V Mobile Power Supply Boost /step-up Module
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | Endlessparts |
| Output Voltage Rating (DC) | 32 V |
| MPN | Does Not Apply |
| Nominal Power Rating | 150 W |
Package Includes:1 120W Boost Converter Item specifics Type: DC/DC Converters Brand Name: DC Boost Converter Size: 49mm x 23mm Input Voltage: DC 3-34V Output Current: 2.5A (Max.) Output Voltage: DC 4-60V (continuously adjustable) Model Number: LM2577 step Up Module Module Properties:Product Description Feature: Module Properties: non-isolated step-up module (BOOST) Input voltage :10-32V Output voltage: 35-60V (adjustable) Output Current: 5A (MAX) Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A) Output power: natural cooling 80W (MAX), enhance heat dissipation 120W (MAX) Conversion efficiency: 90% typical (reference) Output Ripple: 2% (MAX) 20M-bandwidth Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) Full load temperature rise: 45°c No-load current: 25mA typical Load regulation: ± 0.5% Voltage regulation: ± 0.5% Dynamic response speed: 5% 200uS Short circuit protection: None (Please Install fuses and protection circuits at Input port.) Input Reverse Polarity Protection: None (Please Series diode at the input port.) Weight: 67g Some Applications DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 35-60V(adjustable freely), However, the output voltage can not be less than the input voltage. Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 48V battery. Solar battery charger for electric vehicles 15W(natural cooling), Max. 25W (enhance heat dissipation) Maximum output power: Input voltage * 3A * conversion efficiency Output Current: 6A (Max.) Operating temperature: Industrial grade -40°c to +85°c Full load temperature rise: 45 °c No-load current: typical 15mA (5V turn to 12V) Load Regulation: ± 0.5% If you would like a FREE catalog of my eBay store, just add a note, or send me a message, during or after check out.
