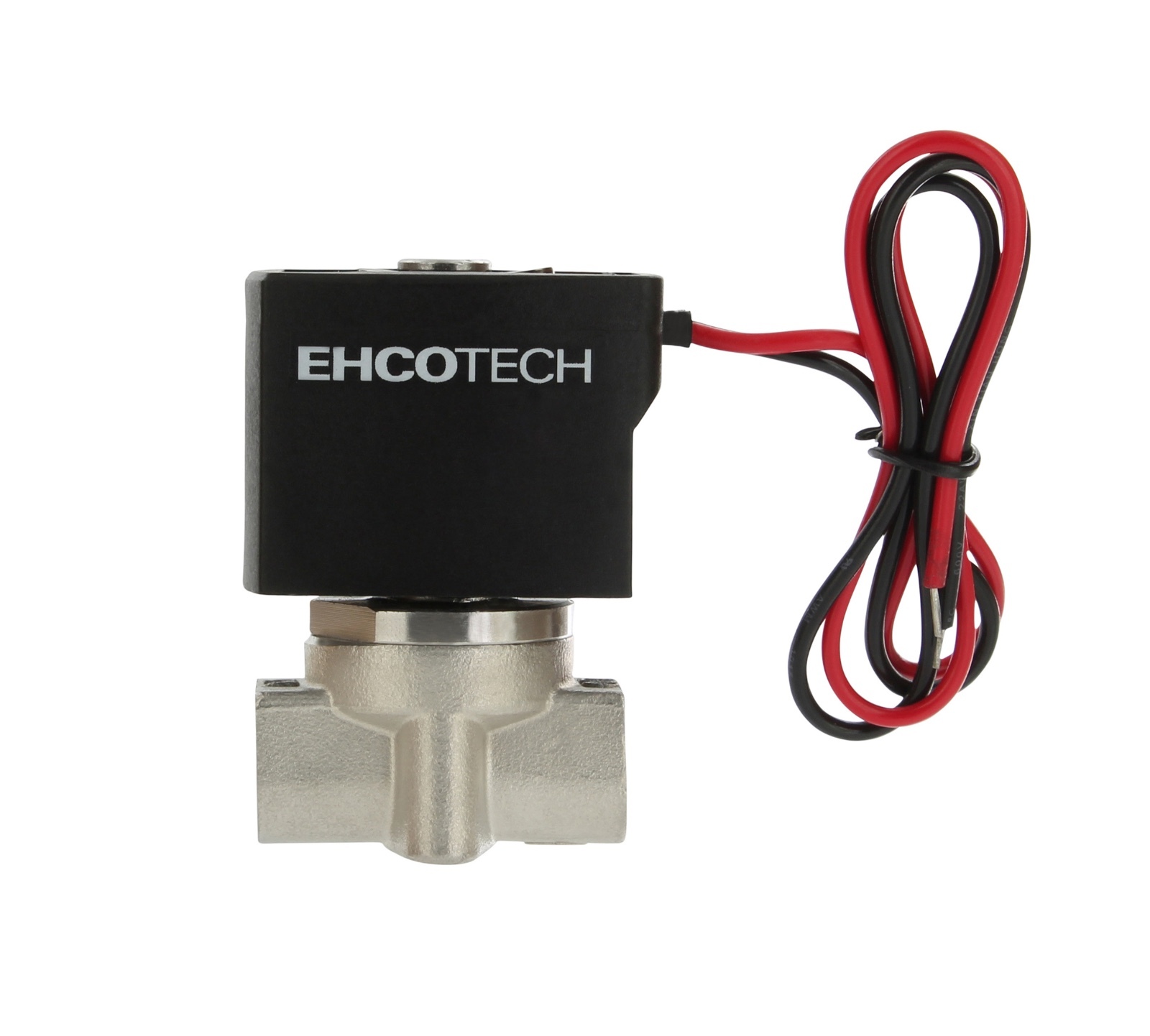

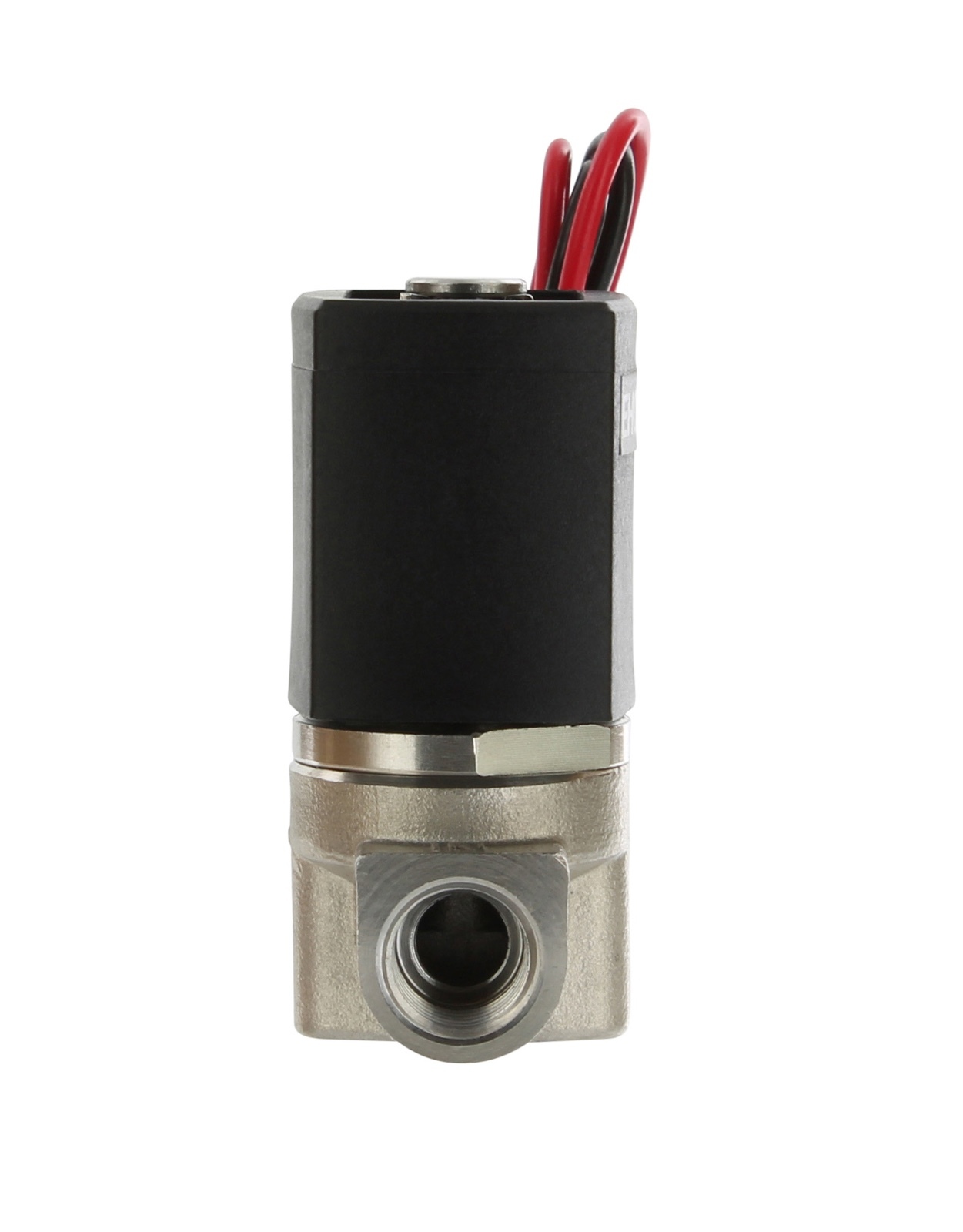

1/4″ NPT SS 110V / 120V AC Solenoid Valve STAINLESS Steel / FKM VITON S20V N/C
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Type | Valves & Flow Controls |
| Voltage | 110/120-Volt AC / 60Hz |
| Operation Type | Normally Closed |
| Pressure Range | 0 to 145 psi |
| MPN | S20V-1/4-CD-120VAC |
| Brand | EHCOTECH |
S20V-1/4-CD-120VAC Valves4projects — supplying high quality valves since 2004. Over 50,000 valve orders shipped. EHCOTECH S20V-1/4-CD-120VAC SOLENOID VALVE 1/4" NPT | 110/115/120-Volt AC | Stainless Steel Body / FKM (Viton) Seal | Normally Closed | 0 - 145 psi More than 10,000 EHCOTECH 20-series valves have been delivered to hobbyists, businesses and manufacturers. General Great general purpose valve for many water, air, gasoline, Diesel, or gas projects 2-way, Normally Closed (energize to open, de-energize to close), unidirectional Direct Acting valve (no minimum pressure requirement and gravity feed capability) Very Fast acting Port / Orifice Size 1/4" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 0.540 inches / 18 TPI Internal orifice diameter: 1/8" or 3.0 mm Cv value: 0.4 Pressure and Temperature 0 to 145 psi or Vacuum Max media temp: 265° F (130° C) Gravity Feed capable Suitable Media Water Air Gases Diesel Gasoline (with or without Ethanol) Other media compatible with FKM/Viton Coil / Electrical 110/115/120-Volt AC / 8 Watts 20" lead wires (no polarity requirement for wiring) NOTE: We also carry this valve in 12VDC, 24VAC, and 220/240VAC voltages in our eBay store Valve Materials Valve body: Stainless Steel (SS304) Plunger and plunger guide tube: Stainless Steel (300 and 400 series) Diaphragm: FKM (Viton) Dimensions Height: 2-5/8" Width: 1-1/4" Length: 1-5/8" Weight: 11 oz Store Policies If you are not completely satisfied, please contact us and we will make it right! 12 month warranty Copyright © Ehcotech International Inc. 2017
