1.28 inch ESP32-C3 Round IPS Display TFT LCD Module Capacitive Touchscreen USA
USD 28.99 USD
Specifications
| Brand | RCmall |
| Country/Region Of Manufacture | China |
| Model | FZ6467 |
| Touch Screen | Yes |
| Color | Yellow |
| Nominal Voltage | 5 V |
| Interface Type | Type-C |
| Display Resolution | 240 x 240 |

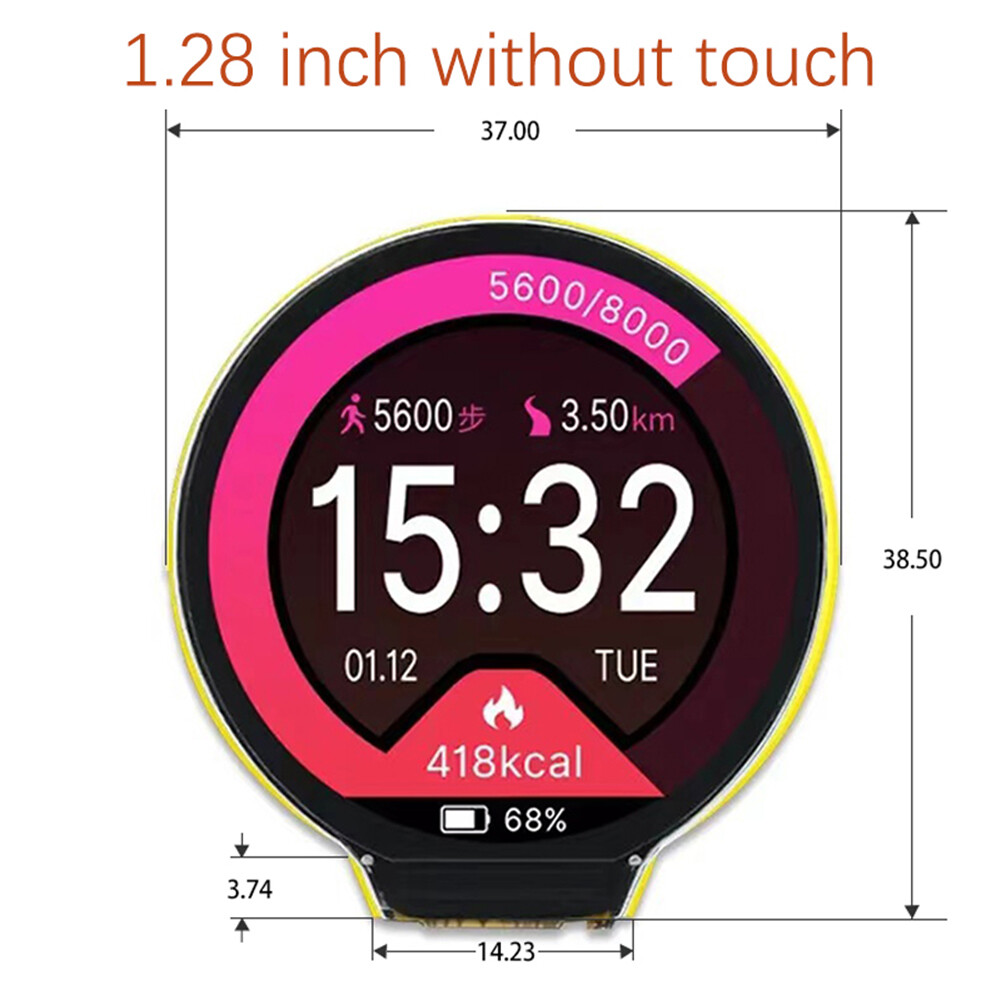

| Display Size | 1.28 inch |

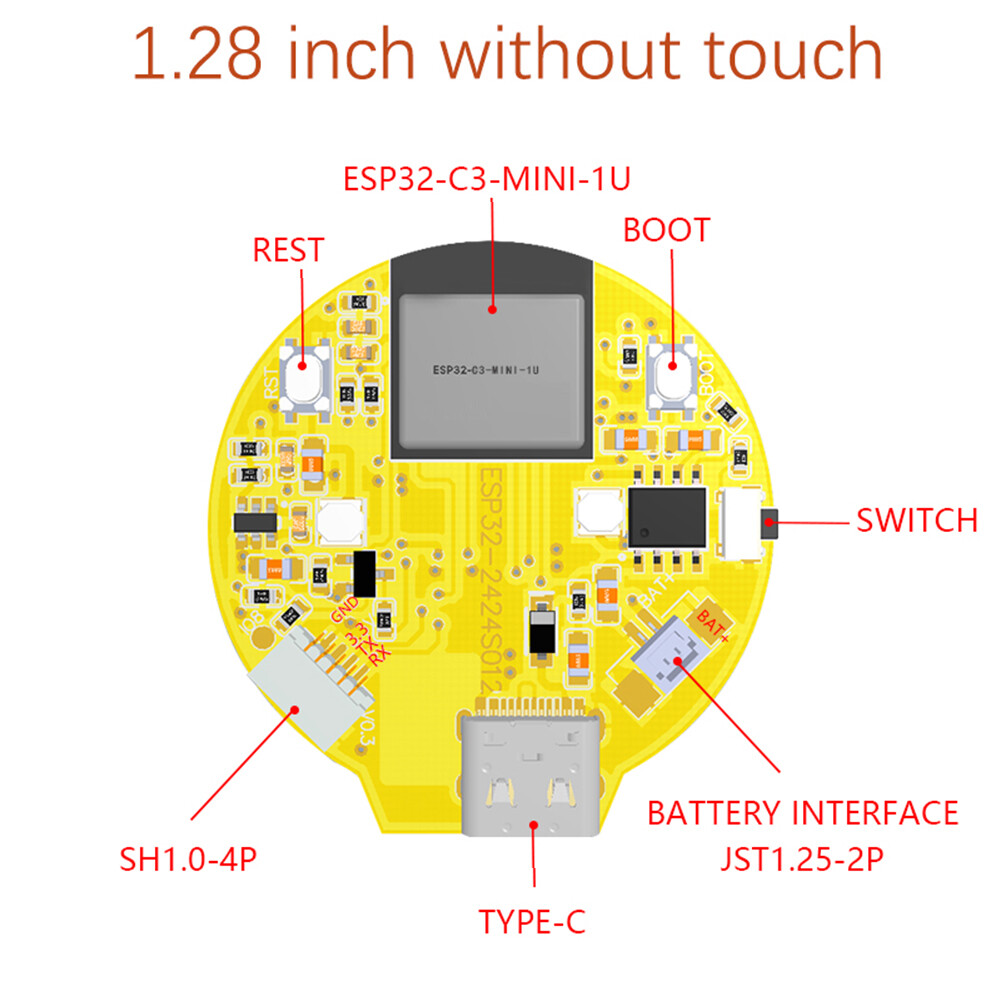

Description This LCD module uses ESP32-C3-MINI-1U module as the main control,the main control is a Single Core MCU,integrated WI-FI and BLE functions,the main frequency can reach 160MHz,400KB SRAM,384KB ROM,Flash size is 4MB,The display resolution is 240*240 IPS display,without touch or capacitive touch.The module includes LCD display screen,backlight controlcircuit,IO port interface,this module supports development in IDE,ESP. Feature: 1.28-inch color screen,support 16 BIT color display,display rich colors 240X240 resolution The sample program has been programmed in the factory and can be plugged in Equipped with a lithium battery charging interface,support both charging and discharging,with overcharging and overcurrent protection.
