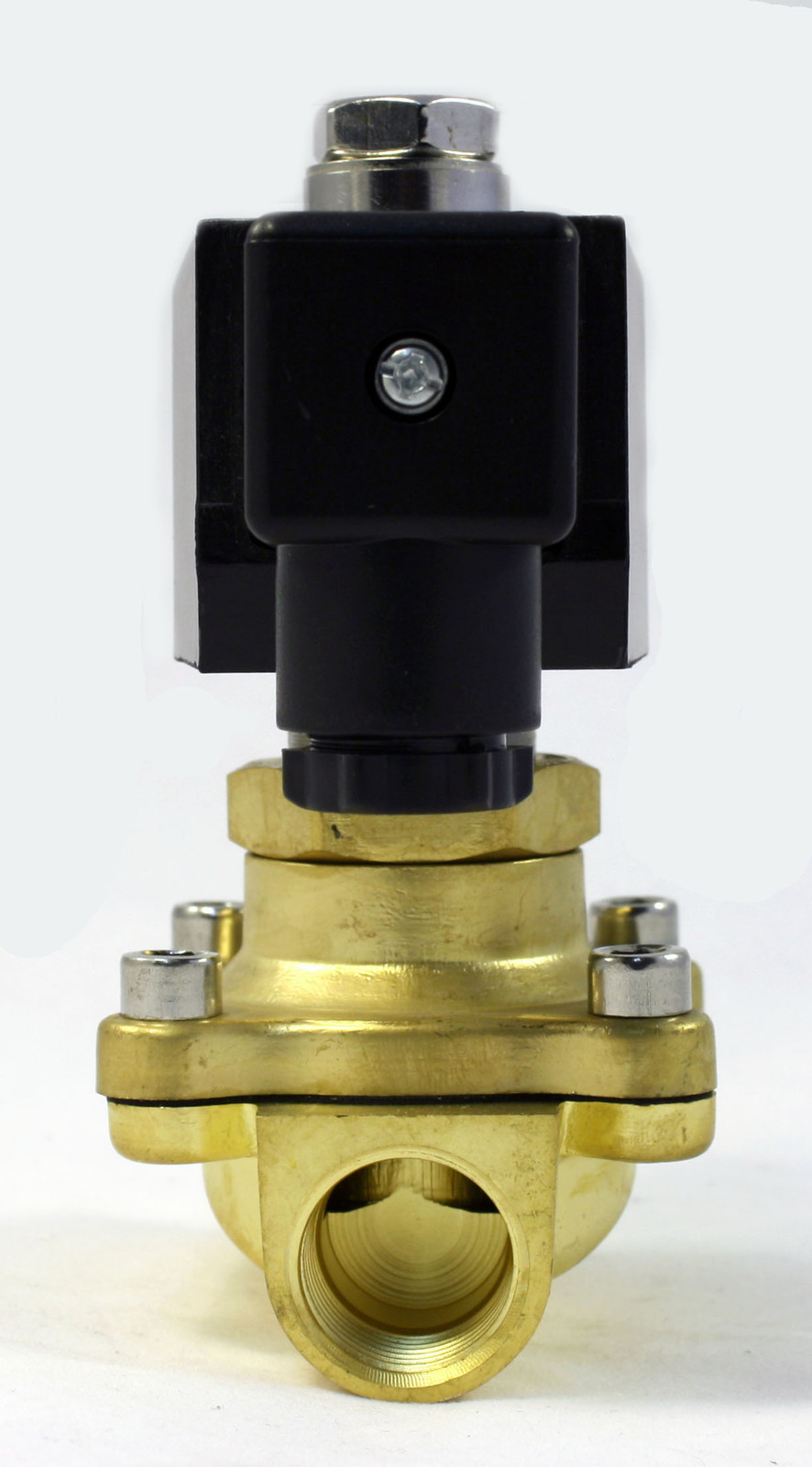

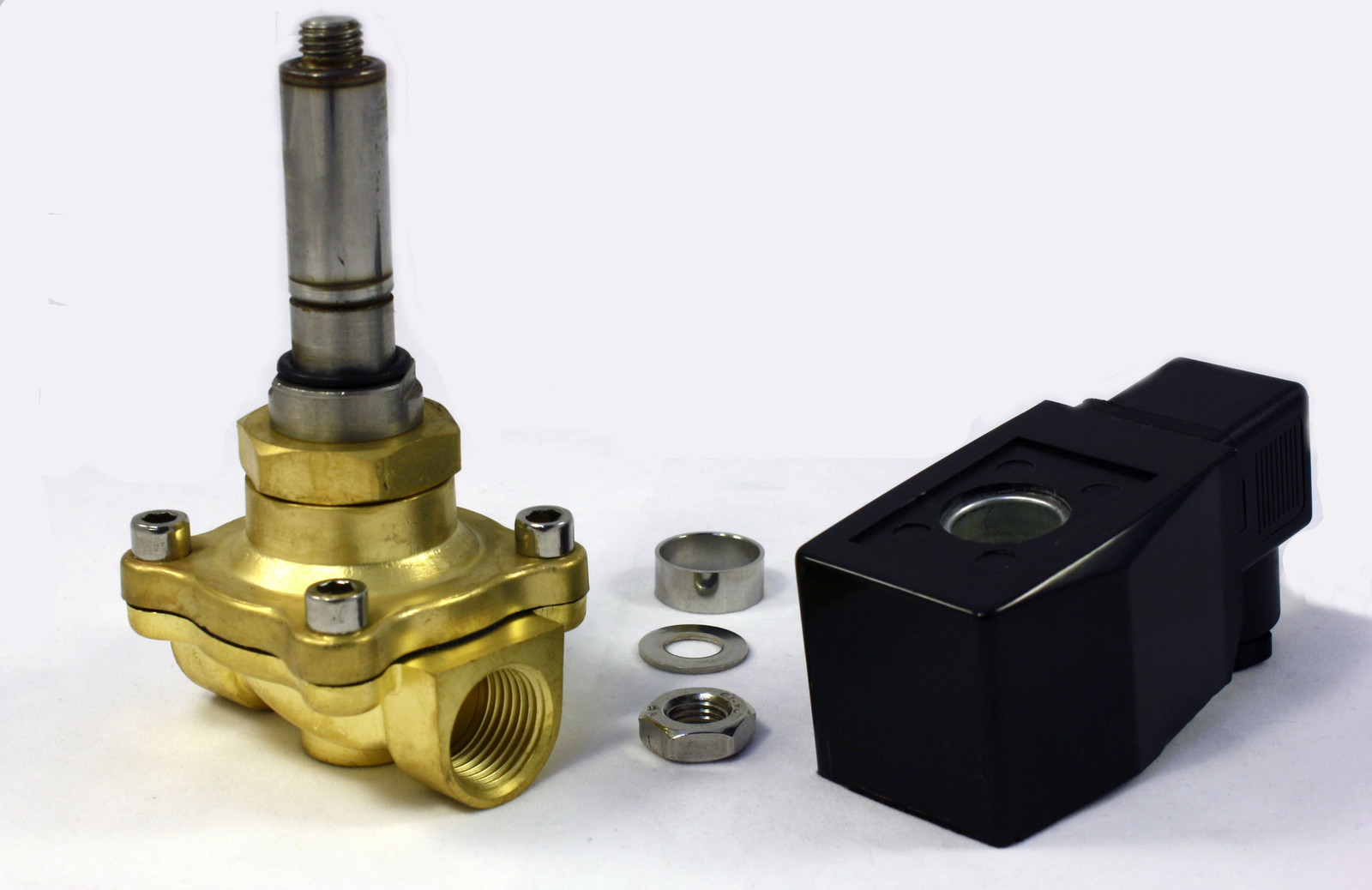

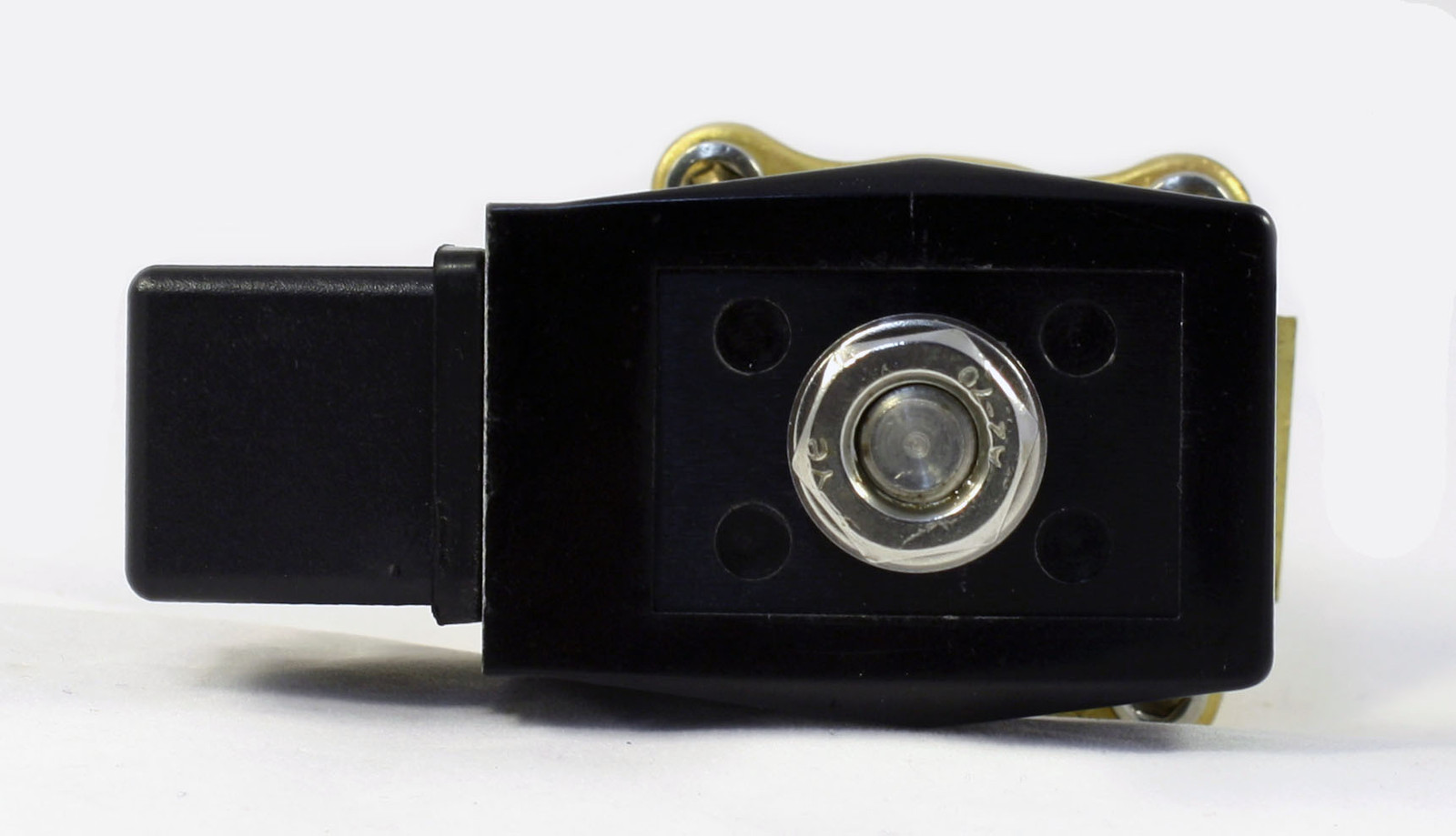

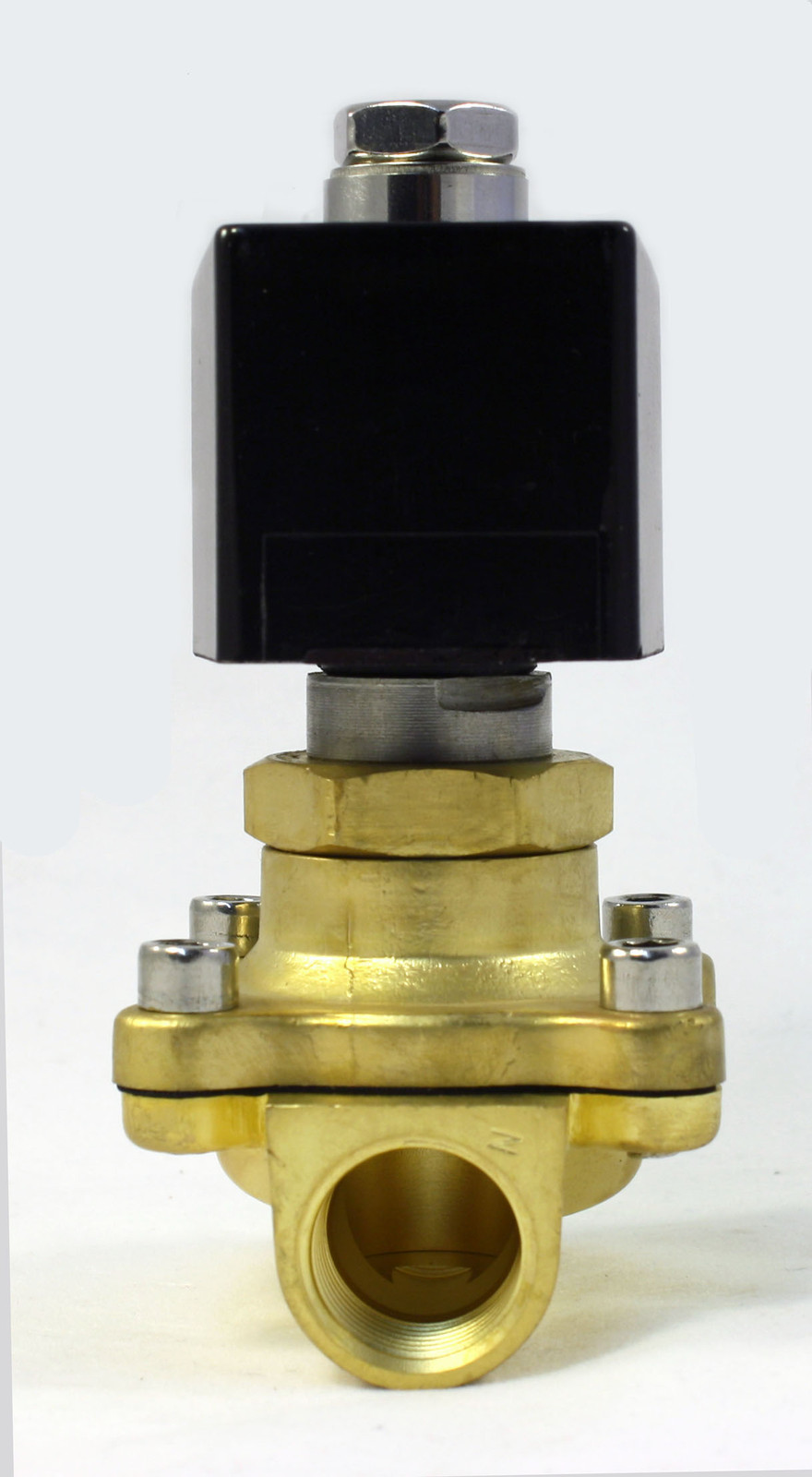

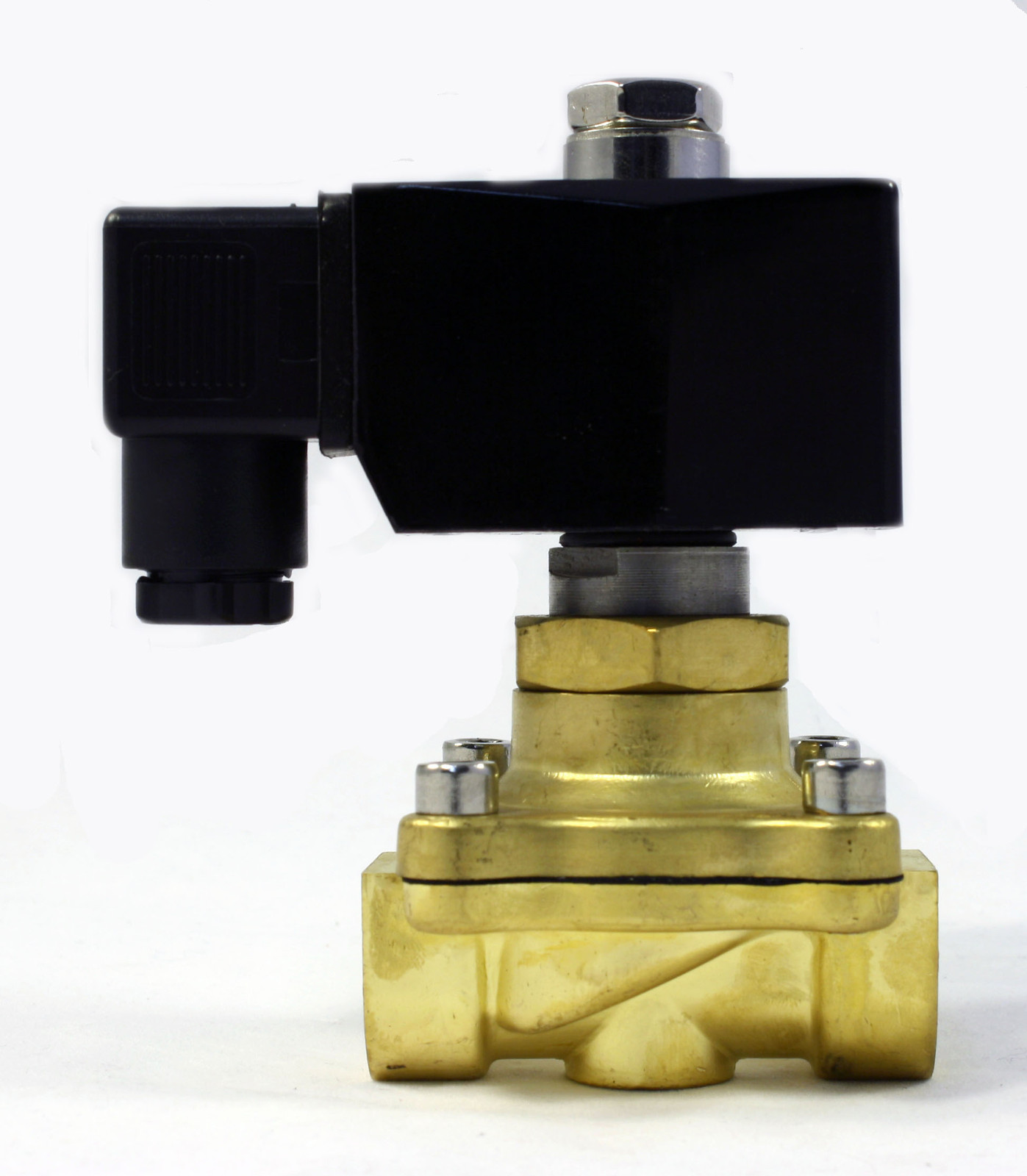

1/2 inch NORMALLY OPEN 24V AC VAC Brass Solenoid Valve NPT ONE-YEAR WARRANTY
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Suitable Media | Air |
| Featured Refinements | 24VAC Solenoid Valve |
| Size | 1/2" |
| Connection Size | 1/2"-NPT |
| Type | Solenoid Valve |
| Shape | Inline |
| Material | Brass |
| Thread | Female |
| Connection | Threaded |
| Operation | Solenoid |
| MPN | Does Not Apply |
| Valve Operation | Solenoid |
| Brand | Ace Crew |

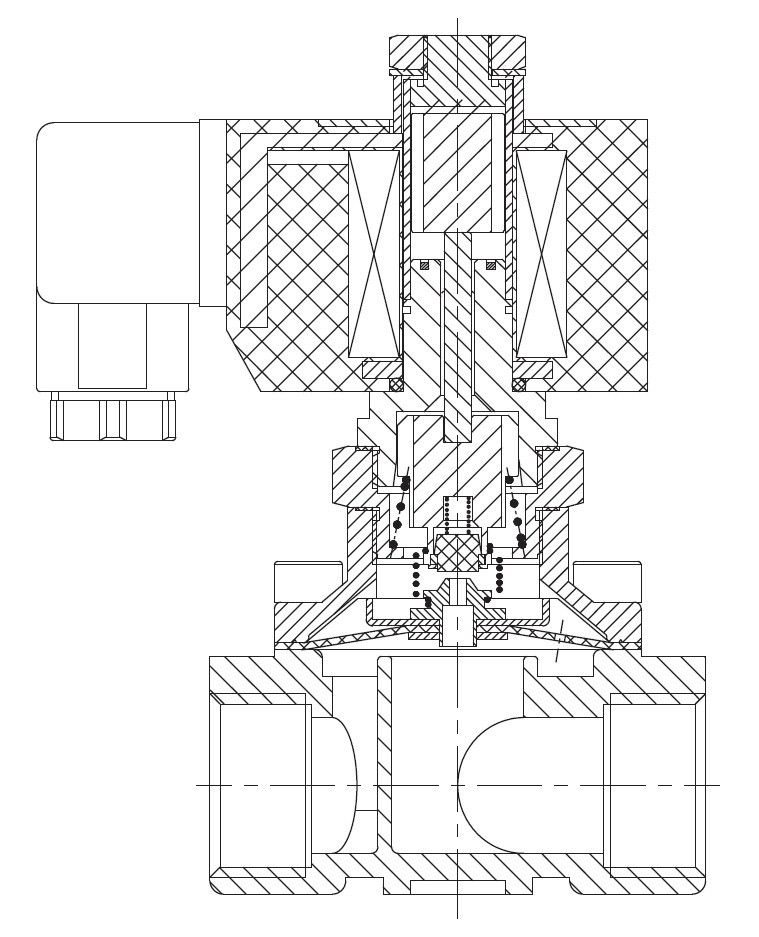

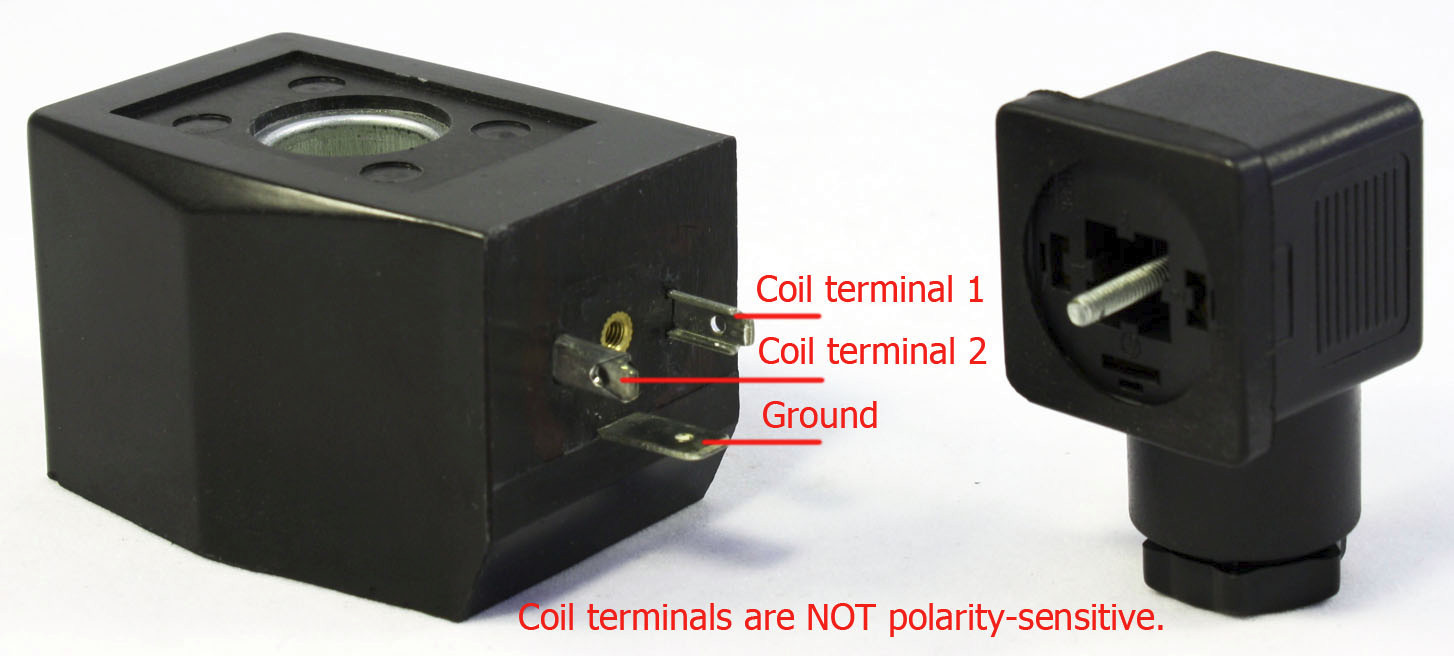

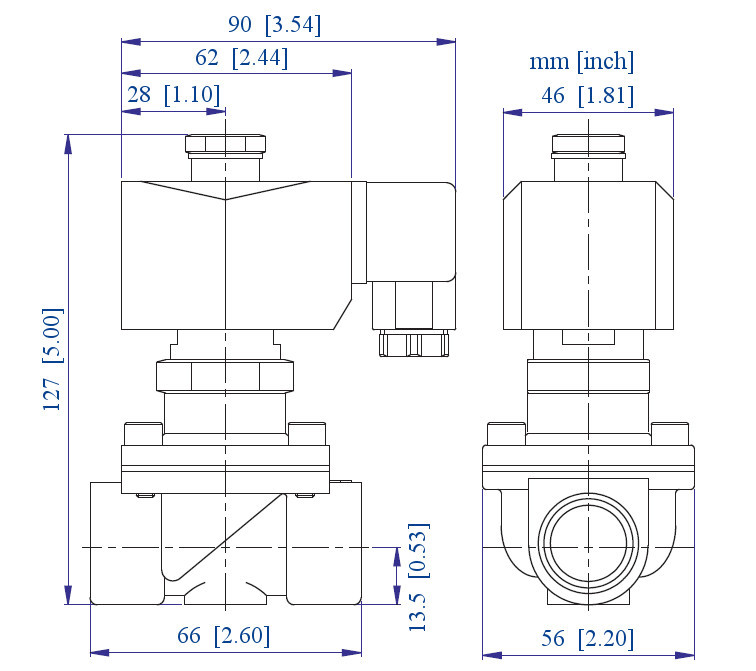

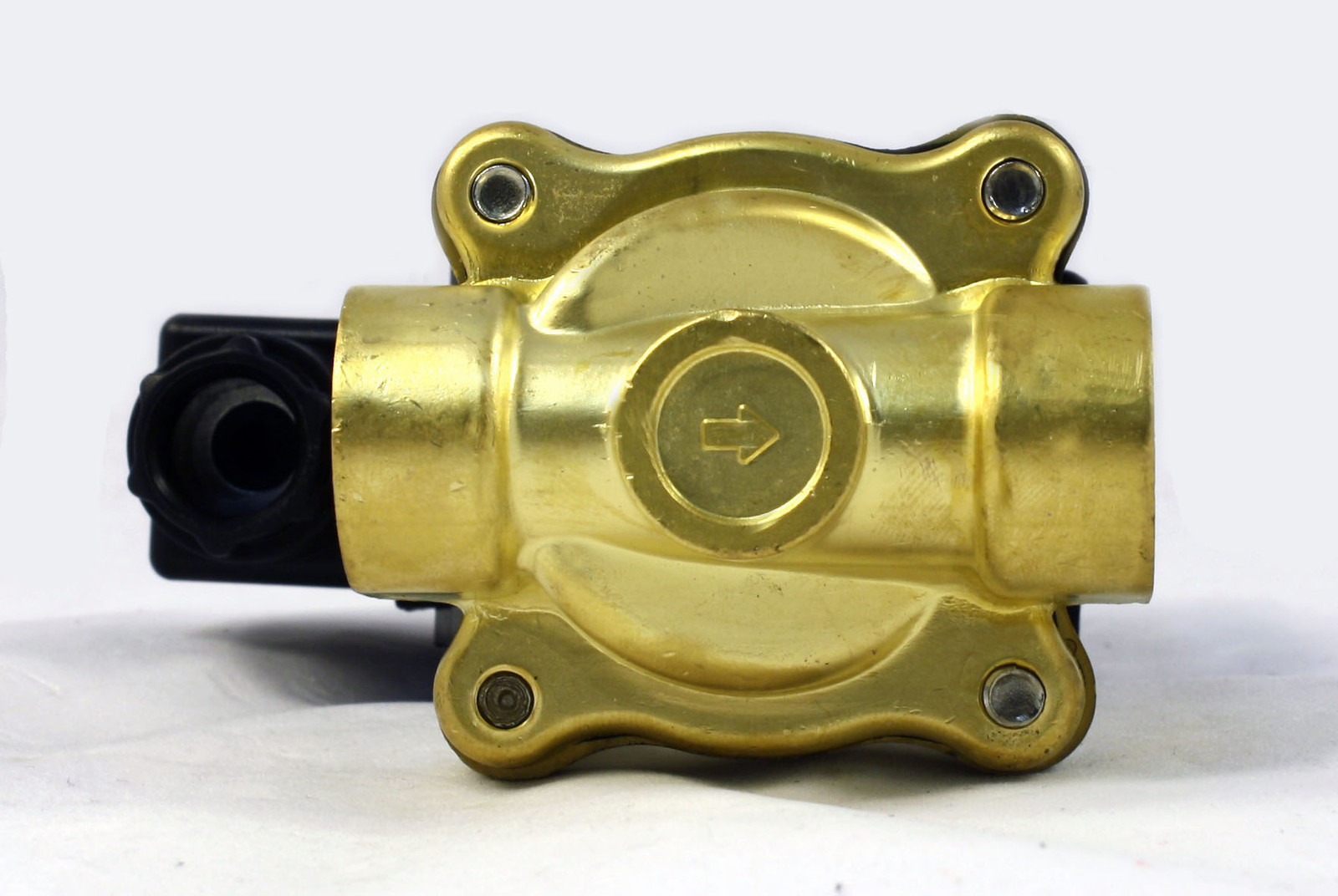

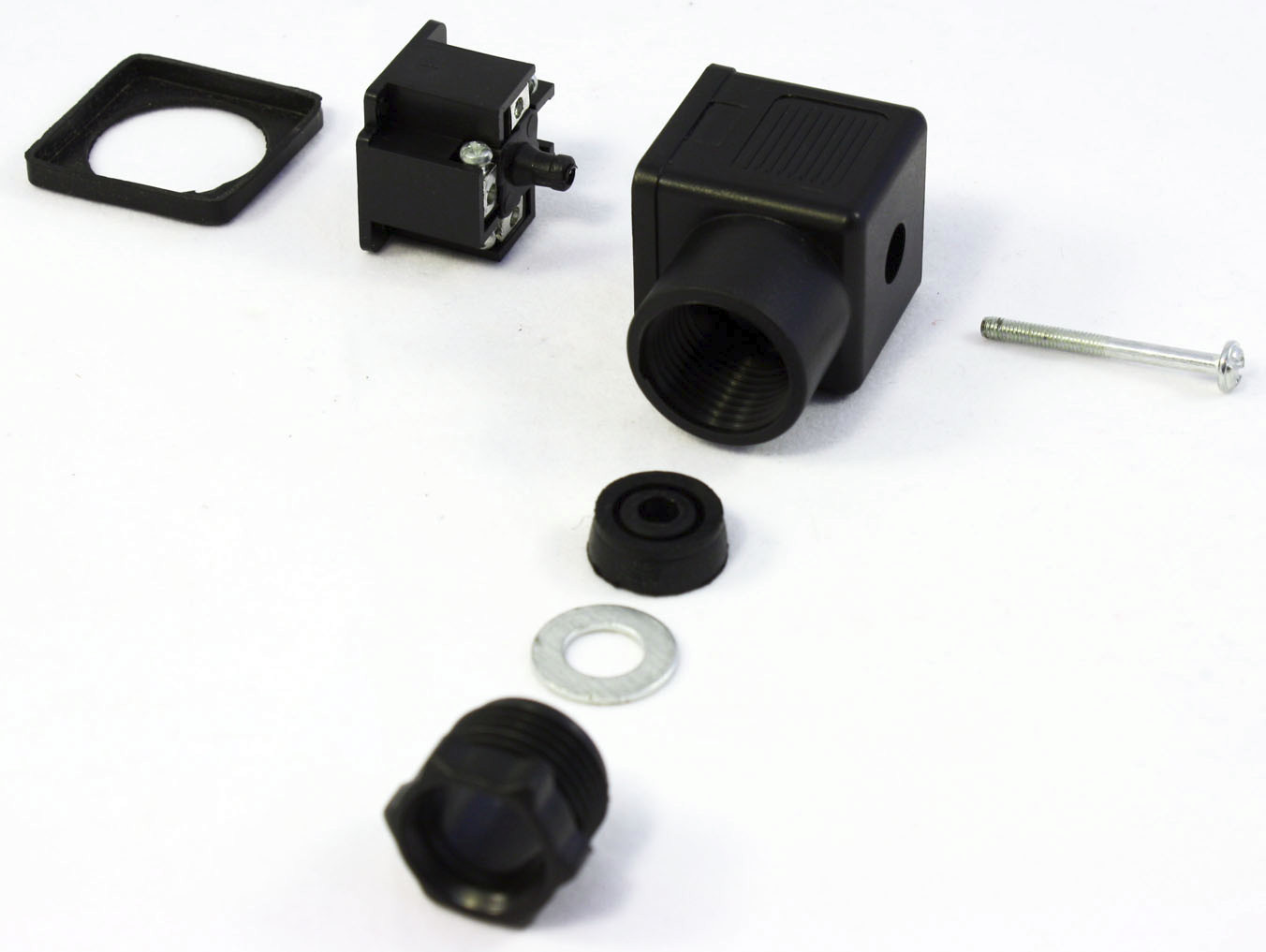

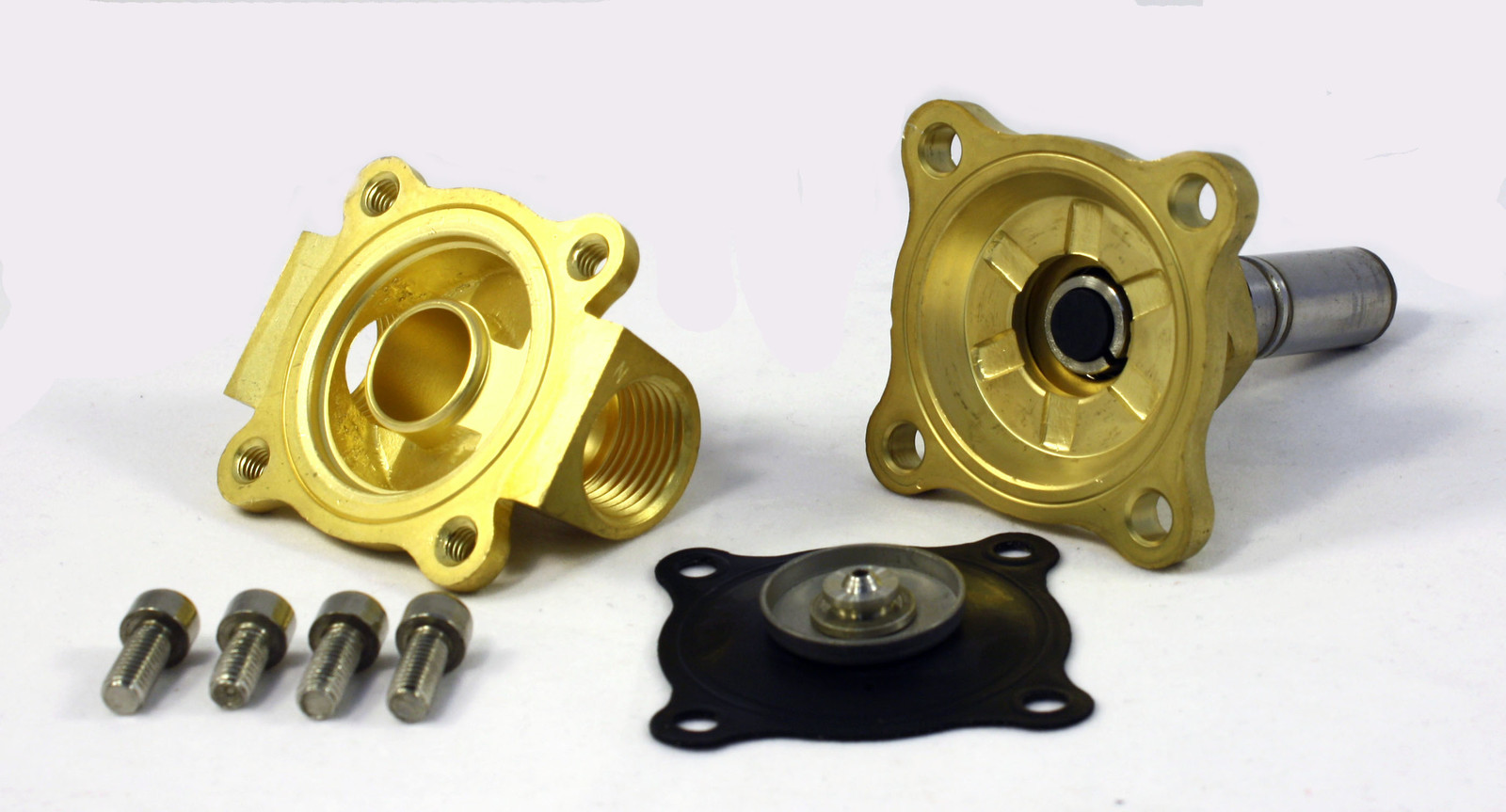

ACE CREW® solenoid valves and accessories 1/2 Inch 24 VAC Normally Open Brass Solenoid Valve Individually tested in factory 30-DAY MONEY BACK • ONE-YEAR REPLACEMENT • FREE SHIPPING For more products, please visit our eBay Store Highlight Body Material Forged high-quality solid brass Operation Mode N/O (normally open) Pipe Size 1/2" NPT Voltage 24 VAC Diaphragm/Seal Material NBR Applications Industrial grade highly reliable Mechanical Operation Type 2-way 2-position direct lift diaphragm Operation Mode Normally open (valve closes when coil is energized) Pipe Size 1/2" NPT female (14 TPI) Orifice Diameter 19/32" (15 mm) Flow Rate Cv = 4.5 Flow Direction Unidirectional (follow the arrow on valve body) Media Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline) Operating Pressure Differential 0-145 psi (0-1 MPa, gravity-feed capable) Operating Temperature 15-125 °F (-10~50 °C) Media Temperature 15-180 °F (-10~80 °C) Dimensions See product diagrams Weight 2 lb 0 oz Electrical Voltage 24 VAC Current 1 Amp Wattage 24 Watt Coil Copper wire in resin-molded casing Connectors DIN Material Body Brass Insert Stainless steel (plunger, spring, etc.) Seal NBR (aka Buna-N, Perbunan, and nitrile rubber) Diaphragm NBR (fiber-reinforced) Additional Info Available Coil Voltages 12VDC, 24VDC, 24VAC, 110/120VAC, and 220/240VAC Available Port Sizes 1/4", 3/8", 1/2", 3/4", and 1" Available Types of Operation Normally Closed and Normally Open Available Valve Type Ball Valve (Motorized) Replacement/Spare Parts Coil VALUE DIRECT Team of Professionals High-Quality Products Competitive Pricing About Us Over 40 years of experience in fluid control OEM supplier to major first-tier valve brands ISO-9001 ISO-14001 SA8000 certified
