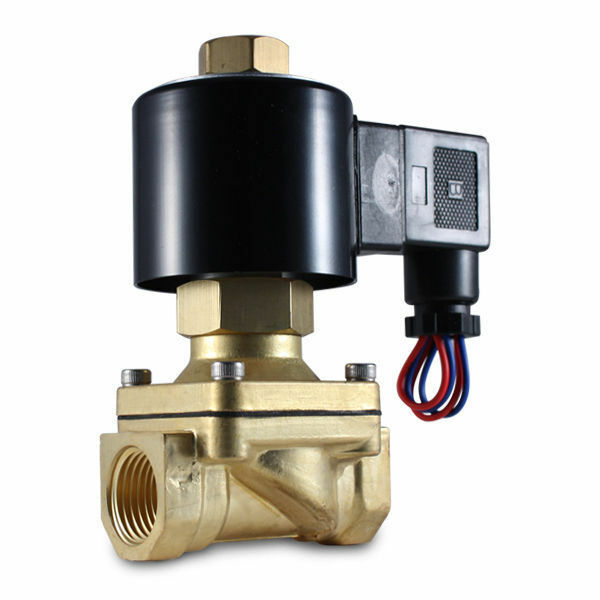

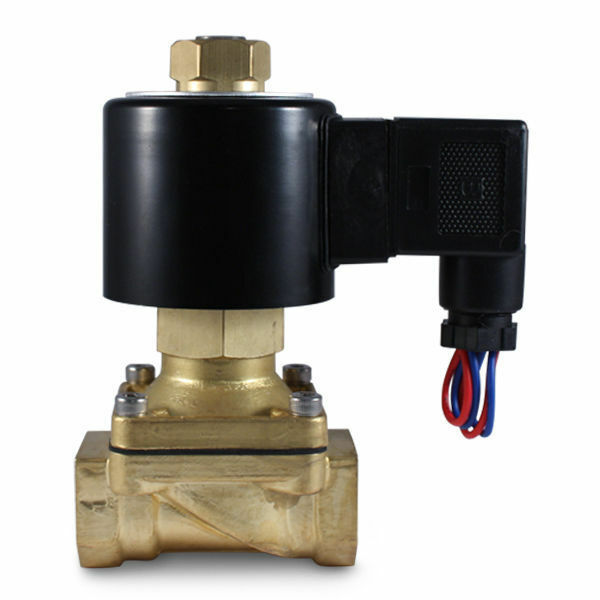

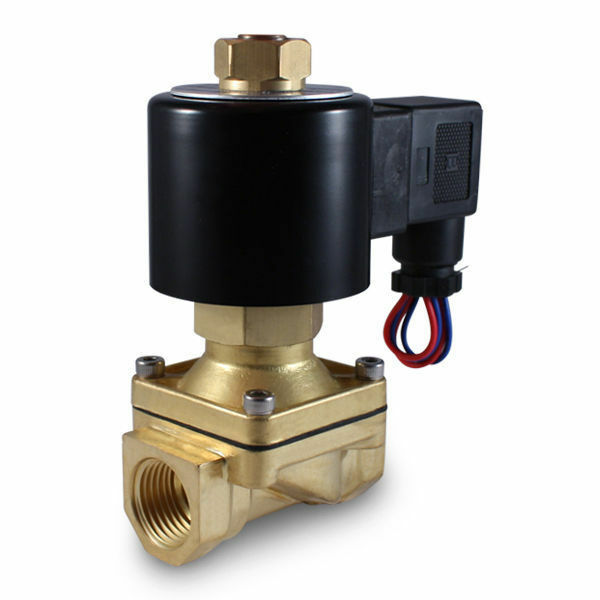

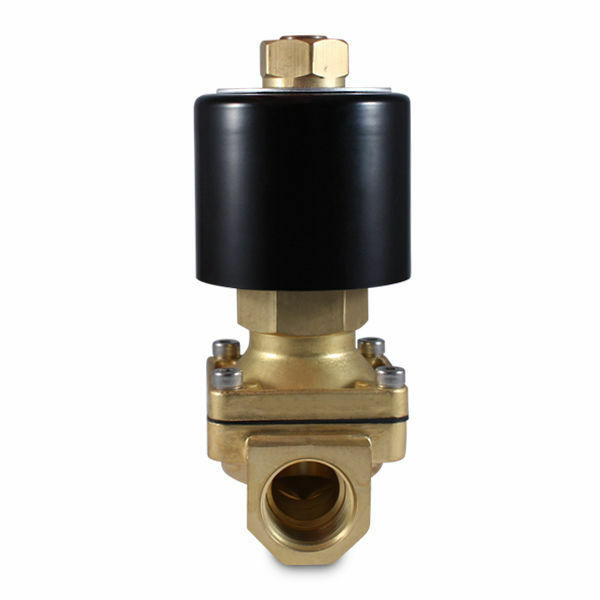

1/2″ 110V AC NORMALLY OPEN Electric Brass Solenoid Valve 110 120 Volts VAC, N/O
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | NOB12 |
| Operation Type: | Normally Open |
| Port Size: | 1/2'' Inch NPT |
| Temp Range | 15 – 250F |
| Voltage | 110 / 120 Volt AC |
Untitled Document Normally Open – Closes when power is applied Gravity Feed Capable – No Minimum Pressure 110 Volt AC Solenoid Valve Function Normally Open Connection 1/2” Inch FNPT Temperature Range 15 – 250F Pressure Range 0 – 90 PSI Power Requirements 28VA - 28 Watts *Suitable Media Water – Air - Fuel Specifications Body Material Brass Components Stainless Steel Seal Material Viton® Diaphragm Operation Type Semi-Direct Lift Valve Coil Connection DIN Connection Orifice Size 15 mm Cv Value 4.8 *Duty Cycle 100% but not indefinitely Weight 1 lbs 9 oz Height 4.50" Length 2.36" port to port Width 1.95" Connection – No Polarity, + and – can be interchanged. The valve timing is uncertain, however it is fast acting. Less than one second. Vacuum function is possible with the valve installed in the reverse position. Mounting position is preferably coil up but can be mounted in any position. *Consult a chemical compatibility expert for correct seal and valve body material choice. *Duty Cycle – Like most solenoid valves the coil will become hot to the touch when left on continuously. The temperature will stabilize without failure. Leaving the valve powered on for long periods of time will reduce the life of the coil. Whenever possible the valve should be installed in a well ventilated are to increase the life of the coil. The valve is not intended to be left energized as a fail-safe for power outages. In this case please contact us for other options. A pre-filter is always recommended to keep the diaphragm free from debris and the valve functioning properly. Listing and template services provided by inkFrog
