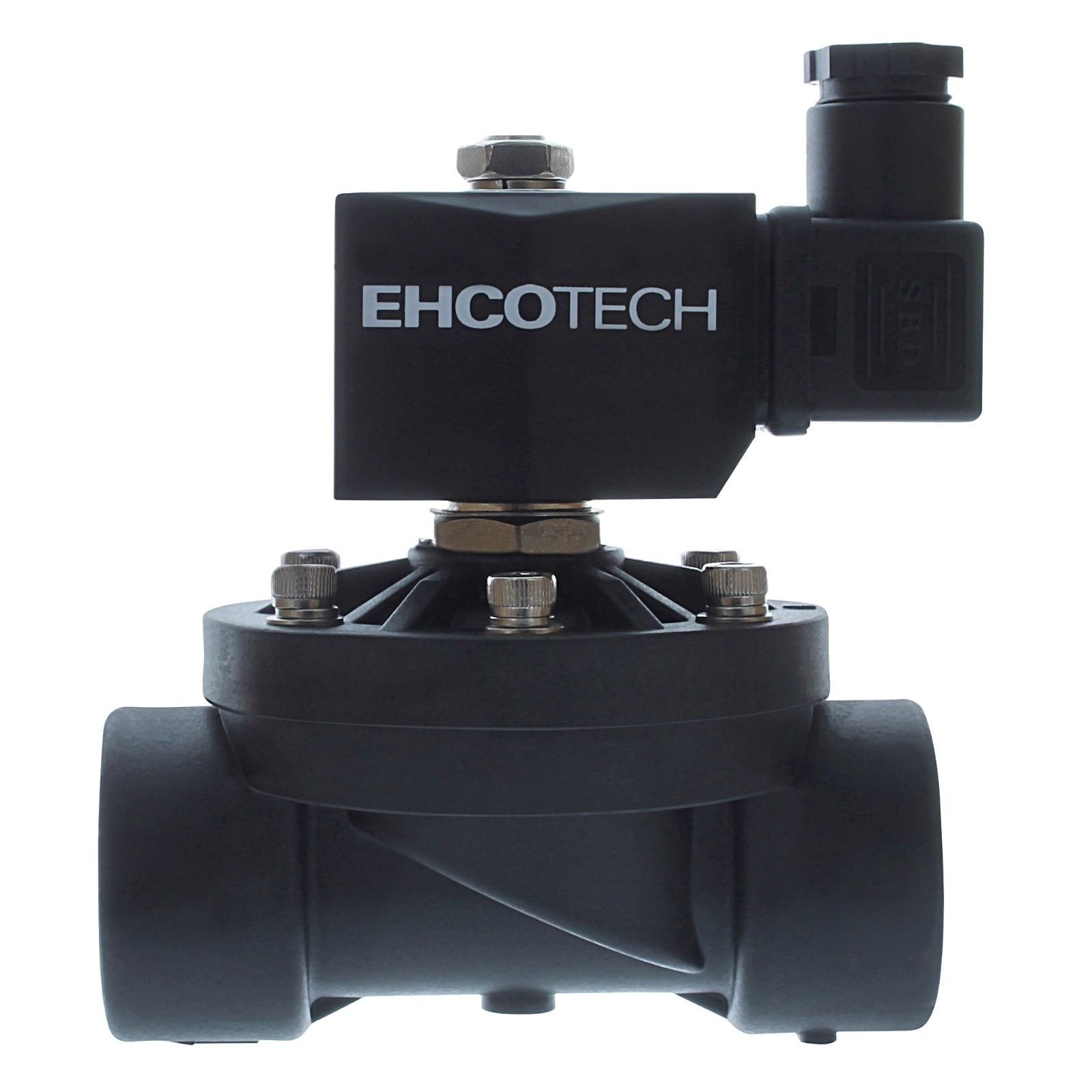

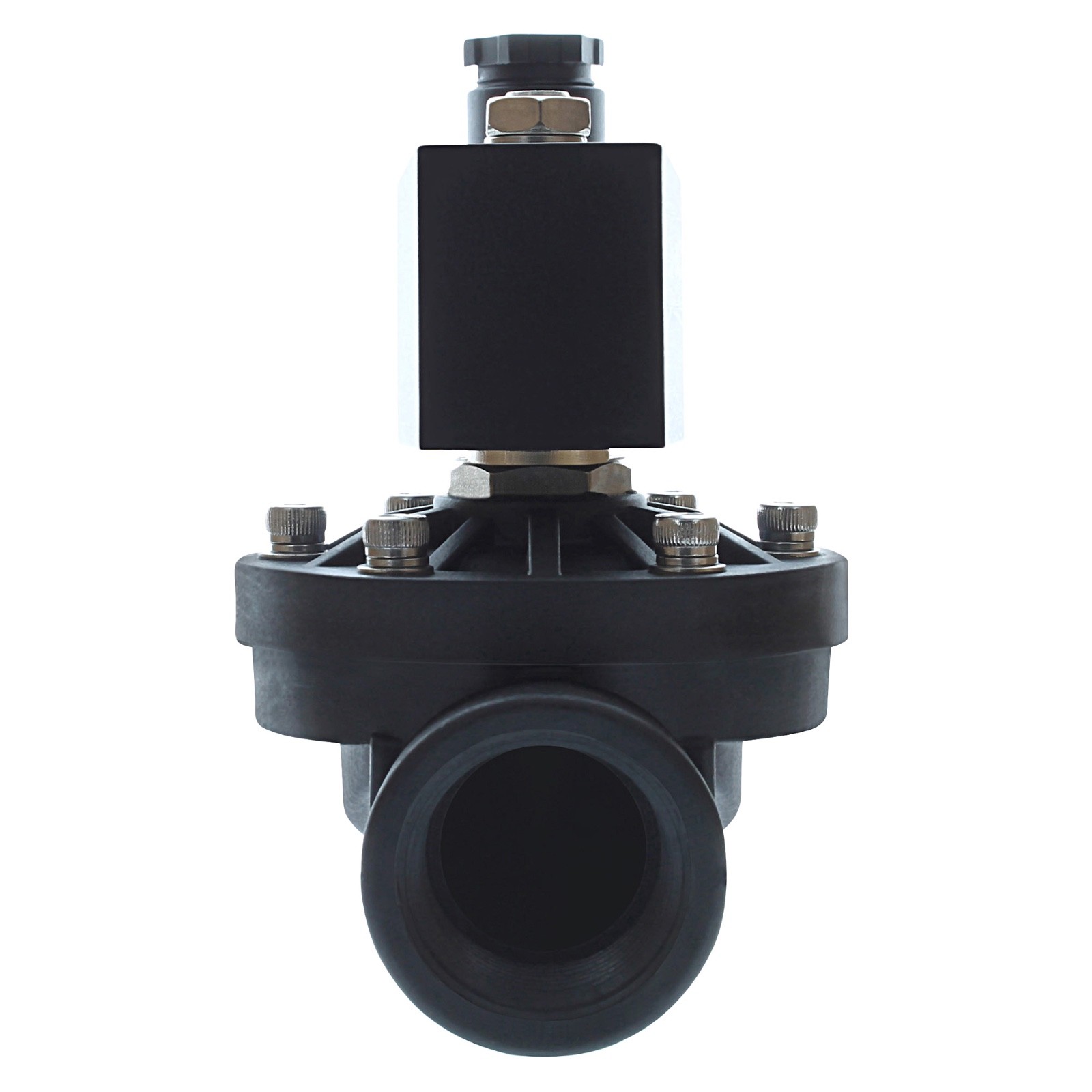

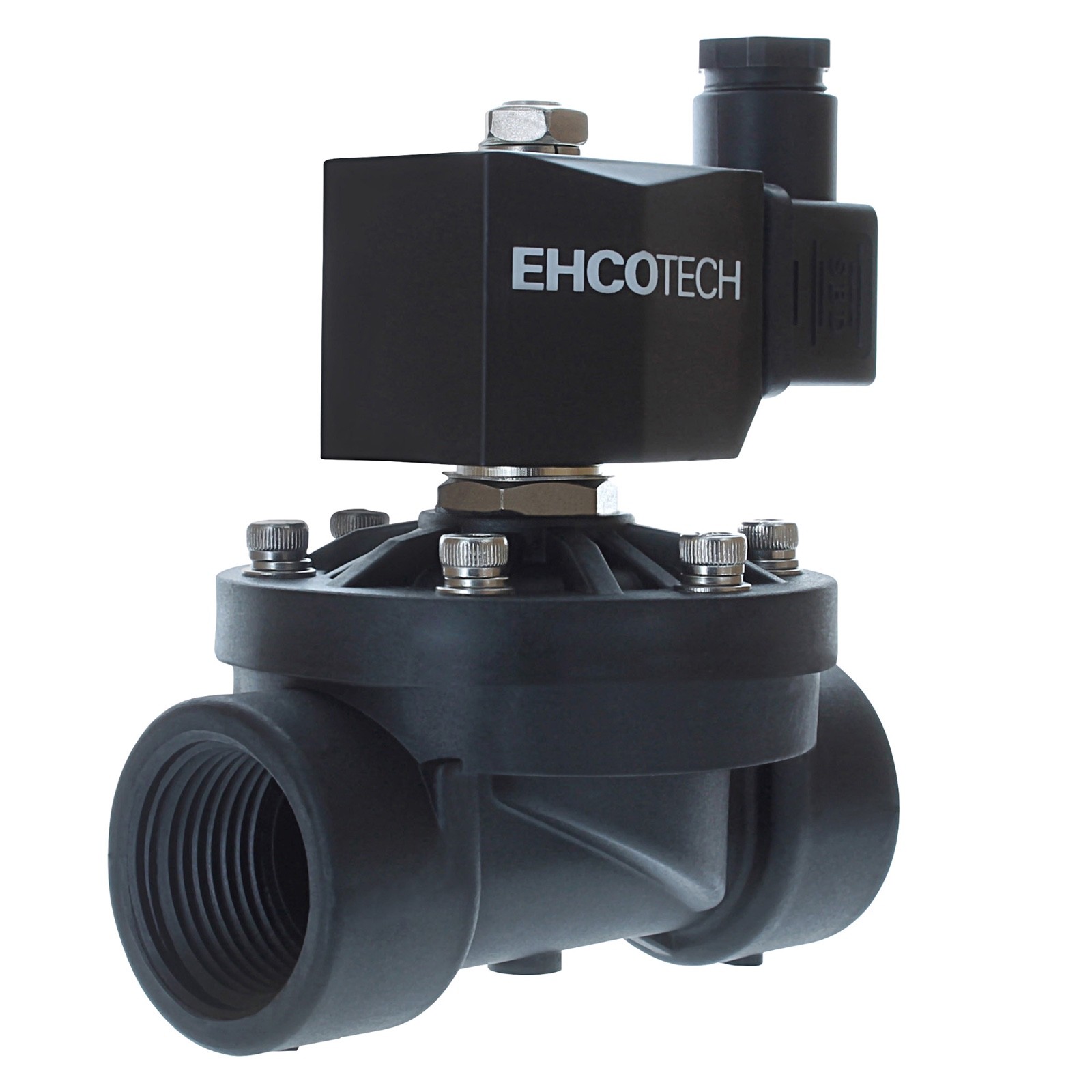

1″ 110V/120V AC Solenoid Valve Plastic Potable Drinking Water Air Electric N21E
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | EHCOTECH |
| MPN | N21E-1-CC-120VAC-ES |
| Inlet/Outlet Port Size | 1" NPT, 1 inch |
| Pressure Rating | 0 to 100 psi, Vacuum |
| Max Media Temp | 175 F / 80 C |
| Type | Normally Closed, 2-way |
N21E-1/2-CC-12VDC-ES Valves4projects — supplying high quality valves since 2004. Over 50,000 valve orders shipped. EHCOTECH N21E-1-CC-120VAC-ES SOLENOID VALVE 1" NPT | 110/115/120-Volt AC EHCO-Smart Coil | BASF Ultramid® PA 66 Body / EPDM Diaphragm | Normally Closed | 0 - 100 psi EHCOTECH N21-Series solenoid valves are an affortable but amazingly robust and dependable choice for a variety of water, air, and other general purpose liquid applications. Media being controlled must be compatible with Nylon 66, EPDM rubber, and Stainless Steel (300 and 400 series). The N21-series valves are semi-direct acting, making them suitable for many low differential pressure applications where traditional, pilot operated, solenoid valves may not perform reliably. The N21-Series uses an EHCO-Smart coil with an internal “hit-and-hold” circuitry. The EHCO-Smart coil drastically drops the “hold” voltage and amperage to maintain a lower coil temperature for long coil life. General 2-way, Normally Closed (energize to open, de-energize to close), unidirectional Semi-Direct Acting valve (no minimum pressure requirement and great low pressure fow caracteristics) Fast acting Port / Orifice Size 1" NPT (female) inlet / outlet ports Outer thread diameter / TPI (threads per inch): 1.050 inches / 14 TPI Internal orifice diameter: 1" or 25.0 mm Cv value: 12 Pressure and Temperature 0 to 100 psi or Vacuum Max media temp: 175° F (80° C) Suitable Media Water (including potable water) Air Inert Gases Other media compatible with valve materials Coil / Electrical 110/115/120-Volt AC In-rush power: 22VA (Volt-Amps) or 22 WattsContinuous power: 6VA or 6 Watts DIN Connector coil (DIN 43650) Allows installer to run their own wires or cable into the included connector Screw-down terminals inside the connector for wire connections DIN connector housing can be pointed up, down, left, or right Coil IP rating: 65 NOTE: We also carry this valve in 12VDC, 24VDC, 110/115/120VAC and 220/240VAC voltages in our eBay store Valve Materials Valve body: BASF Ultramid® PA 66 (Nylon) Plunger and plunger guide tube: Stainless Steel (300 and 400 series) Diaphragm: EPDM Dimensions Height: 4.25" Width: 2-5/8" Length: 3" Store Policies If you are not completely satisfied, please contact us and we will make it right! 12 month warranty Copyright © Ehcotech International Inc. 2017
