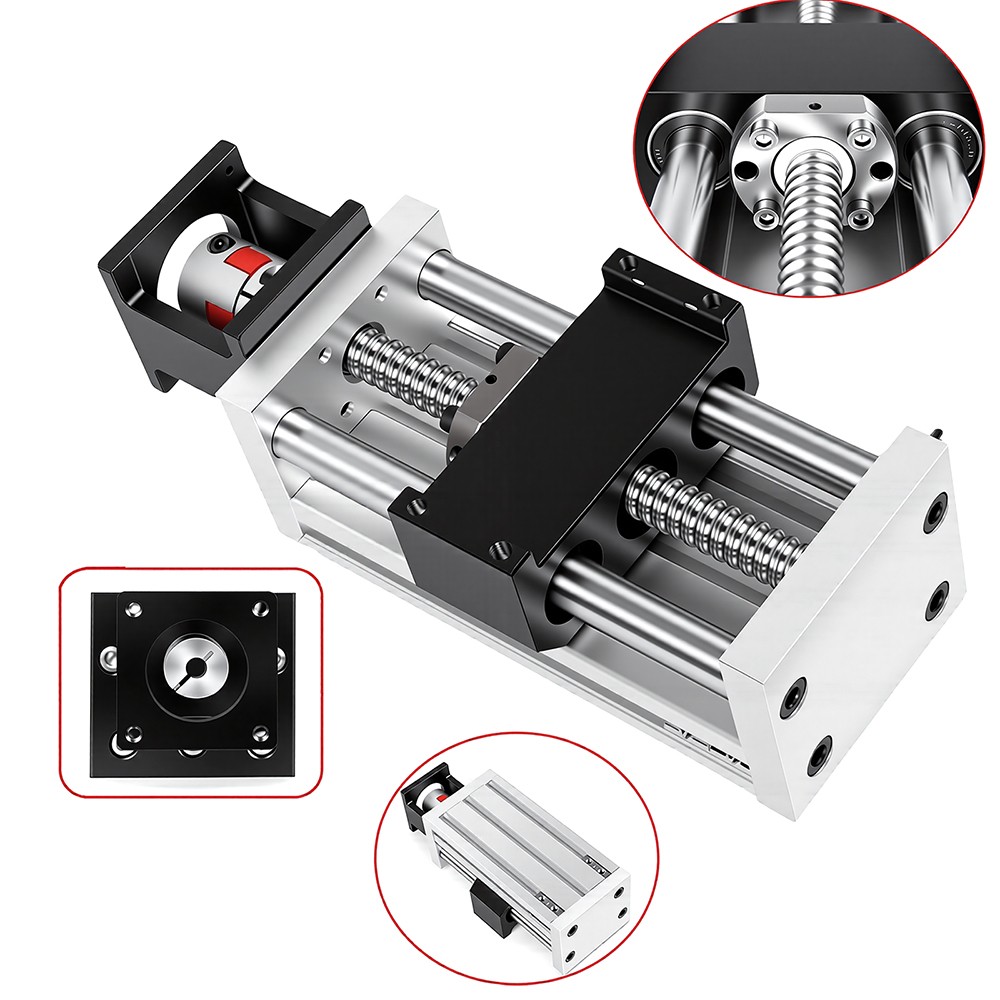

0.05mm Precision Ballscrew Slide Table 57 Motor Kit,90mm Wide Linear Module CNC
USD 153.83 USD

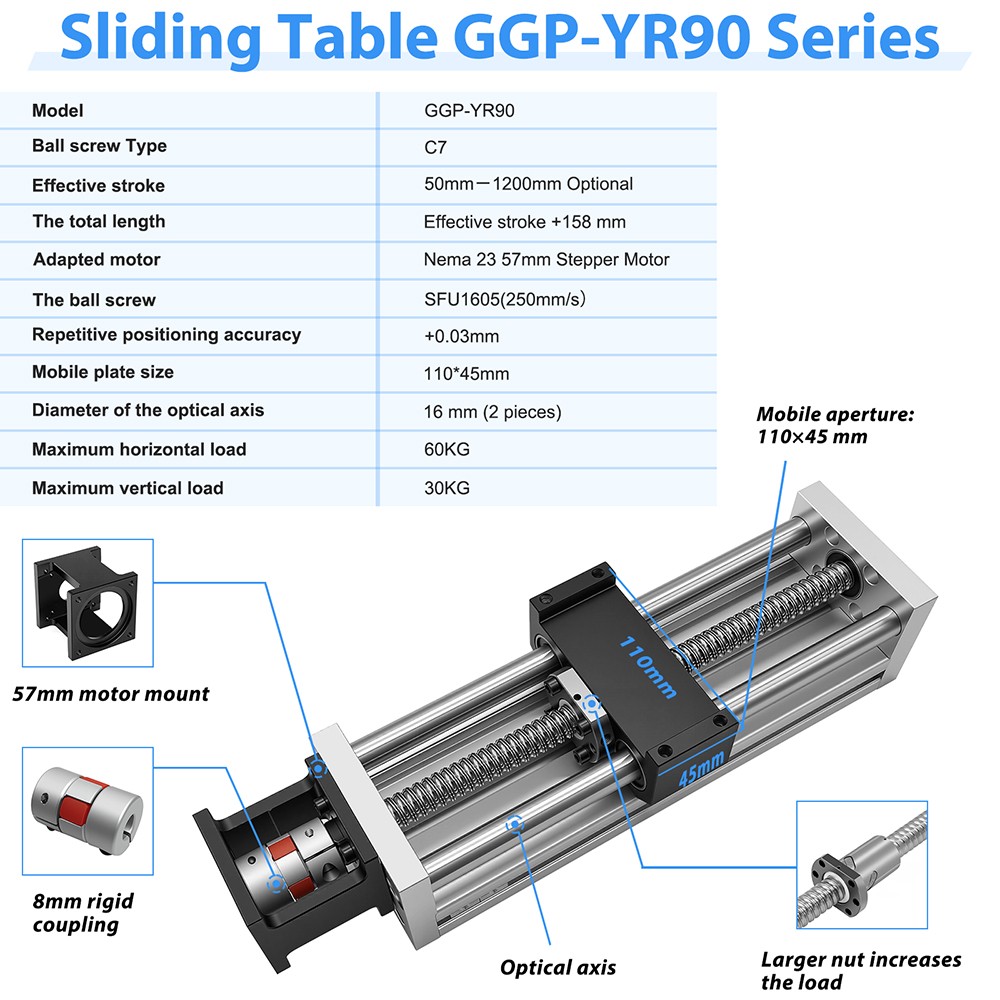

Specifications
| Stroke Length | 100mm (4 in) |
| Ballscrew Type | SFU1605 |
| Vertical Load | Max 30KG(66.14lbs) |
| Brand | Toseastars |
| Mobile Panel Size | 110mm*45mm |
| Base Plate Material | Aluminium alloy |
| Voltage | 24V |

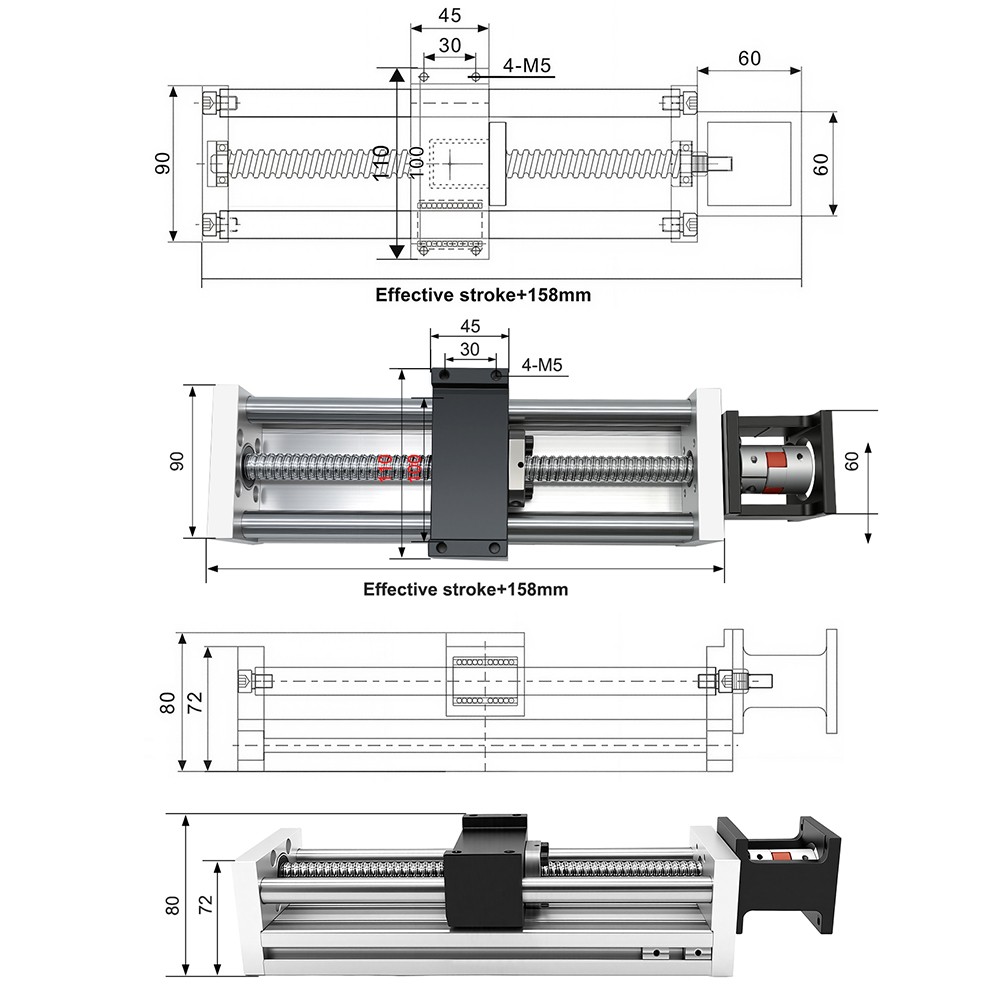

| Width | 90mm |
| Model | GGP-YR90 |
| Horizontal Load | Max 60KG (132.28lbs) |
| Ballscrew Accuracy | C7 level |
| Ballscrew Repeat Positioning Accuracy | 0.02-0.03mm |
| Rated Load | 110.23lbs |

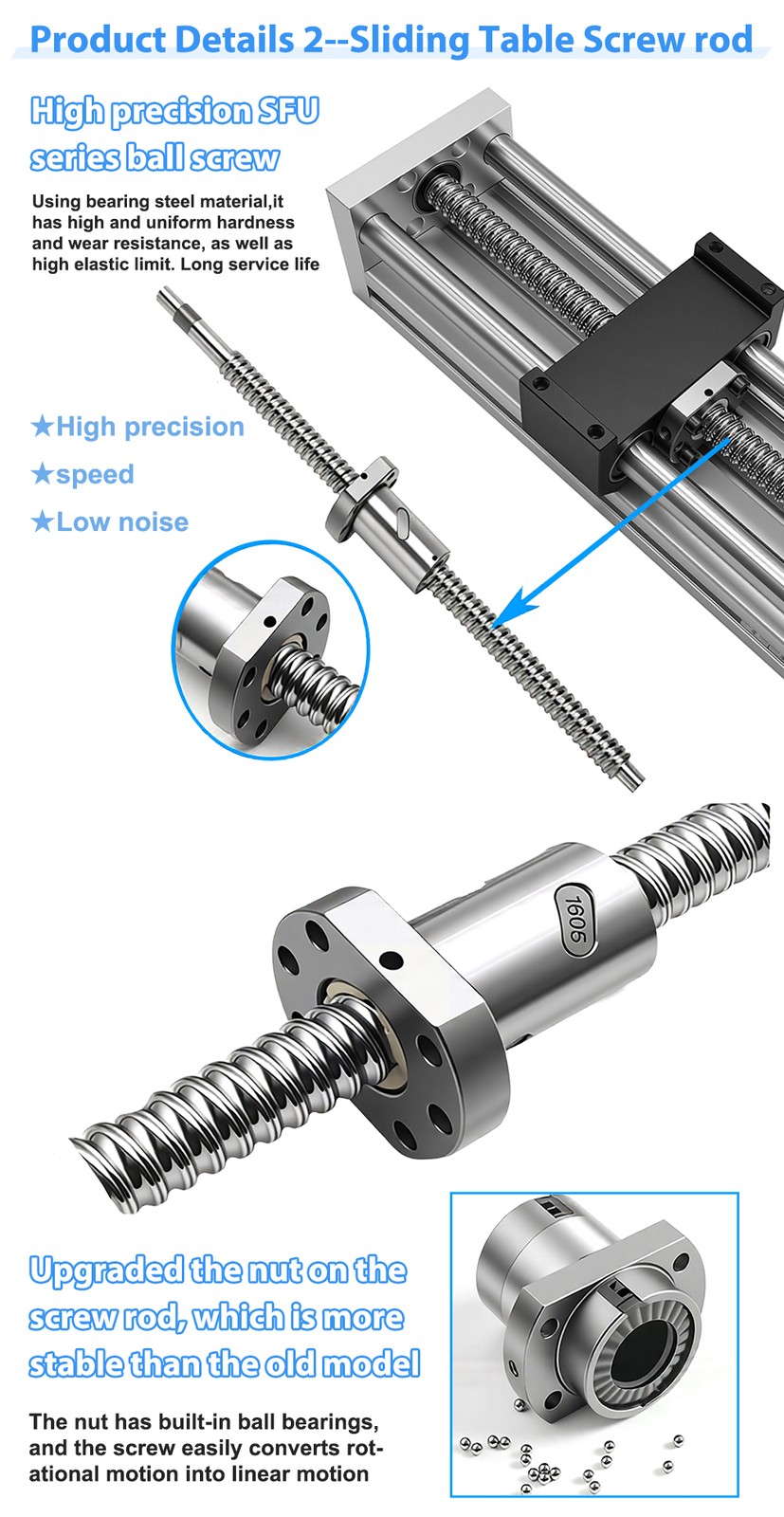

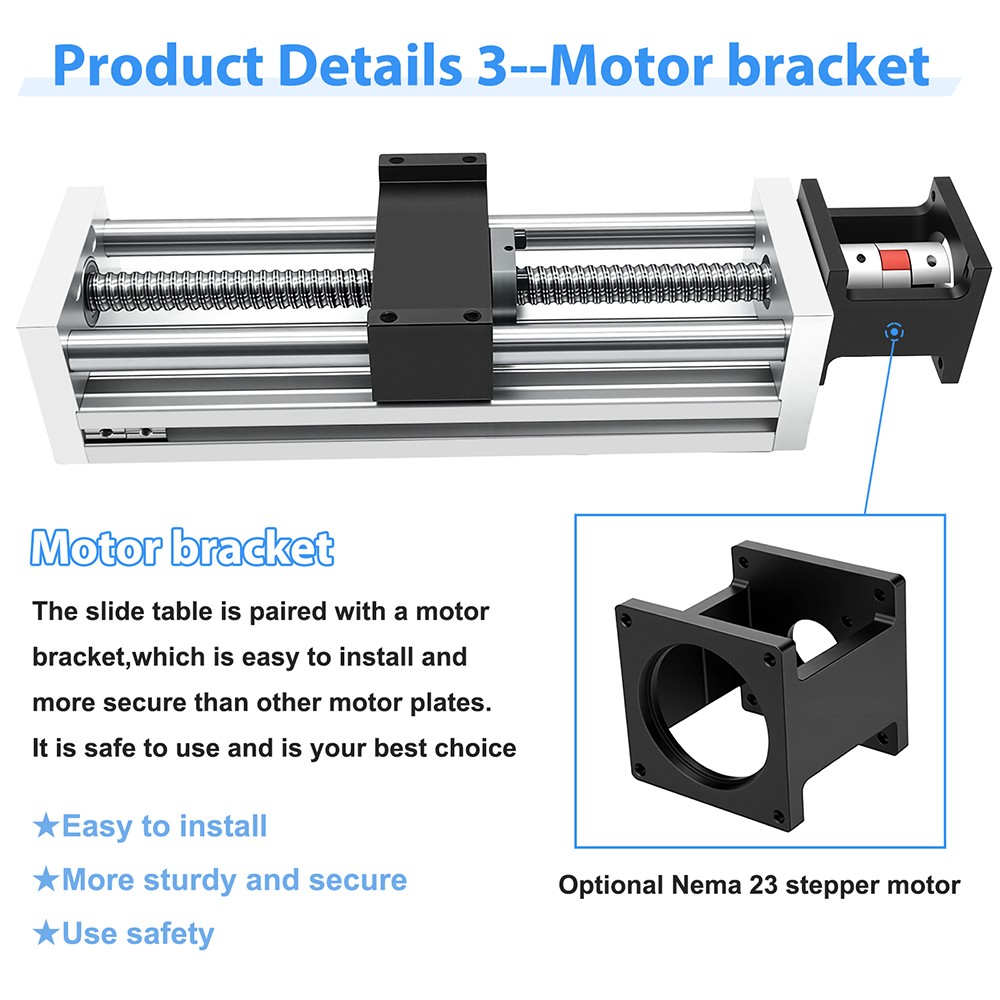

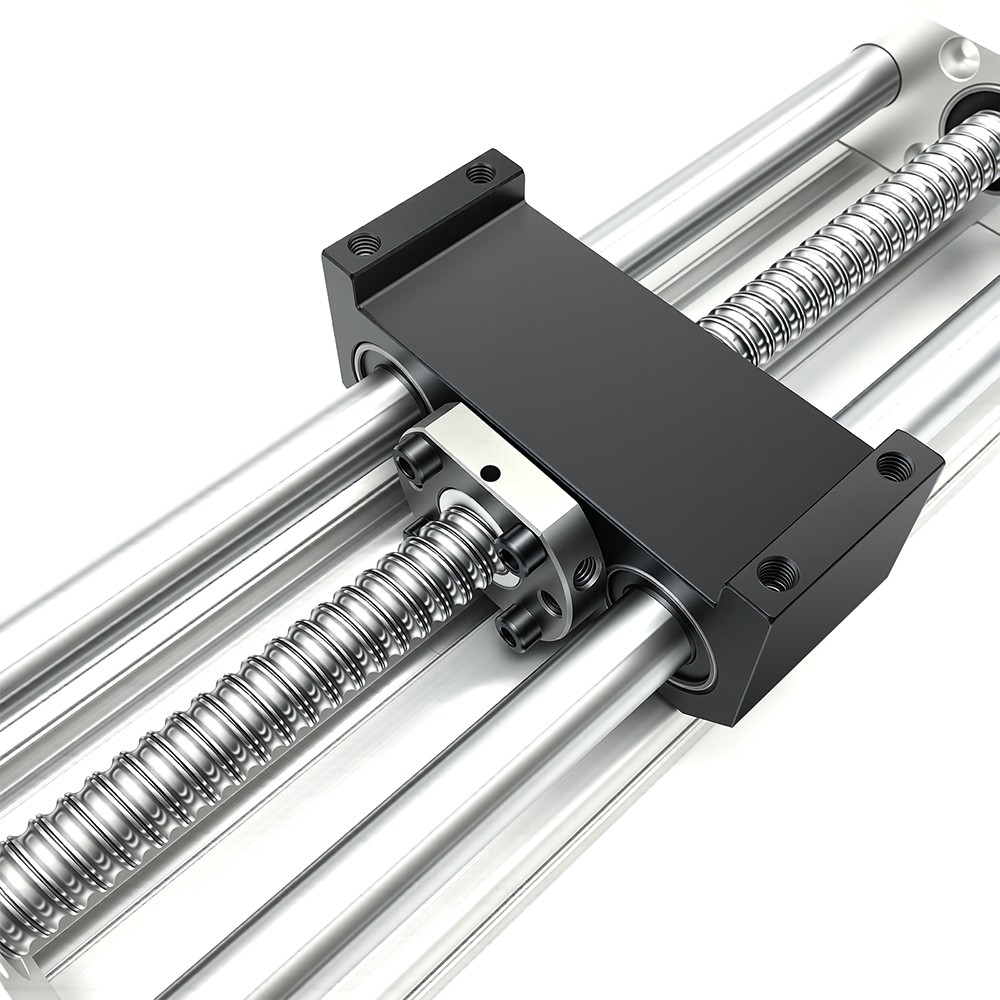

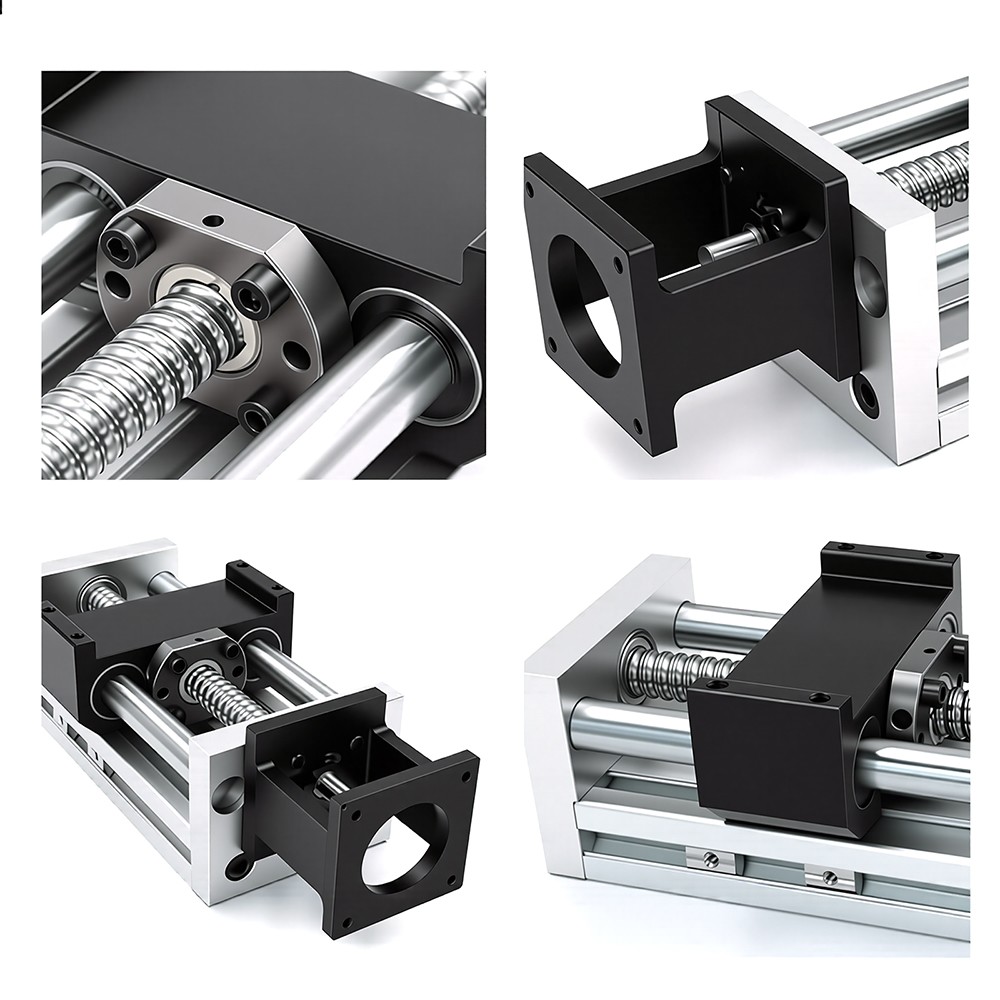

✅Industrial-Grade Build: Thickened Carbon Steel & Bearing Steel –High rigidity, anti-deformation design for heavy-duty use. Upgraded Components: Reinforced nut, wear-resistant plummer coupling, and quadratic motor mount for zero wobble. ✅ High-Precision Motion: SFU1605 Ballscrew (C7 Accuracy) –±0.03mm repeatability and 5mm pitch for smooth, reliable positioning. Dual 12mm Linear Shafts –Ensure stable movement under max 60KG horizontal or 30KG vertical loads. ✅ Plug-and-Play Design: Pre-Assembled Aluminum Base–Reduces setup time; compatible with CNC routers, laser cutter.
Related Items

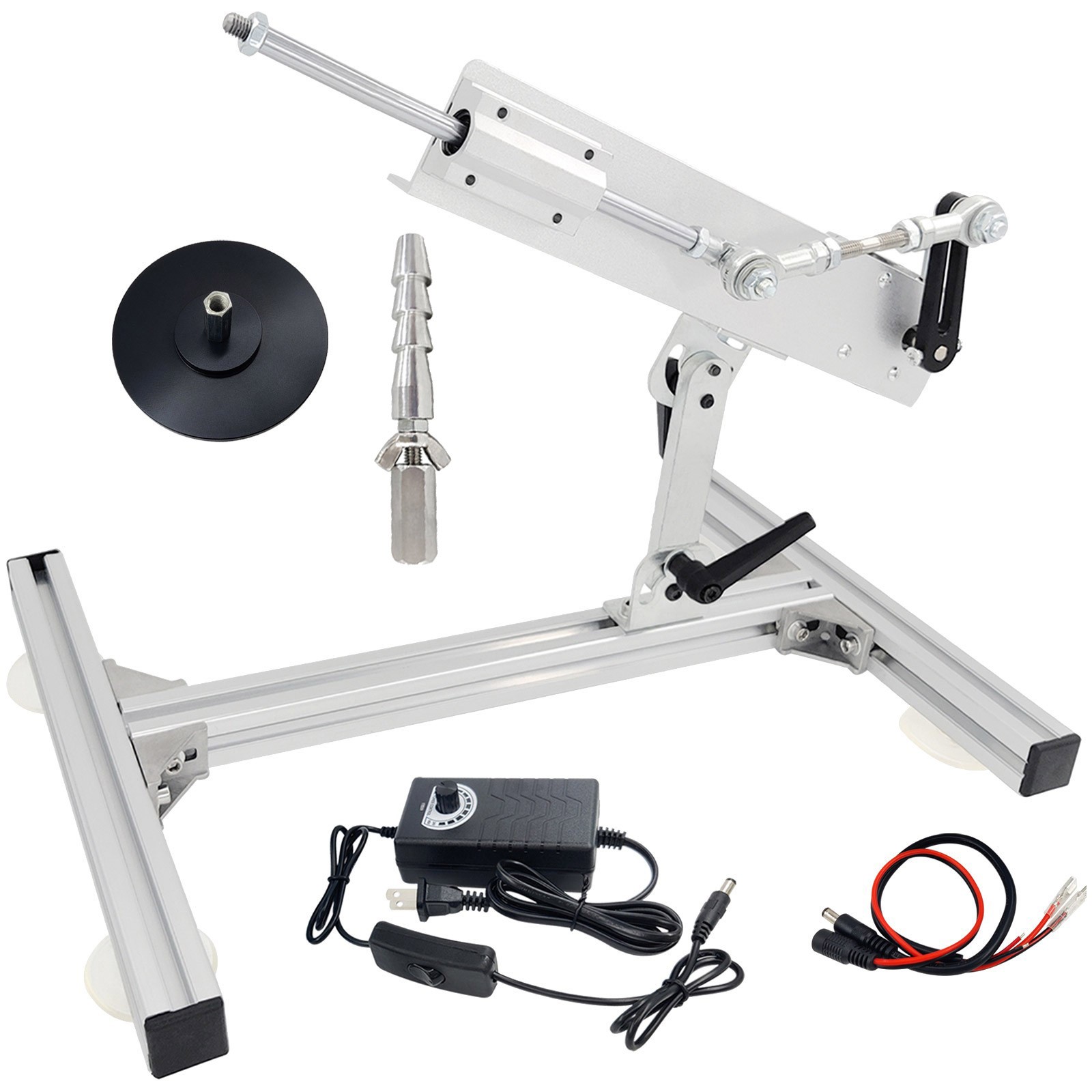

Reciprocating Motor Linear Actuator 24V 30~150mm Variable Speed 120rpm Fast DIY
Linear Guide Rail Translation Stage nema17 Motor XYZ Axis CNC Sliding Table Kit
Linear Sliding Table Module T-shaped Screw Self-locking Digital Display XY Axis

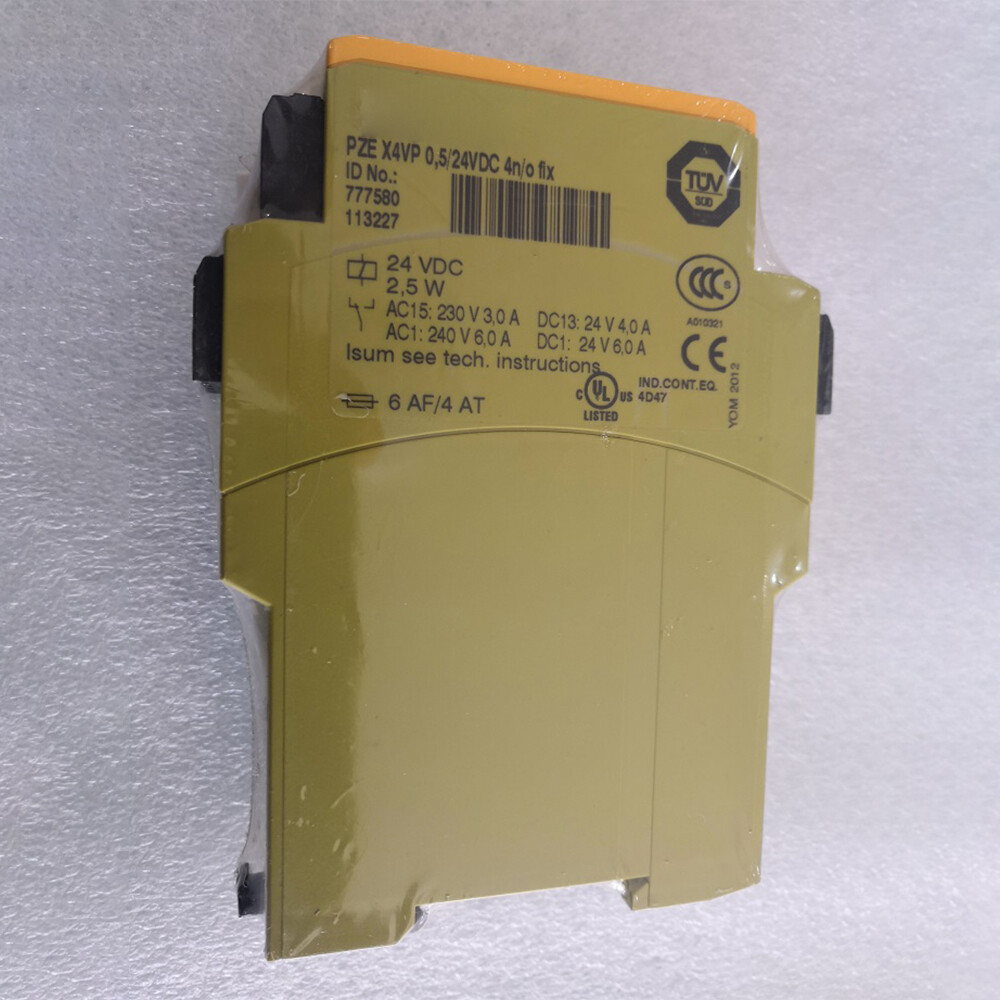

Safety Relay PZE X4VP 777580 For PILZ 24V
FOR JOHN DEERE & MORE Powered Snow Blower Actuator Chute Deflector Control Kit
Floor Scrubber Pallet Jack Battery Charger w/ 175A Rating SB175 Connector 24Volt

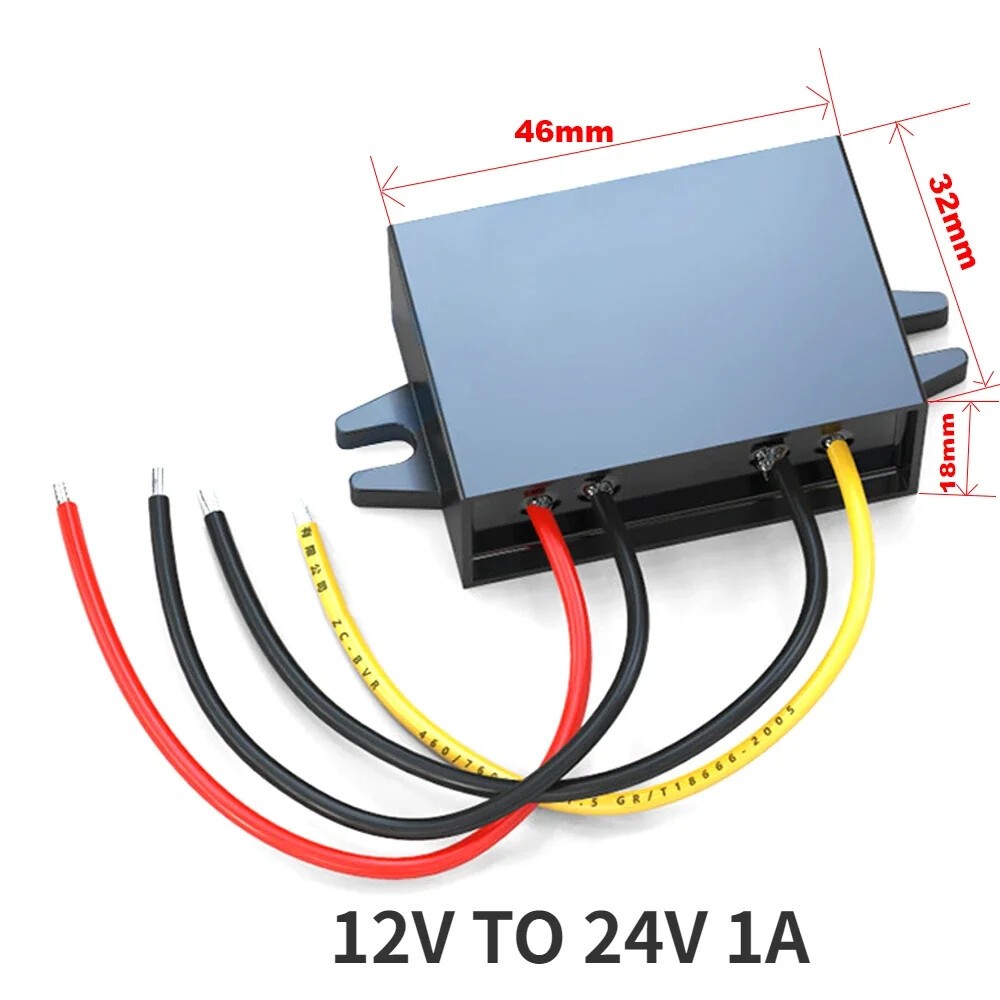

DC 12V TO 24V 1A -30A Step Up Boost Power Supply Power Converter Voltage for car
